T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

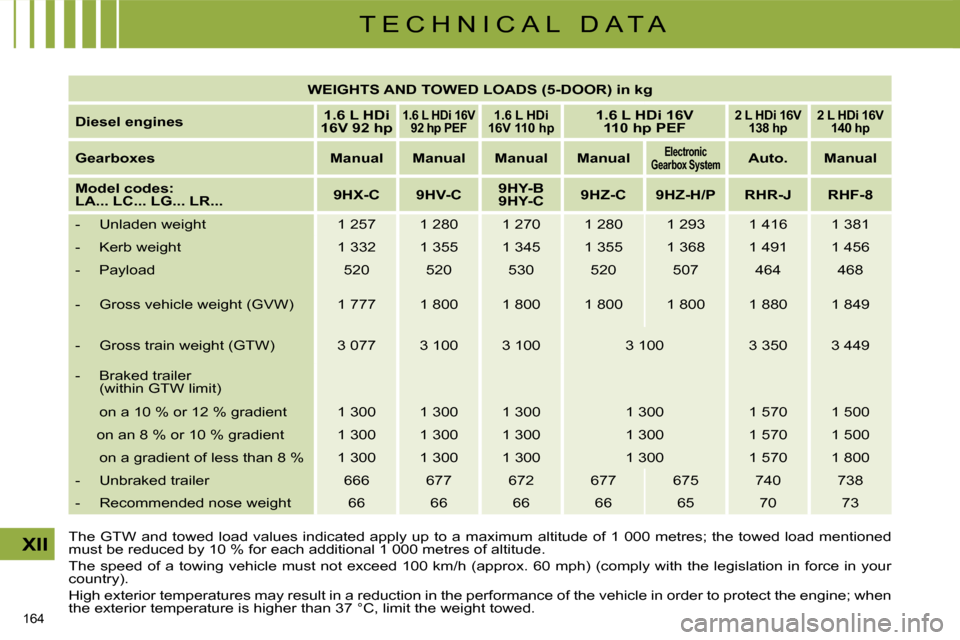

WEIGHTS AND TOWED LOADS (5-DOOR) in kg

Diesel engines
1.6 L HDi
16V 92 hp

1.6 L HDi 16V
92 hp PEF
1.6 L HDi
16V 110 hp
1.6 L HDi 16V
110 hp PEF
2 L HDi 16V
138 hp
2 L HDi 16V
140 hp

Gearboxes Manual Manual Manual Manual
Electronic
Gearbox System
Auto. Manual

Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B

9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 257 1 280 1 270 1 280 1 293 1 416 1 381
- Kerb weight 1 332 1 355 1 345 1 355 1 368 1 491 1 456
- Payload 520 520 530 520 507 46 4 468
- Gross vehicle weight (GVW) 1 777 1 800 1 800 1 800 1 800 1 880 1 849
- Gross train weight (GTW) 3 077 3 100 3 100 3 100 3 350 3 449
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 300 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 666 677 672 677 67 5 740 738
- Recommended nose weight 66 66 66 66 65 70 73

165
XII
T E C H N I C A L D A T A

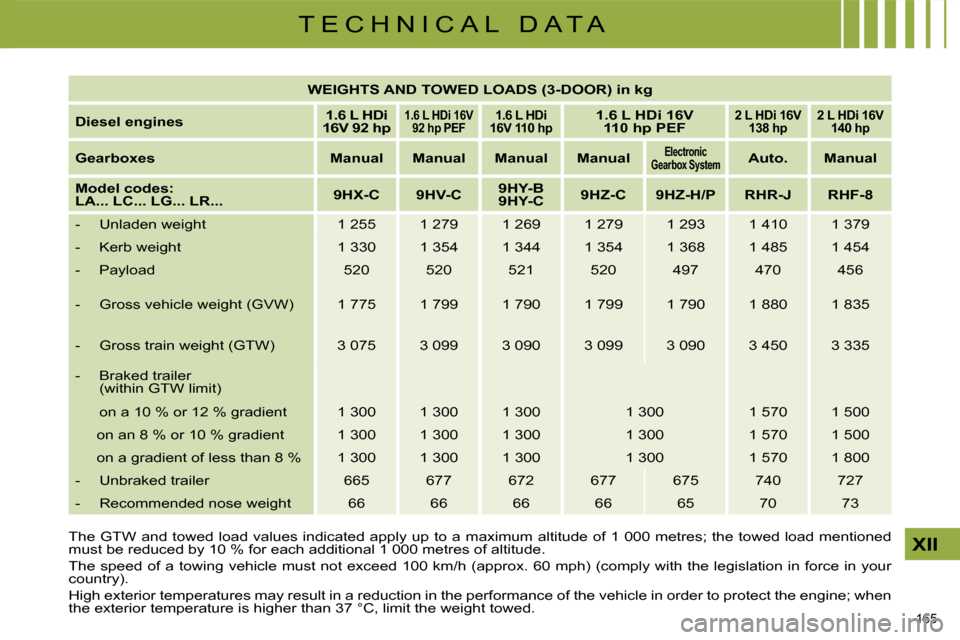

WEIGHTS AND TOWED LOADS (3-DOOR) in kg

Diesel engines
1.6 L HDi
16V 92 hp

1.6 L HDi 16V
92 hp PEF
1.6 L HDi
16V 110 hp
1.6 L HDi 16V
110 hp PEF
2 L HDi 16V
138 hp
2 L HDi 16V
140 hp

Gearboxes Manual Manual Manual Manual
Electronic
Gearbox System
Auto. Manual

Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B

9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 255 1 279 1 269 1 279 1 293 1 410 1 379
- Kerb weight 1 330 1 354 1 344 1 354 1 368 1 485 1 454
- Payload 520 520 521 520 497 47 0 456
- Gross vehicle weight (GVW) 1 775 1 799 1 790 1 799 1 790 1 880 1 835
- Gross train weight (GTW) 3 075 3 099 3 090 3 099 3 090 3 450 3 335
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 300 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 665 677 672 677 67 5 740 727
- Recommended nose weight 66 66 66 66 65 70 73
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

166
XII
T E C H N I C A L D A T A

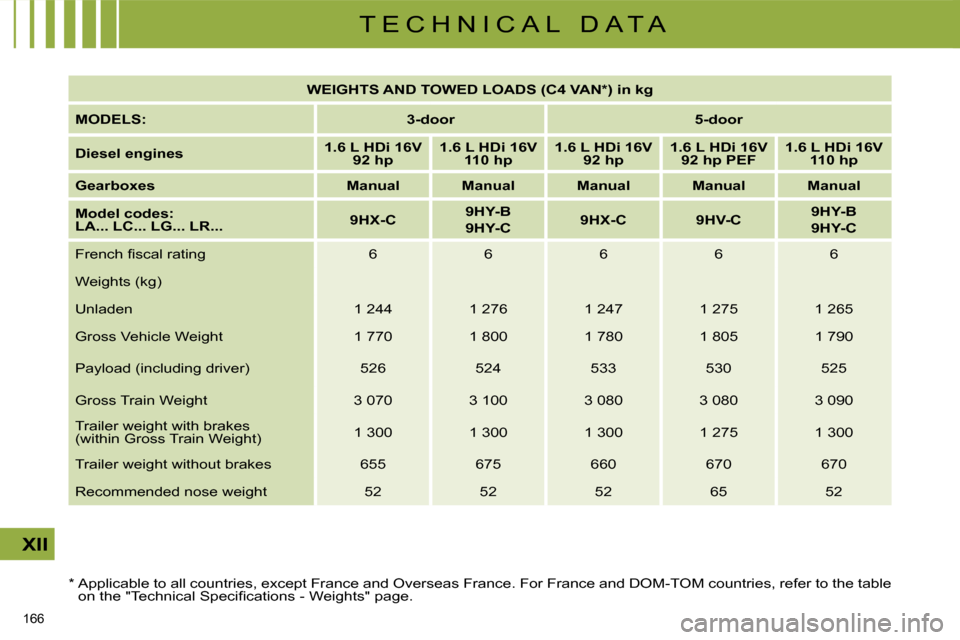

WEIGHTS AND TOWED LOADS (C4 VAN * ) in kg

MODELS:
3-door 5-door

Diesel engines
1.6 L HDi 16V
92
hp
1.6 L HDi 16V
110
hp
1.6 L HDi 16V
92
hp
1.6 L HDi 16V
92
hp
PEF
1.6 L HDi 16V
110
hp

Gearboxes Manual Manual Manual Manual Manual

Model codes:
LA... LC... LG... LR...
9HX-C
9HY-B

9HY-C
9HX-C 9HV-C
9HY-B

9HY-C
French fi scal rating 6 6 6 6 6
Weights (kg)
Unladen 1 244 1 276 1 247 1 275 1 26 5
Gross Vehicle Weight 1 770 1 800 1 780 1 80 5 1 790
Payload (including driver) 526 524 533 530 5 25
Gross Train Weight 3 070 3 100 3 080 3 080 3 090
Trailer weight with brakes
(within Gross Train Weight) 1 300 1 300 1 300 1 275 1 300
Trailer weight without brakes 655 675 660 67 0 670
Recommended nose weight 52 52 52 65 52
* Applicable to all countries, except France and Overseas F rance. For France and DOM-TOM countries, refer to the table
on the "Technical Specifi cations - Weights" page.

173173

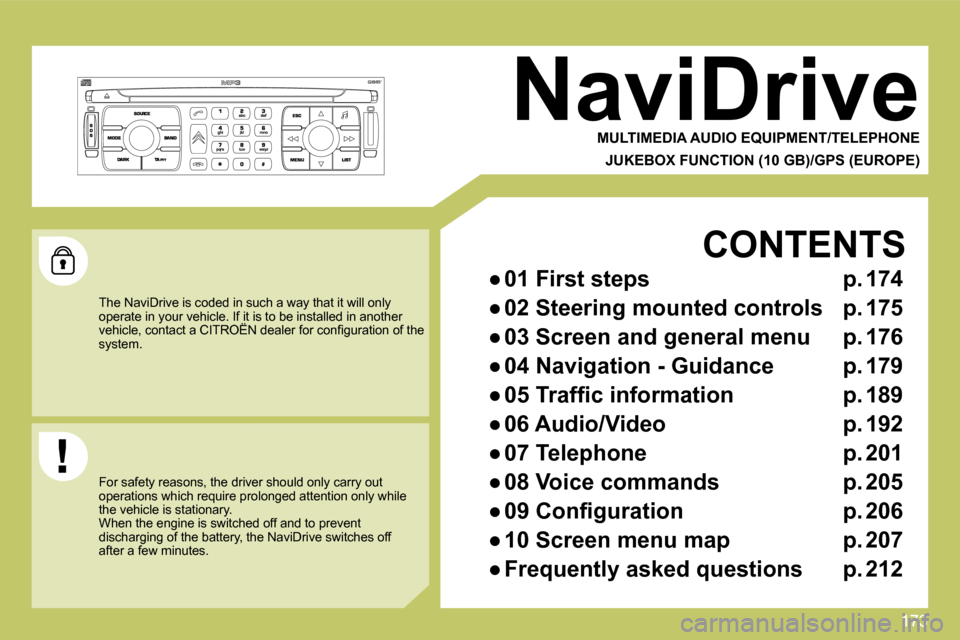

NaviDrive
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The NaviDrive is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of the operate in your vehicle. If it is to be installed in another le. If it i
system.
For safety reasons, the driver should only carry out operations which require prolonged attention only w hile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the NaviDrive switches off after a few minutes.
CONTENTS

213
SOLUTION ANSWER
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
Start the vehicle's engine to increase the battery charge.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
