Citroen C4 DAG 2011 2.G Owner's Manual

289
3
2
4
04
1

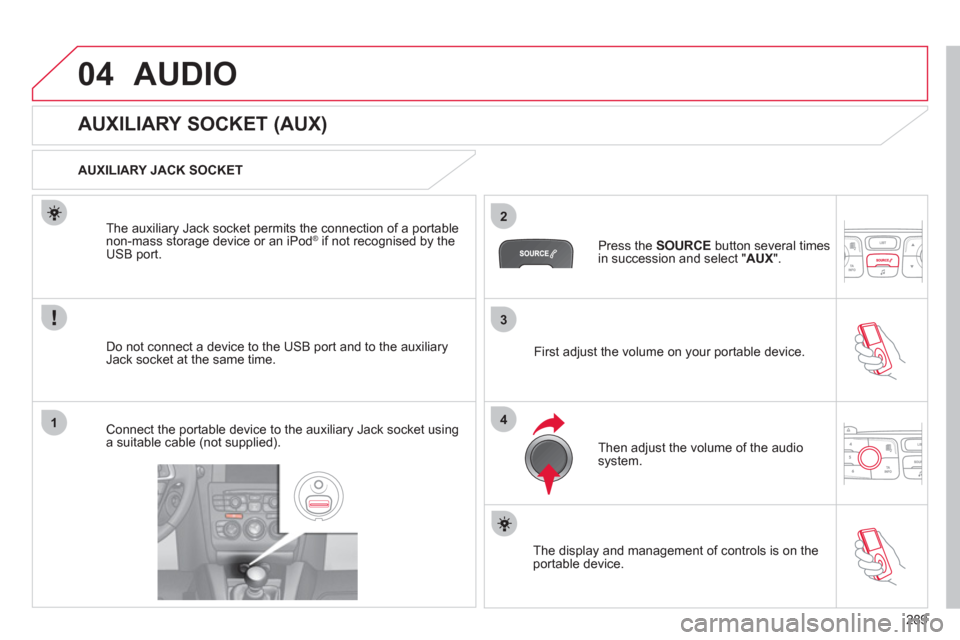

AUDIO












AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET
Do not connect a device to the USB port and to the auxiliar
yJack socket at the same time. The auxiliar
y Jack socket permits the connection of a portable
non-mass storage device or an iPod ®if not recognised by the USB port.
Connect the portable device to the auxiliary Jack socket using a suitable cable (not supplied). Pr
ess the SOURCE
button several times in succession and select "AUX
".

First ad
just the volume on your portable device.
Then ad
just the volume of the audio
system.

The displa
y and management of controls is on theportable device.

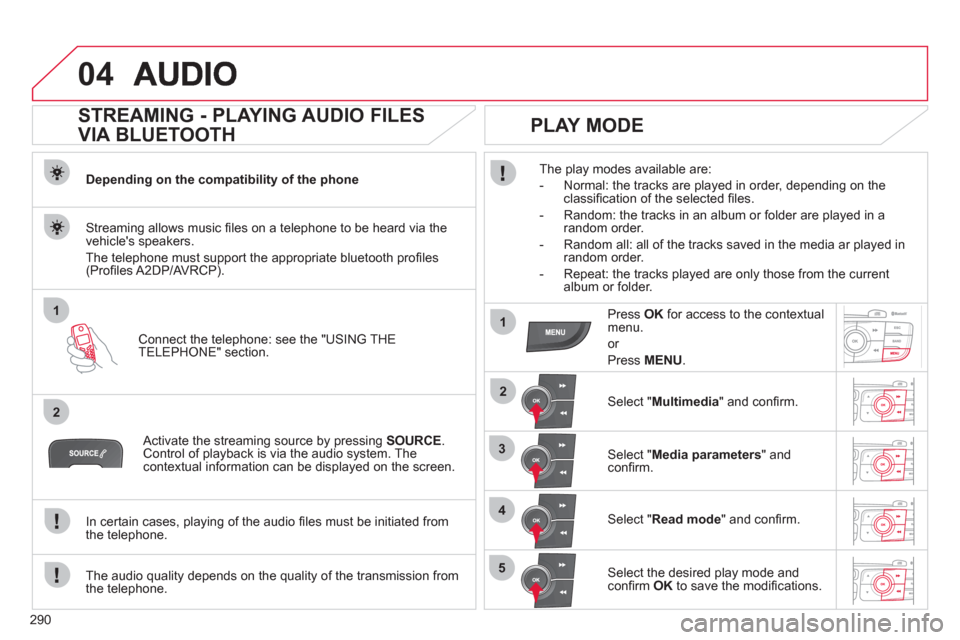

290
04
1
2
1
2
3
4
5






STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH
Depending on the compatibility of the phone
Connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth pro
fi les (Profi les A2DP/AV RCP).

Activate the streaming source by pressing SOURCE.Control of playback is via the audio system. Thecontextual information can be displayed on the screen.
In certain cases, pla
ying of the audio fi les must be initiated from
the telephone.
The audio quality depends on the quality o
f the transmission from
the telephone.

PLAY MODE


The play modes available are:


- Normal: the tracks are pla
yed in order, depending on theclassifi cation of the selected fi les.

- Random: the tracks in an album or
folder are played in arandom order.

- Random all: all o
f the tracks saved in the media ar played in random order.

- Repeat: the tracks pla
yed are only those from the currentalbum or folder.


Press OKfor access to the contextualmenu.

or
Pr
ess MENU.


Select "Multimedia" and confi rm.

Select "Media parameters
" and confi rm.

Select "Read mode
" and confi rm.

Select the desired play mode and confi rm OKto save the modifi cations.

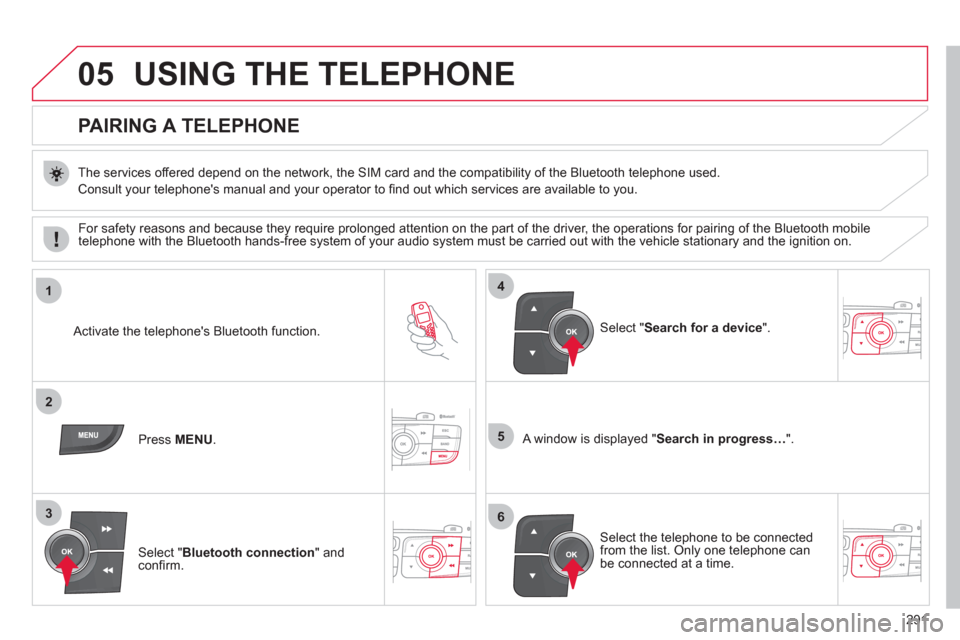

291
05
1
2
5
3
4
6
USING THE TELEPHONE









PAIRING A TELEPHONE


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.

Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function.
Pr
ess MENU . A window is displayed "Search in progress…".
Select the tele
phone to be connected from the list. Only one telephone can be connected at a time.
Select " Search for a device".
For safet
y reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.
Select " Bluetooth connection" andconfi rm.

292
05
7
8
Saisir code authentification
01
OK Del23456789 _
9
10
TELEPHONE

A virtual keypad is displayed on the screen: enter a code with at least 4
digits and conform with OK.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the connection.
Pairin
g can also be initiated from the telephone by searching for detected Bluetooth devices.
Accept the connection to the telephone.

I
f pairing fails, try agin; the number of attempts is not limited. The director
y and the calls list can be accessed after thesynchronisation period (if the telephone is compatible).

Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone ma
y appear
instead of the name of the telephone.

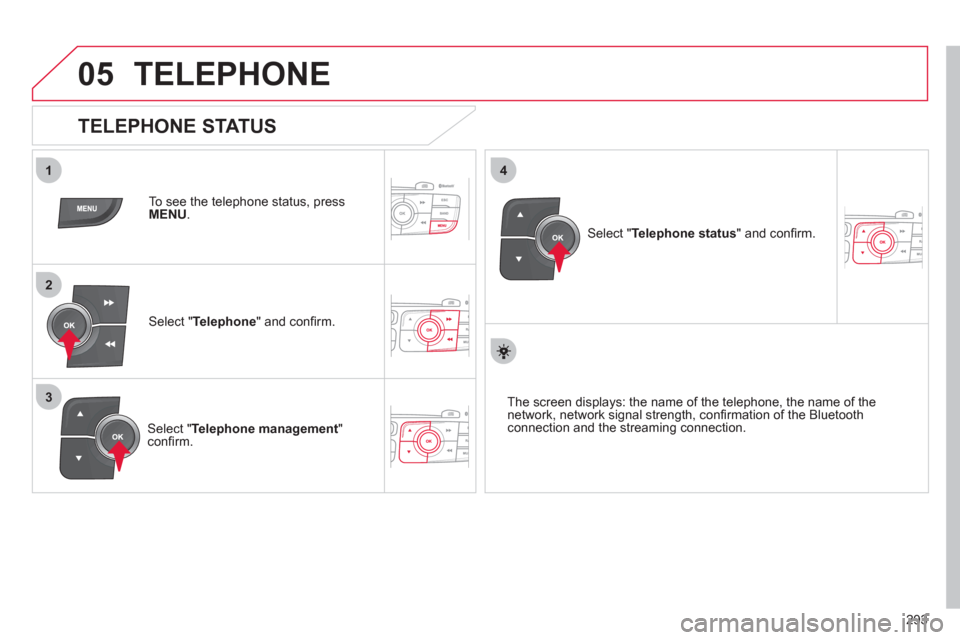

293

05
1
2
4
3
TELEPHONE

To see the telephone status, press
MENU.
Select "Telephone
" and confi rm.

Select "Telephone management
" confi rm.
Select " Telephone status" and confi rm.







TELEPHONE STATUS


The screen displays: the name of the telephone, the name of thenetwork, network signal strength, confi rmation of the Bluetooth connection and the streaming connection.

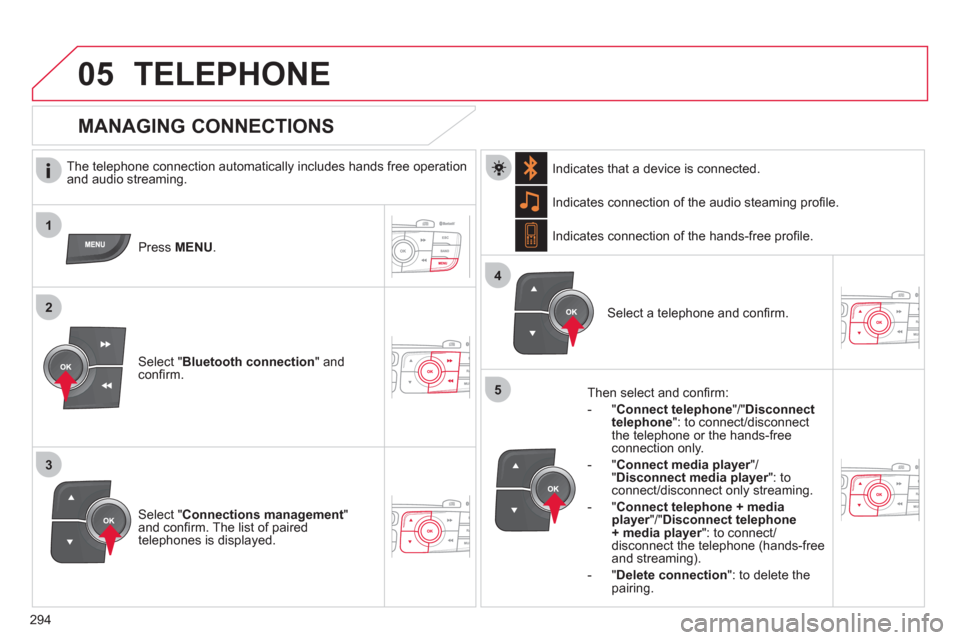

294


1
2
3
4
05
5
TELEPHONE

The telephone connection automatically includes hands free operation
and audio streaming.
Pr
ess MENU.
Select " Bluetooth connection" andconfi rm. Indicates connection of the audio steamin
g profi le.


MANAGING CONNECTIONS
Select " Connections management"and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection o
f the hands-free profi le.

Th
en select and confi rm:


- " Connect telephon
e
"/"Disconnect
telephone ": to connect/disconnect
the telephone or the hands-free
connection only.

-
" Connect media player"/r" Disconnect media player": to rconnect/disconnect only streaming.

- " Connect tele
phone + mediaplayer
"/"rDisconnect telephone+ media player
": to connect/rdisconnect the telephone (hands-free
and streaming).
-
"Delete connection ": to delete the pairing. In
dicates that a device is connected.

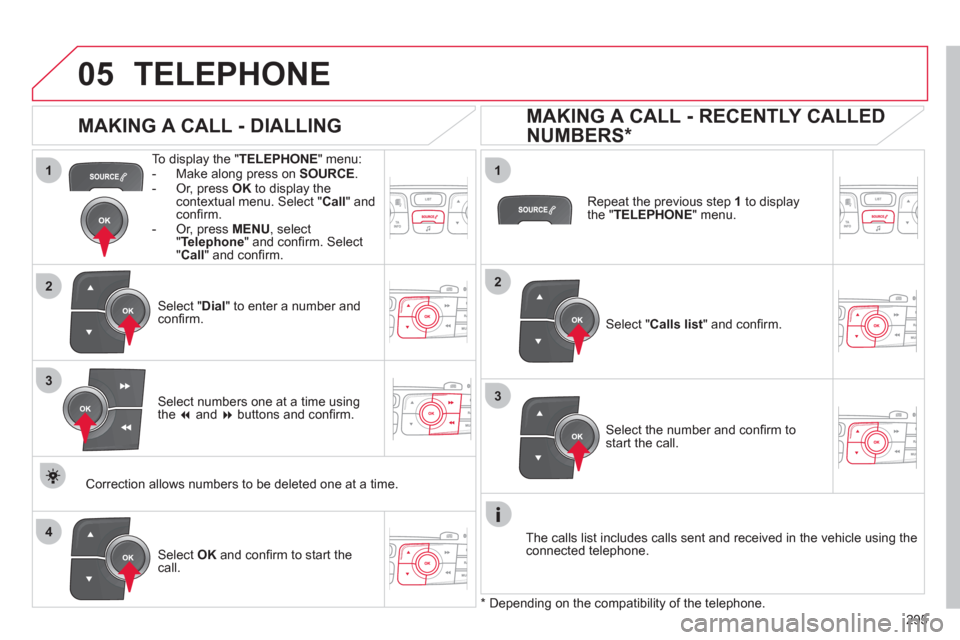

295


1
2
1
4
2
33
05TELEPHONE
To display the "TELEPHONE " menu:
- Make along press on SOURCE.
- Or, press OK
to display thecontextual menu. Select " Call" and confi rm.
- Or, press MENU
, select
"Telephone" and confi rm. Select
"Call
" and confi rm.


Select "Dial " to enter a number andconfi rm.
Repeat the previous step 1
to displaythe "TELEPHONE" menu.

Select OKand confi rm to start the call.

Select "Calls list
" and confi rm.


MAKING A CALL - DIALLING

Select numbers one at a time using
the and buttons and confi rm.

MAKING A CALL - RECENTLY CALLED
NUMBERS *

Select the number and confi rm to start the call.

The calls list includes calls sent and received in the vehicle usin
g the connected telephone.

*
Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.

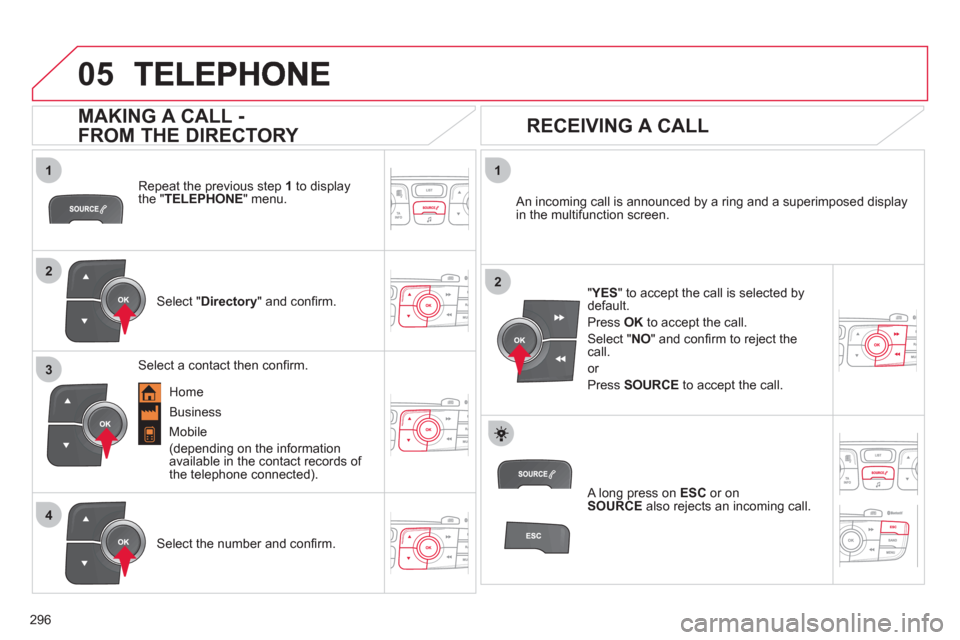

296


1
2
1
4
2
3
05
Repeat the previous step 1to display
the " TELEPHONE" menu.

Select "Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed displayin the multifunction screen.
M
obile
(depending on the informationavailable in the contact records of
the telephone connected).
"YES " to accept the call is selected by default.
Pr
ess OK
to accept the call.

Select " NO
" and confi rm to reject thecall.

or

Press SOURCE
to accept the call.


MAKING A CALL -
FROM THE DIRECTORY
Select a contact then confi rm.

RECEIVING A CALL

Select the number and confi rm.
A long press on ESC
or onSOURCEalso rejects an incoming call.
Business
Home

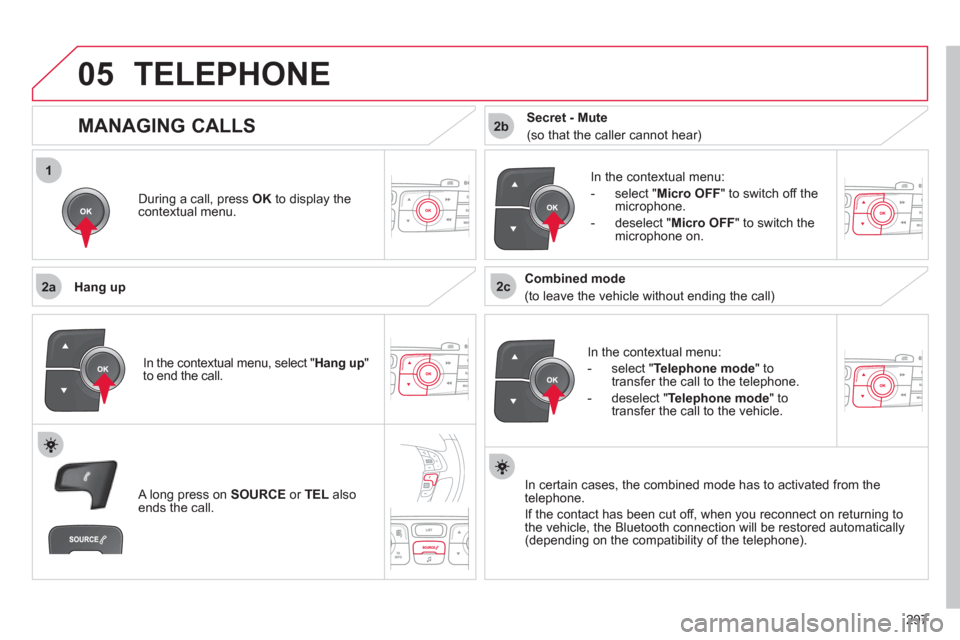

297

1
2a2c
2b
05TELEPHONE
During a call, press OK
to display the contextual menu.

Han
g up

In the contextual menu:

-
select "Telephone mode" to
transfer the call to the telephone.

-
deselect " Telephone mode
" totransfer the call to the vehicle. In th
e contextual menu:
-
select " Micro OFF
" to switch off themicrophone.
-
deselect " Micro OFF" to switch the
microphone on.

In certain cases, the combined mode has to activated
from the
telephone.
If the contact has been cut off, when
you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically (depending on the compatibility of the telephone).


MANAGING CALLS


A long press on SOURCE
or TEL
also ends the call.
In the contextual menu, select "Hang up"to end the call.
Secret - Mute

(so that the caller cannot hear)

Combined mode

(to leave the vehicle without ending the call)

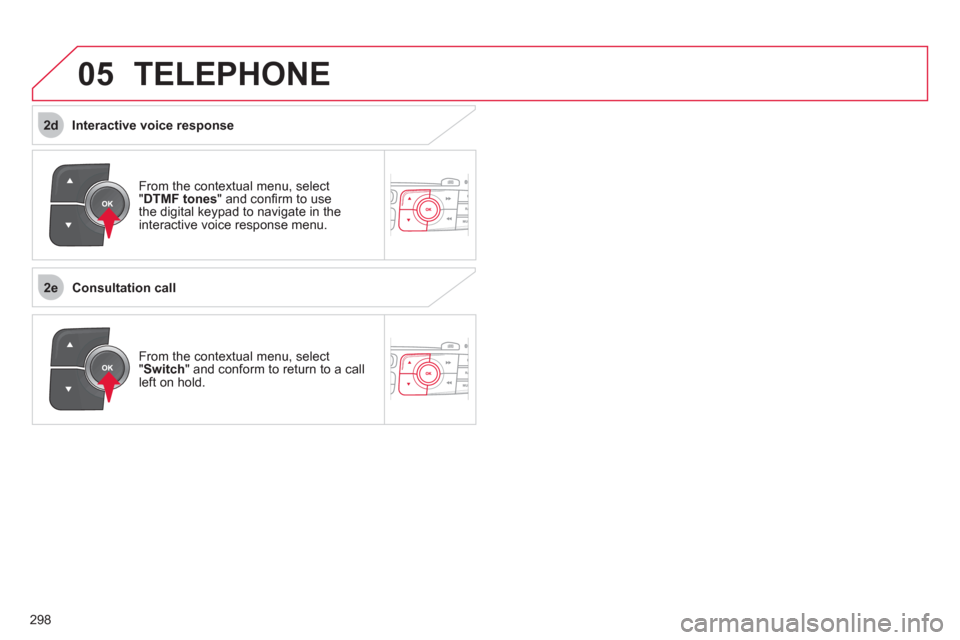

298

2e
2d
05TELEPHONE
From the contextual menu, select "DTMF tones " and confi rm to usethe digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select "Switch" and conform to return to a call left on hold.

Interactive voice response

Consultation call
