309

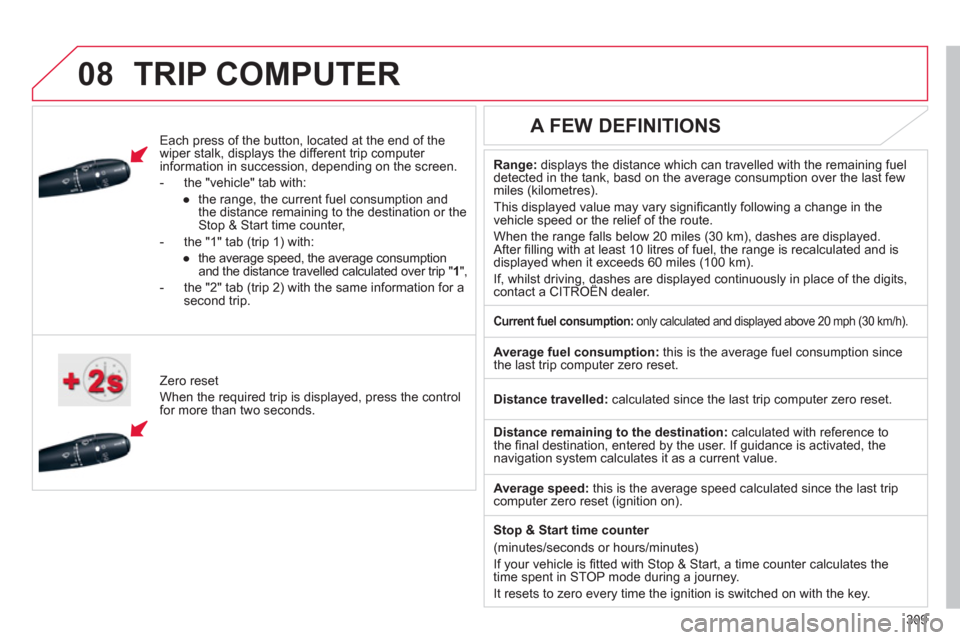

08 TRIP COMPUTER


Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- the "vehicle " tab with:


●
the range, the current fuel consumption and
the distance remaining to the destination or the
Stop & Start time counter,

- the "1" tab (trip 1) with:


●
the average speed, the average consumption
and the distance travelled calculated over trip " 1
",

- the "2" tab (trip 2) with the same information for a
second trip.

Zero reset
When the required trip is displayed, press the control
for more than two seconds.

Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a CITROËN dealer.
A FEW DEFINITIONS


Current fuel consumption:
only calculated and displayed above 20 mph (30 km/h).


Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.

Distance travelled:
calculated since the last trip computer zero reset.

Distance remaining to the destination:
calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.

Average speed:
this is the average speed calculated since the last trip
computer zero reset (ignition on).







Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop & Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition is switched on with the key.

319
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ....................... 28-32
Warning lamps ............................ 33-43
Indicators .................................... 44-46
Manual test ...................................... 47
Setting buttons............................ 48-50


- trip distance recorder

- dashboard lighting dimmer/black
panel

- customisation of dials and screens


Lighting controls ....................... 99-103
Adjusting headlamps ..................... 105
Stop & Start ............................ 163-165
Lane departure warning system .... 166

Door mirrors ................................ 77-78
Electric windows ......................... 93-94

Dashboard fuses .................... 203-205

Opening the bonnet ....................... 180

Adjusting the steering wheel............ 79
Horn ............................................... 135
Audio system .......................... 283-316
Setting the date/time...................... 308
eMyWay satellite
navigation system ................... 231-282
Setting the date/time...................... 273

Manual gearbox ...................... 154-155
6-speed electronic
gearbox system ...................... 156-158
Automatic gearbox.................. 159-161
Parking brake ................. 147-153, 154
Wiper controls..........................108-110
Trip computer ............................. 59-62
Rear view mirror .............................. 79
Emergency or assistance call ...139, 229
Seat belt and front passenger airbag
warning display screen ........... 140-141
Courtesy lamps............................... 111

Interior mood lighting ...................... 112

Hazard warning lamps ................... 135
Central locking ............................ 87-88
Black panel ...................................... 49
Multifunction screens .................. 51-58

Ventilation ................................... 63-64
Manual air conditioning......... 65-66, 70

Digital air conditioning .......... 67-69, 70
Demisting/Defrosting
the rear screen ................................ 70
Memorising speeds ....................... 170
Speed limiter........................... 171-172
Cruise control ......................... 173-174
