check engine light Citroen C4 DAG 2013.5 2.G Owner's Manual
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2013.5, Model line: C4 DAG, Model: Citroen C4 DAG 2013.5 2.GPages: 340, PDF Size: 28.95 MB
Page 29 of 340
![Citroen C4 DAG 2013.5 2.G Owners Manual 27
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle
will Citroen C4 DAG 2013.5 2.G Owners Manual 27
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle
will](/img/9/4338/w960_4338-28.png)
27
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.
As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.
When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilometres)
that you will see the fuel consumption set-
tle down to a consistent average.
Page 165 of 340
![Citroen C4 DAG 2013.5 2.G Owners Manual 9
DRIVING
163
Manual operation
Select position M
for sequential
changing of the six gears.
Push the lever towards the +
sign to
change up a gear.
P Citroen C4 DAG 2013.5 2.G Owners Manual 9
DRIVING
163
Manual operation
Select position M
for sequential
changing of the six gears.
Push the lever towards the +
sign to
change up a gear.
P](/img/9/4338/w960_4338-164.png)
9

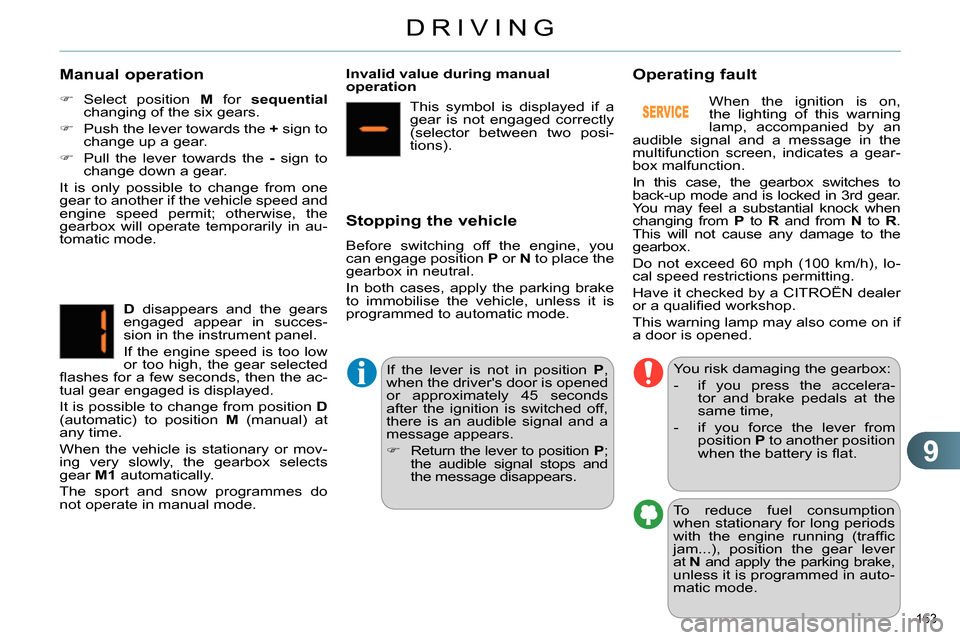

DRIVING
163
Manual operation
Select position M
for sequential
changing of the six gears.
Push the lever towards the +
sign to
change up a gear.
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
D
disappears and the gears
engaged appear in succes-
sion in the instrument panel.
If the engine speed is too low
or too high, the gear selected
fl ashes for a few seconds, then the ac-
tual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1
automatically.
The sport and snow programmes do
not operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
Stopping the vehicle
Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle, unless it is
programmed to automatic mode.
If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds
after the ignition is switched off,
there is an audible signal and a
message appears.
Return the lever to position P
;
the audible signal stops and
the message disappears.
You risk damaging the gearbox:
- if you press the accelera-
tor and brake pedals at the
same time,
- if you force the lever from
position P
to another position
when the battery is fl at. When the ignition is on,
the lighting of this warning
lamp, accompanied by an
audible signal and a message in the
multifunction screen, indicates a gear-
box malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), lo-
cal speed restrictions permitting.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.
Operating fault
To reduce fuel consumption
when stationary for long periods
with the engine running (traffi c
jam...), position the gear lever
at N
and apply the parking brake,
unless it is programmed in auto-
matic mode.
Page 222 of 340
![Citroen C4 DAG 2013.5 2.G Owners Manual 11
PRACTICAL INFORMATION
220
TOWING A TRAILER
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stag Citroen C4 DAG 2013.5 2.G Owners Manual 11
PRACTICAL INFORMATION
220
TOWING A TRAILER
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stag](/img/9/4338/w960_4338-221.png)
11
PRACTICAL INFORMATION
220
TOWING A TRAILER
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
the fi tting of the towbar is en-
trusted to a CITROËN dealer or
a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions.
The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or installation of a bicycle carrier,
with additional lighting and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.
Page 329 of 340
![Citroen C4 DAG 2013.5 2.G Owners Manual 327
ALPHABETICAL INDEX
AABS and EBFD systems............ 140
Accessories ............................... 222
Accessory socket,
12V .................. 114, 115, 118, 122
Adjusting headlamps ......... Citroen C4 DAG 2013.5 2.G Owners Manual 327
ALPHABETICAL INDEX
AABS and EBFD systems............ 140
Accessories ............................... 222
Accessory socket,
12V .................. 114, 115, 118, 122
Adjusting headlamps .........](/img/9/4338/w960_4338-328.png)
327

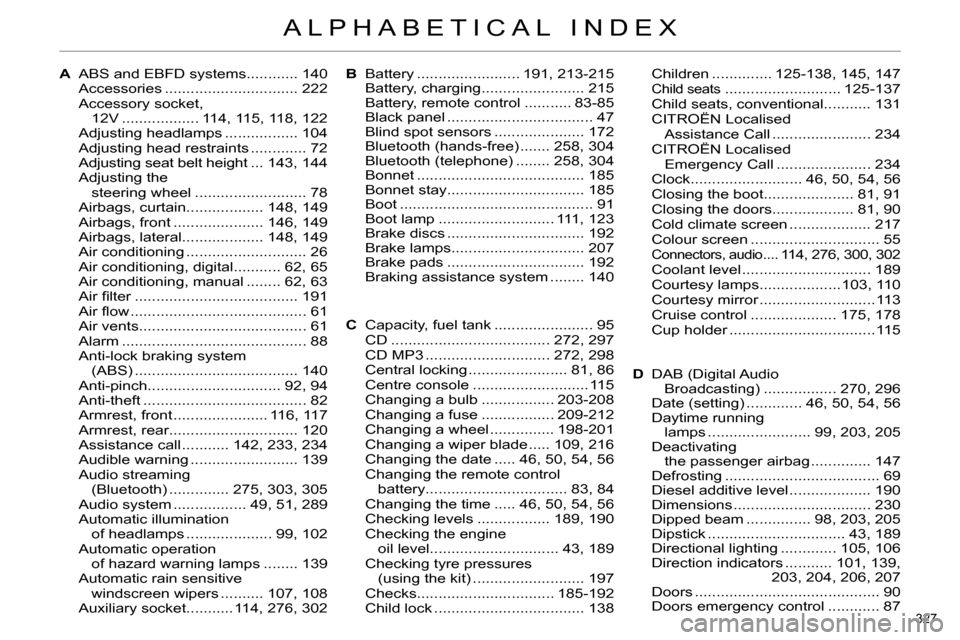

ALPHABETICAL INDEX
AABS and EBFD systems............ 140
Accessories ............................... 222
Accessory socket,
12V .................. 114, 115, 118, 122
Adjusting headlamps ................. 104
Adjusting head restraints ............. 72
Adjusting seat belt height ... 143, 144
Adjusting the
steering wheel .......................... 78
Airbags, curtain.................. 148, 149
Airbags, front ..................... 146, 149
Airbags, lateral................... 148, 149
Air conditioning ............................ 26
Air conditioning, digital........... 62, 65
Air conditioning, manual ........ 62, 63
Air fi lter ...................................... 191
Air fl ow ......................................... 61
Air vents....................................... 61
Alarm ........................................... 88
Anti-lock braking system
(ABS) ...................................... 140
Anti-pinch............................... 92, 94
Anti-theft ...................................... 82
Armrest, front ...................... 116, 117
Armrest, rear .............................. 120
Assistance call ........... 142, 233, 234
Audible warning ......................... 139
Audio streaming
(Bluetooth) .............. 275, 303, 305
Audio system ................. 49, 51, 289
Automatic illumination
of headlamps .................... 99, 102
Automatic operation
of hazard warning lamps ........ 139
Automatic rain sensitive
windscreen wipers .......... 107, 108
Auxiliary socket...........114, 276, 302Children .............. 125-138, 145, 147Child seats ........................... 125-137
Child seats, conventional........... 131
CITROËN Localised
Assistance Call ....................... 234
CITROËN Localised
Emergency Call ...................... 234
Clock.......................... 46, 50, 54, 56
Closing the boot..................... 81, 91
Closing the doors................... 81, 90
Cold climate screen ................... 217
Colour screen .............................. 55
Connectors, audio .... 114, 276, 300, 302
Coolant level .............................. 189
Courtesy lamps...................103, 110
Courtesy mirror ........................... 113
Cruise control .................... 175, 178
Cup holder .................................. 115
DAB (Digital Audio
Broadcasting) ................. 270, 296
Date (setting) ............. 46, 50, 54, 56
Daytime running
lamps ........................ 99, 203, 205
Deactivating
the passenger airbag .............. 147
Defrosting .................................... 69
Diesel additive level ................... 190
Dimensions ................................ 230
Dipped beam ............... 98, 203, 205
Dipstick ................................ 43, 189
Directional lighting ............. 105, 106
Direction indicators ........... 101, 139,
203, 204, 206, 207
Doors ........................................... 90
Doors emergency control ............ 87 Capacity, fuel tank ....................... 95
CD ..................................... 272, 297
CD MP3 ............................. 272, 298
Central locking ....................... 81, 86
Centre console ........................... 115
Changing a bulb ................. 203-208
Changing a fuse ................. 209-212
Changing a wheel ............... 198-201
Changing a wiper blade ..... 109, 216
Changing the date ..... 46, 50, 54, 56
Changing the remote control
battery................................. 83, 84
Changing the time ..... 46, 50, 54, 56
Checking levels ................. 189, 190
Checking the engine
oil level.............................. 43, 189
Checking tyre pressures
(using the kit) .......................... 197
Checks................................ 185-192
Child lock ................................... 138 Battery ........................ 191, 213-215
Battery, charging ........................ 215
Battery, remote control ........... 83-85
Black panel .................................. 47
Blind spot sensors ..................... 172
Bluetooth (hands-free) ....... 258, 304
Bluetooth (telephone) ........ 258, 304
Bonnet ....................................... 185
Bonnet stay................................ 185
Boot ............................................. 91
Boot lamp ........................... 111, 123
Brake discs ................................ 192
Brake lamps............................... 207
Brake pads ................................ 192
Braking assistance system ........ 140 B
D C
