CITROEN C4 DAG 2013 User Guide

9
FAMILIARISATION

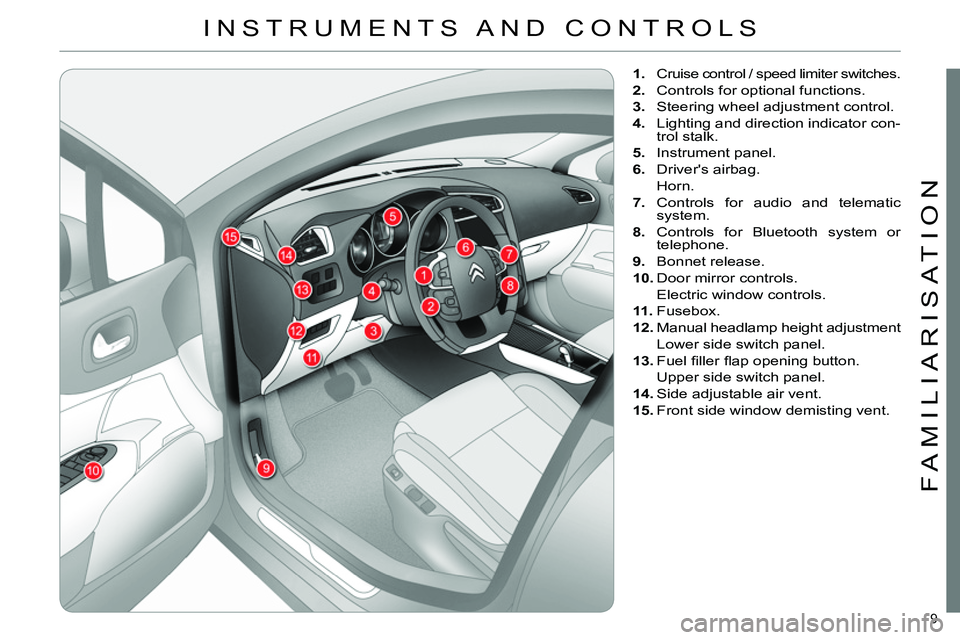

INSTRUMENTS AND CONTROLS




1.
Cruise control / speed limiter switches.

2.
Controls for optional functions.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator con-
trol stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Controls for audio and telematic
system.

8.
Controls for Bluetooth system or
telephone.

9.
Bonnet release.

10.
Door mirror controls.
Electric window controls.

11 .
Fusebox.

12.
Manual headlamp height adjustment
Lower side switch panel.

13.
Fuel fi ller fl ap opening button.
Upper side switch panel.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

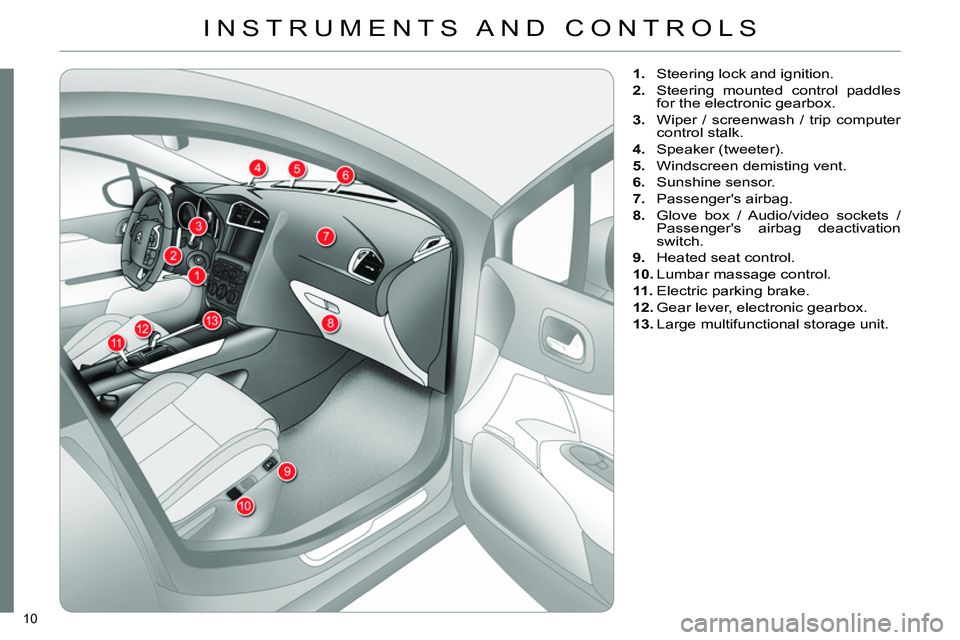

10
INSTRUMENTS AND CONTROLS




1.
Steering lock and ignition.

2.
Steering mounted control paddles
for the electronic gearbox.

3.
Wiper / screenwash / trip computer
control stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box / Audio/video sockets /
Passenger's airbag deactivation
switch.

9.
Heated seat control.

10.
Lumbar massage control.

11 .
Electric parking brake.

12.
Gear lever, electronic gearbox.

13.
Large multifunctional storage unit.

11
FAMILIARISATION

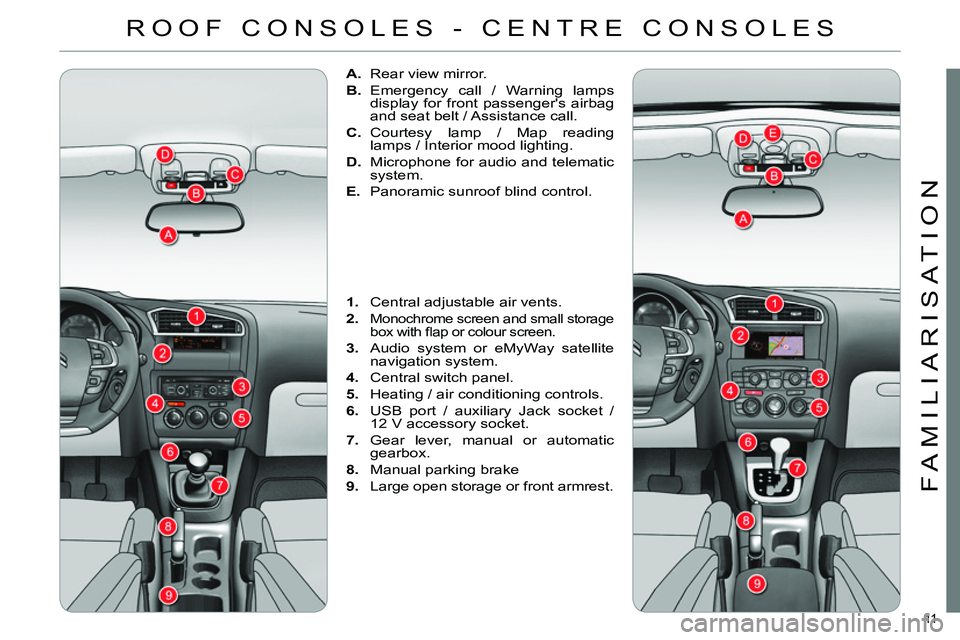

ROOF CONSOLES - CENTRE CONSOLES




A.
Rear view mirror.

B.
Emergency call / Warning lamps
display for front passenger's airbag
and seat belt / Assistance call.

C.
Courtesy lamp / Map reading
lamps / Interior mood lighting.

D.
Microphone for audio and telematic
system.

E.
Panoramic sunroof blind control.




1.
Central adjustable air vents.

2.

Monochrome screen and small storage
box with fl ap or colour screen.


3.
Audio system or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating / air conditioning controls.

6.
USB port / auxiliary Jack socket /
12 V accessory socket.

7.
Gear lever, manual or automatic
gearbox.

8.
Manual parking brake

9.
Large open storage or front armrest.

12

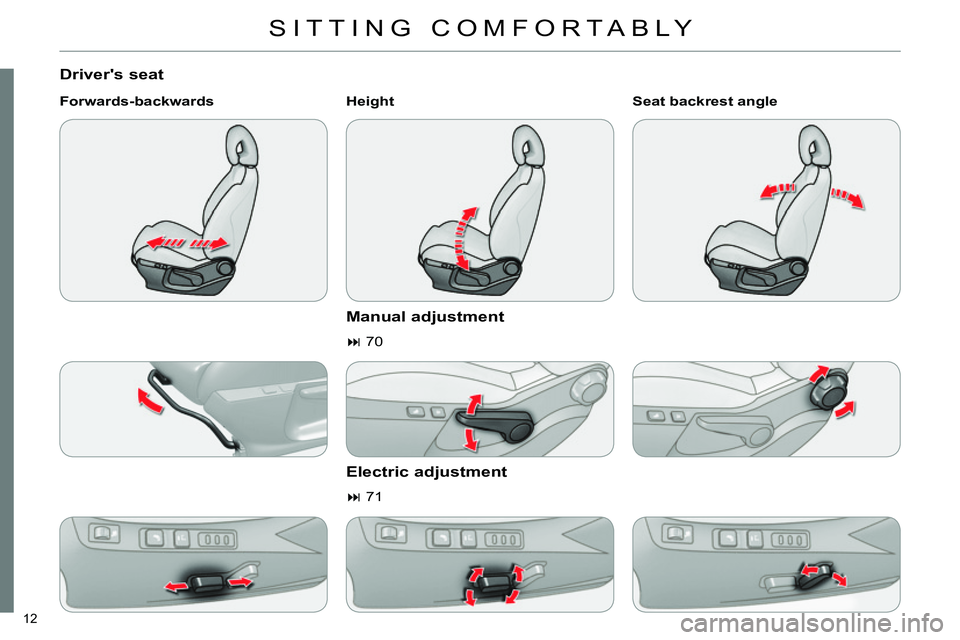

SITTING COMFORTABLY


Driver's seat


Forwards-backwards
Height



Manual adjustment




70



Electric adjustment




71
Seat backrest angle

13
FAMILIARISATION

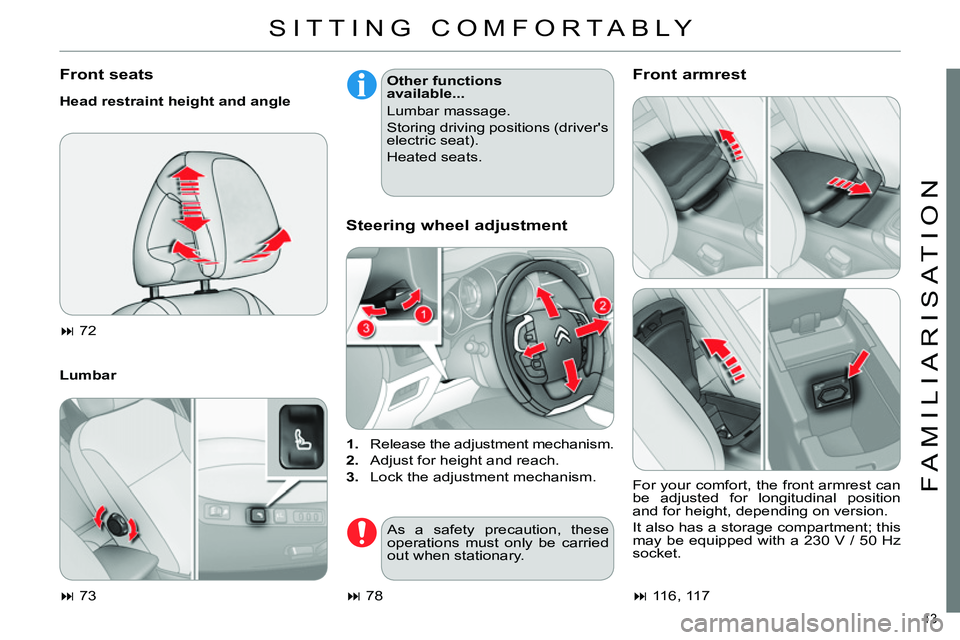

SITTING COMFORTABLY


Front seats


Head restraint height and angle

Lumbar
Other functions
available...
Lumbar massage.
Storing driving positions (driver's
electric seat).
Heated seats.



Steering wheel adjustment
Front armrest




73


1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.



78
For your comfort, the front armrest can
be adjusted for longitudinal position
and for height, depending on version.
It also has a storage compartment; this
may be equipped with a 230 V / 50 Hz
socket.



116, 117



72

As a safety precaution, these
operations must only be carried
out when stationary.

14
SITTING COMFORTABLY

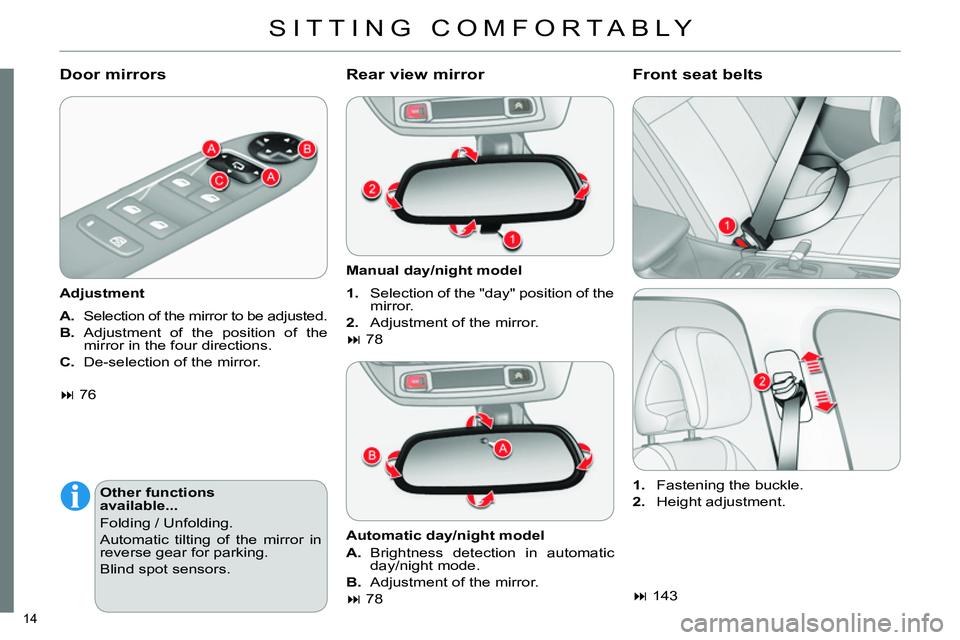

Door mirrors


Adjustment


A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.

C.
De-selection of the mirror.


Rear view mirror


Manual day/night model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.



78

Automatic day/night model


A.
Brightness detection in automatic
day/night mode.

B.
Adjustment of the mirror.



78




Front seat belts



1.
Fastening the buckle.

2.
Height adjustment.



143

Other functions
available...
Folding / Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.
Blind spot sensors.



76

15
FAMILIARISATION

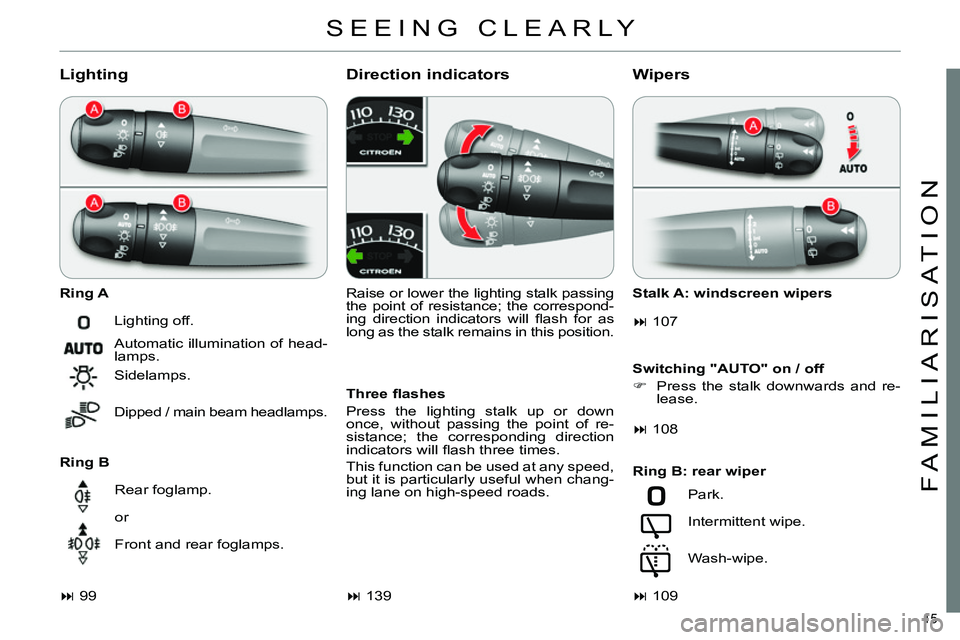

SEEING CLEARLY


Lighting


Ring A

Ring B


Direction indicators


Three fl ashes
Press the lighting stalk up or down
once, without passing the point of re-
sistance; the corresponding direction
indicators will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.

Wipers


Stalk A: windscreen wipers

Switching "AUTO" on / off



Press the stalk downwards and re-
lease.

Ring B: rear wiper



99

Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this position.



139




109

Lighting off.
Rear foglamp.
Park. Automatic illumination of head-
lamps.
Sidelamps.
Dipped / main beam headlamps.
or
Front and rear foglamps. Intermittent wipe.
Wash-wipe.


107




108

16
VENTILATION

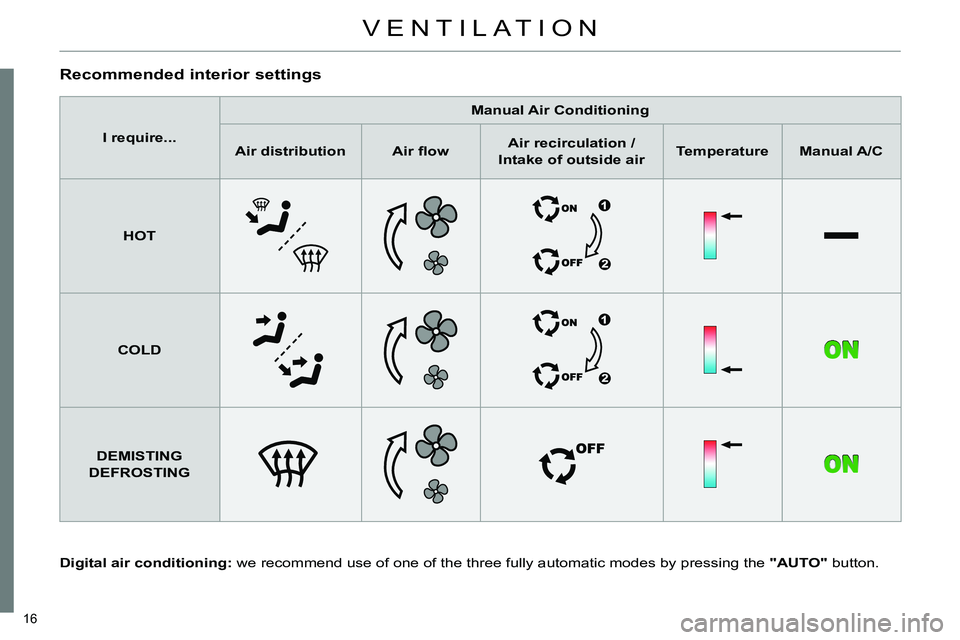

Recommended interior settings


Digital air conditioning:
we recommend use of one of the three fully automatic modes by pressing the "AUTO"
button.

I require...



Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation /

Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING

DEFROSTING

17
FAMILIARISATION

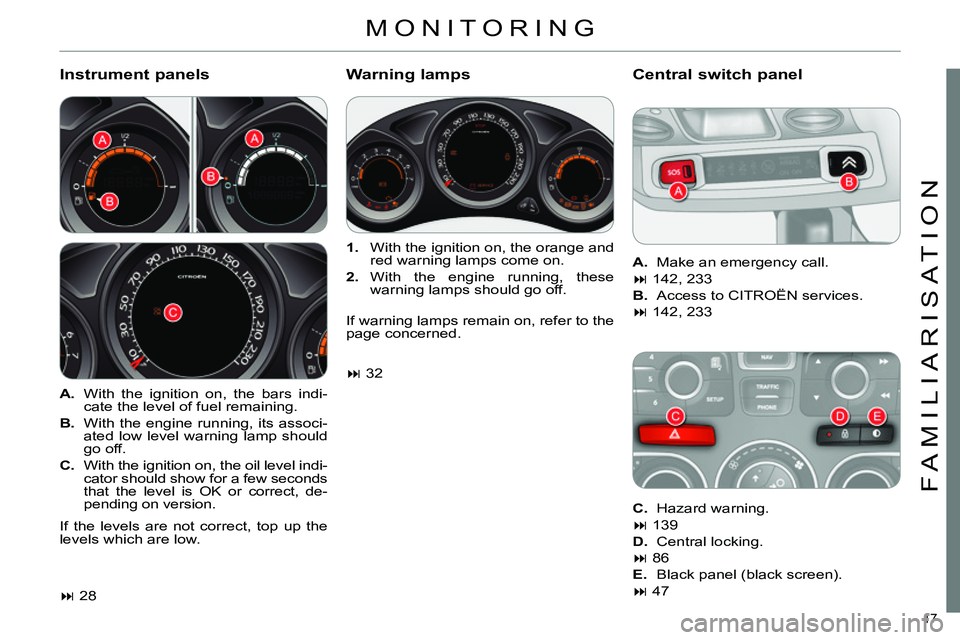

MONITORING


Instrument panels
Warning lamps
Central switch panel



A.
With the ignition on, the bars indi-
cate the level of fuel remaining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level indi-
cator should show for a few seconds
that the level is OK or correct, de-
pending on version.



28


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.



32


A.
Make an emergency call.


142, 233

B.
Access to CITROËN services.


142, 233


C.
Hazard warning.



139

D.
Central locking.



86

E.
Black panel (black screen).



47
If the levels are not correct, top up the
levels which are low. If warning lamps remain on, refer to the
page concerned.

18
MONITORING

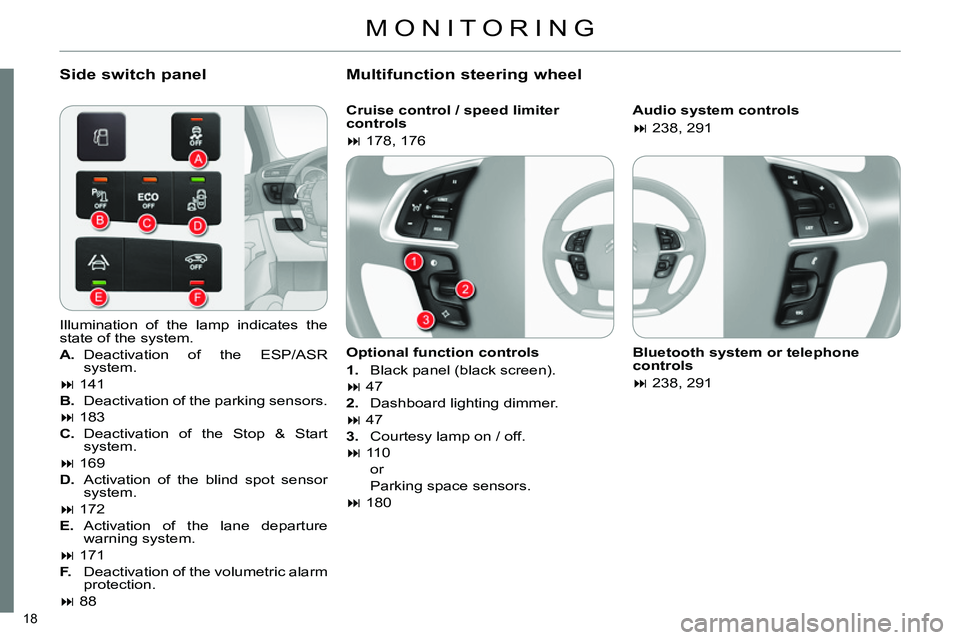

Side switch panel
Multifunction steering wheel


Cruise control / speed limiter
controls



178, 176


Optional function controls


1.
Black panel (black screen).


47

2.
Dashboard lighting dimmer.


47

3.
Courtesy lamp on / off.


110
or
Parking space sensors.


180


Audio system controls



238, 291


Bluetooth system or telephone
controls



238, 291

Illumination of the lamp indicates the
state of the system.


A.
Deactivation of the ESP/ASR
system.


141

B.
Deactivation of the parking sensors.


183

C.
Deactivation of the Stop & Start
system.


169

D.
Activation of the blind spot sensor
system.


172

E.
Activation of the lane departure
warning system.


171

F.
Deactivation of the volumetric alarm
protection.


88
