Page 122 of 256
122III

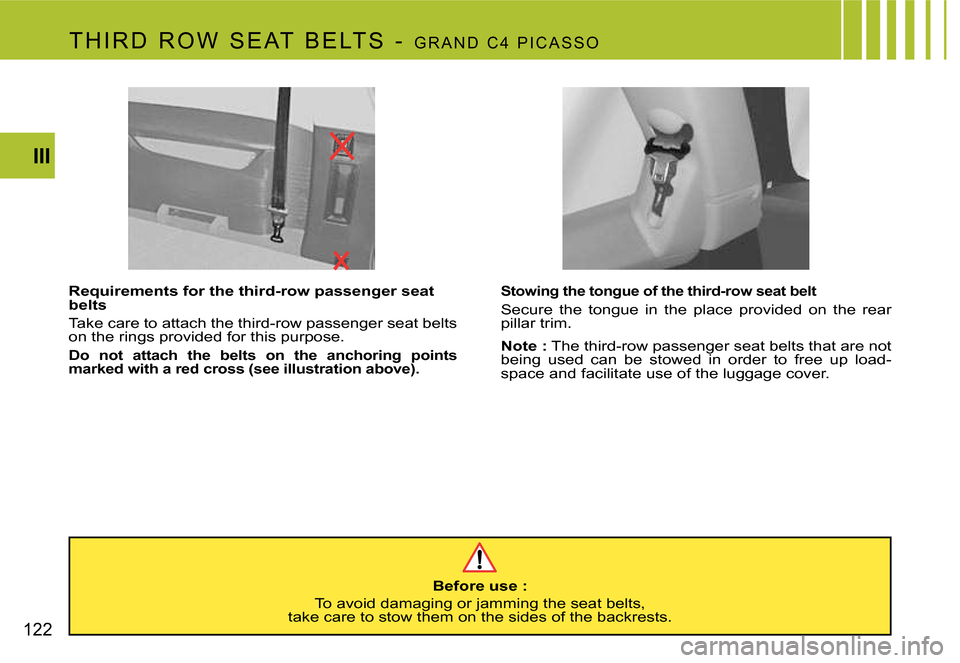

Stowing the tongue of the third-row seat belt
Secure the tongue in the place provided on the rear
pillar trim.
Note :
The third-row passenger seat belts that are not
being used can be stowed in order to free up load-
space and facilitate use of the luggage cover.
Requirements for the third-row passenger seat
belts
Take care to attach the third-row passenger seat belts
on the rings provided for this purpose.
Do not attach the belts on the anchoring points
marked with a red cross (see illustration above).
T H i R d R o W S E AT B E LT S -
G R A N d C 4 P i C A S S o
Before use :
To avoid damaging or jamming the seat belts,
take care to stow them on the sides of the backrests.
Page 125 of 256
III
125

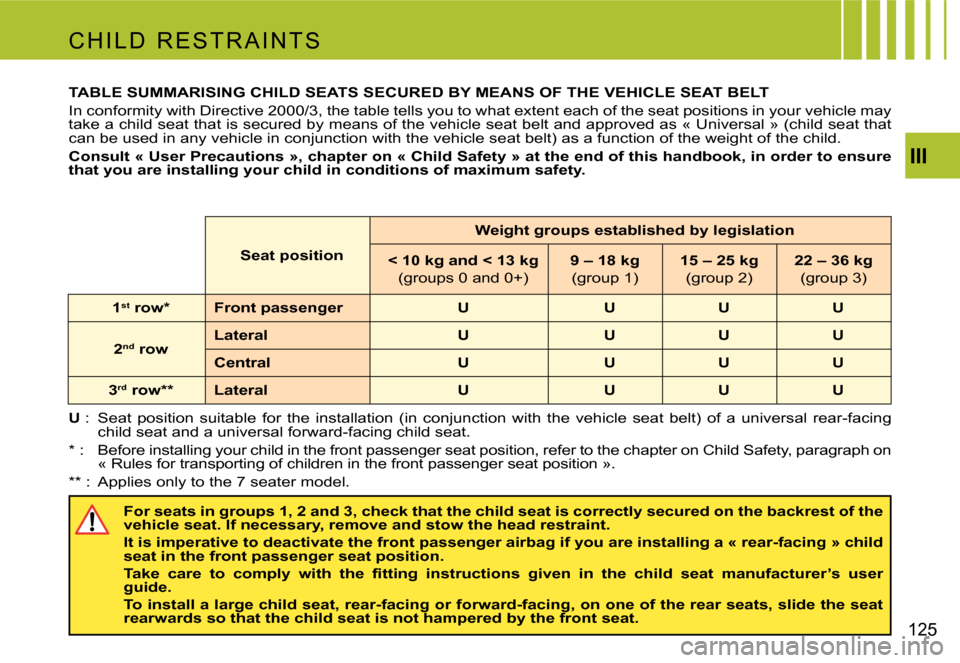

TABLE SUMMARISING CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT
in conformity with directive 2000/3, the table tells you to what extent each of the seat positions in your vehicle may
take a child seat that is secured by means of the vehicle seat b elt and approved as « Universal » (child seat that
can be used in any vehicle in conjunction with the vehicle se at belt) as a function of the weight of the child.
Consult « User Precautions », chapter on « Child Safety » at the end of this handbook, in order to ensure
that you are installing your child in conditions of maxi mum safety.
C H i L d R E S T R A i N T S
For seats in groups 1, 2 and 3, check that the child seat is correctly secured on the backrest of the
vehicle seat. If necessary, remove and stow the head re straint.
It is imperative to deactivate the front passenger airbag i f you are installing a « rear-facing » child
seat in the front passenger seat position.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e c h i l d s e a t m a n u f a c t u r e r ’ s u s e r
guide.
To install a large child seat, rear-facing or forward-faci ng, on one of the rear seats, slide the seat
rearwards so that the child seat is not hampered by the fr ont seat.
Seat position
Weight groups established by legislation
< 10 kg and < 13 kg (groups 0 and 0+) 9 – 18 kg
(group 1) 15 – 25 kg
(group 2) 22 – 36 kg
(group 3)
1 st
row* Front passenger U U U U
2 nd
row Lateral U U U U
Central U U U U
3 rd
row** Lateral U U U U
U
: Seat position suitable for the installation (in conjunction with the vehicle seat belt) of a universal rear-facing
child seat and a universal forward-facing child seat.
* :
Before installing your child in the front passenger seat position, refer to the chapter on Child Safety, paragraph on
« Rules for transporting of children in the front p assenger seat position ».
** :
Applies only to the 7 seater model.
Page 126 of 256
126III
C H i L d R E S T R A i N T S
Child weight / age given as a guide
Less than 10 kg (group 0) Up to around 6 months Less than 10 kg (group 0)
Less than 13 kg (group 0+) Up to around 1year old 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Shell seat « Rear-facing » « Rear-facing »
« Forward-facing »
ISOFIX size
classes :F G C D E C D A B B1**
Front passenger seat X IL-SU IL-SU IUF
ISOFIX rear
lateral seats IL-SU* IL-SU IL-SU IUF
ISOFIX central rear seat X IL-SU IL-SU IUF
I
UF : Seat position suitable for installation of a « uni versal » iSoFiX child seat : iSoFiX « forward-facing » child seat
equipped with a top belt attaching to the top ring on the vehicle’s iSoFiX positions.
I L-SU : Seat position suitable for installation of a « sem i-universal » iSoFiX child seat : iSoFiX « rear-facing » child
seat equipped with a top belt and iSoFiX « shell » chil d seat with a top belt.
* The iSoFiX shell is secured to the bottom rings on an iSoFiX position, occupying 2 rear seat positions.
** To install iSoFiX child seats type B1, remove the head restraints from the seats.

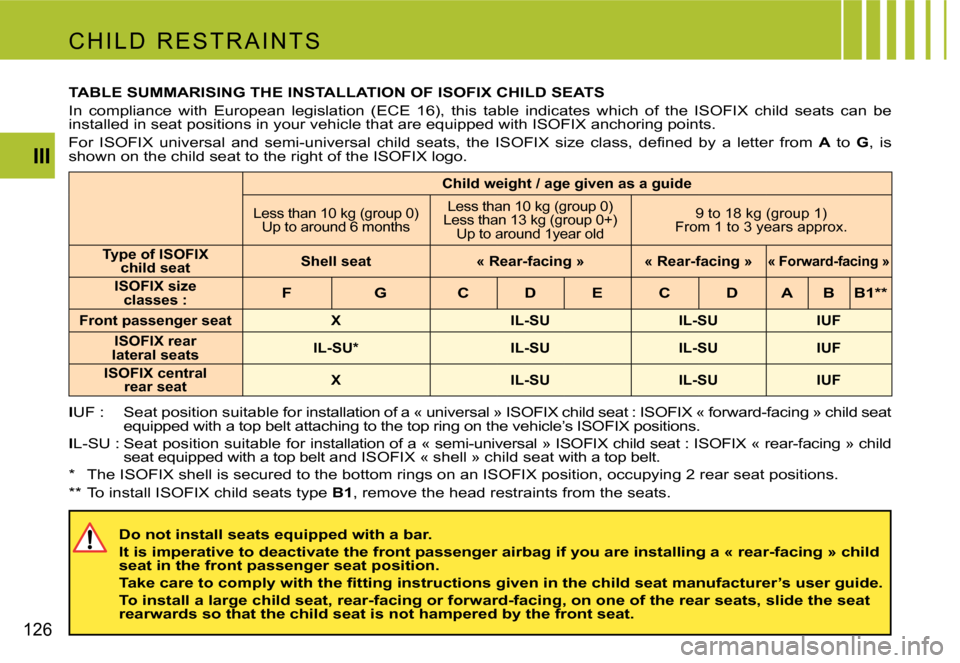

TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHILD SEATS
in compliance with European legislation (ECE 16), this table i
ndicates which of the iSoFiX child seats can be
installed in seat positions in your vehicle that are equippe d with iSoFiX anchoring points.
F o r I S O F I X u n i v e r s a l a n d s e m i - u n i v e r s a l c h i l d s e a t s , t h e I S O F I X s i z e c l a s s , d e fi n e d b y a l e t t e r f r o m A to G, is
shown on the child seat to the right of the iSoFiX logo.
Do not install seats equipped with a bar.
It is imperative to deactivate the front passenger airbag i f you are installing a « rear-facing » child
seat in the front passenger seat position.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e c h i l d s e a t m a n u f a c t u r e r ’ s u s e r g u i d e .
To install a large child seat, rear-facing or forward-faci ng, on one of the rear seats, slide the seat
rearwards so that the child seat is not hampered by the fr ont seat.
Page 127 of 256
III
127
C H i L d R E S T R A i N T S
I S O F I X a n c h o r i n g p o i n t s a n d t h e I S O F I X fi x i n g s y s t e m
Your vehicle is approved to the new iSoFiX regulations. The f
ront passenger seat position and the second row
seat positions on your vehicle are equipped with the regulat ion iSoFiX anchorages.
incorrect installation of a child seat in the vehicle compromises the protection of the child in the event of a collision.
T h e I S O F I X s y s t e m e n a b l e s y o u t o e l i m i n a t e t h e s e r i s k s a r i s i n g f r o m p o o r i n s t a l l a t i o n . T h e I S O F I X fi x i n g s y s t e m
o f f e r s y o u a c h i l d s e a t fi x i n g m e t h o d t h a t i s s t r o n g , r e l i a b l e a n d c o n v e n i e n t .
Consult the legislation in force in your country before instal ling your child seat « forward-facing » in the front pas-
senger seat position.
The ISOFIX child seat recommended for your vehicle is th e ISOFIX RÖMER Duo:
it is marketed in the CiTRoËN network. it is equipped with a top belt and so it is approved as an “iSoFiX universal”
child seat.
if it is installed in a rear seat position, the vehicle’s corre sponding front seat should be adjusted so that the child’s
feet do not touch the backrest of this front seat.
This iSoFiX child seat can also be installed in seat position s that are not equipped with iSoFiX anchoring points.
in this case, it is compulsory to secure it to the vehicle seat by means of the vehicle seat belt.
In the front passenger’s seat position, it is imperative to deactivate the front passenger’s
airbag if you are installing a « rear-facing » child seat there.
Otherwise the child risks being killed or seriously i njured
should the airbag deploy.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s
given in the child seat manufacturer’s user guide.
Page 128 of 256
A
B
D
C
128III
The ISOFIX anchoring system
The three second-row rear seats as well as the fron
t
passenger seat position on your vehicle are equipped
with the regulation iSoFiX anchoring points.
There are 3 rings for each seat position:
- Two « bottom » rings A
and B, between the seat cush-
ion and the backrest. They are approx. 28 cm apart.
- A « top » ring C, behind a cover at the top of the back-
rest for the second-row seats, and at the bottom ri ght
of the seat base for the front passenger seat positio n.
iSoFiX child seats have two latches which are easy to
attach on the two « bottom » rings A and B. Top ring C
1.
To attach the top ring, unclip the cover D.
2. Raise the head restraint of the vehicle seat, then
pass the attachment between the uprights.
3. Next secure the attachment on the « top » ring C
(second row seats).
4. Tension the top belt.
T h i s fi x i n g s y s t e m i s d e s i g n e d f o r c h i l d r e n w e i g h i n g
up to 18 kg.
C H i L d R E S T R A i N T S
Page 141 of 256
12
78
3
56
4
78
12
3
56
4
III
141
B o o T -
C A R G o N E T - G R A N d C 4 P i C A S S o A N d C 4 P i C A S S o
Cargo net : Grand C4 Picasso
There are 8 anchoring rings in the boot to enable you
to secure your loads :
-
1 and 2 underneath the luggage-cover blind.
- 3, 4,
7 and 8 o n t h e b o o t fl o o r .
- 5 and 6 on the boot pillars. Cargo net : C4 Picasso
There are 8 anchoring rings in the boot to enable you
to secure your loads :
-
1, 2, 3 and 4 o n t h e b o o t fl o o r ,
- 5, 6, 7
and 8 on the boot pillars.
T h e c a r g o n e t g i v e s y o u a n u m b e r o f c o n fi g u r a t i o n s d e p e n d i n g o n w h i c h o f t h e a n c h o r i n g r i n g s y o u a t t a c h i t t o
( h a m m o c k f o r m a t , v e r t i c a l / h o r i z o n t a l , o n t h e fl o o r o r b e h i n d t h e s e c o n d r o w s e a t s ) , e n a b l i n g y o u t o s e c u r e a
variety of objects in the boot.
Note : For reasons of safety in the event of sudden braking, it is re commended that you place heavy objects on
t h e fl o o r a s c l o s e a s p o s s i b l e t o t h e b a c k r e s t s o f t h e s e c o n d - r o w s e a t s .
Carrier bag hook
A carrier bag hook is available inside the boot on the left hand side.
Page 144 of 256
144III
B o o T
- H i G H C A R G o N E T - G R A N d C 4 P i C A S S o
Net for retaining high loads
This enables you to maximise the vehicle’s load-
space.
it retains objects, preventing them from sliding towards
the front of the passenger compartment.
You insert it under the roller of the luggage-cover
blind, securing it on the third-row side mouldings. P o s i t i o n 1 ( 5 - s e a t c o n fi g u r a t i o n , b e h i n d t h e
second row)
To install the roller :
1.
Remove the protection covers located under the
blind roller notches.
2. Position the roller under that of the luggage-cover
blind.
3. R a i s e t h e fl a p o n t h e b l i n d , p o s i t i o n i n g i t o n t o p o f
the blind.
4. deploy the net, passing it between the rollers and
the seats.
5. Pull the net upwards.
6. A n c h o r i t t o t h e r o o f b y m e a n s o f t h e fi x i n g p o i n t s
(after you have removed their covers).
To remove :
- Perform these operations in reverse order.
P o s i t i o n 2 ( 2 - s e a t c o n fi g u r a t i o n , b e h i n d t h e
fi r s t r o w )
To install the roller :
1. With the second-row seats folded away, remove
t h e c o v e r s o f t h e I s o fi x a n c h o r i n g p o i n t s l o c a t e d
on the seat backrests.
2. S e c u r e t h e r o l l e r o n t h e I s o fi x a n c h o r i n g p o i n t s .
3. deploy the net and pull it upwards.
4. A n c h o r i t t o t h e r o o f b y m e a n s o f t h e fi x i n g p o i n t s
(after you have removed their covers).
Page 222 of 256
212121
IICity hall, City centre
Hospital
PUBLIC AUTHORITIES AND SECURITY
School, university, college
H OTELS , RESTAURANTS , BUSINESS AND RETAIL PARKS
Selected hotels
Vineyards
Selected restaurants
Retail parks, trading estates
Supermakets, Shopping malls
S PORTS AND OPEN AIR CENTRES
Sports centres and complexes
Golf courses
Parks, gardens
Winter sports
Public attractions
C ULTURE , TOURISM , ENTERTAINMENT
Culture, museums and theatres
Historic monuments, tourist attractions
Exhibitions
Cinemas
Skating, Bowling
TRANSPORT AND MOTORING
A i r p o r t s , fl y i n g c l u b s
Rail stations, bus stations
Car hire
Car parks, rest areas
Ferry terminals, port areas
Service stations, garages
Radar zones/High-accident zones (depending on the cou ntry of marketing and availability of the service)
CiTRoËN dealer or Repairer
Casinos and night life
M A P
L i S T o F C E N T R E S o F i N T E R E S T ( P o i )
Police
Law Courts
Michelin guides
Activity centre
Customs
