Page 130 of 256
1
1
2
130III
2. Interior lamp with three positions
in this position, the interior
lamp comes on when you
open a door or the boot.
in this position, it is deac
-
tivated and thus perma-
nently off.
in this position, lighting is
permanent.
They come on immediate-
ly you unlock the vehicle
or open a door.
They go out 30 seconds after the
doors have been closed, or when
the ignition is switched on.
Automatic illumination of the
interior lamps
« PANORAMIC GLASS ROOF »
LAMPS
The panoramic glass roof lamps
have two operating modes :
- automatic lighting when you
open a door or when the front in-
terior lamp is in the permanent
position,
- permanent lighting.
i N T E R i o R L i G H T i N G
Note :
- the opening of a door switches the interior lamps on.
- the opening of the tailgate switches the third-row interi or lamp on, also the boot lamps.
INTERIOR LAMPS
1. Reading lamps
A press on one of the buttons
switches the corresponding spot-
lamp on or off.
They do not come on if the ignition
is switched off or if the vehicle is in
economy mode. When you leave the vehicle :
-
they come on when you remove the
ignition key (for about 30 seconds),
or when a door is opened
.
-
they go out after 30 seconds with
the doors closed, or immediately the
vehicle is locked, or after 10 minutes
if a door is open
.

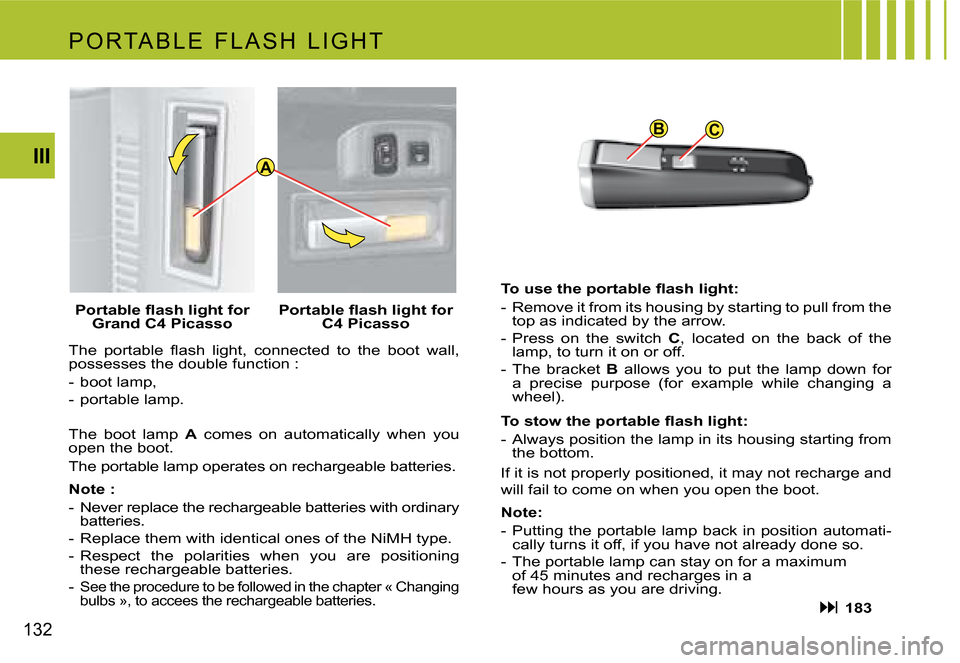

Page 132 of 256
CB
A
132III
T h e p o r t a b l e fl a s h l i g h t , c o n n e c t e d t o t h e b o o t w a l l ,
possesses the double function :
- boot lamp,
- portable lamp.
The boot lamp
A comes on automatically when you
open the boot.
The portable lamp operates on rechargeable batterie s.
Note :
- Never replace the rechargeable batteries with ordi nary
batteries.
- Replace them with identical ones of the NiMH type.
- Respect the polarities when you are positioning these rechargeable batteries.
-
See the procedure to be followed in the chapter « C hanging
bulbs », to accees the rechargeable batteries. T o u s e t h e p o r t a b l e fl a s h l i g h t :
- Remove it from its housing by starting to pull from the
top as indicated by the arrow.
- Press on the switch C
, located on the back of the
lamp, to turn it on or off.
- The bracket B
allows you to put the lamp down for
a precise purpose (for example while changing a
wheel).
T o s t o w t h e p o r t a b l e fl a s h l i g h t :
- Always position the lamp in its housing starting from the bottom.
if it is not properly positioned, it may not recharge and will fail to come on when you open the boot.
Note:
- Putting the portable lamp back in position automati -
cally turns it off, if you have not already done so.
- The portable lamp can stay on for a maximum
of 45 minutes and recharges in a
few hours as you are driving. : 183
P o r t a b l e fl a s h l i g h t f o r
Grand C4 Picasso P o r t a b l e fl a s h l i g h t f o r
C4 Picasso
P o R TA B L E F L A S H L i G H T

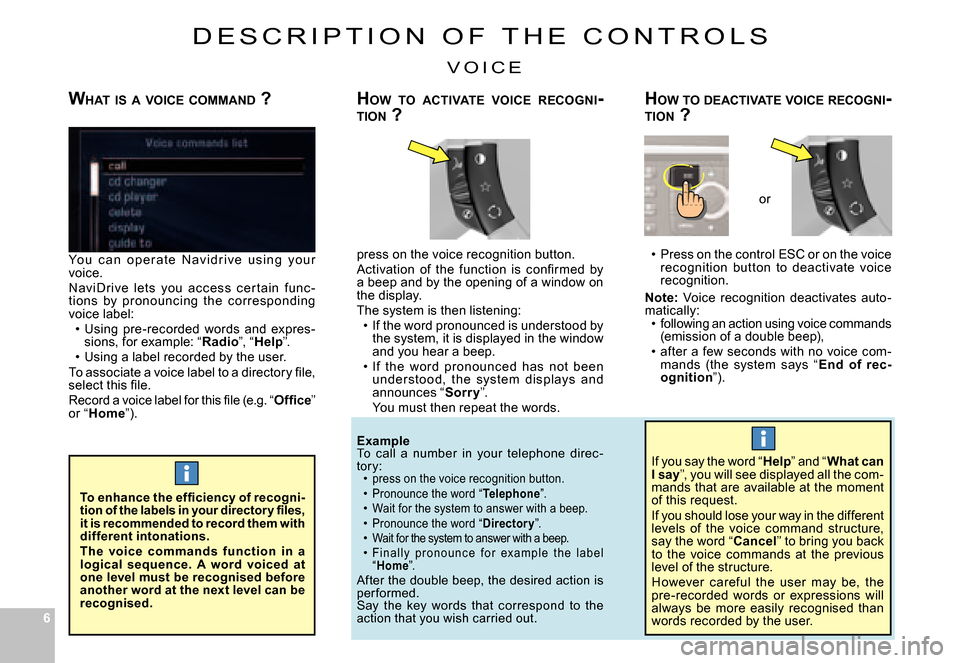

Page 207 of 256
66
d E S C R i P T i o N o F T H E C o N T R o L S
V o i C E
Yo u c a n o p e r a t e N av i d r i ve u s i n g y o u r voice.Navidr ive lets you ac c ess c er tain func -tions by pronouncing the c or responding voice label:Using pre-recorded words and expres-sions, for example: “Radio”, “Help”.Using a label recorded by the user. T o a s s o c i a t e a v o i c e l a b e l t o a d i r e c t o r y fi l e , s e l e c t t h i s fi l e . R e c o r d a v o i c e l a b e l f o r t h i s fi l e ( e . g . “ O f fi c e” or “Home”).
Page 242 of 256
414141
IV
DBC
A
C d C H A N G E R S o U R C E
( A C C o R d i N G T o E Q U i P M E N T )
Hold down one of the buttons 1 to 5 on the alphanumeric keypad to choose the Cd that you wish to play back.
1. Press on button C or rotate the control on the steering wheel D upwards to listen to the next Cd.2. Press on button B or rotate the control on the steering wheel D downwards to listen to the previous Cd.Note: Playback of the star t of the Cd is automatic.After each change of source, on return to Cd changer source, playback will resume at the same point where it had been interrupted.
WHAT IS THE CD CHANGER ?SELECTING A CD
P LAY BACK THE NEXT /PREVIOUS CD
or
CD CHANGER SOURCE
This device can accommodate 5 discs.
I NSERTING CDS INTO THE MAGAZINE
insert the Cds printed sur face to the left.
Note:Each compartment takes one disc only.The Cd changer will not operate if discs are inserted the wrong way up.
R EMOVING DISCS
To remove a Cd, give a long press on the corresponding button A.
S ELECTING CD CHANGER SOURCE
Press successively on button 24, until the desired source is obtained.
Page 243 of 256
4242
V
T E L E P H o N E
G E N E R A L
The telephone function consists of a GSM telephone incorporated in Navidrive.it has a “Hands-free” function, provided by a microphone located in the front interior lamp and controls at the steering wheel for accessing the majority of operations.
A s w i t h a n y m o b i l e t e l e p h o n e , t h i s t el ep hon e op er at e s t hanks to b ot h cellular and terrestrial networks. For t h i s r e a s o n , i t c a n n o t g u a r a n t e e a c o n -nection in all cases.
Do not allow yourself to be distracted while you are driving.I t i s e s s e n t i a l t o c o m p l y w i t h t h e national legislation in force.Stop the vehicle if you wish to pursue a telephone conversation or proceed w i t h c e r t a i n a c t i o n s (c o m p o si n g a number for example).
Apart from during a communication, it indi-cates to you:the presence of voice messages or text messages (S M S) that have not been read,the communication time since the last update,the level of reception of the networks.
during a communication, it indicates to you:the time elapsed since the star t of the communication,the number (provided the option and the service are available),the name of your correspondant (if this is recorded in the directory),the level of reception of the network.
