TABLE SUMMARISING CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT
in conformity with directive 2000/3, the table tells you to what extent each of the seat positions in your vehicle may
take a child seat that is secured by means of the vehicle seat b elt and approved as « Universal » (child seat that
can be used in any vehicle in conjunction with the vehicle se at belt) as a function of the weight of the child.
Consult « User Precautions », chapter on « Child Safety » at the end of this handbook, in order to ensure
that you are installing your child in conditions of maxi mum safety.
C H i L d R E S T R A i N T S
For seats in groups 1, 2 and 3, check that the child seat is correctly secured on the backrest of the
vehicle seat. If necessary, remove and stow the head re straint.
It is imperative to deactivate the front passenger airbag i f you are installing a « rear-facing » child
seat in the front passenger seat position.
Take care to comply with the fitting instructions given in the child seat manufacturer’s user
guide.
To install a large child seat, rear-facing or forward-faci ng, on one of the rear seats, slide the seat
rearwards so that the child seat is not hampered by the fr ont seat.
Seat position
Weight groups established by legislation
< 10 kg and < 13 kg (groups 0 and 0+) 9 – 18 kg
(group 1) 15 – 25 kg
(group 2) 22 – 36 kg
(group 3)
1 st
row* Front passenger U U U U
2 nd
row Lateral U U U U
Central U U U U
3 rd
row** Lateral U U U U
U
: Seat position suitable for the installation (in conjunction with the vehicle seat belt) of a universal rear-facing
child seat and a universal forward-facing child seat.
* :
Before installing your child in the front passenger seat position, refer to the chapter on Child Safety, paragraph on
« Rules for transporting of children in the front p assenger seat position ».
** :
Applies only to the 7 seater model.

126III
C H i L d R E S T R A i N T S
Child weight / age given as a guide
Less than 10 kg (group 0) Up to around 6 months Less than 10 kg (group 0)
Less than 13 kg (group 0+) Up to around 1year old 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Shell seat « Rear-facing » « Rear-facing »
« Forward-facing »
ISOFIX size
classes :F G C D E C D A B B1**
Front passenger seat X IL-SU IL-SU IUF
ISOFIX rear
lateral seats IL-SU* IL-SU IL-SU IUF
ISOFIX central rear seat X IL-SU IL-SU IUF
I
UF : Seat position suitable for installation of a « uni versal » iSoFiX child seat : iSoFiX « forward-facing » child seat
equipped with a top belt attaching to the top ring on the vehicle’s iSoFiX positions.
I L-SU : Seat position suitable for installation of a « sem i-universal » iSoFiX child seat : iSoFiX « rear-facing » child
seat equipped with a top belt and iSoFiX « shell » chil d seat with a top belt.
* The iSoFiX shell is secured to the bottom rings on an iSoFiX position, occupying 2 rear seat positions.
** To install iSoFiX child seats type B1, remove the head restraints from the seats.
TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHILD SEATS
in compliance with European legislation (ECE 16), this table i
ndicates which of the iSoFiX child seats can be

installed in seat positions in your vehicle that are equippe d with iSoFiX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size cl ass, defined by a letter from A to G, is
shown on the child seat to the right of the iSoFiX logo.
Do not install seats equipped with a bar.
It is imperative to deactivate the front passenger airbag i f you are installing a « rear-facing » child
seat in the front passenger seat position.
Take care to comply with the fitting instructions given in the child seat manufacturer’s user guide.
To install a large child seat, rear-facing or forward-faci ng, on one of the rear seats, slide the seat
rearwards so that the child seat is not hampered by the fr ont seat.

A
B
D
C
128III

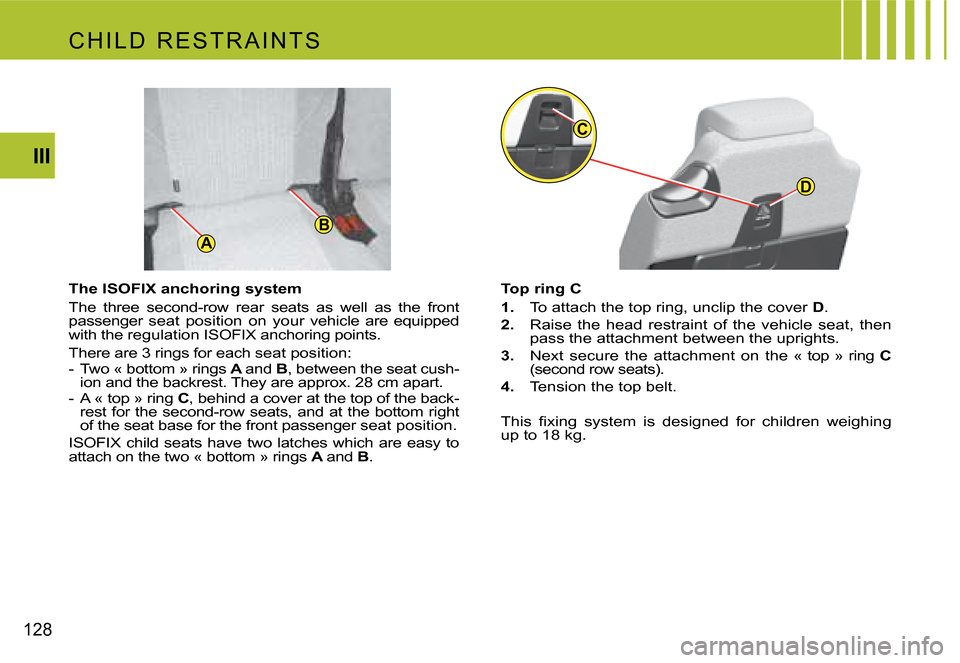

The ISOFIX anchoring system
The three second-row rear seats as well as the fron
t
passenger seat position on your vehicle are equipped
with the regulation iSoFiX anchoring points.
There are 3 rings for each seat position:
- Two « bottom » rings A
and B, between the seat cush-
ion and the backrest. They are approx. 28 cm apart.
- A « top » ring C, behind a cover at the top of the back-
rest for the second-row seats, and at the bottom ri ght
of the seat base for the front passenger seat positio n.
iSoFiX child seats have two latches which are easy to
attach on the two « bottom » rings A and B. Top ring C
1.
To attach the top ring, unclip the cover D.
2. Raise the head restraint of the vehicle seat, then
pass the attachment between the uprights.
3. Next secure the attachment on the « top » ring C
(second row seats).
4. Tension the top belt.
This fixing system is designed for children weighing
up to 18 kg.
C H i L d R E S T R A i N T S

A
III
131

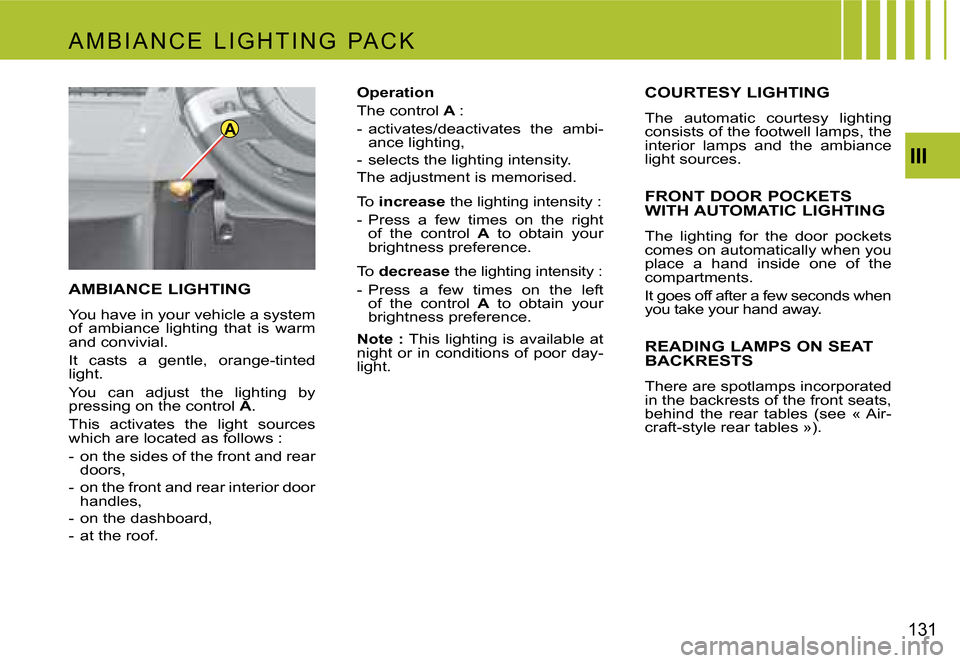

AMBIANCE LIGHTING
You have in your vehicle a system
of ambiance lighting that is warm
and convivial.
it casts a gentle, orange-tinted
light.
You can adjust the lighting by
pressing on the control A.
This activates the light sources
which are located as follows :
- on the sides of the front and rear doors,
- on the front and rear interior door handles,
- on the dashboard,
- at the roof. Operation
The control
A :
- activates/deactivates the ambi -
ance lighting,
- selects the lighting intensity. The adjustment is memorised.
To increase the lighting intensity :
- Press a few times on the right of the control A to obtain your
brightness preference.
To decrease
the lighting intensity :
- Press a few times on the left
of the control A to obtain your
brightness preference.
Note : This lighting is available at
night or in conditions of poor day-
light.
COURTESY LIGHTING
The automatic courtesy lighting
consists of the footwell lamps, the
interior lamps and the ambiance
light sources.
FRONT DOOR POCKETS
WITH AUTOMATIC LIGHTING
The lighting for the door pockets
comes on automatically when you
place a hand inside one of the
compartments.
it goes off after a few seconds when
you take your hand away.
READING LAMPS ON SEAT
BACKRESTS
There are spotlamps incorporated
in the backrests of the front seats,
behind the rear tables (see « Air-
craft-style rear tables »).
A M B i A N C E L i G H T i N G PA C K

CD
AB
142 III
B o o T
- L U G G A G E C o V E R B L i N d - G R A N d C 4 P i C A S S o
Luggage-cover blind
Position 1 : (5-seat configuration, behind the secon d row)
Behind the second-row seats, with the third-row seats
folded away.
To install the roller :
1. Compress the left-hand end of the roller and place
it in notch A.
2. Position the right-hand end of the blind roller in
notch B.
3. Unroll the blind until it reaches the boot pillars.
4. insert the guides of the blind into the rails on the
pillars.
To remove the blind:
- Perform these operations in reverse order.
Note : the roller has a moving flap to avoid interference
with the second-row passengers when the seats are i n
the reclined position. Position 2 : (7-seat configuration)
Behind the third-row seats, this position conceals
objects stowed in the boot from outside view.
To install the roller :
1.
Roll up the blind, then remove the roller from its
initial position.
2. Position the roller, with the blind pull bar upper-
most, flap downward.
3. Fold the concertina plates in the vertical position.
4. Engage the lug on the left of the roller in notch C.
5. Pass the right-hand side above the third-row armre st.
6. Engage the lug in notch D.
7. Pull the seat belt(s) so that they will deploy without
locking.
8. Unroll the blind and engage the guides into the
rails on the pillars.
9. Lock the seat(s) in position.
10. Fold back the concertina plates, pressing them
firmly in position.

CDIII
143
B o o T
- L U G G A G E C o V E R B L i N d - G R A N d C 4 P i C A S S o
Position 2 : (continued)
To remove the roller :
1. Push the flap towards the seat backrest.
2. Lift the concertina plate by grabbing it at the side,
then position it vertically.
3.
Unlock the seat by pulling the strap G (see « Third-row
rear seats »).
4. Push the backrest towards the front.
5. Proceed in reverse order to installing.
Note : you can position the concertina plate vertically
to lodge a bulkier object in the boot well.
Position 3 : (7-seat configuration, stowage
position)
To install the roller :
1. Remove the blind from its current position.
2. Position the roller, with the blind pull bar upper-
most, flap downward.
3. Engage the lug on the left of the roller in notch C.
4. Pass the right-hand side above the third-row armre st.
5. Engage the lug in notch D.
To remove the roller :
- Proceed in reverse order to installing.

144III
B o o T
- H i G H C A R G o N E T - G R A N d C 4 P i C A S S o
Net for retaining high loads
This enables you to maximise the vehicle’s load-
space.
it retains objects, preventing them from sliding towards
the front of the passenger compartment.
You insert it under the roller of the luggage-cover
blind, securing it on the third-row side mouldings. Position 1 (5-seat configuration, behind the
second row)
To install the roller :
1.
Remove the protection covers located under the
blind roller notches.
2. Position the roller under that of the luggage-cover
blind.
3. Raise the flap on the blind, positioning it on top of
the blind.
4. deploy the net, passing it between the rollers and
the seats.
5. Pull the net upwards.
6. Anchor it to the roof by means of the fixing points
(after you have removed their covers).
To remove :
- Perform these operations in reverse order.
Position 2 (2-seat configuration, behind the
first row)
To install the roller :
1. With the second-row seats folded away, remove
the covers of the Isofix anchoring points located
on the seat backrests.
2. Secure the roller on the Isofix anchoring points.
3. deploy the net and pull it upwards.
4. Anchor it to the roof by means of the fixing points
(after you have removed their covers).
