Page 119 of 337
95
VI
L A Y O U T
REFRIGERATED STORAGE CENTRE CONSOLE
The centre console contains:
- two cup-holders,
- two storage compartments,
- either a 12 V accessories socket (Maximum power: 120 W); this is
operational when the ignition is on.
There may be an additional 12 V accessories socket in the boot.
- or a USB socket.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and
a removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.
To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.
To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
Page 155 of 337
124
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.

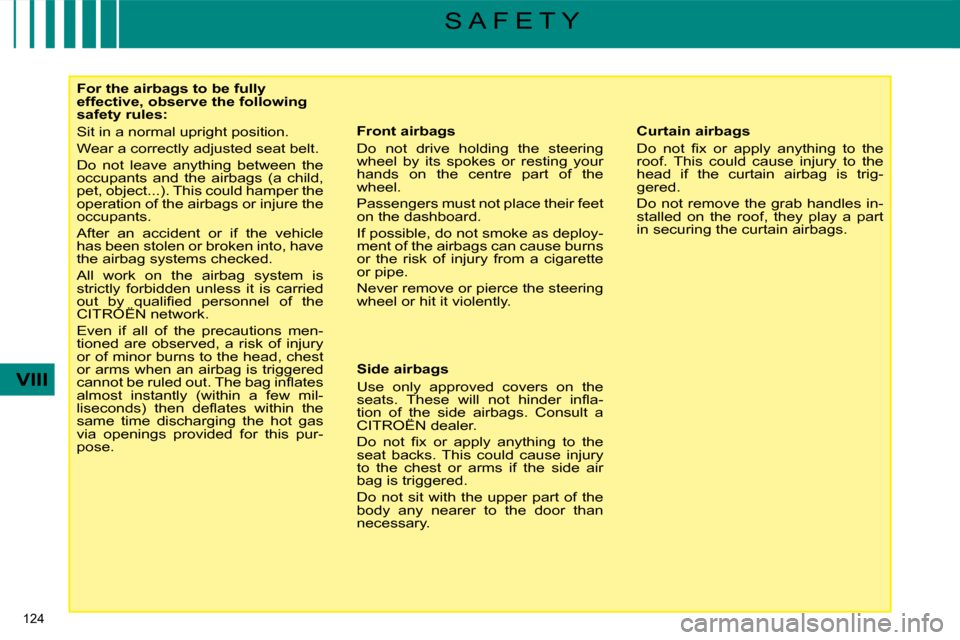

Page 157 of 337
124
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 178 of 337
143
IX
D R I V I N G
Optional function controls
1. Pick up/Hang up the tele-
phone (see chapter "Audio and
Telematics").
2. Rheostat for dashboard lighting.
3. Start of voice recognition (see
chapter "Audio and Telematics").
4. P e r s o n a l i s a t i o n b u t t o n :
- courtesy lamp on/off or
- diagnostics or
- personalisation of the display- ing of information on the in-
strument panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.
5. Air recirculation. Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. C o n fi r m a t i o n o f t h e f u n c t i o n c h o -
s e n o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio and Telematics").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current op-
eration or return to the previous
display.
*
To comply with legislation in certain coun-
tries, the "Menu" control may be deacti-
vated while the vehicle is in motion.
Page 215 of 337
179
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
O p e r a t i n g p r o c e d u r e f o r r e p l a c i n g a
f a u l t y f u s e w i t h a n e w f u s e t o r e c t i f y
a f a i l u r e o f t h e c o r r e s p o n d i n g f u n c -
tion.
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Y o u r v e h i c l e ’ s e l e c t r i c a l
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 216 of 337
179
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
O p e r a t i n g p r o c e d u r e f o r r e p l a c i n g a
f a u l t y f u s e w i t h a n e w f u s e t o r e c t i f y
a f a i l u r e o f t h e c o r r e s p o n d i n g f u n c -
tion.
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A

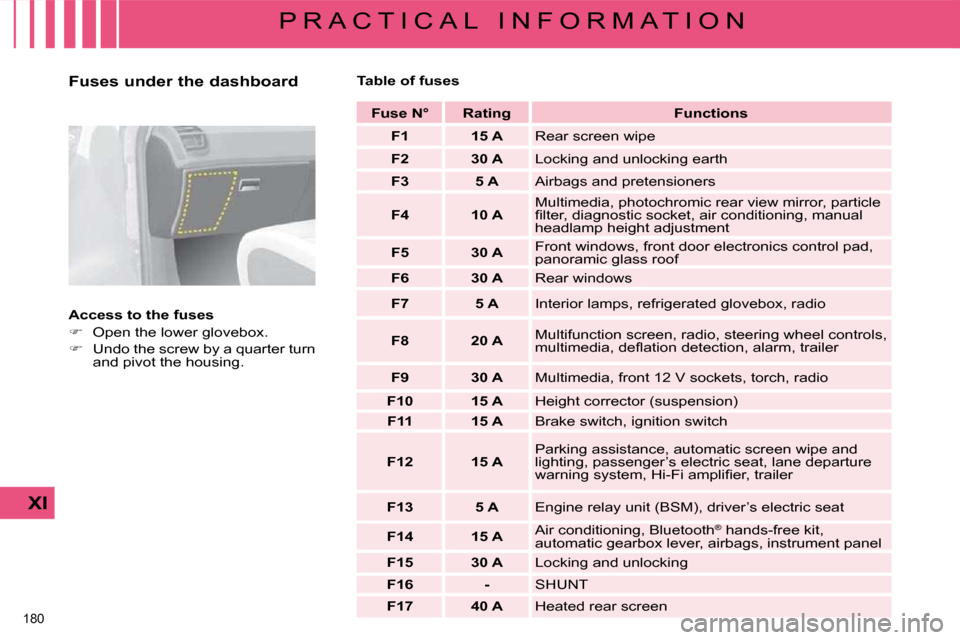

A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Y o u r v e h i c l e ’ s e l e c t r i c a l
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 217 of 337
1 8 0
XI
P R A C T I C A L I N F O R M A T I O N
Fuses under the dashboard
Access to the fuses
O p e n t h e l o w e r g l o v e b o x .
U n d o t h e s c r e w b y a q u a r t e r t u r n
a n d p i v o t t h e h o u s i n g . Table of fuses
Fuse N° Rating Functions
F1 15 A R e a r s c r e e n w i p e
F2 30 A L o c k i n g a n d u n l o c k i n g e a r t h
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s
F4 10 A M u l t i m e d i a , p h o t o c h r o m i c r e a r v i e w m i r r o r , p a r t i c l e
fi l t e r , d i a g n o s t i c s o c k e t , a i r c o n d i t i o n i n g , m a n u a l
h e a d l a m p h e i g h t a d j u s t m e n t
F5 30 A F r o n t w i n d o w s , f r o n t d o o r e l e c t r o n i c s c o n t r o l p a d ,
p a n o r a m i c g l a s s r o o f
F6 30 A Rear windows
F7 5 A I n t e r i o r l a m p s , r e f r i g e r a t e d g l o v e b o x , r a d i o
F8 20 A M u l t i f u n c t i o n s c r e e n , r a d i o , s t e e r i n g w h e e l c o n t r o l s ,
m u l t i m e d i a , d e fl a t i o n d e t e c t i o n , a l a r m , t r a i l e r
F9 30 A M u l t i m e d i a , f r o n t 1 2 V s o c k e t s , t o r c h , r a d i o
F10 15 A H e i g h t c o r r e c t o r ( s u s p e n s i o n )
F11 15 A B r a k e s w i t c h , i g n i t i o n s w i t c h
F12 15 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ’ s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i fi e r , t r a i l e r
F13 5 A E n g i n e r e l a y u n i t ( B S M ) , d r i v e r ’ s e l e c t r i c s e a t
F14 15 A A i r c o n d i t i o n i n g , B l u e t o o t h
®
h a n d s - f r e e k i t ,
a u t o m a t i c g e a r b o x l e v e r , a i r b a g s , i n s t r u m e n t p a n e l
F15 30 A L o c k i n g a n d u n l o c k i n g
F16 - SHUNT
F17 40 A Heated rear screen
Page 218 of 337
1 8 1
XI
P R A C T I C A L I N F O R M A T I O N
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F29 20 A Heated seats
F30 - Not used
F31 40 A T r a i l e r r e l a y u n i t
F32 15 A R e a r 1 2 V s o c k e t
F33 5 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ’ s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i fi e r
F34 5 A Trailer
F35 - Not used
F36 20 A H i - F i a m p l i fi e r
F37 10 A A i r c o n d i t i o n i n g , l i g h t p a c k
F38 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 5 A F u e l fl a p
F40 30 A P a s s e n g e r ’ s e l e c t r i c s e a t , p a n o r a m i c g l a s s r o o f
