Page 98 of 337
87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum author-
ised loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
Initial setting is position "0".
Page 101 of 337
87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum author-
ised loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
Initial setting is position "0".
Page 102 of 337
87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum author-
ised loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
Initial setting is position "0".
Page 107 of 337
91
V I S I B I L I T Y
V
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp
In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimi- ted.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Glass panoramic roof
courtesy lamps
These courtesy lamps have two op-
erating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 109 of 337
91
V I S I B I L I T Y
V
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp
In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimi- ted.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Glass panoramic roof
courtesy lamps
These courtesy lamps have two op-
erating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 154 of 337
122
VIII
S A F E T Y
Deactivation
This warning lamp comes on
in the instrument panel when
the ignition is on and until the
airbag is reactivated.
To guarantee the safety of your
child, it is imperative that the pas-
senger airbag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so guaran-
tee the safety of your front passen-
ger in the event of an impact.
Operating fault
If this warning lamp comes
on in the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Only the front passenger's airbag
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
Page 167 of 337
133
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
F o r D i e s e l e n g i n e s : t u r n t h e
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
d r i v i n g m o d e s :
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manu-
al changing of the gears by the
driver.
a u t o m a t i c m o d e : s e l e c t o r 2 in
position A .
m a n u a l m o d e : s e l e c t o r 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 168 of 337
133
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
F o r D i e s e l e n g i n e s : t u r n t h e
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
d r i v i n g m o d e s :
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manu-
al changing of the gears by the
driver.
a u t o m a t i c m o d e : s e l e c t o r 2 in
position A .
m a n u a l m o d e : s e l e c t o r 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 247 of 337
209
9 9
1111
1 2 1 2
1 3 1 3
1 5 1 5
1010
1 4 1 4

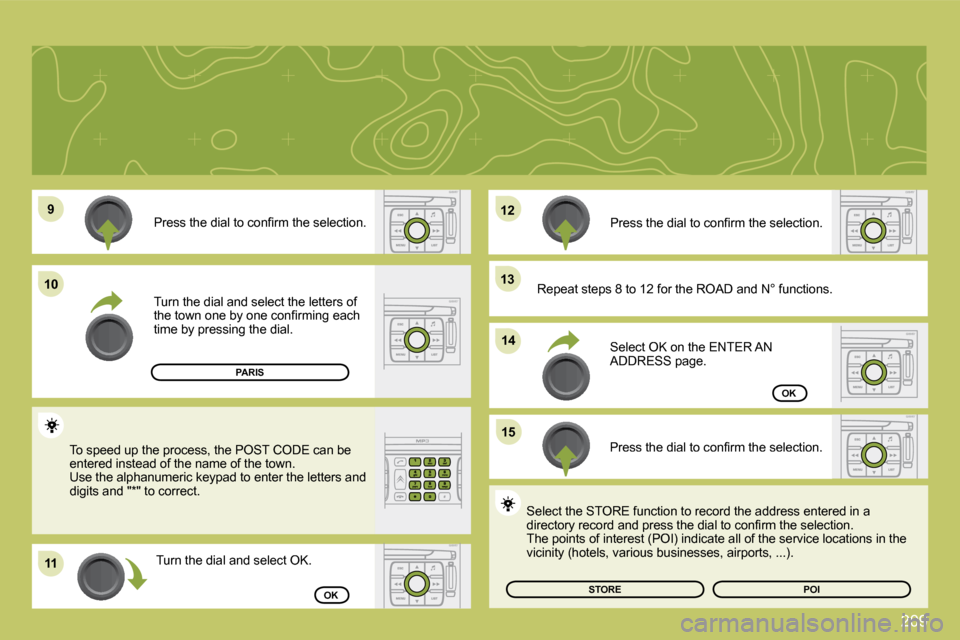

P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the letters of t h e t o w n o n e b y o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g t h e d i a l .
Turn the dial and select OK.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
To speed up the process, the POST CODE can be entered instead of the name of the town. Use the alphanumeric keypad to enter the letters and d i g i t s a n d " * " t o c o r r e c t .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK on the ENTER AN A D D R E S S p a g e .
Repeat steps 8 to 12 for the ROAD and N° functions .
OK
OK
Select the STORE function to record the address entered in a d i r e c t o r y r e c o r d a n d p r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n . T h e p o i n t s o f i n t e r e s t ( P O I ) i n d i c a t e a l l o f t h e s e r v i c e l o c a t i o n s i n t h e v i c i n i t y ( h o t e l s , v a r i o u s b u s i n e s s e s , a i r p o r t s , . . . ) .
STORE
PARIS
POI
Page 261 of 337
223
6 6
7 7
5 5
2 2
3 3
4 4
11

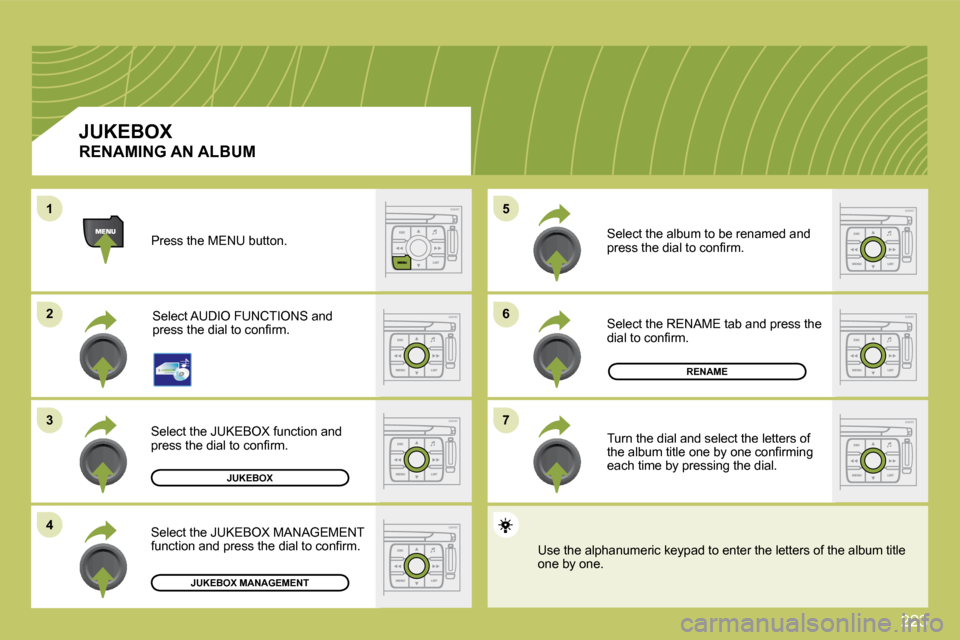

JUKEBOX
RENAME
JUKEBOX MANAGEMENT
Press the MENU button.
Select AUDIO FUNCTIONS and p r e s s t h e d i a l t o c o n fi r m .
Select the JUKEBOX function and p r e s s t h e d i a l t o c o n fi r m .
Select the JUKEBOX MANAGEMENT f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Select the album to be renamed and p r e s s t h e d i a l t o c o n fi r m .
Select the RENAME tab and press the d i a l t o c o n fi r m .
Turn the dial and select the letters of t h e a l b u m t i t l e o n e b y o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g t h e d i a l .
Use the alphanumeric keypad to enter the letters of the album title one by one.
JUKEBOX
RENAMING AN ALBUM
