Page 156 of 337
123
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as the
corresponding side airbag in the event
of a serious side impact applied to all or
part of the side impact zone
B , perpen-
dicular to the longitudinal centreline of
the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact
a CITROËN dealer to have the
system checked. The airbags may
no longer be triggered in the event
of a serious impact.
Page 159 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releases
automatically and progressively
w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
reverse gear engaged): press
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
Page 160 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releases
automatically and progressively
w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
reverse gear engaged): press
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
Page 161 of 337
127
IX
D R I V I N G
To immobilise the vehicle,
engine running
With the engine running and the ve-
hicle stationary, in order to immobi-
lise the vehicle you need to manually
apply the parking brake by pulling
on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit. Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To advance your vehicle (towing,
etc.) without starting the engine, but
with the ignition on, press on the
brake pedal and release the park-
ing brake
by pulling then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e e x t i n c t i o n o f
warning lamp P (red) on the instru-
ment panel and the display of a
message "parking brake released"
on the multifunction screen.
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible.
Activation/Deactivation of the
automatic functions *
The automatic application when the
engine is switched off and the au-
tomatic release when you press
the accelerator can be deactivated.
Activation/deactivation is performed
u s i n g t h e c o n fi g u r a t i o n m e n u o f t h e
multifunction screen. To do so, select
" P e r s o n a l i s a t i o n / C o n fi g u r a t i o n / D e fi n e
the Vehicle parameters/Driving assis-
tance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions
deactivated, the application and
release of the parking brake are
done manually.
* According to country
Page 174 of 337
139
IX
D R I V I N G
To start the engine, press the
brake pedal and place the selec-
tor in position P .
Operate the starter.
When the engine is running,
place the selector on R , D or M
as required.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position P ,
a message "place automatic
gear-box in position P " appears
on the multifunction screen, ac-
companied by a beep and the
fl a s h i n g o f P on the instrument
panel.
Moving off
To avoid incoherence between
the position of the selector and
the actual position of the gear-
box, always exit from position P
when you switch on the ignition
and press the brake pedal.
Otherwise, when the ignition is on or
t h e e n g i n e i s r u n n i n g :
reposition the selector in position P ,
put your foot on the brake ped-
al and then select the gear you
want.
Park
To select position P, move the
selector back to the highest po-
sition (towards R ), then push it
forwards and then to the left.
To exit position P , move the se-
lector to the right and then to the
position you want.
Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector is correctly po-
sitioned. Reverse gear
Neutral
Only engage this position
when the vehicle is stationary.
To prevent snatching, do not
accelerate too soon after se-
lection.
Never select position
N if
the vehicle is moving.
Never select positions P or
R if the vehicle is not sta-
tionary.
If, while the vehicle is moving, po-
sition N is engaged inadvertently,
allow the engine to idle before en-
gaging position D or M .
This position of the selector
is used to prevent the vehi-
cle from moving when you
are stationary.
Page 187 of 337
152
IX
D R I V I N G In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven
at a speed below approximately
6 mph (10 km/h), certain sourc-
es of noise (motorcycles, lorries,
pneumatic drills, ...) may trigger the
reversing audible signal.
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
Reactivation
Deactivation
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN). Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Page 191 of 337
157
X
C H E C K S
BLEEDING THE DIESEL FILTER
Protective cover
Removal
Remove the protective cover by
u n c l i p p i n g fi r s t p o i n t 1 , then 3
and 4 .
Unclip point 2 pulling towards
you, then lift.
R e fi t t i n g
Clip point 2 fi r s t .
Lower the cover, centring it.
Clip points 1 and 4 , pushing ver-
tically and slightly rearwards.
Clip point 3 , pushing vertically. Bleeding water from the fuel
filter
Bleed on a regular basis (at every
oil change).
To evacuate the water, slacken the
bleed screw or the water-in-diesel-
fuel sensor, which is located at the
b a s e o f t h e fi l t e r .
P e r s i s t u n t i l w a t e r c e a s e s t o fl o w
out.
Then retighten the bleed screw or
the water-in-diesel-fuel sensor.
Page 198 of 337
1 6 4
X
C H E C K S
Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
6 - s p e e d e l e c t r o n i c g e a r b o x
system
The gearbox does not require any
maintenance (no oil change).
Automatic gearbox
The gearbox does not require any
maintenance (no oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake
If a loss of effectiveness of this sys-
tem is noticed, the parking brake
must be checked, even between two
services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent qual-
i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this component.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this com-
ponent.
Page 203 of 337
169
XI
P R A C T I C A L I N F O R M A T I O N
Grand C4 Picasso C4 Picasso Access to the spare wheel
Taking out the wheel
M o v e t h e t h i r d - r o w s e a t , r i g h t -
h a n d s i d e ( 7 s e a t e r m o d e l ) .
R e t r i e v e t h e e x t e n s i o n t h a t i s
attached to the rear of the seat
well.
E n g a g e t h e e x t e n s i o n o n t h e
p i n i o n , l o c a t e d u n d e r t h e c a r p e t
in the seat well.
U s i n g t h e w h e e l b r a c e 4 on the
e x t e n s i o n t o t u r n t h e pinion
clockwise , r e l e a s e t h e c a b l e
t o l o w e r t h e s p a r e w h e e l t o t h e
g r o u n d .
R e m o v e t h e w h e e l f r o m u n d e r
t h e v e h i c l e , d i s e n g a g i n g t h e
l i n k i n g p l a t e i n t h e c e n t r e o f t h e
wheel.
T h e p i n i o n t o r e l e a s e t h e s p a r e w h e e l
i s l o c a t e d u n d e r t h e b o o t c a r p e t , o n
t h e r i g h t h a n d s i d e i n t h e w h e e l w e l l
f o r t h e G r a n d C 4 P i c a s s o a n d o n t h e
l e f t h a n d s i d e f o r t h e C 4 P i c a s s o . Putting the wheel back in place
It is essential to direct the valve
u p w a r d s .
P a s s t h e l i n k i n g p l a t e t h r o u g h
t h e c e n t r e o f t h e w h e e l ( fi r s t r e -
m o v i n g t h e c e n t r a l t r i m o n c e r -
t a i n a l l o y w h e e l s ) .
T u r n t h e p i n i o n anti-clockwise
t o d r a w i n t h e c a b l e . F i r s t t h e p i n -
i o n w i l l t u r n i d l y , t h e n t h e c a b l e
w i l l t i g h t e n t o r a i s e t h e w h e e l .
C h e c k t h a t t h e w h e e l i s t i g h t a g a i n s t t h e v e h i c l e fl o o r a n d
n o t i n t e r f e r i n g w i t h o t h e r n e a r b y
c o m p o n e n t s ( e . g . t h e e x h a u s t ) .
Stow the tools.
W i t h t h e d a m a g e d w h e e l
n o w u n d e r t h e v e h i c l e fl o o r ,
the vehicle has reduced
g r o u n d c l e a r a n c e , s o t a k e e x t r a
c a r e w h e n r e v e r s i n g o r d r i v i n g o n
u n e v e n s u r f a c e s , i n c l u d i n g k e r b s .
R e t r i e v a l o f t h e s p a r e w h e e l a n d
s t o w a g e o f t h e a f f e c t e d r o a d w h e e l
a r e o p e r a t i o n s t h a t s h o u l d b e d o n e
w i t h t h e v e h i c l e s u p p o r t e d o n i t s
w h e e l s , n o t b y t h e j a c k .
Page 225 of 337
1 8 7
XI
P R A C T I C A L I N F O R M A T I O N

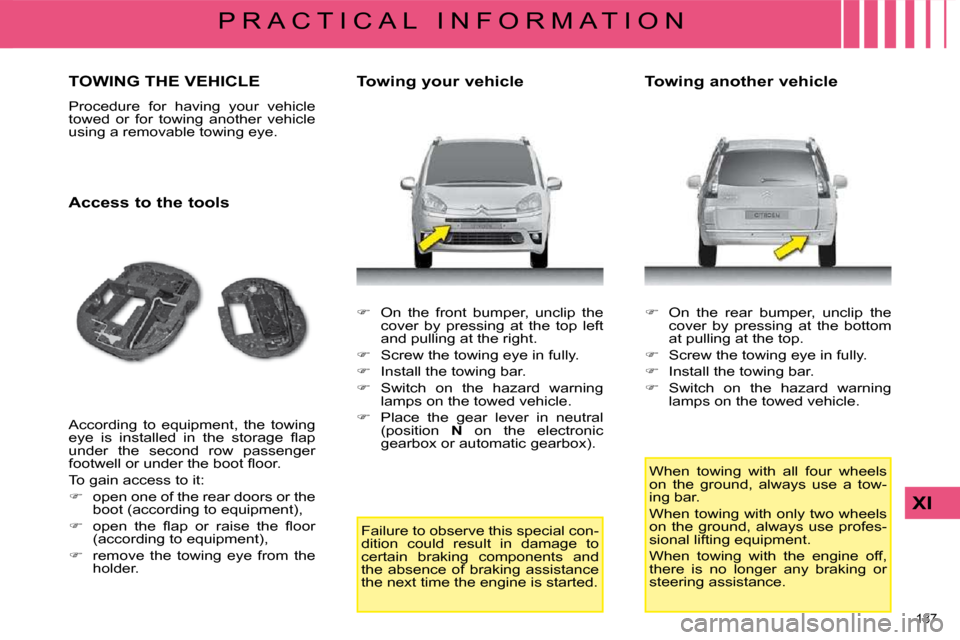

TOWING THE VEHICLE
P r o c e d u r e f o r h a v i n g y o u r v e h i c l e
t o w e d o r f o r t o w i n g a n o t h e r v e h i c l e
u s i n g a r e m o v a b l e t o w i n g e y e .
Access to the tools
A c c o r d i n g t o e q u i p m e n t , t h e t o w i n g
e y e i s i n s t a l l e d i n t h e s t o r a g e fl a p
u n d e r t h e s e c o n d r o w p a s s e n g e r
f o o t w e l l o r u n d e r t h e b o o t fl o o r .
T o g a i n a c c e s s t o i t :
o p e n o n e o f t h e r e a r d o o r s o r t h e
b o o t ( a c c o r d i n g t o e q u i p m e n t ) ,
o p e n t h e fl a p o r r a i s e t h e fl o o r
( a c c o r d i n g t o e q u i p m e n t ) ,
r e m o v e t h e t o w i n g e y e f r o m t h e
holder. Towing your vehicle
O n t h e f r o n t b u m p e r , u n c l i p t h e
c o v e r b y p r e s s i n g a t t h e t o p l e f t
a n d p u l l i n g a t t h e r i g h t .
S c r e w t h e t o w i n g e y e i n f u l l y .
I n s t a l l t h e t o w i n g b a r .
S w i t c h o n t h e h a z a r d w a r n i n g
l a m p s o n t h e t o w e d v e h i c l e .
P l a c e t h e g e a r l e v e r i n n e u t r a l
( p o s i t i o n N on the electronic
g e a r b o x o r a u t o m a t i c g e a r b o x ) . Towing another vehicle
O n t h e r e a r b u m p e r , u n c l i p t h e
c o v e r b y p r e s s i n g a t t h e b o t t o m
a t p u l l i n g a t t h e t o p .
S c r e w t h e t o w i n g e y e i n f u l l y .
I n s t a l l t h e t o w i n g b a r .
S w i t c h o n t h e h a z a r d w a r n i n g
l a m p s o n t h e t o w e d v e h i c l e .
F a i l u r e t o o b s e r v e t h i s s p e c i a l c o n -
d i t i o n c o u l d r e s u l t i n d a m a g e t o
c e r t a i n b r a k i n g c o m p o n e n t s a n d
t h e a b s e n c e o f b r a k i n g a s s i s t a n c e
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d . W h e n t o w i n g w i t h a l l f o u r w h e e l s
o n t h e g r o u n d , a l w a y s u s e a t o w -
i n g b a r .
W h e n t o w i n g w i t h o n l y t w o w h e e l s
o n t h e g r o u n d , a l w a y s u s e p r o f e s -
s i o n a l l i f t i n g e q u i p m e n t .
W h e n t o w i n g w i t h t h e e n g i n e o f f ,
t h e r e i s n o l o n g e r a n y b r a k i n g o r
s t e e r i n g a s s i s t a n c e .
