Page 91 of 337
80
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open, you
can access the boot by raising the
rear shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 93 of 337
82
IV
A C C E S S
FUEL TANK
Capacity of the tank: approxi-
mately 60 litres.
Low fuel level
When the minimum level in the
tank is reached, this warning
lamp on the instrument panel
comes on, accompanied by
an audible warning and a message
on the multifunction screen.
You have enough fuel left to drive
approximately 30 miles (approx.
50 kms).
Press on the the control A , situ-
ated on the control panel on the
r i g h t h a n d s i d e . T h e f u e l fl a p a u -
tomatically opens up. The petrol or diesel engine of your
v e h i c l e i s fi t t e d w i t h a c a t a l y t i c c o n -
verter, a device which helps to re-
duce the level of harmful emissions
in the exhaust gases.
For petrol engines, unleaded fuel
is obligatory.
T h e fi l l e r n e c k i s n a r r o w e r , p e r m i t -
ting unleaded petrol only.
Take care to select the pump
that corresponds to the correct
fuel type for your vehicle.
Introduce the nozzle so as to
push in the metallic gate valve B.
Make sure that the nozzle is
pushed in as far as possible
before starting to refuel (risk of
blowback).
Maintain this position throughout
the refuelling operation.
P u s h t h e f u e l fl a p t o r e c l o s e i t .
Fuel cut-off switch
Your vehicle is equipped with a safe-
ty device which cuts off the fuel sup-
ply in the event of a collision.
Refuelling
I f y o u a r e fi l l i n g y o u r t a n k t o t h e
top, do not persist after the third
cut-off; this could cause your
vehicle to malfunction.
Page 99 of 337
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction oc-
curs, this warning lamp
is displayed on the in-
strument panel, ac-
companied by an au-
dible signal and a message on the
multifunction screen.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
running lights, the function is acti-
vated if the lighting stalk is in the
"AUTO" or "Dipped/main beam
headlamps" position. In position
"0" , the function is not activated.
Page 103 of 337
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction oc-
curs, this warning lamp
is displayed on the in-
strument panel, ac-
companied by an au-
dible signal and a message on the
multifunction screen.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
running lights, the function is acti-
vated if the lighting stalk is in the
"AUTO" or "Dipped/main beam
headlamps" position. In position
"0" , the function is not activated.
Page 104 of 337
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction oc-
curs, this warning lamp
is displayed on the in-
strument panel, ac-
companied by an au-
dible signal and a message on the
multifunction screen.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
running lights, the function is acti-
vated if the lighting stalk is in the
"AUTO" or "Dipped/main beam
headlamps" position. In position
"0" , the function is not activated.
Page 145 of 337
113
VIII
S A F E T Y
DIRECTION INDICATORS
Lower the lighting stalk fully
when moving to the left.
Raise the lighting stalk fully when
moving to the right.
HAZARD WARNING LAMPS
A visual warning by means of the
direction indicators to alert other
road users to a vehicle breakdown,
towing or accident.
Automatic lighting of hazard
warning lamps
When braking in an emergency,
depending on the deceleration, the
hazard warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off. HORN
Audible warning system to alert other
road users to an imminent danger.
Selection of the left or right direction
indicators to signal a change of di-
rection of the vehicle.
Press the button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition
off.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c
jam, switch on the hazard warn-
ing lamps if you are the last in the
queue.
Press at the lower part of the
fi x e d c e n t r e d c o n t r o l s s t e e r i n g
wheel.
U s e t h e h o r n e x c l u s i v e l y a n d m o d -
erately in the following cases:
- immediate danger
- approaching a location lacking visibility.
Page 146 of 337
114
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged wheel (punctured
o r v e r y d e fl a t e d t y r e ) , a n d h a v e t h e t y r e
pressure checked as soon as possible.
Sensor(s) not detected or faulty
The service warning
lamp comes on in the
instrument panel, ac-
companied by an audible
signal and a message on
the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
features" section) to ensure that
the optimum dynamic perfor mance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 147 of 337
115
VIII
S A F E T Y
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems
which help you to obtain optimum
braking in complete safety in emer-
gency situations:
- anti-lock braking system (ABS),
- electronic brake force distribu-tion (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular
on poor or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may
make itself felt by slight vibration of
the brake pedal. Operating fault
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multi-function screen,
it indicates a malfunction of the anti-
lock braking system which could re-
sult in loss of control of the vehicle
when braking.
If this warning lamp comes on,
together with the STOP and
ABS warning lamps, accom-
panied by an audible signal
and a message on the multifunction
screen, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.
You MUST stop as soon as it is
safe to do so.
In both cases, contact a CITROËN
dealer.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations. Emergency braking assistance
System which, in an emergency, enables you to obtain the optimum braking pressure more quickly, thus reducing the stopping distance.
Activation
It is triggered by the speed at which the brake pedal is pressed.
The effect of this is a reduction in the resistance of the pedal and an i n c r e a s e i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e pressure.
Page 148 of 337
116
VIII
S A F E T Y
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation (also known
as Traction Control) optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme
acts on the brake of one or more
wheels and on the engine to keep
the vehicle on the trajectory required
by the driver.
Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the event
of a grip or trajectory problem. T h i s i s i n d i c a t e d b y fl a s h i n g
of this warning lamp on the
instrument panel. Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to deactivate the ASR and
ESP systems, so that the wheels
can move freely and regain grip.
Press the "ESP OFF" button,
located in the centre of the dash-
board. Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" button again
to reactivate them manually.
If this warning lamp comes
on in the instrument panel
and the indicator lamp on the
button comes on, this indi-
cates that the ASR and ESP
systems are deactivated. Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
ceptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Page 152 of 337
120
VIII
S A F E T Y

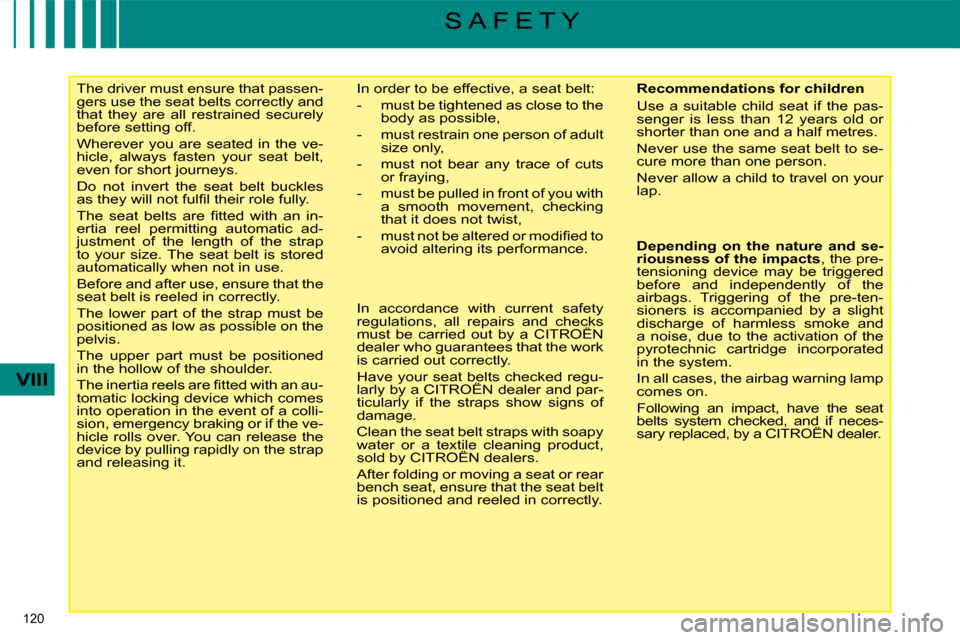

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the
airbags. Triggering of the pre-ten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
