Citroen C4 PICASSO 2009.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C4 PICASSO, Model: Citroen C4 PICASSO 2009.5 1.GPages: 338, PDF Size: 13 MB
Page 151 of 338
119
VIII
S A F E T Y
Rear central seat belt
Using the seat belt
(C4 Picasso)
Open the cover A .
Remove the belt tongues from
their housing.
Bring the belt tongues up to the
relay ring B .
Insert the attachment, then pass
the tongues through the ring.
Close the cover A . Make sure
that the belt is correctly posi-
tioned in the recess in the cover
provided for this purpose. Stowing the belt tongues
(C4 Picasso)
Operate in reverse order to stow
the belt tongues.
You may opt to leave the seat belt in
the relay ring even if not using it. Routing of the seat belt
(C4 Picasso and C4 Grand Picasso)
Insert the tongue C into the buckle
on the right, then insert the sec-
ond tongue D into the buckle on
the left.
Unfastening the seat belt
(C4 Picasso and
Grand C4 Picasso)
Release the buckle C , then the
buckle D and guide the seat belt
to its stowing position.
Before use
For safety reasons, it is essential
that the seat belt passes through
the relay ring.
T o a v o i d d a m a g i n g o r j a m m i n g t h e
seat belts, stow them carefully on
the sides of the seat backrests.
Page 152 of 338
120
VIII
S A F E T Y
Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third row
passenger seat belts
Take care to attach the third-row
passenger seat belts securely to the
rings provided for this purpose.
Do not attach the belts to the an-
chorage points marked with a red
cross, as shown in the illustration. Stowing the tongue of the third-row
seat belt
Secure the tongue in the location
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use
T o a v o i d d a m a g i n g o r j a m m i n g t h e
seat belts, stow them carefully on
the sides of the seat backrests.
Page 153 of 338
121
VIII
S A F E T Y
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
j u s t m e n t o f t h e l e n g t h o f t h e s t r a p
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n
automatic locking device which
comes into operation in the event
of a collision, emergency braking
or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it so that
it re-winds slightly. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and
seriousness of the impacts , the
pre-tensioning device may be trig-
gered before and independently of
the airbags. Triggering of the pre-
tensioners is accompanied by a
slight discharge of harmless smoke
and a noise, due to the activation of
the pyrotechnic cartridge incorporat-
ed in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 154 of 338
122
VIII
S A F E T Y
AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent
collisions. It supplements the action
of the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent

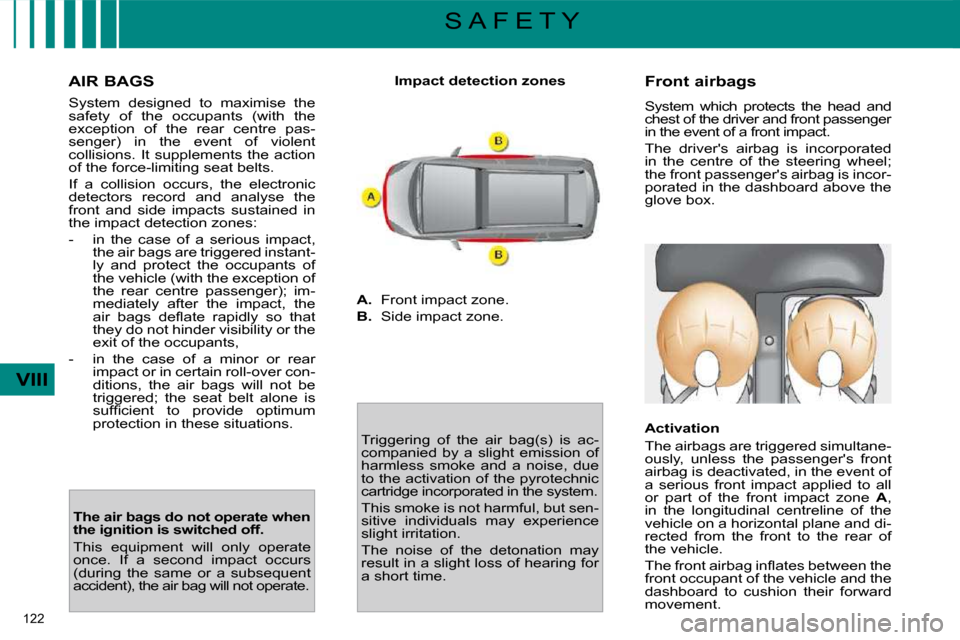

accident), the air bag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated
in the centre of the steering wheel;
the front passenger's airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Page 155 of 338
123
VIII
S A F E T Y
Deactivation
This warning lamp comes on
on the instrument panel when
the ignition is on and until the
airbag is reactivated.
To ensure the safety of your child,
it is imperative that the passenger
airbag is deactivated when you in-
stall a "rearwards-facing" child seat
on the front passenger seat.
Otherwise, the child would risk be-
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e
airbag were triggered. Activation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so ensure
the safety of your front passenger in
the event of an impact.
Operating fault
If this warning lamp comes
on on the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen, contact a
CITROËN dealer to have the system
checked. The airbags may no longer
be triggered in the event of a serious
impact.
Only the front passenger's airbag
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Page 156 of 338
125
VIII
S A F E T Y

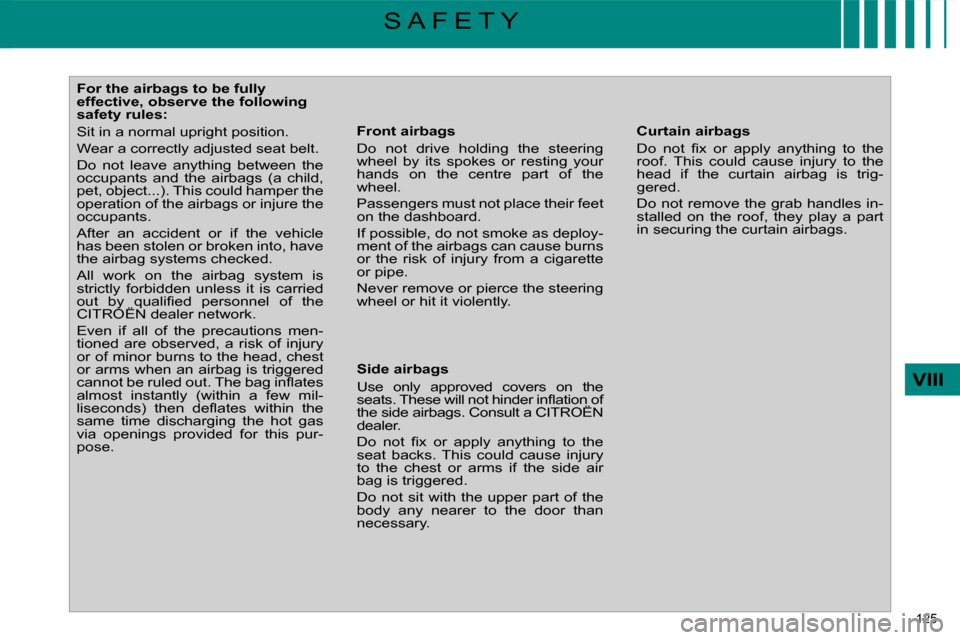

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a CITROËN
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 157 of 338
124
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
t h e r i s k o f i n j u r y t o t h e c h e s t .
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n of the rear centre passenger) in the event of a serious side impact in or- d e r t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain airbag is incorporated in the pillars and the upper part of the passenger compartment.
Operation
It is triggered at the same time as the corresponding side airbag in the event of a serious side impact applied to all or part of the side impact zone B , per-pendicular to the longitudinal centreli-ne of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n the front or rear occupant of the ve-hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault
If this warning lamp comes on in the instrument panel, accompanied by an audible signal and a message on the multifunction screen, contact a CITROËN dealer to have the sys-the multifunction screen, contact a
tem checked. The airbags may no longer be triggered in the event of a serious impact.
Page 158 of 338
125
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a CITROËN
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 159 of 338
126
D R I V I N G
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows:
- Automatic application/release
Application is automatic when the engine stops, release is automat-
ic on use of the accelerator.
- Manual application/release
Manual application/release of the parking brake is possible
by pulling control lever A while
pressing the brake pedal. Manual application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off,
pull on control lever A . Manual release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator,
pull then release
control lever A .
-
the extinction of the warning
lamp P on control lever A
and on the instrument panel,
- the display of a message "hand- brake off" on the multifunction
screen.
If you pull control lever A without
pressing the brake pedal, the park-
ing brake will not be released and
the "Foot on brake" warning lamp
will light up on the instrument panel.
The application of the parking brake
i s c o n fi r m e d b y :
-
the lighting of the warning
lamp P on control lever A
and on the instrument panel,
- the display of a message "hand- brake on" on the multifunction
screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
Before getting out of the vehicle,
check that the warning lamp P is lit
permanently on the instrument panel. The full application of the parking
b r a k e i s c o n fi r m e d b y :
Page 160 of 338
127
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off.
The application of the parking brake
i s c o n fi r m e d b y : -
the lighting of warning lamp P
on control lever A and on the
instrument panel,
Automatic release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
Manual gearbox ( fi r s t g e a r o r
reverse gear engaged): press
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : accelerate
with the selector in position D ,
M or R .
Electronic gearbox : accelerate
with the selector in position A ,
M or R .
Full release of the parking brake is
c o n fi r m e d b y : -
the extinction of warning
lamp P on control lever A
and on the instrument panel,
- the display of a message "hand- brake off" on the multifunction
screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of a
long pull on control lever A , until
you see the message "handbrake
on" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "hand-
brake on" on the multifunction
screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electric parking brake.
