71
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).
3. "D": Starter position.
Key left in position "M" buzzer
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
It is essential always to keep the
engine running in order to re-
tain braking and steering power
assistance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 163 of 338
130
IX
D R I V I N G
Emergency unlocking In the event of the electric parking
brake malfunctioning or the battery
r u n n i n g fl a t , a n e m e r g e n c y m e c h a -
nism can unlock the parking brake.
Immobilise the vehicle, with the
e n g i n e r u n n i n g , b y e n g a g i n g fi r s t
gear (manual gearbox), posi-
tion P (automatic gearbox) or M
or R (6-speed electronic gear-
box).
Switch off the engine, but leave
the ignition on.
If the vehicle cannot be immo- bilised, do not do anything and
contact a CITROËN dealer with-
out delay.
Fetch the vehicle blocks E and
the unlocking tool F (handle)
from the toolbox.
Immobilise the vehicle by placing
blocks E at the front and at the
rear of one of the rear wheels.
Slide the front left-hand seat
back as far as possible.
L i f t u p t h e fl o o r p l u g B on the
carpet in front of the seat.
Pierce the tab C on the tube D
with the unlocking tool F .
Place the end of the handle F in
the tube D .
Turn the unlocking tool F clock-
wise.
For safety reasons , it is
essential to continue turning the
device as far as it will go or until
you hear a knocking noise. The
parking brake is released.
Remove the unlocking tool F and
store it with the blocks E in the
toolbox.
- The operation of the parking brake reinitialises when the ig-
nition is switched off then on
again. If the reinitialisation of the
parking brake proves impossi-
ble, contact a CITROËN dealer.
- The subsequent time required for application may be longer
than during normal operation.
For safety reasons, after this manoeuvre it is essential to cont act a CITROËN dealer urgently to have the plug
replaced.
Following an emergency unlocking, immobilisation of the vehi cle is no longer guaranteed once the manual emer-
gency unlocking has been deployed and the manual control doe s not allow the re-application of your parking
brake.
Take no action, either on control lever A , or stopping starting the engine while the unlocking to ol F is engaged.
Take care not to allow moisture or dust in the proximity of th e plug.
Page 165 of 338
132
IX
D R I V I N G
SITUATIONCONSEQUENCES
4 Display of message
"
Parking brake faulty
"
and the following warning lamps:
and/or fl a s h i n g
- The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electric parking brake:
Immobilise the vehicle and switch off the ignition.
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electric parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
5 Display of message
"
Parking brake control
faulty – auto parking brake activated
" and
the following warning lamps:
and/or fl a s h i n g - Only the functions for automatic application o
n switching off the
engine and automatic release on acceleration are av ailable.
- Manual application/release of the electric parking brake a nd
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electric parking brake before switchi ng off the engine.
Page 190 of 338
156
IX
D R I V I N G
Loading/unloading
assistance
Grand C4
Picasso
C4 Picasso

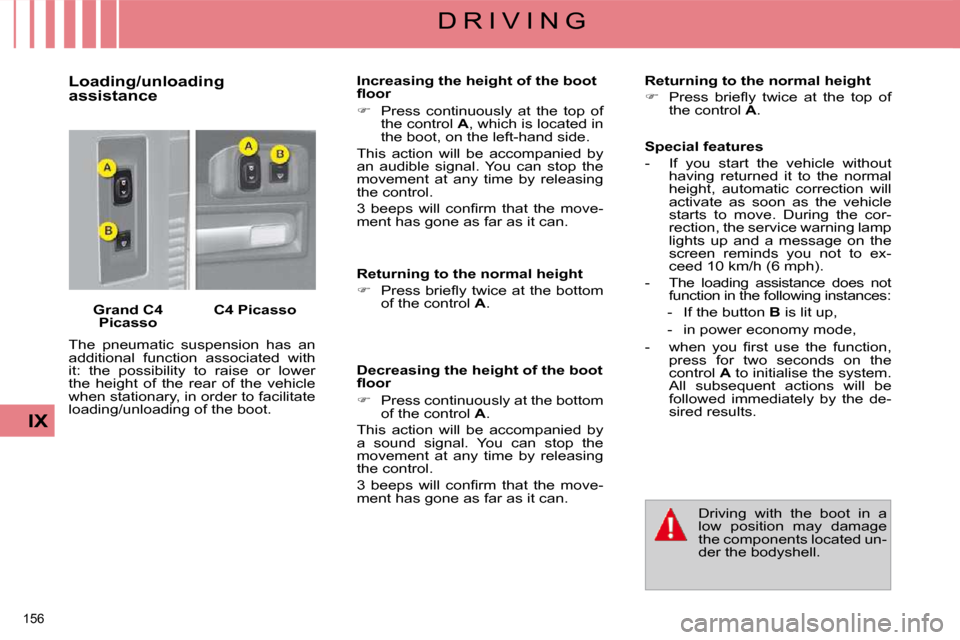

The pneumatic suspension has an
additional function associated with
it: the possibility to raise or lower
the height of the rear of the vehicle
when stationary, in order to facilitate
loading/unloading of the boot. Increasing the height of the boot
fl o o r
Press continuously at the top of
the control A , which is located in
the boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the
normal
height
P r e s s b r i e fl y t w i c e a t t h e b o t t o m
of the control A .
Decreasing the height of the boot
fl o o r
Press continuously at the bottom
of the control A .
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the
normal
height
P r e s s b r i e fl y t w i c e a t t h e t o p o f
the control A .
Driving with the boot in a
low position may damage
the components located un-
der the bodyshell.
Special features
- If you start the vehicle without having returned it to the normal
height, automatic correction will
activate as soon as the vehicle
starts to move. During the cor-
rection, the service warning lamp
lights up and a message on the
screen reminds you not to ex-
ceed 10 km/h (6 mph).
- The loading assistance does not function in the following instances:
- If the button B is lit up,
- in power economy mode,
- w h e n y o u fi r s t u s e t h e f u n c t i o n , press for two seconds on the
control A to initialise the system.
All subsequent actions will be
followed immediately by the de-
sired results.
