WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6
litre
HDi 110 hp
Gearboxes
Manual Electronic gearbox system
Model codes:
UA... UE... UD...
9HZ-C 9HZ-H/P
- Unladen weight 1 530 - 1 484 - 1 489 1 539 - 1 494 - 1 499
- Kerb weight 1 605 - 1 559 - 1 564 1 614 - 1 5 69 - 1 574
- Payload 720 - 546 - 561 711 - 536 - 561
- Gross vehicle weight (GVW) 2 250 - 2 030 - 2 050 2 250 - 2 030 - 2 060
- Gross train weight (GTW)
on a 12 % gradient 3 130 3 130
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 880 - 1 100 - 1 080 8 80 - 1 100 - 1 070
- Braked trailer * (with load transfer within GTW limit) 1 180 - 1 300 - 1 300 1 180 - 1 300 - 1 300
- Unbraked trailer 750 750
- Recommended nose weight 50 - 60 - 60 50 - 60 - 6 0
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up t o a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 62 m ph (approx 100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37
°C, limit the weight towed.
Page 237 of 338
200
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
2
litre
HDi 136 hp
Gearboxes Manual
Electronic gearbox system
Auto.
Model codes:
UA... UE... UD...
RHR-H RHJ-H/P RHR-J
- Unladen weight 1 613 - 1 580 - 1 610 1 620 - 1 582 - 1 581 1 650 - 1 611 - 1 640
- Kerb weight 1 688 - 1 655 - 1 685 1 695 - 1 6 57 - 1 656 1 725 - 1 686 - 1 715
- Payload 695 - 685 - 520 700 - 558 - 559 700 - 559 - 510
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 2 320 - 2 140 - 2 140 2 3
50 - 2 170 - 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 508 - 3 515 - 3 530 3 620 - 3 590 - 3 540 3 550 - 3 520 - 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 250 - 1 400 1 300 - 1 450 - 1 400 1 200 - 1 350 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 500 - 1 600 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 70 70 - 60 - 60 70 - 60 - 60
* The weight of the braked trailer can be increas ed, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 268 of 338
232
3 3
2 2
11
4 4
0 6
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which s e r v i c e s y o u h a v e a c c e s s t o . A l i s t o f m o b i l e t e l e p h o n e s w h i c h o f f e r t h e b e s t r a n g e o f s e r v i c e s i s available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only carr y out operations w h i c h r e q u i r e p r o l o n g e d a t t e n t i o n w h e n t h e v e h i c l e i s s t a t i o n a r y ( p a i r i n g t h e B l u e t o o t h m o b i l e t e l e p h o n e t o t h e h a n d s - f r e e k i t ) .
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND V I S I B L E . P r e s s t h e d i a l t o c o n fi r m each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to c o n fi r m e a c h o p e r a t i o n .
On your telephone, select the name of the CITROËN audio/telephone. Enter the On your telephone, select the name of r telep
a u t h e n t i c a t i o n c o d e ( 0 0 0 0 b y d e f a u l t ) .
T o fi n d a n d c h a n g e t h e n a m e o f t h e C I T R O Ë N a u d i o / t e l e p h o n e , T o fi n d a n d c h a n g e t h e n a m e o f t h e C I T R O Ë N a u d i o / t e l e p h o n e , repeat step 2 then select CHANGE AUDIO/TELEPHONPHONE NAME.
Page 279 of 338
243
1
4
2
3
3
3
4
4
2
4
3
4
4
4
4
4
3
2
3
4
4
4
4
3
3
3
3
4
4
3
3
5
5
5
3
3
2
3
5
5
3
2
4
3
5
4
3
4
3
4
4
3
3
4
4
4
4
4
3
5
4
5
5
2
3
4
4

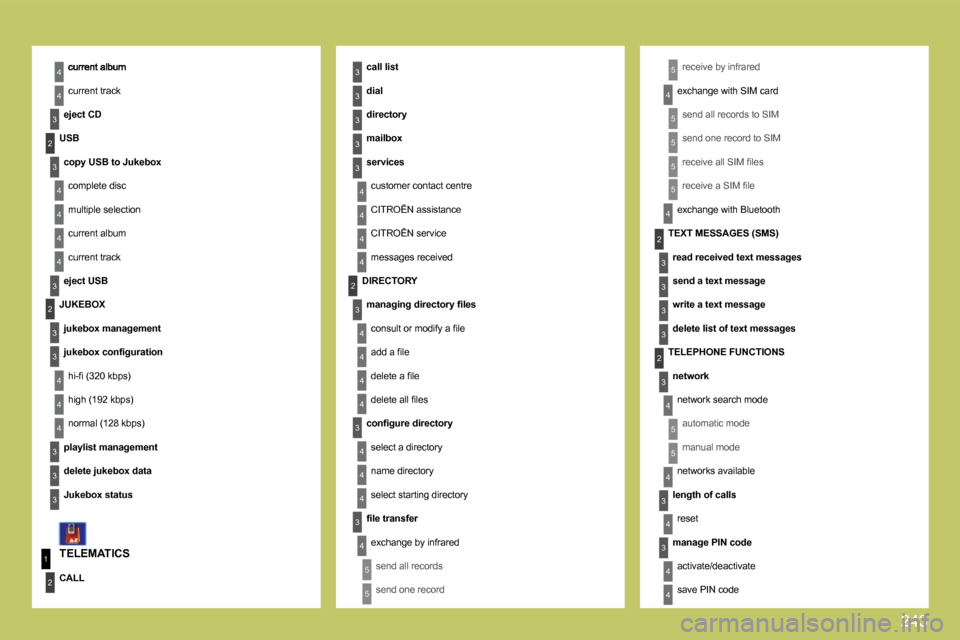

current track
e j e c t C D
receive by infrared
e x c h a n g e w i t h S I M c a r d
send all records to SIM
send one record to SIM
r e c e i v e a l l S I M fi l e s
r e c e i v e a S I M fi l e
e x c h a n g e w i t h B l u e t o o t h
TELEMATICS
c a l l l i s t
d i a l
d i r e c t o r y
m a i l b o x
s e r v i c e s
customer contact centre
CITROËN assistance
CITROËN service
m e s s a g e s r e c e i v e d
USB
c o p y U S B t o J u k e b o x
complete disc
multiple selection
current album
current track
e j e c t U S B
CALL
DIRECTORY
m a n a g i n g d i r e c t o r y fi l e s
c o n s u l t o r m o d i f y a fi l e
a d d a fi l e
d e l e t e a fi l e
d e l e t e a l l fi l e s
c o n fi g u r e d i r e c t o r y
select a directory
name directory
s e l e c t s t a r t i n g d i r e c t o r y
fi l e t r a n s f e r
e x c h a n g e b y i n f r a r e d
send all records
send one record
TEXT MESSAGES (SMS)
r e a d r e c e i v e d t e x t m e s s a g e s
s e n d a t e x t m e s s a g e
w r i t e a t e x t m e s s a g e
d e l e t e l i s t o f t e x t m e s s a g e s
TELEPHONE FUNCTIONS
n e t w o r k
network search mode
automatic mode
manual mode
networks available
l e n g t h o f c a l l s
reset
m a n a g e P I N c o d e
activate/deactivate
save PIN code
JUKEBOX
j u k e b o x m a n a g e m e n t
j u k e b o x c o n fi g u r a t i o n
h i - fi ( 3 2 0 k b p s )
h i g h ( 1 9 2 k b p s )
n o r m a l ( 1 2 8 k b p s )
p l a y l i s t m a n a g e m e n t
d e l e t e j u k e b o x d a t a
J u k e b o x s t a t u s
Page 282 of 338
246
sound quality between the different audio s o u r c e s ( r a d i o , C D . . . ) .
C h e c k t h a t t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , A m b i e n c e , L o u d n e s s ) a r e a d a p t e d t o the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear B a l a n c e , L e f t - R i g h t B a l a n c e ) t o t h e m i d d l e position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
F o r o p t i m u m s o u n d q u a l i t y , t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , A m b i e n c e , L o u d n e s s ) c a n b e a d a p t e d t o t h e d i f f e r e n t s o u n d s o u r c e s , w h i c h m a y r e s u l t i n a u d i b l e d i f f e r e n c e s w h e n c h a n g i n g s o u r c e ( r a d i o , C D . . . ) .
The CD is ejected automatically or is not played by the player.
T h e C D i s p r o t e c t e d b y a n a n t i - p i r a t i n g p r o t e c t i o n s y s t e m w h i c h i s n o t r e c o g n i s e d b y t h e a u d i o e q u i p m e n t . The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD player sound is poor. I n s e r t g o o d q u a l i t y C D s a n d s t o r e t h e m i n suitable conditions. The CD used is scratched or of poor quality.
T h e a u d i o e q u i p m e n t s e t t i n g s ( b a s s , t r e b l e , a m b i e n c e s ) a r e u n s u i t a b l e . S e t t h e t r e b l e o r b a s s l e v e l t o 0 , w i t h o u t s e l e c t i n g an ambience.
T h e t a b l e b e l o w g r o u p s t o g e t h e r t h e a n s w e r s t o t h e m o s t f r e q u e n t l y a s k e d q u e s t i o n s .

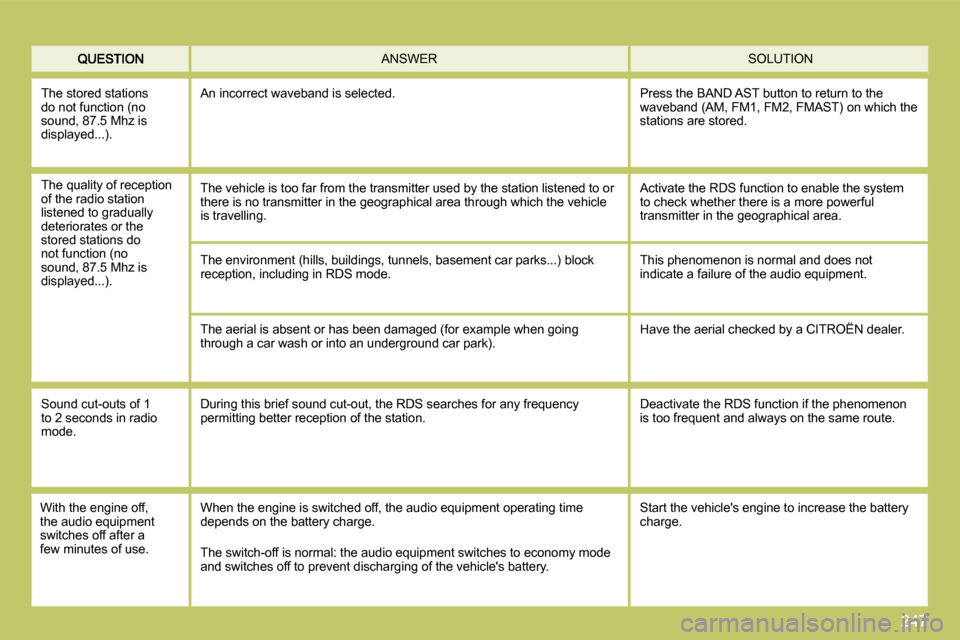

QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS
- Check that the CD is inserted in the player the r i g h t w a y u p . - Check the condition of the CD: the CD cannot b e p l a y e d i f i t i s t o o d a m a g e d . - Check the content in the case of a recorded CD: consult the advice in the Audio section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system.
Page 283 of 338
247
SOLUTION ANSWER
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e .
T h e a e r i a l i s a b s e n t o r h a s b e e n d a m a g e d ( f o r e x a m p l e w h e n g o i n g t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
D u r i n g t h i s b r i e f s o u n d c u t - o u t , t h e R D S s e a r c h e s f o r a n y f r e q u e n c y p e r m i t t i n g b e t t e r r e c e p t i o n o f t h e s t a t i o n . Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
W i t h t h e e n g i n e o f f , the audio equipment switches off after a few minutes of use.
W h e n t h e e n g i n e i s s w i t c h e d o f f , t h e a u d i o e q u i p m e n t o p e r a t i n g t i m e d e p e n d s o n t h e b a t t e r y c h a r g e .
The switch-off is normal: the audio equipment switches to economy mode a n d s w i t c h e s o f f t o p r e v e n t d i s c h a r g i n g o f t h e v e h i c l e ' s b a t t e r y .
The stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
S t a r t t h e v e h i c l e ' s e n g i n e t o i n c r e a s e t h e b a t t e r y c h a r g e .
The quality of reception of the radio station l i s t e n e d t o g r a d u a l l y deteriorates or the stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used by the station listened to or t h e r e i s n o t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a t h r o u g h w h i c h t h e v e h i c l e i s t r a v e l l i n g .
Activate the RDS function to enable the system to check whether there is a more powerful t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a .
Page 310 of 338
275
sound quality between the different audio s o u r c e s ( r a d i o , C D . . . ) .
C h e c k t h a t t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , A m b i e n c e , L o u d n e s s ) a r e a d a p t e d t o the sources listened to. It is advisable to set t h e A U D I O f u n c t i o n s ( B a s s , T r e b l e , F r o n t - R e a r B a l a n c e , L e f t - R i g h t B a l a n c e ) t o t h e m i d d l e position, select the Linear musical ambience and set the loudness correction to the "Active" p o s i t i o n i n C D m o d e o r t o t h e " I n a c t i v e " p o s i t i o n in radio mode.
F o r o p t i m u m s o u n d q u a l i t y , t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , A m b i e n c e , L o u d n e s s ) c a n b e a d a p t e d t o t h e d i f f e r e n t s o u n d s o u r c e s , w h i c h m a y r e s u l t i n a u d i b l e d i f f e r e n c e s w h e n c h a n g i n g s o u r c e ( r a d i o , C D . . . ) .
T h e C D i s e j e c t e d automatically or is not played by the player.
- C h e c k t h a t t h e C D i s i n s e r t e d i n t h e p l a y e r t h e r i g h t w a y u p . - C h e c k t h e c o n d i t i o n o f t h e C D : t h e C D c a n n o t b e p l a y e d i f i t i s t o o d a m a g e d . - Check the content in the case of a recorded C D : c o n s u l t t h e a d v i c e i n t h e A u d i o s e c t i o n . - T h e a u d i o e q u i p m e n t ' s C D p l a y e r d o e s n o t p l a y D V D s . - Because of their quality level, certain writeable C D s w i l l n o t b e p l a y e d b y t h e a u d i o s y s t e m .
T h e C D i s i n s e r t e d u p s i d e d o w n , i s u n p l a y a b l e , d o e s n o t c o n t a i n a n y a u d i o data or contains an audio format which the player cannot play.
T h e C D i s p r o t e c t e d b y a n a n t i - p i r a t i n g p r o t e c t i o n s y s t e m w h i c h i s n o t r e c o g n i s e d b y t h e a u d i o e q u i p m e n t .
T h e C D p l a y e r s o u n d is poor. I n s e r t g o o d q u a l i t y C D s a n d s t o r e t h e m i n suitable conditions. T h e C D u s e d i s s c r a t c h e d o r o f p o o r q u a l i t y .
T h e a u d i o e q u i p m e n t s e t t i n g s ( b a s s , t r e b l e , a m b i e n c e s ) a r e u n s u i t a b l e . S e t t h e t r e b l e o r b a s s l e v e l t o 0 , w i t h o u t s e l e c t i n g an ambience.

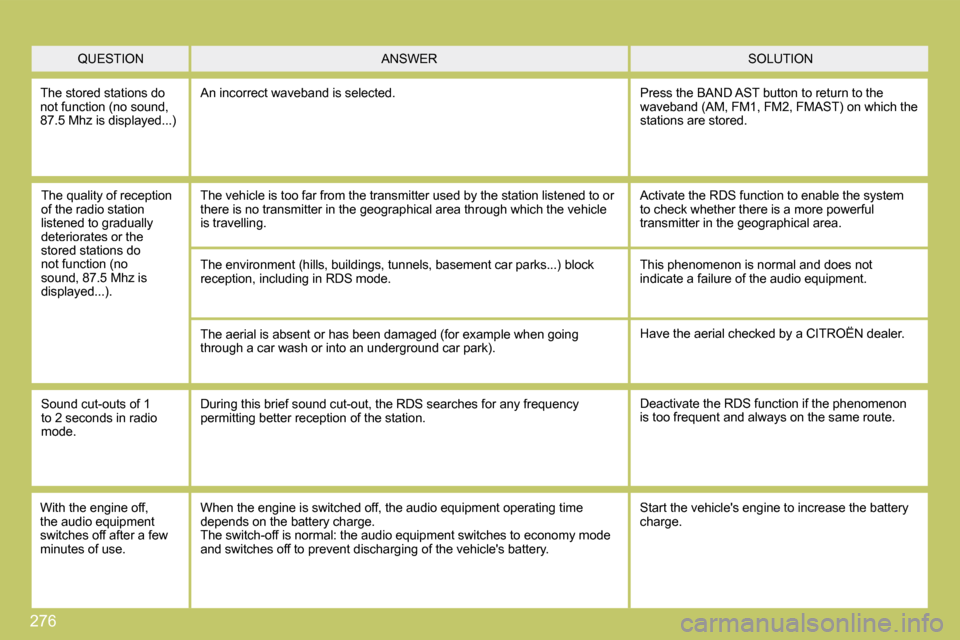

Q U E S T I O N S O L U T I O N A N S W E R
F R E Q U E N T L Y A S K E D Q U E S T I O N S
Page 311 of 338
276276
Q U E S T I O N S O L U T I O N A N S W E R
The quality of reception of the radio station l i s t e n e d t o g r a d u a l l y deteriorates or the stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used by the station listened to or t h e r e i s n o t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a t h r o u g h w h i c h t h e v e h i c l e i s t r a v e l l i n g .
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e .
T h e a e r i a l i s a b s e n t o r h a s b e e n d a m a g e d ( f o r e x a m p l e w h e n g o i n g t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
A c t i v a t e t h e R D S f u n c t i o n t o e n a b l e t h e s y s t e m to check whether there is a more powerful t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a .
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
D u r i n g t h i s b r i e f s o u n d c u t - o u t , t h e R D S s e a r c h e s f o r a n y f r e q u e n c y p e r m i t t i n g b e t t e r r e c e p t i o n o f t h e s t a t i o n . D e a c t i v a t e t h e R D S f u n c t i o n i f t h e p h e n o m e n o n is too frequent and always on the same route.
W i t h t h e e n g i n e o f f , the audio equipment switches off after a few minutes of use.
W h e n t h e e n g i n e i s s w i t c h e d o f f , t h e a u d i o e q u i p m e n t o p e r a t i n g t i m e d e p e n d s o n t h e b a t t e r y c h a r g e . The switch-off is normal: the audio equipment switches to economy mode a n d s w i t c h e s o f f t o p r e v e n t d i s c h a r g i n g o f t h e v e h i c l e ' s b a t t e r y .
S t a r t t h e v e h i c l e ' s e n g i n e t o i n c r e a s e t h e b a t t e r y c h a r g e .
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . )
An incorrect waveband is selected. P r e s s t h e B A N D A S T b u t t o n t o r e t u r n t o t h e w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
Page 316 of 338
282
11
22
33
44
22
44
33
11
03AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
S e l e c t A C T I V A T E F R E Q U E N C Y FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
ACTIVATE FREQUENCY FOLLOWING (RDS)
FM WAVEBAND PREFERENCES
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a j o u r n e y .
RADIO
SELECTING A STATION
Page 329 of 338
294
There is a difference in sound quality between the different audio sources (radio, CD...).
C h e c k t h a t t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear B a l a n c e , L e f t - R i g h t B a l a n c e ) t o t h e m i d d l e position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
F o r o p t i m u m s o u n d q u a l i t y , t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , Ambience, Loudness) can be adapted to the different sound sources, w h i c h m a y r e s u l t i n a u d i b l e d i f f e r e n c e s w h e n c h a n g i n g s o u r c e ( r a d i o , CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the r i g h t w a y u p . - Check the condition of the CD: the CD cannot b e p l a y e d i f i t i s t o o d a m a g e d . - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment’s CD player does not play DVDs. - Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
T h e C D i s p r o t e c t e d b y a n a n t i - p i r a t i n g p r o t e c t i o n s y s t e m w h i c h i s n o t r e c o g n i s e d b y t h e a u d i o e q u i p m e n t .
T h e m e s s a g e " U S B peripheral error" is displayed on the screen.
R e c h a r g e t h a b a t t e r y o f t h e p e r i p h e r a l d e v i c e . The Bluetooth conecion is cut. T h e b a t t e r y o f t h e p e r i p h e r a l m a y n o t b e s u f fi c i e n t l y c h a r g e d .
T h e U S B m e m o r y s t i c k i s n o t r e c o g n i s e d . The memory stick may be corrupt. Reformat the memory stick.
QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. I n s e r t g o o d q u a l i t y C D s a n d s t o r e t h e m i n suitable conditions.
T h e a u d i o e q u i p m e n t s e t t i n g s ( b a s s , t r e b l e , a m b i e n c e s ) a r e u n s u i t a b l e . S e t t h e t r e b l e o r b a s s l e v e l t o 0 , w i t h o u t s e l e c t i n g an ambience.
