Page 80 of 338
70
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically
in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
This also triggers the timed switch-
ing on of the exterior side spotlamps
and guide-me-home lighting, if this
is activated.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lamps and exterior side
s p o t l a m p s a n d fl a s h i n g o f t h e d i r e c -
tion indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting
of the sidelamps, dipped beams,
number plate lamps and exterior
side spotlamps (located underneath
the exterior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
In the event of a malfunc-
tion, you are informed by
lighting of this warning
lamp, an audible signal
and a message on the
multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 83 of 338
72
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition on) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
If the remote control bat-
t e r y i s fl a t , y o u a r e i n -
formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o -
cation.
Slide the new battery into its lo-
cation observing the original di-
rection.
Clip the casing together.
Reinitialise the remote control.
Changing the battery
Page 90 of 338
80
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open, you
can access the boot by raising the
rear shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 99 of 338
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction occurs, this
warning lamp is displayed
on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen.
The system then places your headlamps in
the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated if
the lighting stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the function
is not activated.
Page 103 of 338
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction occurs, this
warning lamp is displayed
on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen.
The system then places your headlamps in
the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated if
the lighting stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the function
is not activated.
Page 104 of 338
88
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction occurs, this
warning lamp is displayed
on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen.
The system then places your headlamps in
the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated if
the lighting stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the function
is not activated.

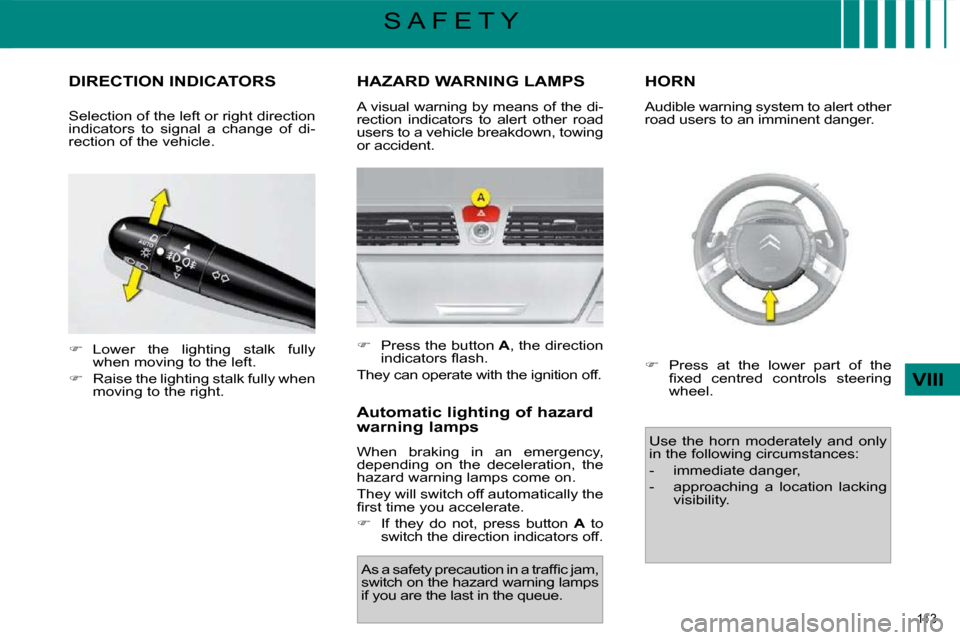

Page 145 of 338
113
VIII
S A F E T Y
DIRECTION INDICATORS
Lower the lighting stalk fully
when moving to the left.
Raise the lighting stalk fully when
moving to the right.
HAZARD WARNING LAMPS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, towing
or accident.
Automatic lighting of hazard
warning lamps
When braking in an emergency,
depending on the deceleration, the
hazard warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off. HORN
Selection of the left or right direction
indicators to signal a change of di-
rection of the vehicle.
Press the button A , the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c j a m ,
switch on the hazard warning lamps
if you are the last in the queue. Audible warning system to alert other
road users to an imminent danger.
Press at the lower part of the
fi x e d c e n t r e d c o n t r o l s s t e e r i n g
wheel.
Use the horn moderately and only
in the following circumstances:
- immediate danger,
- approaching a location lacking visibility.
Page 147 of 338
115
VIII
S A F E T Y
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems
which help you to obtain optimum
braking in complete safety in emer-
gency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular
on poor or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may
make itself felt by slight vibration of
the brake pedal. Operating fault
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
it indicates a malfunction of the anti-
lock braking system which could re-
sult in loss of control of the vehicle
when braking.
If this warning lamp comes on,
together with the STOP and
ABS warning lamps, accom-
panied by an audible signal
and a message on the multifunction
screen, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.
You
must
stop as soon as it is
safe to do so.
In either case, contact a CITROËN
dealer.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations. Emergency braking assistance
System which, in an emergency, enables you to obtain the optimum braking pressure more quickly, thus reducing the stopping distance.
Activation
It is triggered by the speed at which the brake pedal is pressed.
The effect of this is a reduction in the resistance of the pedal and an i n c r e a s e i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e pressure.
Page 153 of 338
121
VIII
S A F E T Y

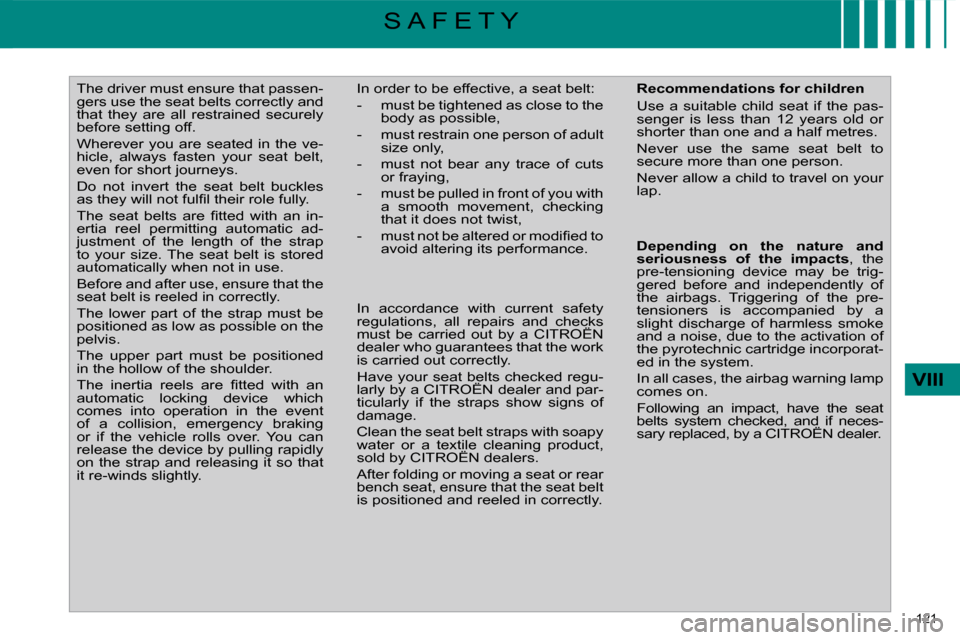

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
j u s t m e n t o f t h e l e n g t h o f t h e s t r a p
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n
automatic locking device which
comes into operation in the event
of a collision, emergency braking
or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it so that
it re-winds slightly. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and
seriousness of the impacts , the
pre-tensioning device may be trig-
gered before and independently of
the airbags. Triggering of the pre-
tensioners is accompanied by a
slight discharge of harmless smoke
and a noise, due to the activation of
the pyrotechnic cartridge incorporat-
ed in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 159 of 338
126
D R I V I N G
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows:
- Automatic application/release
Application is automatic when the engine stops, release is automat-
ic on use of the accelerator.
- Manual application/release
Manual application/release of the parking brake is possible
by pulling control lever A while
pressing the brake pedal. Manual application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off,
pull on control lever A . Manual release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator,
pull then release
control lever A .
-
the extinction of the warning
lamp P on control lever A
and on the instrument panel,
- the display of a message "hand- brake off" on the multifunction
screen.
If you pull control lever A without
pressing the brake pedal, the park-
ing brake will not be released and
the "Foot on brake" warning lamp
will light up on the instrument panel.
The application of the parking brake
i s c o n fi r m e d b y :
-
the lighting of the warning
lamp P on control lever A
and on the instrument panel,
- the display of a message "hand- brake on" on the multifunction
screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
Before getting out of the vehicle,
check that the warning lamp P is lit
permanently on the instrument panel. The full application of the parking
b r a k e i s c o n fi r m e d b y :
