IX
139
DRIVING
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows:
- automatic application/release
Application is automatic when
the engine stops, release is au-
tomatic on use of the accelerator
(active by default).
- manual application/release
Manual application/release of
the parking brake is possible
by pulling control lever A
while
pressing the brake pedal.
Manual application
With the vehicle stationary, to apply
the parking brake whether the en-
gine is running or not, pull
control
lever A
.
Manual release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator, pull then release
control lever A
.
- the warning lamp P
in con-
trol lever A
and in the in-
strument panel going off,
- the display of a message
"Parking brake off" in the multi-
function screen. The application of the parking brake
is confi rmed by:
-
the illumination of the warn-
ing lamp P
in control lever A
and in the instrument panel,
- the display of a message
"Parking brake on" in the multi-
function screen.
When the driver’s door is
opened with the engine run-ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
Before getting out of the vehicle,
check that the warning lamp P
is
on fi xed in the instrument panel
(not fl ashing). The full application of the parking
brake is confi rmed by:
If you pull control lever A
without pressing the brake
pedal, the parking brake
will not be released and
the "Foot on brake" warn-
ing lamp will come on in
the instrument panel.
Page 142 of 352
IX
140
DRIVING
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off.
The application of the parking brake
is confi rmed by:
-
the illumination of warning
lamp P
in control lever A
and in the instrument panel,
Automatic release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
)
Manual gearbox
(fi rst gear or
reverse gear engaged): press
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
)
Automatic gearbox
: accelerate
with the selector in position D
, M
or R
.
)
Electronic gearbox
: accelerate
with the selector in position A
, M
or R
.
Full release of the parking brake is
confi rmed by:
- the warning lamp P
in con-
trol lever A
and in the in-
strument panel going off,
- the display of a message "Parking
brake off" in the multifunction
screen.
When stationary, with the engine
running, do not press the acceler-
ator pedal unnecessarily, as you
may release the parking brake.
Maximum application
If necessary, you can use maximum
application
of the parking brake. It
is obtained by means of a long pull
on control lever A
, until you see the
message "Parking brake on" and an
audible signal is heard.
Maximum application is essential:
- when towing a caravan or a trail-
er, if the automatic functions are
activated but you are applying
the parking brake manually,
- when the gradient you are parked
on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- when towing, when loaded or
when parking on a gradient, turn
the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the
release time will be longer.
Before leaving the vehicle,
check that warning lamp P
in the instrument panel is
on fi xed, not fl ashing.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message
"Parking brake on" in the multi-
function screen.
The normal operating sound will con-
fi rm to you the application/release of
the electric parking brake.
Page 143 of 352
IX
141
DRIVING
To immobilise the vehicle,
engine running
To immobilise the vehicle when sta-
tionary with the engine running, you
must apply the parking brake manu-
ally by pulling
on control lever A
.
The application of the parking brake
is confi rmed by:
- the illumination of warning
lamp P
in control A
and in
the instrument panel,
- the display of a message
"Parking brake on" in the multi-
function screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P
in the instrument panel is
on fi xed (not fl ashing).
Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To move your vehicle without start-
ing the engine (towing, etc...), but
with the ignition on
, press the brake
pedal and release the parking brake
by pulling
then releasing
control
lever A
.
The full release of the parking brake
is confi rmed by the warning lamp P
(red) in the instrument panel going
off and the display of a message
"Parking brake off" in the multifunc-
tion screen.
If the parking brake malfunctions
while applied or if the battery
runs
fl at, an emergency release remains
possible.
Activation/Deactivation of the
automatic functions *
The automatic application when
the engine is switched off and the
automatic release when you press
the accelerator can be deactivated.
Activation/deactivation is performed
using the confi guration menu of the
multifunction screen. To do so, se-
lect "Vehicle parameters/Comfort/
Automatic handbrake".
The deactivation of these
functions is confi rmed by the
lighting of this warning lamp
in the instrument panel.
* According to country With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
Page 144 of 352
IX
142
DRIVING
Dynamic emergency braking
In the event of a failure of the vehicle’s
main braking system or in an excep-
tional situation (e.g. driver taken ill,
under instruction, etc) a continuous
pull on the control lever A
will stop
the vehicle.
The electronic stability programme
(ESP) provides stability during dy-
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed in the
multifunction screen:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP sys-
tem is signalled by the il-
lumination of this warning
lamp, then braking stability
is not guaranteed. In this event, sta-
bility must be assured by the driver
by repeating alternate "pull-release"
actions on control lever A
.
The dynamic emergency
braking must only be used in
exceptional circumstances.
Page 145 of 352
IX
143
DRIVING
Emergency release
In the event of a malfunction of the
electric parking brake or the battery
running fl at, an emergency mecha-
nism can release the parking brake.
)
Immobilise the vehicle, with the
engine running, by engaging fi rst
gear (manual gearbox), posi-
tion P
(automatic gearbox) or M
or R
(6-speed electronic gearbox
system).
)
Switch off the engine, but leave
the ignition on.
If the vehicle cannot be immo-
bilised, do not do anything and
contact a CITROËN dealer or a
qualifi ed workshop without delay.
)
Fetch the vehicle blocks E
and
the release tool F
(handle) from
the toolbox.
)
If on a gradient: chock the vehi-
cle by placing the blocks in front
of or behind the front wheels, on
the falling side of the gradient.
If on level ground: chock the
vehicle by placing the blocks in
front of and behind one of the
front wheels.
)
Slide the front left-hand seat
back as far as possible.
)
Lift up the fl oor plug
B
on the
carpet in front of the seat.
)
Pierce the tab C
on the tube D
with the release tool F
.
)
Place the end of the handle F
in
the tube D
.
)
Turn the release tool F clock-
wise.
For safety reasons
, it is
essential
to continue turning the
device as far as it will go. The
parking brake is released.
)
Remove the release tool F
and
store it with the blocks E
in the
toolbox.
- The operation of the parking
brake reinitialises itself when
the ignition is switched off then
on again. If the reinitialisation of
the parking brake proves impos-
sible, contact a CITROËN dealer
or a qualifi ed workshop.
- The subsequent time required
for application may be longer
than during normal operation.
When the release tool F
is engaged, do not operate the control lever or the ignition switch.
Immobilisation of the vehicle is no longer assured once the manual emergency release has been used.
The emergency release system cannot be used to apply the parking brake mechanically.
Take care not to allow moisture or dust in the proximity of the plug.
For safety reasons, contact a CITROËN dealer or a qualifi ed workshop as soon as possible to have the plug replaced.
Page 146 of 352
IX
144
DRIVING

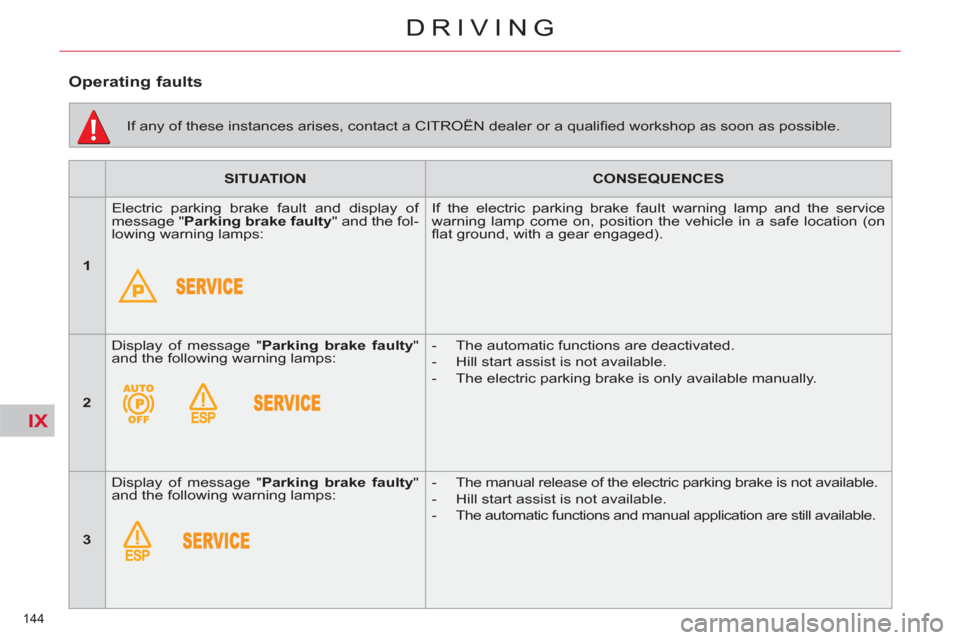

SITUATION
CONSEQUENCES
1
Electric parking brake fault and display of
message " Parking brake faulty
" and the fol-
lowing warning lamps: If the electric parking brake fault warning lamp and the service
warning lamp come on, position the vehicle in a safe location (on
fl at ground, with a gear engaged).
2
Display of message " Parking brake faulty
"
and the following warning lamps:
- The automatic functions are deactivated.
- Hill start assist is not available.
- The electric parking brake is only available manually.
3
Display of message " Parking brake faulty
"
and the following warning lamps:
- The manual release of the electric parking brake is not available.
- Hill start assist is not available.
- The automatic functions and manual application are still available.
If any of these instances arises, contact a CITROËN dealer or a qualifi ed workshop as soon as possible.
Operating faults
Page 147 of 352
IX
145
DRIVING
SITUATION
CONSEQUENCES
4
Display of message " Parking brake faulty
"
and the following warning lamps:
and/or fl ashing
- The automatic functions are deactivated.
- Hill start assist is not available.
To apply the electric parking brake:
)
Immobilise the vehicle and switch off the ignition
)
Pull the control lever for at least 5 seconds or until maximum
application.
)
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P
fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer or a qualifi ed workshop.
To release the electric parking brake:
)
Switch on the ignition.
)
Pull the control lever and hold it for approximately 3 seconds.
5
Display of message " Parking brake control
faulty – auto parking brake activated
" and
the following warning lamps:
and/or fl ashing
- Only the functions for automatic application on switching off the
engine and automatic release on acceleration are available.
- Manual application/release of the electric parking brake and
dynamic emergency braking are unavailable.
6
Battery fault
- Lighting of the battery warning lamp makes it essential to stop
the vehicle as soon as traffi c allows. Stop and immobilise your
vehicle.
- Apply the electric parking brake before switching off the engine.
Page 148 of 352
IX
146
DRIVING
HILL START ASSIST
System which holds your vehicle tem-
porarily (approximately 2 seconds)
when starting on a slope, the time it
takes to move your foot from the brake
pedal to the accelerator pedal.
This function is only active when:
- the vehicle is completely station-
ary, with your foot on the brake
pedal,
- in particular conditions on a
slope,
- with the driver’s door closed.
The hill start assist cannot be deac-
tivated.
Operation
Operating fault
If a malfunction of the system oc-
curs, these warning lamps come
on. Contact a CITROËN dealer or a
qualifi ed workshop to have the sys-
tem checked.
On an ascending slope, with the
vehicle stationary, the vehicle is
held for a brief moment when you
release the brake pedal:
- provided you are in fi rst gear or
neutral on a manual gearbox,
- provided you are in position A
or M
with the electronic gearbox
system,
- provided you are in position D
or
M
on an automatic gearbox.
On a descending slope, with the
vehicle stationary and reverse
gear engaged, the vehicle is held
momentarily when you release
the brake pedal.
Do not exit the vehicle while
it is being held in the hill
start assist phase.
If you need to exit the ve-
hicle with the engine running, man-
ually apply the parking brake and
ensure that the warning lamp P
(red) in the instrument panel is on
(not fl ashing).
Page 149 of 352
IX
147
DRIVING
5-SPEED MANUALGEARBOX
Starting the vehicle
)
Check that the gear lever is in
neutral.
)
Do not touch the accelerator.
)
For Diesel engines: turn the
key to position M
and wait until
the pre-heating warning lamp
switches off if it has come on.
)
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
)
In temperatures lower than 0°C,
declutch while operating the
starter to facilitate starting.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
)
Move the gear lever to the right
then back.
Page 150 of 352
IX
148
DRIVING
GEAR EFFICIENCY
INDICATOR *
System which reduces fuel con-
sumption by advising the driver to
change up on vehicles fi tted with a
manual gearbox.
Operation
The system intervenes only when
driving economically.
Depending on the driving situation
and your vehicle's equipment, the
system may advise you to skip one
or more gears. You can follow this
instruction without engaging the in-
termediate gears.
The gear recommended should not
be considered compulsory. In fact,
the confi guration of the road, the
amount of traffi c and safety remain
determining factors when choosing
the best gear. Therefore, the driver
remains responsible for deciding
whether or not to follow the advice
given by the system.
This function cannot be deactivated.
* According to engine.
Example:
- You are in third gear.
- You press the accelerator pedal
moderately.
- The system may suggest that
you engage a higher gear, if ap-
propriate.
The information appears in the form
of an arrow in the instrument panel
screen.
Depending on your vehicle's equip-
ment, this arrow may be accompanied
by the recommended gear.
In the case of driving which
makes particular demands
on the performance of the
engine (fi rm pressure on
the accelerator pedal, for example,
when overtaking...), the system will
not recommend a gear change.
The system never suggests:
- engaging fi rst gear,
- engaging reverse gear,
- engaging a lower gear.
