buttons Citroen C4 PICASSO 2011.5 1.G Owner's Guide

331
99
7788
11111010122
133
144
15555
44166
22
11188
17733
66
01FIRST STEPS

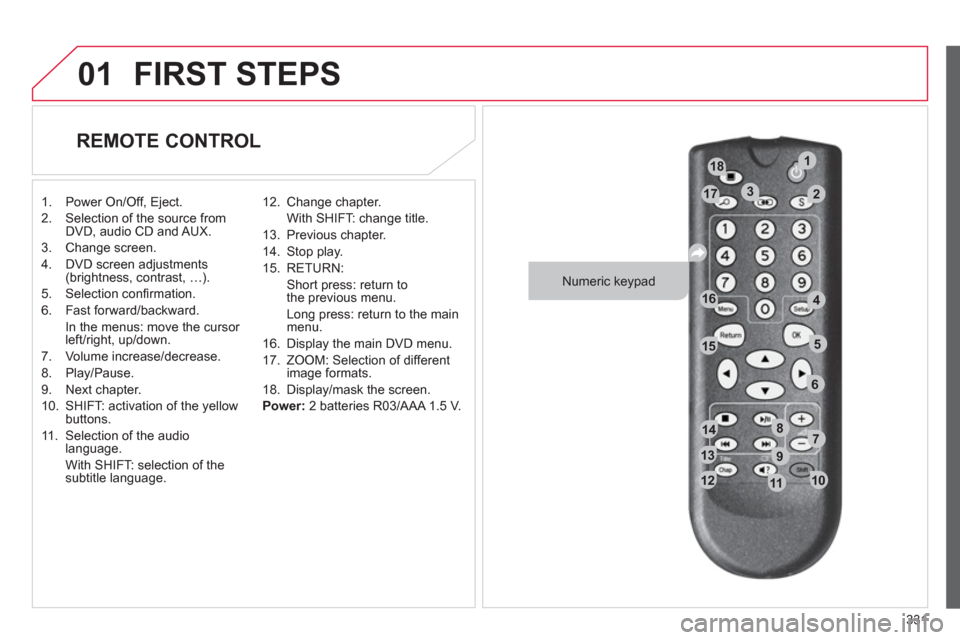

REMOTE CONTROL
1. Power On/Off, Eject.
2.
Selection of the source from DVD, audio CD and AUX.
3.
Change screen.
4. DVD screen adjustments
(brightness, contrast, …).
5. Selection confi rmation.
6. Fast forward/backward.
In th
e menus: move the cursor
left/right, up/down.
7. Volume increase
/decrease.
8. Pla
y/Pause.
9. Next chapter.
10.
SHIFT: activation of the yellow buttons.
11.
Selection of the audio
language.
With
SHIFT: selection of thesubtitle language. 12. Chan
ge chapter.
With SHIFT: chan
ge title.
13. Previous chapter.
14.
Stop play.
15. RETURN:
Short press: return to
the previous menu.
Lon
g press: return to the main menu.
16. Displa
y the main DVD menu.
17. Z
OOM: Selection of different
image formats.
18. Displa
y/mask the screen.
Power:
2 batteries R03/AAA 1.5 V.
Numeric keypad

332
02
1
2
3
5
4
1
2
3

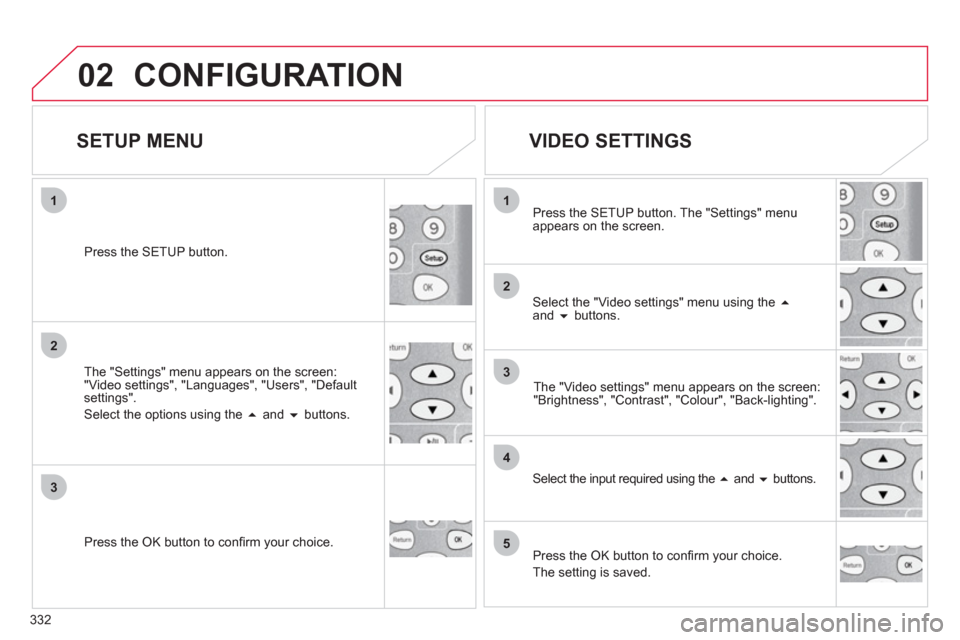

CONFIGURATION






SETUP MENU


The "Settings" menu appears on the screen:
"Video settings", "Languages", "Users", "Defaultsettings".

Select the options using the  and
buttons.
Press the
SETUP button.

Press the
OK button to confi rm your choice.
The "Video settings" menu appears on the screen:"Brightness", "Contrast", "Colour", "Back-lighting".
Select the "Video settings" menu using the and buttons. Press the
SETUP button. The "Settings" menu
appears on the screen.
Press the
OK button to confi rm your choice.
The settin
g is saved. Select the input required usin
g theand
buttons.


VIDEO SETTINGS

336
FREQUENTLY ASKED QUESTIONS



The table below groups together the answers to the most frequently asked questions concerning the video pack.
QUESTIONSOLUTION

The player does not start.

- Check the vehicle's fuses.

The player does not react to pressing of theremote control buttons.

- The remote control batteries are fl at. Replace them.


- The remote control sensor is hampered by objects or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth.


- The video pack has overheated. Let it cool for a few minutes.

Image or sound interference while playinga DVD. The image remains frozen during play.

The player cannot read the disc. The disc may be damaged or dirty.
The player does not play the disc inserted.

- The format of the disc does not correspond to the specifi cations of the player.


- If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allowthe humidity to evaporate.

When a DVD/VCD/SVCD is played,the image is of poor quality.

- Remove the disc.


- Using the SETUP button, adjust the brightness and insert the disc again.

No image is displayed on the monitor.

- Press the SOURCE button until the image appears.


- Press the SCREEN ON/OFF button.

There is no sound in the audio headphones.

- Increase the volume using the VOLUME +/- buttons on the remote control or using the dial onthe headphones.


- Check that the correct channel is selected on the headphones.


- Press the SOURCE button until the sound arrives.


- Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc.

- Insert another disc.


- Switch the system off and then on again.
