169
DRIVING

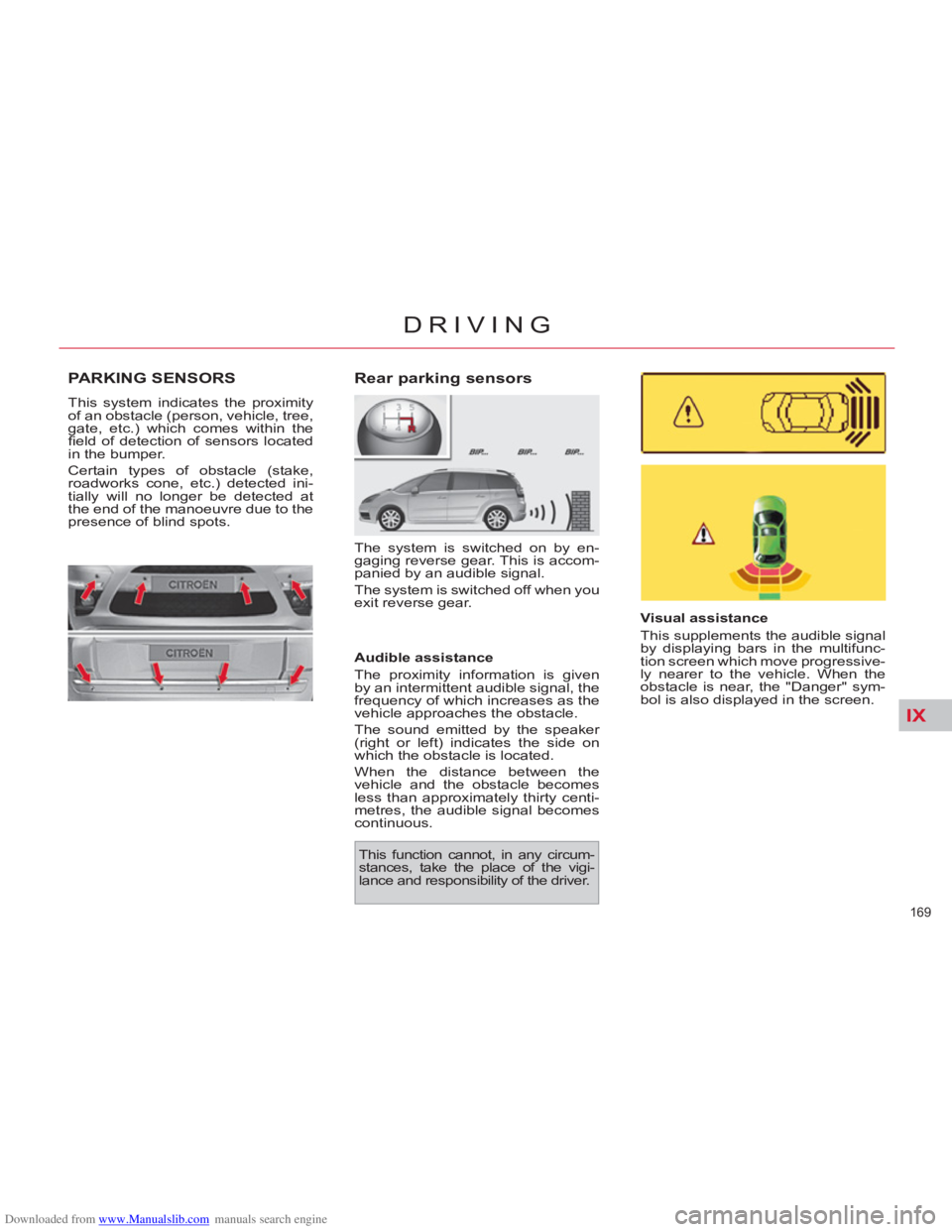

PARKING SENSORS
This system indicates the proximity
of an obstacle (person, vehicle, tree,
gate, etc.) which comes within the
fi eld of detection of sensors located
in the bumper.
Certain types of obstacle (stake,
roadworks cone, etc.) detected ini-
tially will no longer be detected at
the end of the manoeuvre due to the
presence of blind spots.
Visual assistance
This supplements the audible signal
by displaying bars in the multifunc-
tion screen which move progressive-
ly nearer to the vehicle. When the
obstacle is near, the "Danger" sym-
bol is also displayed in the screen.
Audible assistance
The proximity information is given
by an intermittent audible signal, the
frequency of which increases as the
vehicle approaches the obstacle.
The sound emitted by the speaker
(right or left) indicates the side on
which the obstacle is located.
When the distance between the
vehicle and the obstacle becomes
less than approximately thirty centi-
metres, the audible signal becomes
continuous.
This function cannot, in any circum-
stances, take the place of the vigi-
lance and responsibility of the driver.
Rear parking sensors
The system is switched on by en-
gaging reverse gear. This is accom-
panied by an audible signal.
The system is switched off when you
exit reverse gear.
Page 172 of 352
Downloaded from www.Manualslib.com manuals search engine IX
170
DRIVING
Front parking sensors
In addition to the rear parking sen-
sors, the front parking sensors are
triggered when an obstacle is detect-
ed in front and the speed of the ve-
hicle is still below 6 mph (10 km/h).
The front parking sensors are inter-
rupted if the vehicle stops for more
than three seconds in forward gear,
if no further obstacles are detected
or when the speed of the vehicle ex-
ceeds 6 mph (10 km/h).
The sound emitted by the speaker
(front or rear) indicates whether the
obstacle is in front or behind.
Deactivation/Activation of the
front and rear parking sensors
The function is deactivated by press-
ing this button. The indicator lamp in
the button comes on.
Pressing this button again reacti-
vates the function. The indicator
lamp in the button goes off.
The function will be deactivated au-
tomatically if a trailer is being towed
or a bicycle carrier is fi tted (vehicle
fi tted with a towbar or bicycle car-
rier recommended by CITROËN).
Operating fault
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the
instrument panel and/or a message
appears in the screen, accompanied
by an audible signal (short beep).
Contact a CITROËN dealer or a
qualifi ed workshop.
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h), cer-
tain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trig-
ger the audible signals of the park-
ing sensor system.
Page 177 of 352
Downloaded from www.Manualslib.com manuals search engine X
175
CHECKS
BLEEDING THE DIESEL FUEL
FILTER
Protective cover
Removal
)
Remove the protective cover by
unclipping fi rst point 1
, then 3
and 4
.
)
Unclip point 2
pulling towards
you, then lift.
Refi tting
)
Clip point 2
fi rst.
)
Lower the cover, centring it.
)
Clip points 1
and 4
, pushing ver-
tically and slightly rearwards.
)
Clip point 3
, pushing vertically.
Bleeding water from the fuel
filter
Bleed the fi lter regularly (at every oil
change).
To evacuate the water, slacken the
bleed screw or the water-in-Diesel
sensor, which is located at the base
of the fi lter.
Persist until water ceases to fl ow
out.
Then retighten the bleed screw or
the water-in-Diesel sensor.
Page 191 of 352
Downloaded from www.Manualslib.com manuals search engine XI
189
PRACTICAL INFORMATION
Temporary use spare wheel
If your vehicle is equipped with a
spare wheel for temporary use only,
when fi tting this it is normal to ob-
serve that the wheel bolts do not
come to bear directly on the wheel
rim.
The spare wheel is secured by the
conical tapering of the wheel bolt’s
shaft.
When refi tting the original wheel, en-
sure that the wheel bolts and wash-
ers are clean and in good condition.
Fitting a wheel
)
Position the wheel with the aid of
the centring guide 3
.
)
Do up the 3 bolts by hand, then
remove the centring guide 3
.
Position the 4 th bolt.
)
Pre-tighten the wheel bolts, us-
ing the wheelbrace 4
.
)
Retract the jack 5
and disengage it.
)
Tighten the wheel bolts, using
the wheelbrace 4
.
)
Ensure that the tyre pressure is
correct.
Under-infl ation detection
Wheels with under-infl ation detection
have tyre pressure sensors. Have repairs
to them carried out by a CITROËN dealer
or a qualifi ed workshop. The spare wheel
does not have a sensor.
Security bolts (alloy wheels)
Each wheel may be equipped with
one security bolt (depending on the
country of sale).
To remove it:
)
remove its protective cover us-
ing of the tool for removing the
chrome covers 2
.
)
use the security bolt socket 6
with the wheelbrace 4
.
Spare wheel dimensions
If your spare wheel has dimensions
different from those of the standard
vehicle wheels (identifi ed by a la-
bel), it is imperative to use the spare
wheel only temporarily, to drive
with caution, not to exceed 50 mph
(80 km/h) and to have the tyre re-
paired and the standard wheel refi t-
ted as soon as possible.
Tyre pressures
These are indicated on the label
on the front left-hand door pillar
(see "Technical Data - Identifi cation
markings").
The wheel bolts are specifi c
to each type of wheel.
If new wheels are fi tted, check with
your CITROËN dealer or a qualifi ed
workshop that the wheel bolts are
compatible with the new wheels.
Make a note of the code number on
the head of the security bolt sock-
et. This will enable you to obtain a
replacement security bolt socket
from your dealer.
Page 200 of 352
Downloaded from www.Manualslib.com manuals search engine XI
198
PRACTICAL INFORMATION
Fuses under the dashboard
Access to the fuses
)
Undo the screw by a quarter turn
and pivot the housing.
Table of fuses
Fuse N°
Rating
Functions
F1
15 A
Rear screen wipe
F2
30 A
Locking and unlocking earth
F3
5 A
Airbags and pretensioners
F4
10 A
Multimedia, photochromatic rear view mirror,
particle fi lter, diagnostic socket, air conditioning,
manual headlamp height adjustment
F5
30 A
Front windows, front door electronic control panel,
panoramic sunroof
F6
30 A
Rear windows
F7
5 A
Interior lamps, cooled glovebox, radio
F8
20 A
Multifunction screen, radio, steering mounted
controls, multimedia, under infl ation detection,
alarm, trailer
F9
30 A
Multimedia, front 12 V sockets, torch, radio
F10
15 A
Height corrector (suspension)
F11
15 A
Brake switch, ignition switch
F12
15 A
Parking sensors, automatic wipers and lighting,
passenger’s electric seat, lane departure warning
system, Hi-Fi amplifi er, trailer
F13
5 A
Engine relay unit (BSM), driver’s electric seat
F14
15 A
Air conditioning, Bluetooth ®
hands-free system, automatic
gearbox selector lever, airbags, instrument panel
F15
30 A
Locking and unlocking
F16
-
SHUNT
F17
40 A
Heated rear screen
Page 201 of 352
Downloaded from www.Manualslib.com manuals search engine XI
199
PRACTICAL INFORMATION
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is refi tted correctly
for their protection.
Table of fuses
Fuse N°
Rating
Functions
F29
20 A
Heated seats
F30
-
Not used
F31
40 A
Trailer relay unit
F32
15 A
Rear 12 V socket
F33
5 A
Parking sensors, automatic wipers and lighting,
passenger’s electric seat, lane departure warning
system, Hi-Fi amplifi er
F34
5 A
Trailer
F35
-
Not used
F36
20 A
Hi-Fi amplifi er
F37
10 A
Air conditioning, lighting pack
F38
30 A
Driver’s electric seat
F39
5 A
Fuel fi ller fl ap
F40
30 A
Passenger’s electric seat, panoramic sunroof
Page 211 of 352
Downloaded from www.Manualslib.com manuals search engine XI
209
PRACTICAL INFORMATION
Towbar suitable for the attachment
of a trailer with additional lighting
and signalling.
Your vehicle is primarily designed
for transporting people and luggage,
but it may also be used for towing a
trailer.
We recommend the use of genuine
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a CITROËN dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is imperative
that it is fi tted in accordance with the
vehicle manufacturer's instructions.
Driving advice
Distribution of loads
)
Distribute the load in the trailer
so that the heaviest items are as
close as possible to the axle and
the nose weight approaches the
maximum permitted without ex-
ceeding it.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towed load must be reduced by 10 %
for every 1 000 metres of altitude.
Refer to the "Technical Data" section
for details of the weights and towed
loads which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
)
To lower the engine speed, re-
duce your speed.
The maximum towed load on a long
incline depends on the gradient and
the ambient temperature.
In all cases, keep a check on the
coolant temperature.
)
If the warning lamp and
the STOP
warning lamp
come on, stop the vehicle
and switch off the engine
as soon as possible.
Braking
Towing a trailer increases the brak-
ing distance.
To avoid overheating of the brakes
on a long mountain type of descent,
the use of engine braking is recom-
mended.
Tyres
)
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended
pressures.
Lighting
)
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine CITROËN towbar is used.
Driving with a trailer places greater
demands on the towing vehicle and
the driver must take particular care.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
Page 213 of 352
Downloaded from www.Manualslib.com manuals search engine XI
211
PRACTICAL INFORMATION
*
To avoid any risk of jamming of
the pedals:
- ensure that the mat is posi-
tioned and secured correctly,
- never fi t one mat on top of an-
other.
ACCESSORIES
A wide range of accessories and
genuine parts is available from the
CITROËN dealer network.
These accessories and parts have
been tested and approved for reli-
ability and safety.
They are all adapted to your vehicle
and benefi t from CITROËN's recom-
mendation and warranty.
"Transport solutions":
towbar har-
ness, boot carpet, boot liner, boot
spacers, transverse roof bars, bi-
cycle carrier, ski carrier, roof boxes,
towbars...
"Comfort":
front and rear parking
sensors, isotherm module, recharge-
able torch, sun blinds, air defl ector,
fragrance cartridges...
"Style":
Alloy wheels, wheel embel-
lishers...
"Protection":
anti-theft alarm,
wheel security devices, stolen ve-
hicle tracking system, breathalyser,
fi rst aid kit, warning triangle, high vis-
ibility vest, dog guard, snow chains,
anti-skid covers, foglamps kit, tem-
porary puncture repair kit, booster
cushions and child seats...
"Protection"
: mats * , seat covers,
mud fl aps, sill protectors, bumper
protectors, vehicle covers...
Page 338 of 352
Downloaded from www.Manualslib.com manuals search engine 336
FREQUENTLY ASKED QUESTIONS
The table below groups together the answers to the most frequently asked questions concerning the video pack.
QUESTIONSOLUTION
The player does not start.
- Check the vehicle's fuses.
The player does not react to pressing of theremote control buttons.
- The remote control batteries are fl at. Replace them.
- The remote control sensor is hampered by objects or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth.
- The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playinga DVD. The image remains frozen during play.
The player cannot read the disc. The disc may be damaged or dirty.
The player does not play the disc inserted.
- The format of the disc does not correspond to the specifi cations of the player.
- If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allowthe humidity to evaporate.
When a DVD/VCD/SVCD is played,the image is of poor quality.
- Remove the disc.
- Using the SETUP button, adjust the brightness and insert the disc again.
No image is displayed on the monitor.
- Press the SOURCE button until the image appears.
- Press the SCREEN ON/OFF button.
There is no sound in the audio headphones.
- Increase the volume using the VOLUME +/- buttons on the remote control or using the dial onthe headphones.
- Check that the correct channel is selected on the headphones.
- Press the SOURCE button until the sound arrives.
- Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc.
- Insert another disc.
- Switch the system off and then on again.
Page 339 of 352
Downloaded from www.Manualslib.com manuals search engine 337
VISUAL SEARCH
EXTERIOR
Remote control key....................... 78-83
- opening/closing
- anti-theft protection
- guide-me-home lighting
- starting
- battery
Very cold climate screen.................. 210
Exterior lighting
controls ...................................... 94-97
Headlamp adjustment........................ 98
Directional lighting ............................. 99
Wipers ............................................. 100
Changing bulbs......................... 190-193
- front lamps
- front foglamps
- side repeaters
Lane departure
warning system............................. 168
Door mirrors ....................................... 76
Side spotlamps .................................. 98
Doors ............................................ 88-89
- opening/closing
- central locking
- emergency control
Child lock ......................................... 125
Electric windows ........................... 86-87
Under-infl ation detection.................. 127
Braking assistance .......................... 128
Trajectory control ............................. 129
Pneumatic suspension ............. 171-172
Tyre pressures ................................. 226
Accessories .............................. 211-212
Panoramic sunroof ............................ 91
Roof bars ......................................... 210
Fuel tank ............................................ 92
Boot ................................................... 90
Temporary puncture
repair kit ................................. 183-185
Changing a wheel ..................... 186-189
- tools
- removing
Opening rear screen .......................... 90
Parking sensors ........................ 169-170
Towbar ............................................. 209
Towing ............................................. 207
Changing bulbs......................... 194-196
- rear lamps
- 3rd brake lamp
- number plate lamp
