Familiarisation

Limit the causes of excess consumption


Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres and refit your summer tyres.


Observe the recommendations on
maintenance


Check the tyre pressures regularly, when cold, referring to the label inthe door aperture, driver's side. Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engine oil, oil filter, air filter...) andobser ve the schedule of operations recommended by the manufacturer.


When refuelling, do not continue after the third cut-off of the nozzle toavoid any over flow.


At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down toa consistent average.

1
33
Monitoring





Type 1 instrument panel

Rev counter (x 1 000 rpm or tr/min),graduation according to engine (petrol or
Diesel).2.Gear shift indicator, selector position and gear for an electronic or automaticgearbox. 3.Digital speedometer (mph or km/h).4. Cruise control or speed limiter settings.


Dials and screens
5.
Fuel gauge. 6.
Ser vice indicator, then total mileagerecorder (miles or km).
These functions are displayed in turn when
the ignition is switched on. 7. Tr i p m i l e age recorder (miles or km).8.
Repeat of air conditioning information.
A.Main lighting dimmer buttons. B.
Recall servicing information.
Reset the function selected to zero (service
indicator or trip recorder).

Control buttons

1
41
Monitoring
Warning / indicator lampStateCauseAction / Observations
Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, brieflypush the electric parking brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the corresponding section.
Diesel engine pre-heating
fixed. The "START/STOP" switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
Once it goes off, star ting is immediate, on condition
that you maintain pressure on the brake pedal for anelectronic or automatic gearbox, or the clutch pedal is pressed fully down for a manual gearbox.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Blind spotsensors fixed. The blind spot monitoring function has been activated. For more information, refer to the correspondingsection.
Park Assist fixed. The Park Assist function has beenactivated. For more information, refer to the correspondingsection.

42
Monitoring
Warning / indicator lampStateCauseAction / Observations
Automatic wipingfixed. The wiper control is pushed downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.
Passenger airbag systemfixed. The control switch, located at thepassenger's end of the dashboard, isin the "ON" position.
The passenger's front airbag is activated.In this case, do not install arearwards-facing child seat on the front passenger seat. T
urn the control switch to the "OFF"position to
deactivate the front passenger's airbag.
In this case you can install a rear wards-facing childseat.
Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t systemhas put the engine into STOP mode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want tomove off.
flashes for a few seconds, then goes
off.
STOP mode is temporarily unavailable.
or STA R T m o d e i s i n v o ke dautomatically. For more in
formation on special cases with STOP mode and START mode, refer to the "Stop & Start"
section.

44
Monitoring

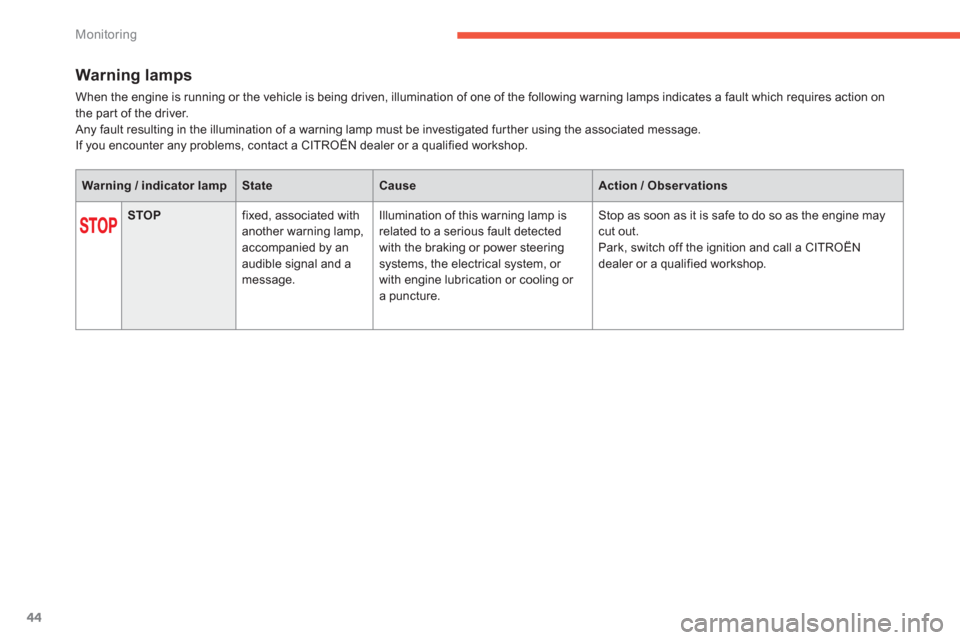

Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther using the associated message.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations
STOPfixed, associated with another warning lamp,accompanied by anaudible signal and amessage.Illumination of this warnin
g lamp isrelated to a serious fault detected
with the braking or power steering systems, the electrical system, or
with engine lubrication or cooling or a puncture. Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.

1
45
Monitoring
StateCauseAction / Observations

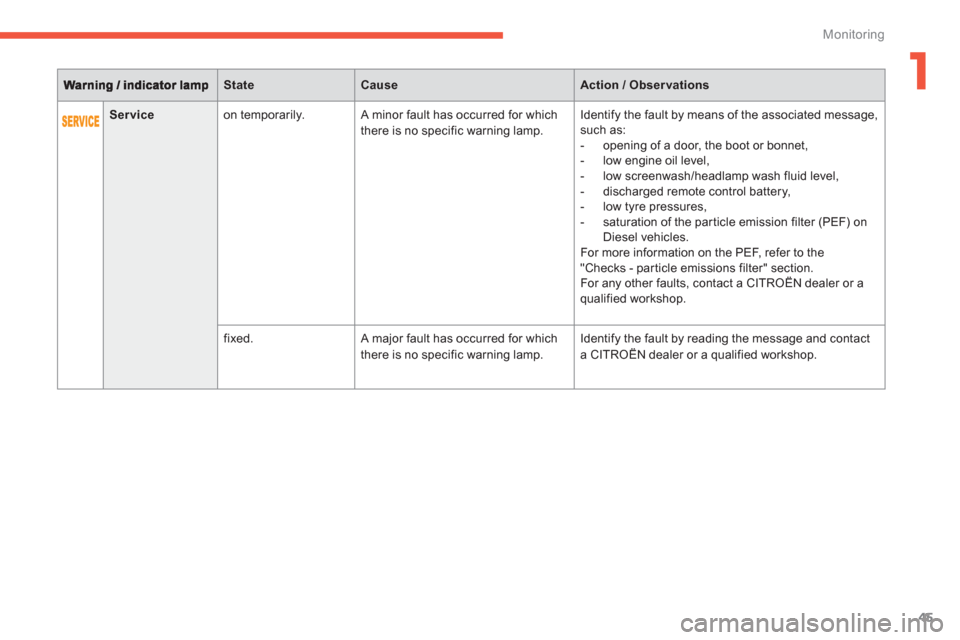

Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message, such as:


- opening of a door, the boot or bonnet,

- low engine oil level,

- low screenwash/headlamp wash fluid level,

-
discharged remote control battery,

- low tyre pressures,

- saturation of the par ticle emission filter (PEF) on
Diesel vehicles.
For more information on the PEF, refer to the
"Checks - par ticle emissions filter" section.
For any other faults, contact a CITROËN dealer or a qualified workshop.

fix
ed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a CITROËN dealer or a qualified workshop.

46
Monitoring
Warning / indicator lampStateCauseAction / Observations
Deactivation of the automatic functions of the electric parkingbrake
fixed. The "automatic application" (onswitching off the engine) and
"automatic release" functions aredeactivated or faulty.
In the event of a fault, illumination of
this warning lamp is accompanied bya message.To reactivate the automatic
functions, refer to the"Electric parking brake" section.
Contact a CITROËN dealer or a qualified workshop if
automatic application / release is not possible.
The parking brake can be released manually.
For more information on the electric parking brake,
refer to the corresponding section.

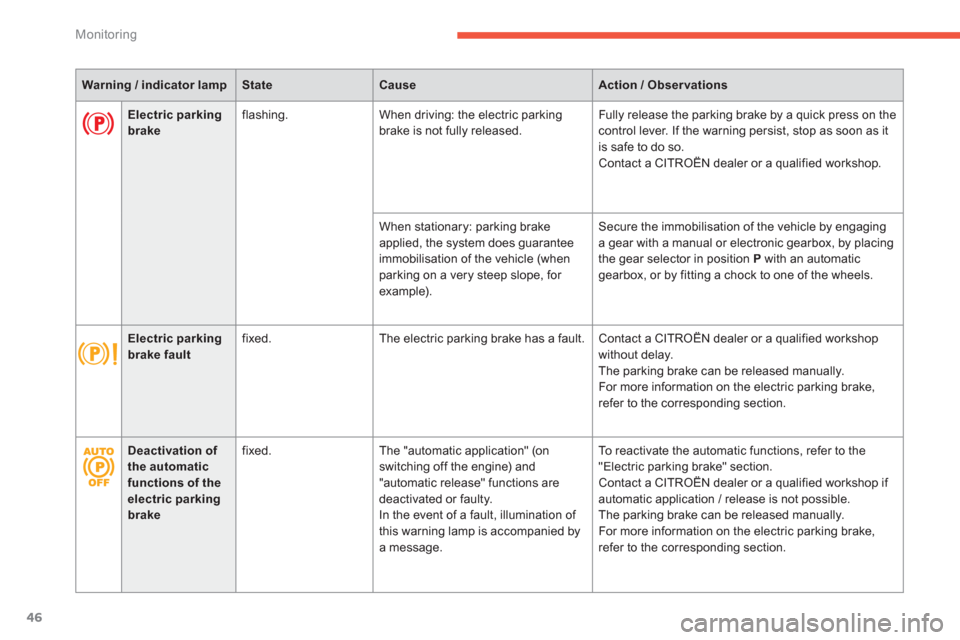

Electric parking brakeflashing.When driving: the electric parking
brake is not fully released.Fully release the parking brake by a quick press on thecontrol lever. If the warning persist, stop as soon as it
is safe to do so.
Contact a CITROËN dealer or a qualified workshop.
When stationary: parking brake applied, the system does guarantee
immobilisation of the vehicle (whenparking on a very steep slope, for example).
Secure the immobilisation of the vehicle by engaginga gear with a manual or electronic gearbox, by placing
the gear selector in positionPwith an automatic gearbox, or by fitting a chock to one of the wheels.
Electric parking brake faultfixed.The electric parking brake has a fault. Contact a CITROËN dealer or a qualified workshop
without delay.
The parking brake can be released manually.
For more information on the electric parking brake,
refer to the corresponding section.

1
47
Monitoring
Braking
fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.

+
fixed
, associated
with the ABS warninglamp. Th
e electronic brake force distribution(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Warning / indicator lampStateCauseAction / Observations
Anti-lockBraking System(ABS)
fixed. The anti-lock braking system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact aCITROËN dealer or a qualified workshop without
delay.
Dynamic stability control(DSC/ASR)
flashing. The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle.

fixed. Unless it has been deactivated (button pressed and its indicator lamp
on) the DSC/ASR system has a fault. Have it checked b
y a CITROËN or a qualified
workshop.
Engine autodiagnosissystem
flashing.The engine management system hasa fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.

fix
ed. The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not
go off, contact a CITROËN dealer or qualified
workshop without delay.

48
Monitoring
Low fuel levelfixed, accompanied by an audible signal anda message.Wh
en it first comes on there remainsapproximately 6 litres offuelin thetank.
You are then usin
g the fuel reser ve. You must refuel as soon as possible to avoid runnin
gout of fuel.
Until sufficient fuel is added, this warning lamp will
come on every time the ignition is switched on,
accompanied by an audible signal and a message.This audible signal and message are repeated with
increasing frequency as the drops towards "0".
Fuel tank capacity: approximately 57 litres (petrol) or 55 litres (Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injectionsystems.
Warning / indicator lampStateCauseAction / Observations
Seat belt(s) not fastened / unfastened
fixed
or flashingaccompanied by anaudible signal. A
seat belt has not been fastened or has been unfastened.Pull the strap then inser t the tongue in the buckle.
Airbagson temporarily. This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
fixed.One of the airbag or seat beltpretensioner systems has a fault.Have it checked by a CITROËN dealer or a qualified
workshop.
Passenger airbag systemflashing. The passenger airbag system has afault. Do not have a passenger seated in the frontpassenger seat
Have it checked by a CITROËN dealer or a qualified
workshop.

1
49
Monitoring
Warning / indicator lampStateCauseAction / Observations
Battery charge fixed. The battery charging circuit has a fault (dirty or loose terminals, slack or cut alternator belt, ...). The warnin
g lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Maximum coolant temperature

fixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or qualified workshop.
Directionalheadlamps
flashing. The directional headlamps system has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Door(s) open
*
fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.

fixed, associated with a
message identifying the
door, and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).
*

Only with the type 1 instrument panel.
Engine oilpressure

fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
