Technical data










Diesel weights and towed loads (in kg)


The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


*
The kerb weight is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Diesel enginesHDi 115e-HDi 115 Airdream
GearboxesManual
(6-speed)

Manual(6-speed)Electronic gearbox system (6-speed)

Model codes:
3D... 3E... 3A ...9HC8/1 3D... 3E... 3A ... 9HC8/1S
3D... 3E... 3A ...9HC8/1PS - 8/2PS



-
Unladen weight 1 298 - 1 318 - 1 320

1 298 - 1 318 - 1 320

1 295 - 1 318 - 1 320



- Kerb weight *

1 373 - 1 393 - 1 395

1 373 - 1 393 - 1 3951 370 - 1 393 - 1 395



- Gross vehicle wei
ght (GV W)
1 940 - 2 11 0 - 2 15 0
1 940 - 2 11 0 - 2 15 01 940 - 2 11 0 - 2 15 0



- Gross train wei
ght (GT W)
on a 12% gradient 2 740 - 2 910 - 2 950 3 340 - 3 350 - 3 3503 340 - 3 350 - 3 350


- Braked trailer
(within GTW limit) on a 10% or 12% gradient 800 - 800 - 8001 400 - 1 240 - 1 200

1 400 - 1 240 - 1 200



- Braked trailer **
(with load transfer with theGTW limit)
800 - 800 - 8001 600 - 1 540 - 1 500

1 600 - 1 540 - 1 500



- Unbraked trailer 685 - 695 - 695 685 - 695 - 695685 - 695 - 695


-
Recommended nose weight 70 - 70 - 70

70 - 70 - 7070 - 70 - 70

330
Technical data










Diesel weights and towed loads (in kg)
*
The kerb weight is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towin
g using a lightly loaded towing vehicle may have an adverse effect on its road holding. The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Diesel enginese-HDi150Airdream
Gearboxes
Manual(6-speed)Electronic gearbox system (6-speed)

Model codes:3D... 3E... 3A ... AHXM/S - M/1S

3E... 3A ... AHXT/S - T/1S



-
Unladen weight
1 415 - 1 428 - 1 430

1 474 - 1 476



- Kerb wei
ght *


1 490 - 1 503 - 1 505

1 549 - 1 551


- Gross vehicle wei
ght (GV W)
2 030 - 2 200 - 2 2502 200 - 2 280



- Gross train weight (GT W)
on a 12% gradient3 530 - 3 560 - 3 650 3 580 - 3 580


- Braked trailer
(within GTW limit) on a 10% or 12% gradient 1 500 - 1 450 - 1 400 1 380 - 1 300



- Braked trailer **
(with load transfer with the GTW limit)
1 700 - 1 750 - 1 7001 680 - 1 600


- Unbraked trailer
745 - 750 - 750

750 - 750



-
Recommended nose weight
70 - 70 - 7070 - 70

9
331
Technical data




Dimensions (in mm)
These dimensions have been measured on a vehicle that is not loaded.
* Mirrors folded.

332
Technical data




Dimensions (in mm) These dimensions have been measured on an unladen vehicle.
* Mirrors folded.

9
333
Technical data























Identifi cation markings
Various visible markings for the identification of your vehicle.
A
.Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the chassisnear the right hand front wheel arch.
The tyre pressures must be checked when the tyres are cold, at least once
a month.


If the tyre pressures are too low, thisincreases fuel consumption.
C
.Manufacturer's label.
This self-destroying label affixed to
the centre pillar, right or left hand side,contains the following information.

- the manufacturer's name,

- the European whole vehicle type approval number,

- the vehicle identification number (VIN),

- the maximum authorised weight (gross vehicle
weight),

- the maximum authorised weight with trailer (gross
train weight),

- the maximum front axle weight,

- the maximum rear axle weight.
D.Tyre/paint label. This label, affixed to the centre pillar, on
the driver's side, contains the
followinginformation.
- the tyre inflation pressures with and
without load,
- the t
yre sizes (including the tyre load
index and speed rating),
- the inflation pressure for the spare
w
heel,
- the paint colour code.
B
.Vehicle Identification Number (VIN) on
the windscreen lower cross member. This number is indicated on a self-adhesive label which is visible through the
windscreen.

334Technical data

335

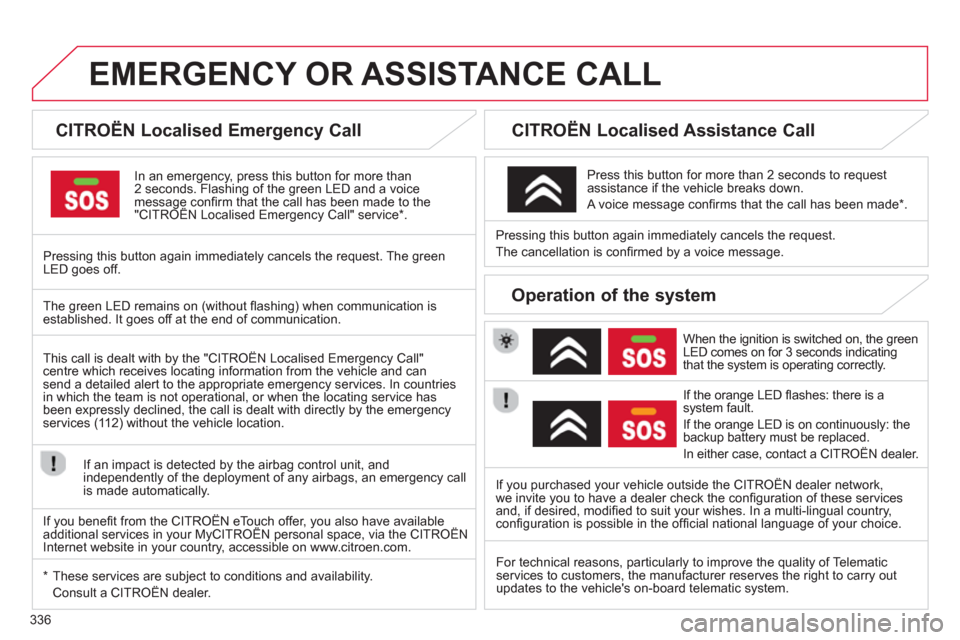

EMERGENCY OR ASSISTANCE CALL

336
EMERGENCY OR ASSISTANCE CALL







CITROËN Localised Emergency Call
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the "CITROËNg Localised Emergency Call" service *
.
Pressin
g this button again immediately cancels the request. The green LED goes off.

CITROËN Localised Assistance Call


When the ignition is switched on, the green
LED comes on for 3 seconds indicating
that the system is operating correctly.

If the oran
ge LED fl ashes: there is asystem fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a CITRO
ËN dealer. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


Operation of the system The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with by the "CITROËN Localised Emergency Call" centre which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries
in which the team is not operational, or when the locating service has
been expressl
y declined, the call is dealt with directly by the emergency services (11 2) without the vehicle location.

I
f an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
* These services are sub
ject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website in your country, accessible on www.citroen.com.

337
operate in your vehicle.
