Touch screen tablet
The 7-inch touch screen tablet gives access to:
-  t he   heating/air   conditioning   controls,
-

m
enus   for   adjusting   settings   for   vehicle
f

unctions and systems,
-

a
udio system and telephone controls and
the display of associated information,
and,
  depending   on   equipment,   allows:
-

t
he   display   of   alert   messages   and   the
v

isual
 par
king
 s
ensors
 in
formation,
-

t
he permanent display of the time and the
ambient
  temperature   (a   blue   warning   lamp
a

ppears   when   there   is   a   risk   of   ice),
-

a
ccess   to   the   controls   for   the   navigation
s

ystem and Internet services, and the
display
  of   associated   information.
For reasons of safety, the driver
should only carr y out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when
 d

riving.General operation
Recommendations
Use is possible in all temperatures.
D o   not   use   pointed   objects   on   the   touch   screen
t

ablet.
Do
  not   touch   the   tablet   screen   with   wet   hands.
Uses a soft clean cloth to clean the tablet touch
screen.
Use this button to return to the
previous
 pag

e.
Use
  this   button   to   confirm.
Principles
Use the buttons on either side of the screen
for access to the menus, then press the virtual
buttons  in   the   touch   screen.
Certain functions may be displayed over 1 or
2
  pages.
To
 d

eactivate/activate
 a f
unction,
 p
ress
 O
FF/ON.
To
  modify   a   setting   (lighting   duration,   ...)   or
a

ccess additional information, press the symbol
for
  the   function.
After a few moments with no action on
the
  secondary   page,   the   primary   page
i

s   displayed   automatically.
1
Instruments

12
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
MenusUpper bar
Certain information is always present in the
upper  bar   of   the   touch   screen   tablet:
-

R
epeat   of   the   air   conditioning   information,
a

nd   direct   access   to   the   corresponding
m

enu.
-

R
epeat of information from the Radio
Media , Telephone


menus   and   navigation
i

nstructions*.
*
  Depending   on   equipment.
Air conditioning.
Allows

control

of

the

settings

for

t

emperature,

air

flow...
Connected navigation or Mirror
Scre en*.
See

more

in

"Audio

and

telematics".
Radio Media.
See

more

in

"Audio

and

telematics". Telephone.
See

more

in

"Audio

and

telematics".
Driving.
Allows the activation, deactivation and
adjustment   of   settings   for   certain   functions.
Applications.
Allows the display of the trip
computer, with the type 1 instrument
panel.
See
  more   in   "Audio   and   telematics". Volume
  /   mute.
See   more   in   "Audio   and   telematics".
- A ccess to Configuration
.
For more information on Heating
, Manual
air conditioning and Automatic air
conditioning ,

refer

to

the

corresponding

s

ections.
The functions accessible from this menu are
arranged

under   two   tabs:   "Settings " and
" Driving assistance ".
Instruments

20
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
- "Driving":  display   of   the   rev   counter   and  i
nformation   related   to   driving   (inter-vehicle
t

ime...).
-

"
Navigation":   display   of   information   related
t

o   the   navigation   in   progress   (map   and
i

nstructions). -

"
Minimal":   no   information   displayed.
-
"
Personal":   choice   of   information   to   be
d

isplayed in each of the 2 display zones
(centre
  1/3   and   right   hand   1/3)   from:
●

t
rip   computer,
●

m
edia,
●
 n

avigation,
●

d
riving   assistance,
●

r
ev   counter,
●

c
oolant   temperature   indicator,
●

n
o   information   (empty).To modify the display mode of the instrument
panel:
F

t
urn the thumbwheel on the left of the
steering
  wheel,   or   press   the   end   of   the
l

ighting   control   stalk   to   display   and   run
t

hrough   the   different   modes   in   the   right
han

d part of the instrument panel,
F

o
nce the selected display mode appears in
the central window, it is applied after a few
moments.
Instruments

150
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Speed limit recognition
This system allows the speed limit detected by
the camera to be displayed in the instrument
panel.
Specific speed limits, such as those for heavy
goods
  vehicles,   are   not   displayed.
The display of the speed limit in the instrument
panel
  is   updated   as   you   pass   a   speed   limit   sign
i

ntended   for   cars   (light   vehicles).
The units for the speed limits (mph or
km/h)
  depend   on   the   country   you   are
d

riving   in.
It
  should   be   taken   into   account   so   that
y

ou   observe   the   speed   limit.
For the system to operate correctly
when
  you   change   country,   the   units   for
s

peed in the instrument panel must be
those
  for   the   country   you   are   driving   in. The
  automatic   reading   of   road   signs   is   a
d

riving   assistance   system   and   does   not
a

lways   display   speed   limits   correctly.
The
  speed   limit   signs   present   on   the
r

oad   always   take   priority   over   the
d

isplay   by   the   system.
The system cannot in any
circumstances replace the need for
vigilance
  on   the   part   of   the   driver.
The
  driver   must   observe   the   driving
r

egulations   and   must   adapt   the   speed
o

f the vehicle to suit the weather and
traffic.
It is possible for the system to not
display the speed limit if it does not
detect
  a   speed   limit   sign   within   a   preset
p

eriod.
The
  system   is   designed   to   detect   signs
t

hat conform to the Vienna Convention
on
  road   signs.
To maintain correct operation of the
system:
  regularly   clean   the   area   in   front
o

f   the   camera.Principles

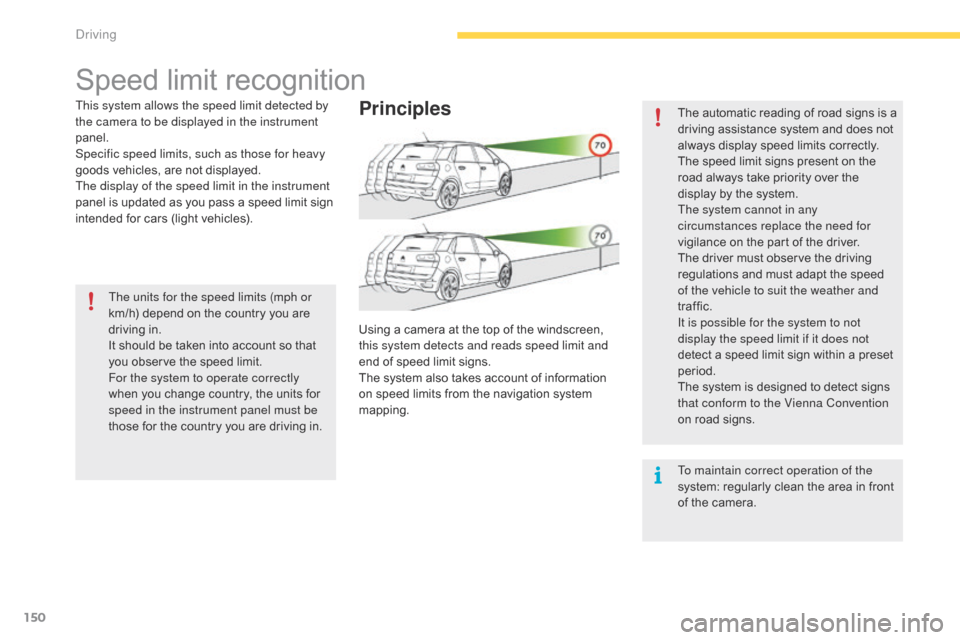

Using a camera at the top of the windscreen, this system detects and reads speed limit and
end
  of   speed   limit   signs.
The
  system   also   takes   account   of   information
o

n   speed   limits   from   the   navigation   system
ma

pping.
Driving

151
C4-Picasso-II_en_Chap04_conduite_ed01-2016

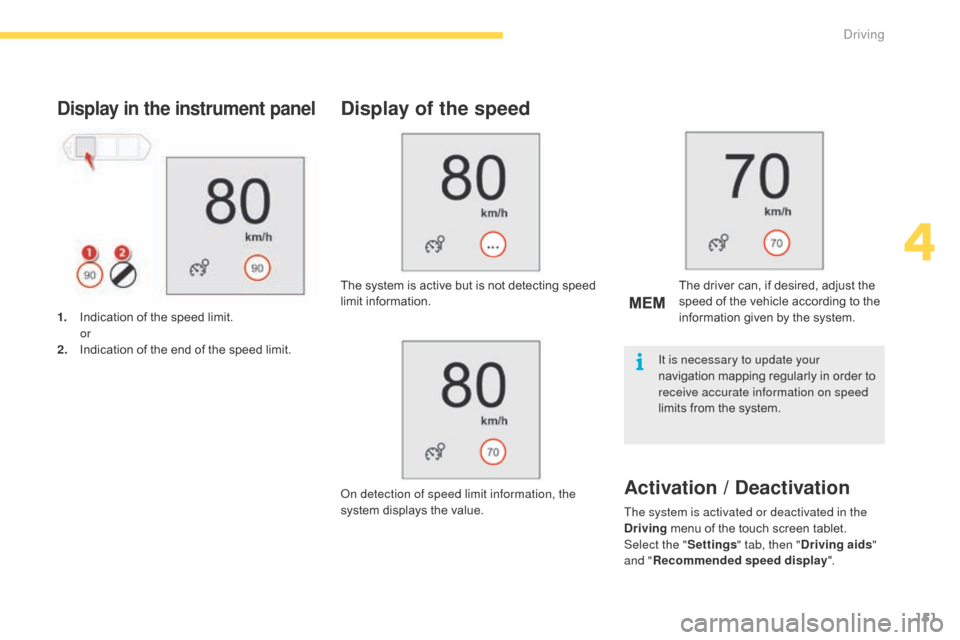

Display in the instrument panel
1. Indication  of   the   speed   limit.
or
2.
 I

ndication   of   the   end   of   the   speed   limit.
Display of the speed
The system is active but is not detecting speed limit in formation.
On detection of speed limit information, the
system
  displays   the   value. The
  driver   can,   if   desired,   adjust   the  s
peed   of   the   vehicle   according   to   the
i

nformation   given   by   the   system.
The system is activated or deactivated in the
Driving


menu   of   the   touch   screen   tablet.
Select the " Settings" tab, then " Driving aids "
and " Recommended speed display ".
Activation / Deactivation
It is necessary to update your
navigation
  mapping   regularly   in   order   to
r

eceive accurate information on speed
limits
  from   the   system.
4
Driving
