CITROEN C4 PICASSO 2017 Owners Manual

219
Fitting the "space-saver " spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the "space-saver"
spare wheel. The wheel is secured by the
conical contact of each bolt.
After changing a wheel
With a "space-saver " type spare wheel
Visit a CITROËN dealer or a qualified
workshop as soon as possible to have the
tightness of the bolts and the pressure of
the spare wheel checked.
Have the punctured tyre examined. After
inspection, the technician will advise you
on whether the tyre can be repaired or if it
must be replaced. The tyre inflation pressures are given on
this label.
F

T

ighten the security bolt using the
wheelbrace 1

fitted with the security socket
5 (according to equipment).
F

T

ighten the other bolts using wheelbrace
1

o n l y.
F

R

efit the wheel bolt cover(s) (according to
equipment).
F

S

tore the tools in the box. The following is recommended:
-

d
eactivate some driving aid functions
(Active Safety Brake, Adaptive cruise
control with Stop function, etc.), as
indicated on the label attached to the
wheel,
-

d
o not exceed the maximum
authorised speed of 50
mph (80 km/h).
8
In the event of a breakdown

220

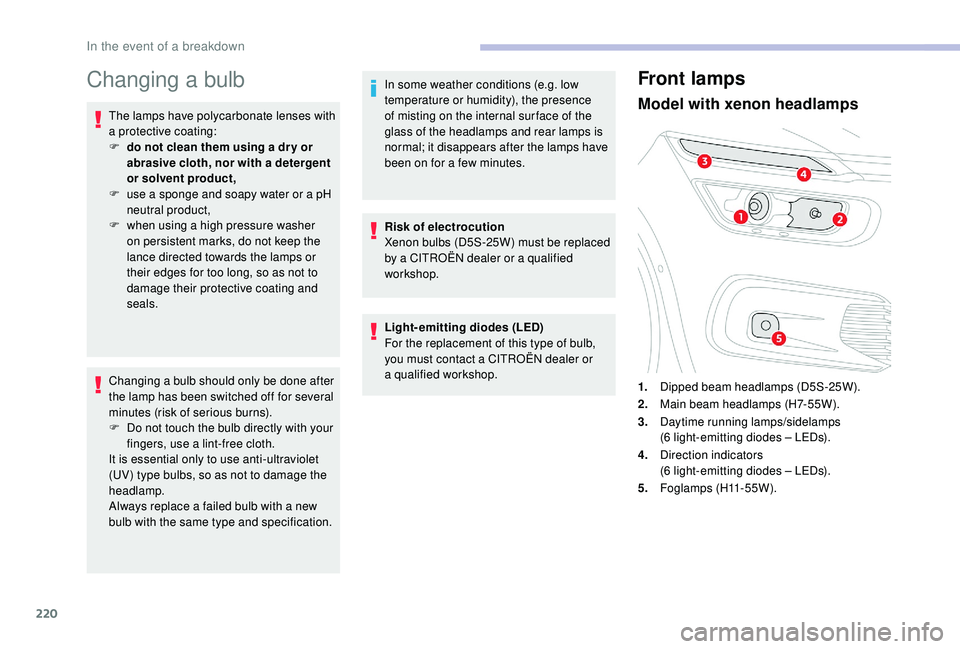

Changing a bulb
The lamps have polycarbonate lenses with
a
protective coating:
F

d
o not clean them using a dr y or
abrasive cloth, nor with a
detergent
or solvent product,
F

u
se a sponge and soapy water or a pH
neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals.
Changing a
bulb should only be done after
the lamp has been switched off for several
minutes (risk of serious burns).
F

D
o not touch the bulb directly with your
fingers, use a
lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a
failed bulb with a new
bulb with the same type and specification. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a
few minutes.
Risk of electrocution
Xenon bulbs (D5S-25W) must be replaced
by a
CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LED)
For the replacement of this type of bulb,
you must contact a
CITROËN dealer or
a


qualified workshop.
Front lamps
Model with xenon headlamps
1.Dipped beam headlamps (D5S-25W).
2. Main beam headlamps (H7-55W).
3. Daytime running lamps/sidelamps
(6
light-emitting diodes – LEDs).
4. Direction indicators
(6
light-emitting diodes – LEDs).
5. Foglamps (H11-55W).
In the event of a breakdown

221

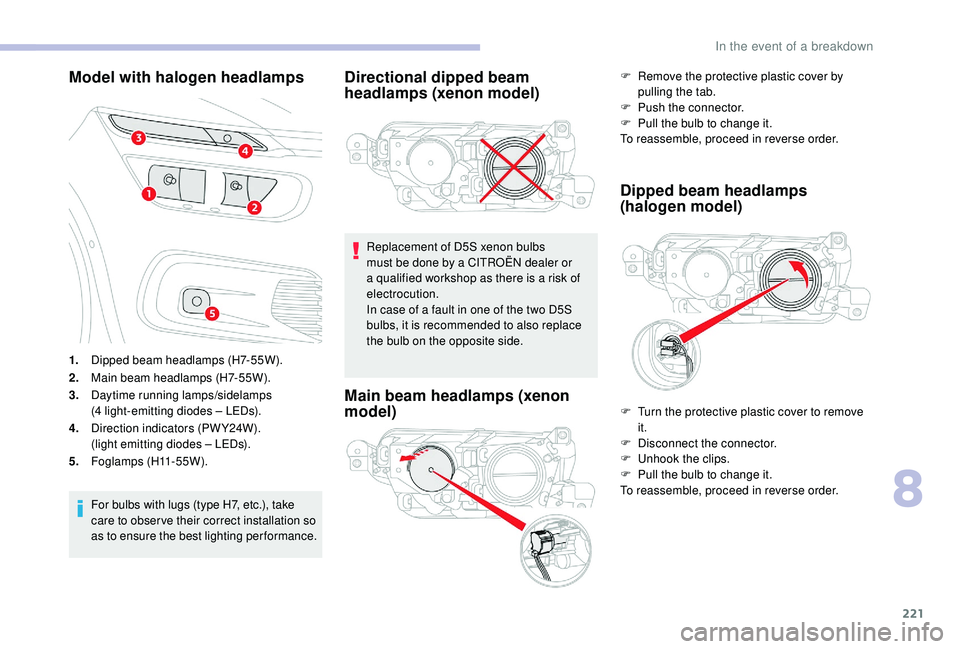

Model with halogen headlamps
1.Dipped beam headlamps (H7-55W).
2. Main beam headlamps (H7-55W).
3. Daytime running lamps/sidelamps
(4
light-emitting diodes – LEDs).
4. Direction indicators (PW Y24W).
(light emitting diodes – LEDs).
5. Foglamps (H11-55W).
For bulbs with lugs (type H7, etc.), take
care to obser ve their correct installation so
as to ensure the best lighting per formance.
Directional dipped beam
headlamps (xenon model)
Replacement of D5S xenon bulbs
must be done by a
CITROËN dealer or
a
qualified workshop as there is a risk of
electrocution.
In case of a
fault in one of the two D5S
bulbs, it is recommended to also replace
the bulb on the opposite side.
Main beam headlamps (xenon
model) Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by
pulling the tab.
F

P
ush the connector.
F

P
ull the bulb to change it.
To reassemble, proceed in reverse order.
F

T
urn the protective plastic cover to remove
it.
F

D
isconnect the connector.
F

U
nhook the clips.
F

P
ull the bulb to change it.
To reassemble, proceed in reverse order.
8
In the event of a breakdown

222
Main beam headlamps (halogen model)
Direction indicators
F Remove the protective plastic cover by pulling the tab.
F

P
ush the connector.
F

P
ull the bulb to change it.
To reassemble, proceed in reverse order. Quicker flashing of the direction indicator
light (left or right) indicates that one of
the bulbs on the corresponding side has
failed.
The direction indicator bulb is located below
the headlamp.
F
T
urn the bulb holder anti-clockwise
a quarter of a turn.
F
R
emove the bulb holder.
F
C
hange the faulty bulb.
To reassemble, proceed in reverse order.
Direction indicators (light-
emitting diodes – LEDs)
For the replacement of this type of lamp,
contact a CITROËN dealer or a qualified
workshop.
Front foglamps
F Unclip the finisher by pulling at the top.
F R emove the two screws to remove the unit.
F

T
urn the bulb holder a quarter of a turn.
F

R
emove the bulb holder.
F

C
hange the faulty bulb.
To reassemble, proceed in reverse order,
pressing on the finisher to refit it.
Door mirror spotlamps
You should contact a CITROËN dealer or
a qualified workshop for the replacement of the
light-emitting diode – LED.
Integrated direction indicator
side repeaters
You should contact a CITROËN dealer or
a qualified workshop for the replacement of
these bulbs.
In the event of a breakdown

223

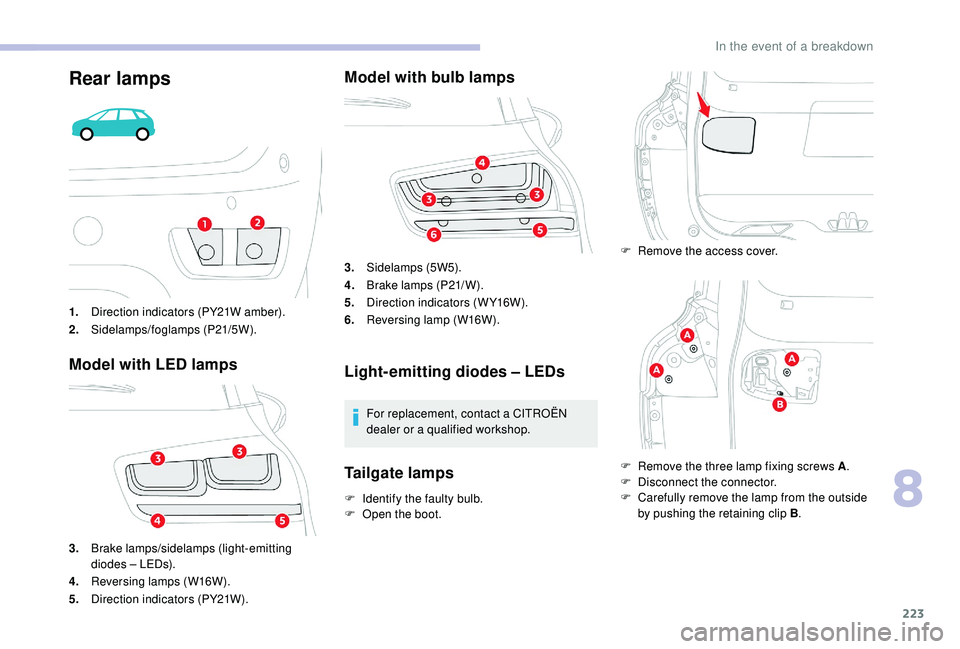

Rear lamps
1.Direction indicators (PY21W amber).
2. Sidelamps/foglamps (P21/5W).
Model with LED lamps
3.Brake lamps/sidelamps (light-emitting
diodes – LEDs).
4. Reversing lamps (W16W).
5. Direction indicators (PY21W).
Model with bulb lamps
3.Sidelamps (5W5).
4. Brake lamps (P21/ W).
5. Direction indicators (WY16W).
6. Reversing lamp (W16W).
Light- emitting diodes – LEDs
For replacement, contact a CITROËN
d ealer or a qualified workshop.
Tailgate lamps
F Identify the faulty bulb.
F O pen the boot. F

R
emove the access cover.
F
R
emove the three lamp fixing screws A
.
F
D
isconnect the connector.
F C arefully remove the lamp from the outside
by pushing the retaining clip B .
8
In the event of a breakdown

224
For the replacement of the bulbs of the
reversing lamp and of the direction indicators:
F
U
se the "universal" type tweezers to turn
the bulb holder a
quarter turn anti-clockwise
and remove it.
F

C
hange the bulb. For the replacement of the bulbs of the
sidelamps and of the brake lamps:
F

T
urn the bulb holder a quarter turn anti-
clockwise and remove it.
F
C
hange the bulb.
To reassemble, proceed in reverse order.
Rear lamps
1. Direction indicators (PY21W amber).
2. Sidelamps/foglamps (P21/5W).
Model with LED lamps
3.Sidelamps (light emitting diodes – LEDs).
4. Brake lamps (light emitting diodes –
L ED s).
5. Direction indicators (PY21W).
6. Reversing lamps (light emitting diodes –
L ED s).
Light- emitting diodes – LEDs
For replacement, contact a CITROËN
d ealer or a qualified workshop.
Model with LED lamps
Model with bulb lamps
In the event of a breakdown

225
3.Sidelamps (W5W).
4. Brake lamps/sidelamps (P21W).
5. Direction indicators (WY16W).
6. Reversing lamp. (W16W).
Tailgate lamp
Model with LED lamps
Direction indicators, sidelamps
and foglamps
Model with bulb lamps
Identify the faulty bulb.
F
O pen the boot.
F

R
emove the access cover. F

R
emove the three lamp fixing screws A
.
F
D
isconnect the connector.
F
C
arefully remove the lamp from its location.
F
T
urn the bulb holder a quarter turn anti-
clockwise and remove it.
F
C
hange the bulb.
To reassemble, proceed in reverse order. Model with bulb lamps
For access, pass your hand under the bumper.
F

T
urn the bulb holder a quarter of a turn and
remove it.
F C hange the bulb.
To reassemble, proceed in reverse order.
8
In the event of a breakdown

226
Third brake lamp (light- emitting
diodes – LEDs)
Number plate lamps (W5W)
F Insert a thin screwdriver into one of the cut-
outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
To refit, press on the lens to clip it in place.
You can also contact a

CITROËN dealer or
a

qualified workshop for the replacement of
these bulbs.
For the replacement of this type of lamp,
contact a

CITROËN dealer or a

qualified
workshop.
Changing a fuse
Access to tooling
The extraction tweezers are fitted in the
dashboard fuses compartment.
F

U
nclip the cover by pulling at the top right,
then left,
F

C
ompletely remove the cover by carefully
pulling it in the axis indicated by the arrow,
F

R
emove the tweezers. F

O
pen the glove box
F U nclip the cover by pulling at the top left,
then right.
F

C
ompletely remove the cover by carefully
pulling it in the axis indicated by the arrow.
F

R
emove the tweezers.
Changing a fuse
Before changing a fuse, it is necessary to:
F i dentify the cause of the failure and correct
it,
F

s
witch off all electrical loads,
F

i
mmobilise the vehicle and switch off the
ignition,
F

i
dentify the defective fuse using the existing
allocation tables and diagrams.
In the event of a breakdown

227
To remove or fit a fuse, it is essential to:
F u se the special tweezers to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a
CITROËN dealer or a qualified workshop.
Replacing a
fuse not shown in the tables
may cause a


serious malfunction of your
vehicle. Contact a
CITROËN dealer or
a


qualified workshop.Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a CITROËN dealer or a qualified
workshop.
CITROËN will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10


milliamperes.
Fuses in the dashboard
The two fuseboxes are located in the lower
dashboard (left-hand side).
Access to the fuses
Good Failed
Tw e e z e r s
8
In the event of a breakdown

228
Fuse tables
Fuse N°Rating Functions
F1 40
AHeated rear screen.
F2 20
AElectric door mirrors.
F5 30
APanoramic glass sunroof blind.
F6 20
A12 V, rear multimedia sockets.
F7 20
A230
V socket.
F9 25
AHeated seats.
F10 20
ATrailer inter face unit.
F11 20
AAir conditioning blower.
F12 30
AElectric window motor.
Fusebox 1
In the event of a breakdown
