Driving advice
Observe driving regulations and remain vigilant
whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
As a safety measure, the driver should only
carry out any operations that require close
attention when the vehicle is stationary.
On a
long journey, taking a break every two
hours is strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion engines
emit toxic exhaust gases, such as carbon
monoxide. There is a
risk of poisoning and
death!
In very severe wintry conditions
(temperatures below -23°C), to guarantee
correct operation and the longevity of
the mechanical elements of your vehicle
(engine and gearbox), the engine must be
left running for 4
minutes before driving.
Important!
Never drive with the parking brake applied
– Risk of overheating and damage to the
braking system!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, never park or run
the engine on inflammable sur faces (dry
grass, fallen leaves, etc.) – Risk of fire!
Never leave a vehicle unsuper vised with
the engine running. If you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral or position N or P , depending on
the type of gearbox.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle. If you are obliged to drive on a
flooded road:
-
c
heck that the depth of water does not
exceed 15 cm, taking account of waves that
might be generated by other users,
-
d
eactivate the Stop & Start function,
-
d
rive as slowly as possible without stalling.
In all cases, do not exceed 6 mph (10 km/h),
-
d
o not stop and do not switch off the engine.
On leaving the flooded road, as soon as safety
conditions allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Driving

127

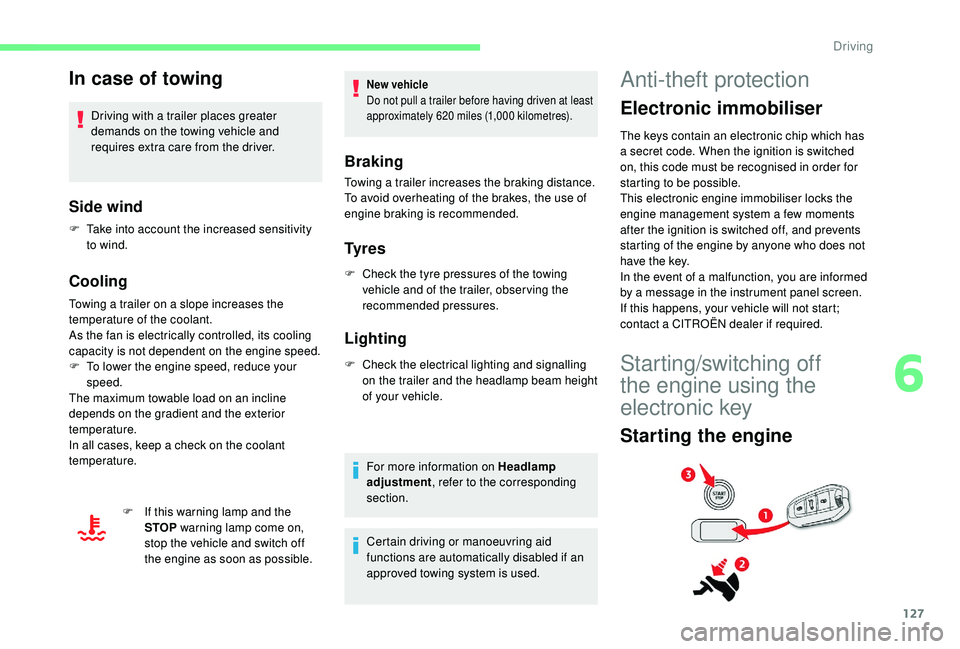

In case of towing
Driving with a trailer places greater
d emands on the towing vehicle and
requires extra care from the driver.
Side wind
F Take into account the increased sensitivity to wind.
Cooling
Towing a trailer on a slope increases the
t emperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towable load on an incline
depends on the gradient and the exterior
temperature.
In all cases, keep a
check on the coolant
temperature.
F

I
f this warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
New vehicle
Do not pull a trailer before having driven at least
approximately 620


miles (1,000

kilometres).
Braking
Towing a trailer increases the braking distance.
T o avoid overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam height
of your vehicle.
For more information on Headlamp
adjustment , refer to the corresponding
section.
Certain driving or manoeuvring aid
functions are automatically disabled if an
approved towing system is used.
Anti-theft protection
Electronic immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a
few moments
after the ignition is switched off, and prevents
starting of the engine by anyone who does not
have the key.
In the event of a
malfunction, you are informed
by a
message in the instrument panel screen.
If this happens, your vehicle will not start;
contact a
CITROËN dealer if required.
Starting/switching off
the engine using the
electronic key
Starting the engine
6
Driving

128
F Place the gear selector at P or N for vehicles with an automatic gearbox or
neutral for vehicles with a


manual gearbox.
F

P
lace the electronic key in the reader.
F

P
ress the brake pedal for vehicles with an
automatic gearbox, or fully depress the
clutch pedal for vehicles with a
manual
gearbox.
F

B
riefly press the " START/STOP" button.
The steering column unlocks and the engine
starts more or less instantly.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
For Diesel vehicles , in sub-zero temperatures
the engine will not start until the pre-heater
warning lamp has gone off. If one of the starting conditions is not met,
a reminder message is displayed in the
instrument panel. In some circumstances, it is
necessary to turn the steering wheel slightly
while pressing the "START/STOP" button to
assist unlocking of the steering; a message
warns you when this is needed.
With petrol engines , after a
cold start,
preheating the catalytic converter can
cause noticeable engine vibrations for
anything up to 2
minutes while stationary
with the engine running (accelerated idle
speed).
If this warning lamp comes on after
pressing the "START/STOP" button,
press down on the brake or clutch
pedal until the warning lamp goes
off, without pressing the "START/
STOP" button again, until the engine
starts and runs.
Switching off the engine
F Immobilise the vehicle.
F P lace the gear selector at P or N for
vehicles with an automatic gearbox or
neutral for vehicles with a


manual gearbox.
F

P
ress the " START/STOP " button.
The engine stops and the steering column
locks.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
F

R
emove the electronic key from the reader. If the vehicle is not immobilised, the
engine will not stop.
Switching off the engine leads to a
loss of
braking assistance.
Emergency switch-off
In the event of an emergency only, the engine
can be switched off without conditions (even
when driving).
Press the " START/STOP " button for about
three seconds.
In this case, the steering column locks as soon
as the vehicle stops.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
Electronic key left in the reader
You will be warned by a
message if the
electronic key is still in the reader on
opening the driver's door.
Driving

129
Starting/switching off the
engine with Keyless Entry
and Starting
Starting the engine
The Keyless Entry and Starting electronic
key must be inside the vehicle.
If the electronic key is not detected in this
zone, a message is displayed.
Move the electronic key into this zone so
that the engine can be started.
If there is still a problem, refer to the "Key
not detected – Back-up starting" section.
F

P
ress the " START/STOP " button while
maintaining pressure on the pedal until the
engine starts.
The steering column unlocks and the engine
starts.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
For Diesel engines , when the temperature is
negative and/or the engine is cold, the start
will only take place once the preheater warning
lamp is off. F
W ith an automatic gearbox
, you should
keep the brake pedal fully depressed and
not press the " START/STOP" button again
until the engine is running.
If one of the starting conditions is not met,
a reminder message is displayed in the
instrument panel.
In some circumstances, it is necessary to turn
the steering wheel slightly while pressing the
" START/STOP " button to assist unlocking of
the steering column.
With petrol engines , after a
cold start,
preheating the catalytic converter can
cause noticeable engine vibrations for
up to 2
minutes while stationary with the
engine running (accelerated idle speed).
As a
safety measure, never leave the
vehicle while the engine is running.
Switching off the engine
F Immobilise the vehicle, engine at idle.
F W ith a manual gearbox , preferably put the
gear lever into neutral.
F

W

ith a

manual gearbox
, put the gear lever
into neutral.
F

W

ith the electronic key inside the vehicle,
fully depress the clutch pedal.
or
F

W

ith an automatic gearbox
, place the gear
selector in mode P or N .
F

W

ith the electronic key inside the vehicle,
press the brake pedal.
If this warning lamp comes on after
pressing the "START/STOP " button:
F
W
ith a

manual gearbox , you should keep
the clutch pedal fully depressed and not
press the " START/STOP " button again until
the engine is running.
6
Driving

130
F With the electronic key inside the vehicle, press the " START/STOP " button.
The engine stops and the steering column
locks.
In some circumstances, it is necessary to turn
the steering wheel to lock the steering column.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock, but the gearbox locks in mode P .
If the vehicle is not immobilised, the
engine will not stop.
Never leave your vehicle with the
electronic key still inside.
Switching off the engine leads to a
loss of
braking assistance.
Key not detected
Back-up starting
When the electronic key is in the recognition
zone and after pressing the "START/STOP"
button, the engine does not start:
F

P
lace the gear selector at P or N for
vehicles with an automatic gearbox or
neutral for vehicles with a


manual gearbox.
F

P
lace the electronic key in the back-up
reader.
F

P
ress the brake pedal on vehicles with an
automatic gearbox, or fully depress the
clutch pedal with a


manual gearbox.
F

P
ress the "START/STOP" button.
The engine starts.
F

W

ith an automatic gearbox
, preferably
select mode P or N .
Back-up switch-off
F To confirm the instruction to switch off the
engine, press the " START/STOP" button for
about three seconds.
In the event of a
fault with the electronic key,
contact a
CITROËN dealer or a qualified
workshop.
Emergency switch-off
In the event of an emergency only, the engine
can be switched off without conditions (even
when driving).
Press the " START/STOP " button for about
three seconds.
In this case, the steering column locks as soon
as the vehicle stops. When the electronic key is not detected or is
no longer in the recognition zone, a message
appears in the instrument panel when closing
a door or trying to switch off the engine.
Driving

131
Switching the ignition on
(without starting)
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals, allows the
ignition to be switched on.
F

P
ress the "START/STOP" button, the
instrument panel comes on but the engine
does not start.
F

P
ress the button again to switch off the
ignition and allow the vehicle to be locked.
With the ignition on, the system
automatically changes to energy economy
mode when required to maintain an
adequate state of charge of the battery.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
Electric parking brake
The technology adopted for the electric
parking brake does not allow the fitment of
15-inch wheels.
Indicator lamp
This indicator lamp comes on in the
instrument panel and in the control
lever to confirm the application of
the parking brake. It goes off to confirm the release of the parking
brake.
The indicator lamp in the control lever flashes
during manual application or release.
After applying the parking brake, the
simultaneous flashing of the indicator lamps
in the instrument panel and in the control lever
warns you to secure the immobilisation of the
vehicle by engaging a
gear (with a manual
gearbox or by placing the selector at position
P with an automatic gearbox or by placing
a chock against one of the wheels (e.g. parking
on a very steep slope or a steep slope with
a weak battery).
In the event of a battery failure, the
electric parking brake no longer works.
As a safety measure, if the parking brake
is not applied, immobilise the vehicle by
engaging a

gear (with a

manual gearbox)
or placing a chock against one of the
wheels.
Call a CITROËN dealer or a qualified
workshop.
The system provides, in automatic operation,
the application of the parking brake on
switching off the engine and release as the
vehicle moves off.
The driver can take over at any time to apply
or release the parking brake, by operating the
control lever:
-

b

y briefly pulling
the control lever to apply
the brake,
-

b

y briefly pushing
the control lever, while
pressing the brake pedal, to release it.
Automatic mode is activated by default.
6
Driving

133
With an automatic gearbox, if the brake
does not release automatically, check that
the front doors are correctly closed.
The complete release of the parking brake is
confirmed by the brake indicator lamp and the
P indicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".
When stationary with the engine running, do not
depress the accelerator pedal unnecessarily,
you risk releasing the parking brake.
Automatic application
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off .
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Automatic application does not take place
if the engine stalls or goes into STOP
mode of Stop & Start. With automatic operation, you can also
manually apply or release the parking
brake at any time using the control lever.
Special cases
In some situations, you may need to operate
the parking brake manually.
Immobilisation of the vehicle
with the engine running
To immobilise the vehicle with the engine
running, briefly pull the control lever.
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Parking the vehicle with the
brake released
In very cold conditions (ice), it is
recommended that the parking brake not
be applied.
To immobilise your vehicle, engage a
gear
or fit the chocks against one of the wheels. Immobilisation of the vehicle with the
parking brake released
F

S
witch off the engine.
Application of the parking brake is
confirmed by illumination of the indicator
lamps in the instrument panel and the
control lever.
F
S
witch on the ignition again, without starting
the engine.
F
R
elease the parking brake manually by
pushing the control lever while keeping your
foot on the brake pedal.
The complete release of the parking brake is
confirmed by the brake indicator lamp and the
P indicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".
F
S
witch off the ignition.
Deactivating automatic
operation
In some situations, for example when it is
extremely cold or during towing (caravan,
recovery), it may be necessary to deactivate
automatic operation of the system.
F

S
tart the engine.
F

A
pply the parking brake with the control
lever, if it is released.
6
Driving

140
The information appears in the
instrument panel in the form of an
ar row.
With a
manual gearbox, the arrow may be
accompanied by the gear recommended.
This arrow may be pointing up or down,
depending on the context.
The system adapts its gear efficiency
recommendation according to the driving
conditions (slope, load, etc.) and the
driver's requirements (power, acceleration,
b r a k i n g , e t c .) .
The system never suggests:
-
e

ngaging first gear,
-
enga

ging reverse gear.
Stop & Start
Per fect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.
The Stop & Start system puts the engine
temporarily into standby – STOP mode – during
stops in the traffic (red lights, traffic jams, or
other, etc.). The engine restarts automatically –
START mode – as soon as you wish to move off
again.
Restarting occurs instantaneously, quickly and
silently.
Operation
Going into engine STOP mode
This indicator lamp comes on in the
instrument panel and the engine
goes into standby automatically.
-

W

ith a manual gearbox , at speeds below
12

mph (20 km/h), or with the vehicle
stationary (with the PureTech 110, 130
and
BlueHDi 100, 130
versions), when you place
the gear lever in neutral and you release the
clutch pedal,
-

W

ith an automatic gearbox , at speeds
below 2
mph (3 km/h), or when the vehicle
is stationary (depending on version), when
you press the brake pedal or place the gear
selector into position N .
If your vehicle is fitted with this system, a time
counter calculates the sum of the periods in
STOP mode during a
journey. It resets to zero
every time the ignition is switched on with the
"START/STOP" button. For your convenience, during parking
manoeuvres, STOP mode is not available
for a
few seconds after coming out of
reverse gear.
The Stop & Start system does not modify
the vehicle's functions, such as, for
example, braking, power steering, etc.
Never refuel with the engine in STOP
mode; you must switch off the ignition with
the "START/STOP" button.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- t he driver's door is open,
-

t
he driver's seat belt is not fastened,
-

t
he vehicle has not exceeded 6 mph
(10
km/h) since the last engine start using
the "START/STOP" button,
-

t
he electric parking brake is applied or being
applied,
-

t
he engine is needed to maintain
a


comfortable temperature in the passenger
compartment,
-

d
emisting is active,
Driving

141
Going into engine START mode
This indicator lamp goes off and the
engine restarts automatically.
-

W

ith a manual gearbox , when you fully
depress the clutch pedal.
-

W

ith an automatic gearbox :
•

g

ear selector in position D or M , when
you release the brake pedal,
•

o

r gear selector in position N and brake
pedal released, when you place the gear
selector in position D or M ,
•
o

r when you engage reverse gear.
Special cases: START mode
activated automatically
START mode is activated automatically if:
- y ou open the driver's door,
-
y

ou unfasten the driver's seat belt,
-

t
he speed of the vehicle exceeds 16 mph
(25
km/h) with a manual gearbox (2 mph
(3
km/h) with PureTech 110, 130, THP 165,
180
and BlueHDi 100, 130 versions), 2 mph
(3
km/h) with an automatic gearbox,
-

t
he electric parking brake is being applied,
-
c

ertain specific conditions (battery charge,
engine temperature, braking assistance,
air conditioning setting, etc.) where the
engine is needed for control of the system
or vehicle.
Deactivation/Manual
reactivation
- certain special conditions (battery charge, engine temperature, braking assistance,
exterior temperature, etc.) where the engine
is needed for control of the
system.
In this case, this indicator lamp
flashes for a
few seconds then goes
of f.
This operation is perfectly normal.
In this case, this indicator lamp
flashes for a
few seconds, then goes
of f.
This operation is perfectly normal.
In certain circumstances, such as to
maintain the temperature in the passenger
compartment, it may be necessary to
deactivate the Stop & Start system. The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is switched
on.
The Stop & Start is deactivated in the Driving

menu of the touch screen.
Select "Stop & Start" to deactivate the system.
It is indicated by this warning lamp
coming on.
Select "Stop & Start" again to reactivate the
function. It is indicated by this indicator lamp
coming on.
Use of the adaptive cruise control
deactivates the Stop & Start function.
Operating fault
If the system fails, this warning lamp
flashes for a few seconds before
lighting up continuously, associated
with a


message.
6
Driving

142
Have it checked by a CITROËN dealer or
a qualified workshop.
If a
fault occurs in STOP mode, the engine may
stall.
All of the instrument panel warning lamps come
on.
Depending on version, an alert message may also
be displayed, asking you to place the gear lever in
position N and press the brake pedal.
It is then necessary to switch off the ignition and
start the engine again using the "START/STOP"
button.
The Stop & Start requires the use of
a 12 V battery of special specification and
technology.
All work on this type of battery must be
carried out only by a
CITROËN dealer or
a


qualified workshop.
For more information on the 12
V batter y,
refer to the corresponding section.
Opening the bonnet
Before doing anything under the bonnet,
deactivate the Stop & Start system to avoid
the risk of injury related to an automatic
change to START mode. Driving on flooded roads
Before driving in a
flooded area, it is
strongly recommended that you deactivate
the Stop & Start system.
For more information on Driving advice ,
particularly on flooded roads, refer to the
corresponding section.
Tyre under-inflation
detection
System which automatically checks the
pressures of the tyres while driving.
The system monitors the pressure of the four
tyres when the vehicle is moving.
It compares the information given by the
wheel speed sensors with reference values,
which must be reinitialised after ever y tyre
pressure adjustment or wheel change .
The system triggers an alert as soon as it
detects a
drop in the pressure of one or more
tyres. The under-inflation detection system does
not replace the need for vigilance on the
part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a


long journey.
Driving with under-inflated tyres worsens
road-holding, lengthens braking distances,
causes premature wear of the tyres,
particularly in adverse conditions (heavy
loads, high speeds, long journeys).
Driving with under-inflated tyres
increases fuel consumption.
The inflation pressures defined for your
vehicle can be found on the tyre pressure
label.
For more information on the
Identification markings , refer to the
corresponding section.
Driving
