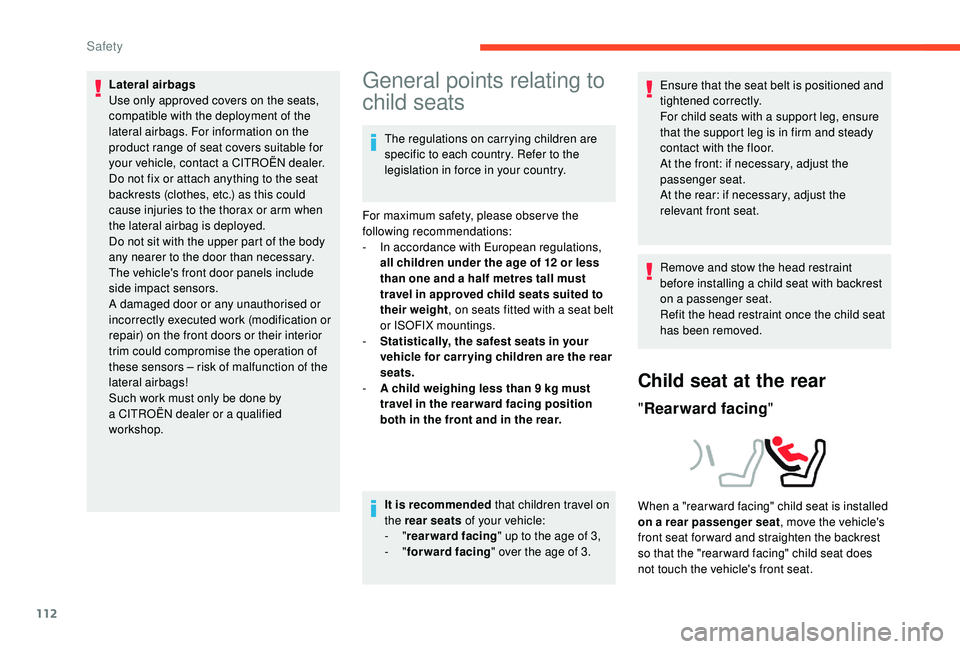

Lateral airbags
Use only approved covers on the seats,
compatible with the deployment of the
lateral airbags. For information on the
product range of seat covers suitable for
your vehicle, contact a CITROËN dealer.
Do not fix or attach anything to the seat
backrests (clothes, etc.) as this could
cause injuries to the thorax or arm when
the lateral airbag is deployed.
Do not sit with the upper part of the body
any nearer to the door than necessary.
The vehicle's front door panels include
side impact sensors.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior
trim could compromise the operation of
these sensors – risk of malfunction of the
lateral airbags!
Such work must only be done by
a
CITROËN dealer or a qualified
workshop.General points relating to
child seats
The regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
For maximum safety, please obser ve the
following recommendations:
-

I

n accordance with European regulations,
all children under the age of 12
or less
than one and a
half metres tall must
travel in approved child seats suited to
their weight , on seats fitted with a
seat belt
or ISOFIX mountings.
-

S
tatistically, the safest seats in your
vehicle for carr ying children are the rear
seats.
-

A c
hild weighing less than 9 kg must
travel in the rear ward facing position
both in the front and in the rear.
It is recommended that children travel on
the rear seats of your vehicle:
-
"rearward facing " up to the age of 3,
-
"forward facing " over the age of 3. Ensure that the seat belt is positioned and
tightened correctly.
For child seats with a
support leg, ensure
that the support leg is in firm and steady
contact with the floor.
At the front: if necessary, adjust the
passenger seat.
At the rear: if necessary, adjust the
relevant front seat.
Remove and stow the head restraint
before installing a
child seat with backrest
on a


passenger seat.
Refit the head restraint once the child seat
has been removed.
Child seat at the rear
" Rearward facing"
When a "rear ward facing" child seat is installed
on a
rear passenger seat , move the vehicle's
front seat for ward and straighten the backrest
so that the "rear ward facing" child seat does
not touch the vehicle's front seat.
Safety

117

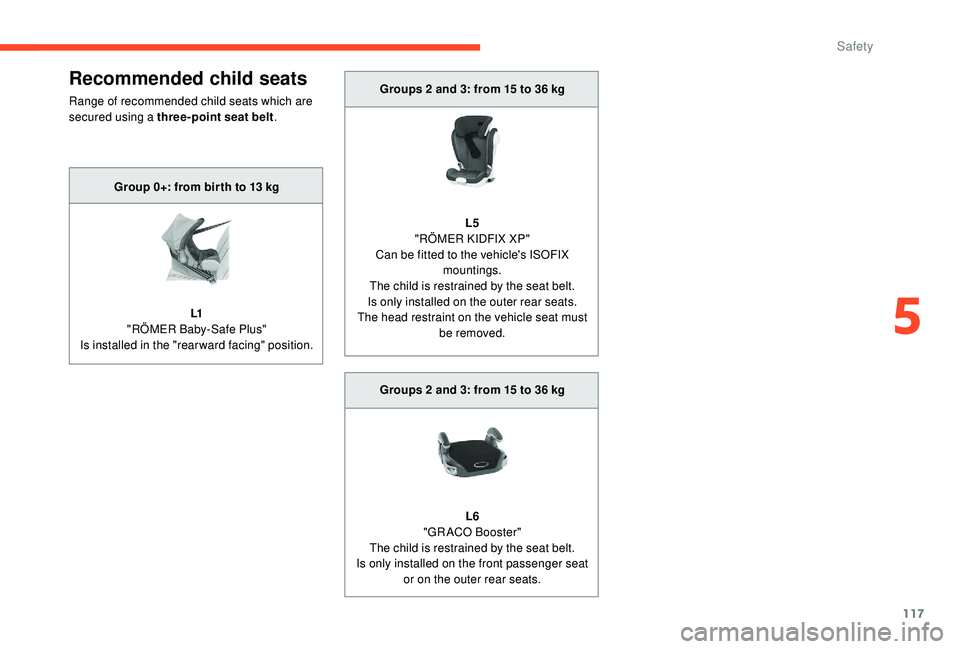

Recommended child seats
Range of recommended child seats which are
secured using a three-point seat belt .Groups 2
and 3: from 15 to 36 kg
L5
"RÖMER KIDFIX XP"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
Is only installed on the outer rear seats.
The head restraint on the vehicle seat must be removed.
Group 0+: from bir th to 13
kg
L1
"RÖMER Baby-Safe Plus"
Is installed in the "rearward facing" position.
Groups 2
and 3: from 15 to 36 kg
L6
"GRACO Booster"
The child is restrained by the seat belt.
Is only installed on the front passenger seat or on the outer rear seats.
5
Safety

119
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are easily secured on the two
rings A.
Some also have an upper strap which is
attached to ring B .

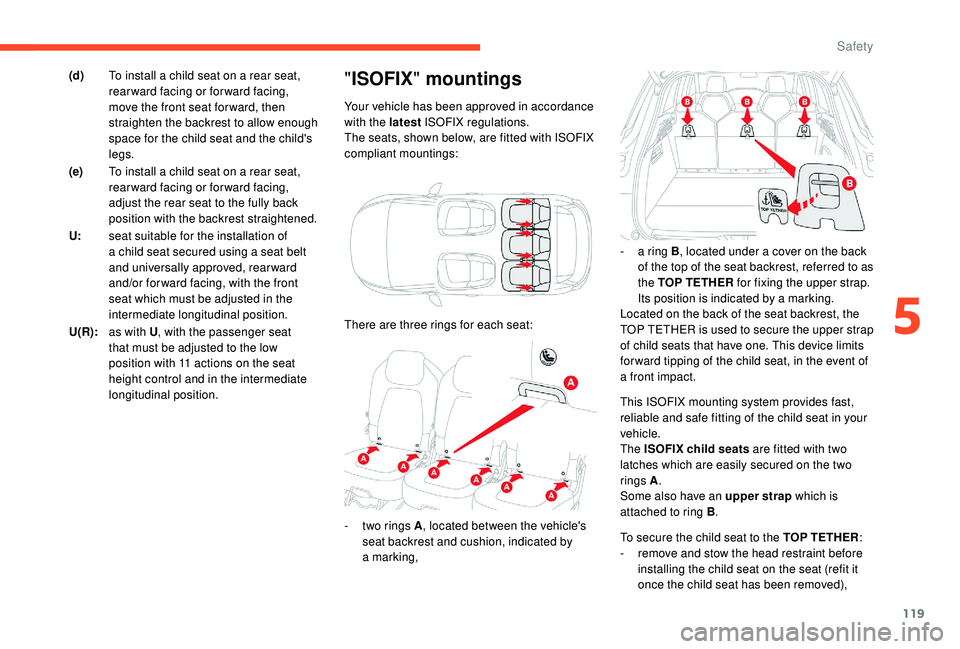

"ISOFIX " mountings
Your vehicle has been approved in accordance
with the latest ISOFIX regulations.
The seats, shown below, are fitted with ISOFIX
compliant mountings:
(d)
To install a

child seat on a

rear seat,
rearward facing or forward facing,
move the front seat for ward, then
straighten the backrest to allow enough
space for the child seat and the child's
legs.
(e) To install a

child seat on a

rear seat,
rearward facing or forward facing,
adjust the rear seat to the fully back
position with the backrest straightened.
U: seat suitable for the installation of
a

child seat secured using a

seat belt
and universally approved, rearward
and/or for ward facing, with the front
seat which must be adjusted in the
intermediate longitudinal position.
U(R): as with U , with the passenger seat
that must be adjusted to the low
position with 11

actions on the seat
height control and in the intermediate
longitudinal position. There are three rings for each seat:
-

t
wo rings A , located between the vehicle's
seat backrest and cushion, indicated by
a


marking, -

a r
ing B, located under a
cover on the back
of the top of the seat backrest, referred to as
the TOP TETHER for fixing the upper strap.
Its position is indicated by a
marking.
Located on the back of the seat backrest, the
TOP TETHER is used to secure the upper strap
of child seats that have one. This device limits
for ward tipping of the child seat, in the event of
a
front impact.
To secure the child seat to the TOP TETHER :
-

r
emove and stow the head restraint before
installing the child seat on the seat (refit it
once the child seat has been removed),
5
Safety

120
- detach the TOP TETHER cover by pulling its cut-out,
-

p
ass the upper strap of the child seat over
the seat backrest, centring it between the
openings for the head restraint rods,
-

f
ix the hook of the upper strap to ring B ,
-

t
ighten the upper strap.The incorrect installation of a
child seat in
a


vehicle compromises the protection of
the child in the event of an accident.
Strictly obser ve the fitting instructions
provided with the child seat.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the summary table.

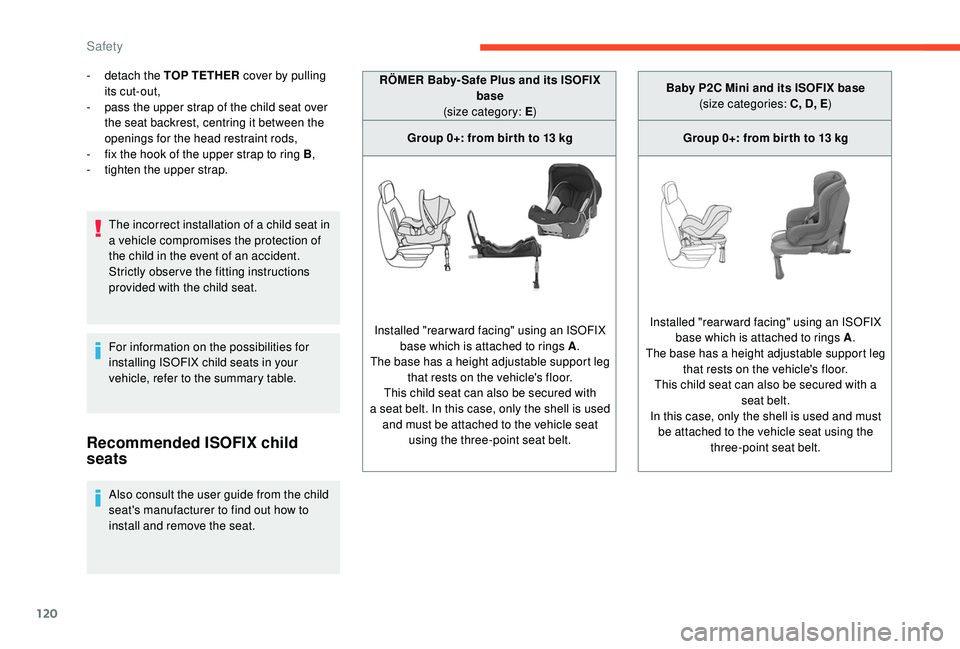

Recommended ISOFIX child
seats
Also consult the user guide from the child
seat's manufacturer to find out how to
install and remove the seat. RÖMER Baby- Safe Plus and its ISOFIX
base
(size category: E )
Group 0+: from bir th to 13 kg
Installed "rearward facing" using an ISOFIX base which is attached to rings A .
The base has a height adjustable support leg
that rests on the vehicle's floor.
This child seat can also be secured with
a seat belt. In this case, only the shell is used
and must be attached to the vehicle seat using the three-point seat belt. Baby P2C Mini and its ISOFIX base
(size categories: C, D, E )
Group 0+: from bir th to 13 kg
Installed "rearward facing" using an ISOFIX base which is attached to rings A .
The base has a height adjustable support leg that rests on the vehicle's floor.
This child seat can also be secured with a seat belt.
In this case, only the shell is used and must be attached to the vehicle seat using the three-point seat belt.
Safety

121

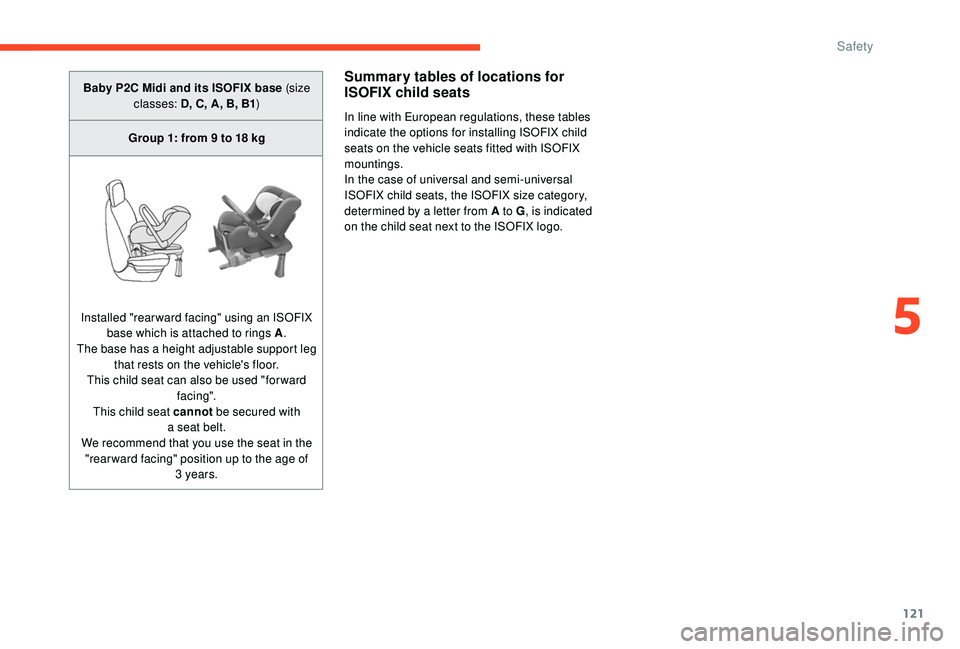

Baby P2C Midi and its ISOFIX base (size classes: D, C, A, B, B1 )
Group 1: from 9
to 18 kg
Installed "rearward facing" using an ISOFIX base which is attached to rings A .
The base has a height adjustable support leg that rests on the vehicle's floor.
This child seat can also be used "for ward fac ing".
This child seat cannot be secured with
a
seat belt.
We recommend that you use the seat in the "rear ward facing" position up to the age of 3
years.Summary tables of locations for
ISOFIX child seats
In line with European regulations, these tables
indicate the options for installing ISOFIX child
seats on the vehicle seats fitted with ISOFIX
mountings.
In the case of universal and semi-universal
ISOFIX child seats, the ISOFIX size category,
determined by a letter from A to G , is indicated
on the child seat next to the ISOFIX logo.
5
Safety

122

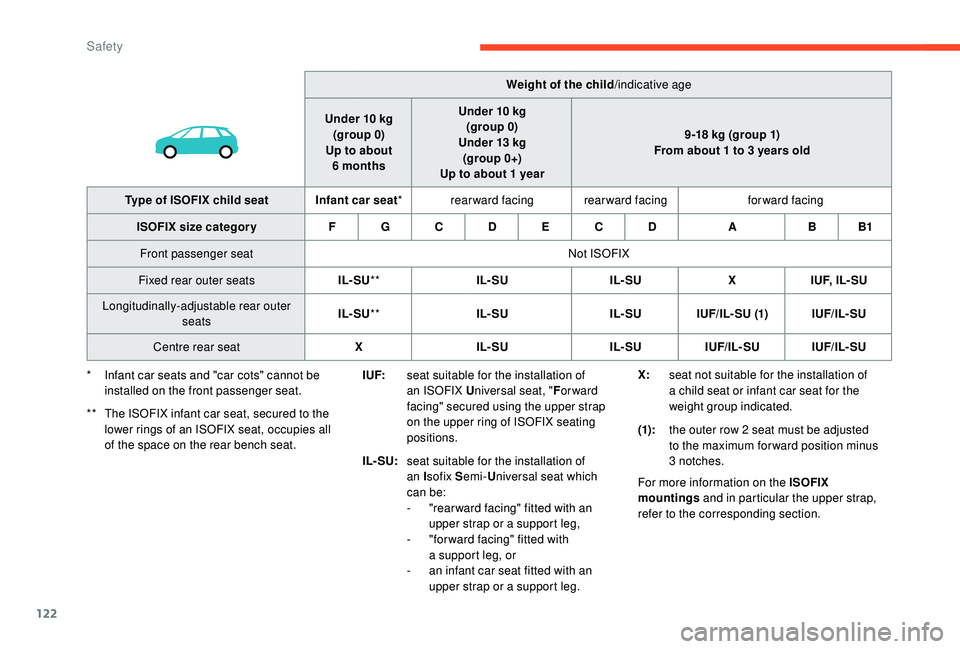

Weight of the child/indicative age
Under 10

kg
(group 0)
Up to about 6


months Under 10
kg
(group 0)
Under 13
kg
(group 0+)
Up to about 1
year 9-18
kg (group 1)
From about 1
to 3 years old
Type of ISOFIX child seat Infant car seat * rearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D ABB1
Front passenger seat Not ISOFIX
Fixed rear outer seats IL- SU** IL- SU IL- SUXI U F, I L - S U
Longitudinally-adjustable rear outer seats IL- SU
** IL- SU IL- SUI U F/ I L- SU (1) IUF/IL- SU
Centre rear seat XIL- SU IL- SUIUF/IL- SU IUF/IL- SU
*

I

nfant car seats and "car cots" cannot be
installed on the front passenger seat.
**

T

he ISOFIX infant car seat, secured to the
lower rings of an ISOFIX seat, occupies all
of the space on the rear bench seat. I UF:
seat suitable for the installation of
an ISOFIX U niversal seat, " For ward
facing" secured using the upper strap
on the upper ring of ISOFIX seating
positions.
IL- SU: seat suitable for the installation of
an Isofix S emi-Universal seat which
can be:
-

"

rear ward facing" fitted with an
upper strap or a
support leg,
-

"

for ward facing" fitted with
a

support leg, or
-

a

n infant car seat fitted with an
upper strap or a
support leg. X:
seat not suitable for the installation of
a
child seat or infant car seat for the
weight group indicated.
(1): the outer row 2
seat must be adjusted
to the maximum forward position minus
3
notches.
For more information on the ISOFIX
mountings and in particular the upper strap,
refer to the corresponding section.
Safety

123

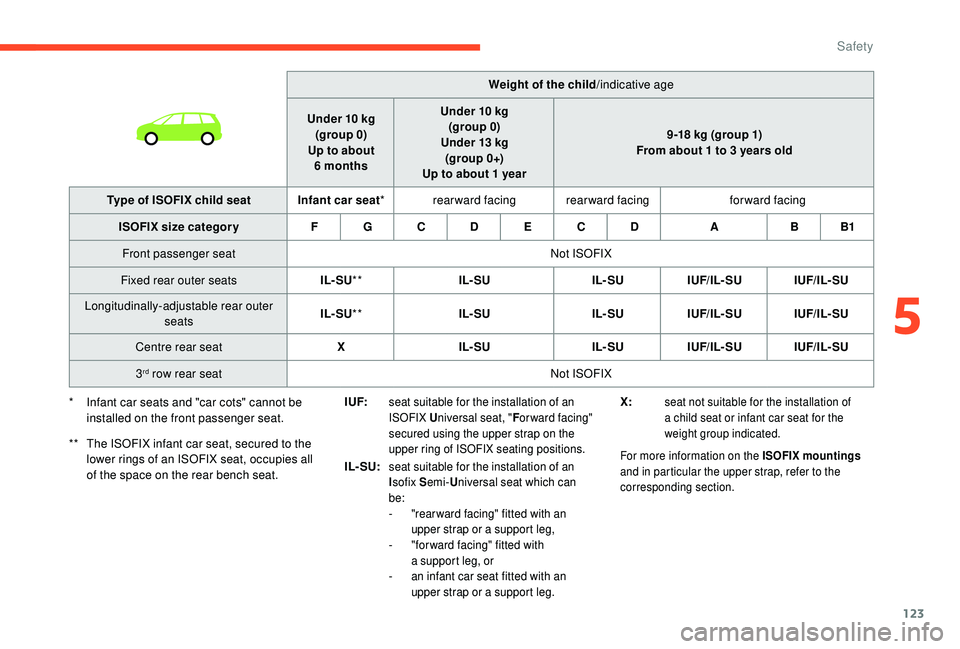

I UF:seat suitable for the installation of an
ISOFIX Universal seat, " For ward facing"
secured using the upper strap on the
upper ring of ISOFIX seating positions.
IL- SU:seat suitable for the installation of an
I sofix S emi-Universal seat which can
be:
-

"
rear ward facing" fitted with an
upper strap or a
support leg,
-

"
for ward facing" fitted with
a
support leg, or
-

a
n infant car seat fitted with an
upper strap or a
support leg.For more information on the ISOFIX mountings
and in particular the upper strap, refer to the
corresponding section.
Weight of the child /indicative age
Under 10

kg
(group 0)
Up to about 6


months Under 10
kg
(group 0)
Under 13
kg
(group 0+)
Up to about 1
year 9-18
kg (group 1)
From about 1
to 3 years old
Type of ISOFIX child seat Infant car seat * rearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D ABB1
Front passenger seat Not ISOFIX
Fixed rear outer seats IL- SU** IL- SU IL- SUIUF/IL- SU IUF/IL- SU
Longitudinally-adjustable rear outer seats IL- SU
** IL- SU IL- SUIUF/IL- SU IUF/IL- SU
Centre rear seat XIL- SU IL- SUIUF/IL- SU IUF/IL- SU
3
rd row rear seat Not ISOFIX
*

I

nfant car seats and "car cots" cannot be
installed on the front passenger seat.
**

T

he ISOFIX infant car seat, secured to the
lower rings of an ISOFIX seat, occupies all
of the space on the rear bench seat. X:
seat not suitable for the installation of
a
child seat or infant car seat for the
weight group indicated.
5
Safety

305
ABS .......................................................103 -104
Accessories .................................................. 101
Accessory position


....................................... 131
Access to the 3rd row
..................................... 65
Active Safety Brake................. 21, 165 -166, 168
AdBlue
® ................................. 8, 20, 28, 204-205
Additive, Diesel ....................................... 18, 202
Adjusting head restraints


..........................59-60
Adjusting seats


............................... 57- 5 9, 6 2- 6 4
Adjusting the air distribution


................7 2 , 74 -75
Adjusting the air flow
............................ 7

2 , 74 -75
Adjusting the date


............................... 39, 18, 31
Adjusting the height and reach of the steering wheel
........................................ 68
A

djusting the seat belt height
....................... 10

6
Adjusting the temperature


...................72-73, 75
Adjusting the time


............................... 39, 17, 31
Advice on driving


................................... 126 -127
Airbags
............................... 2

2 - 2 3 , 1 0 9 , 111, 113
Airbags, curtain


...................................... 11 0 -111
Airbags, front ................................... 11 0 -111, 114
Airbags, lateral


....................................... 11 0 -111
Air conditioning


........................................... 6, 73
Air conditioning, automatic


..................71, 75 -76
Air conditioning, dual-zone automatic


............74
Air conditioning, manual
............................ 71

-72
Air intake


............................................. 72, 75 -76
Air vents


.......................................................... 70
Alarm


......................................................... 53-54
Anti-lock braking system (ABS)
............103 -104
Anti-pinch
........................................................ 89
A

nti-theft/Immobiliser

..................................... 44
Apple CarPlay connection


........................12, 16
Armrest, front
............................................ 62, 79
Anti-slip regulation (ASR)


.....................103 -104
Assistance, emergency braking


..................... 103 -104, 168
Assistance call
...............................

........102-103
Audio streaming (Bluetooth)


.......................9, 24Cable, audio


................................................9, 23
Cable, Jack


.................................................9, 23
Cap, fuel filler

...............................
.................19 0
Capacity, fuel tank


........................................19 0
Cartridge, fragrance
.................................. 7

7-78
CD


.........................................................9, 23 -24
CD, MP3


................................................9, 23 -24
AB
C
Battery ........................... 195, 202, 231, 233-234
Battery, charging ................................... 232-233
Battery, remote control


.............................45 - 47
Black panel ...................................................... 11
Black screen


................................................... 11
Blanking screen (snow shield)


..............193, 197
Blind, panoramic sunroof


................................89
Blinds, side


.......................................... 79-80, 84
Blind spot detection
................................2 4 , 174
BlueHDi


.......................................... 28, 204, 236
Bluetooth (hands-free)
................... 1

3 -14, 25 -2 6
Bluetooth (telephone)
..................... 1

3 -15, 25 -27
Bonnet


........................................................... 198
Boot


............................................................ 47- 4 8
Boot (fittings)


................................................... 86
Boot (opening)
...............................

..................40
Bottle holder
.................................................... 79
B

rake discs

............................................ 203-204
Brake lamps
...............................

...........223-225
Brakes


............................................. 13, 203-204
Braking, automatic emergency


...........21, 165 -166, 168
Braking, dynamic emergency


................131-13 4
Brightness


....................................................... 16
Bulbs (changing)


...........................220, 223-225 Central locking ....................................
4
0, 42- 43
Changing a
bulb ............................22
0, 223-225
Changing a


fuse
............................2

26-228, 230
Changing a


wheel
..................................21

1-216
Changing a


wiper blade
................1

0 0, 195 -19 6
Changing the remote control battery


........46 - 47
Checking the engine oil level


..........................27
Checking the levels


...............................19 9, 201
Checking tyre pressures (using the kit)


......................................208 -210
Checks


..........................................199, 202-204
Checks, routine


.....................................202-204
Child lock


.......................................................124
Children


..................................118, 120 -121, 123
Children (safety)


............................................124
Child seats

..............1

0 8 , 112 -113 , 117-11 8 , 12 4
Child seats, conventional


..............................117
Child seats, ISOFIX
.......................119 -121, 123
CITROËN Connect Nav


....................................1
CITROËN Connect Radio
................................. 1
C

losing the boot
.........................................4

7- 4 8
Closing the doors


................................40, 42- 43
Collision Risk Alert ................................. 165 -167
Configuration, vehicle
.................... 3

1-33, 35-36
Configurations, seats


......................................67
Connection, Bluetooth
............. 1

3 -15, 19, 25 -27
Connection, MirrorLink


........................11 -12 , 17
Connection, Wi-Fi network


.............................20
Control, back-up boot release
........................51
Control, back-up door release
..................45-46
Control, heated seats


......................................61
Control stalk, lighting


................................90, 92
Control stalk, wipers

.................................98

-99
Courtesy lamps
.........................................87- 8 8
Cruise control


.......................14 4, 14 6, 148 -15 0,
157-161, 163, 165
Cruise control, adaptive .................. 1 46, 151-15 4
15 6 -157, 159
Cruise control, adaptive with Stop function


................................ 146, 157-161, 163
.
Alphabetical index

307
Maintenance, routine ........................................ 6
Map reading lamps ......................................... 88
M
arkings, identification

.................................244
Massage function
........................................... 60
Mat


............................................................ 82- 83
Memorising a
speed
..................................... 14

4
Menu


............................................................... 12
Menus (audio)


........................................ 4-5, 3-5
Messages


........................................................ 28
Messages, quick
............................................. 28
M

irror, child surveillance

.................................69
Mirror, rear view
.............................................. 69
Mirrors, door ............................... 6 8 - 6 9, 173 -174
Misfuel prevention


......................................... 191
Modularity, seats


............................................. 67
Motorised tailgate
..................................... 4

8 - 51
Mountings, ISOFIX


....................................... 11 9M
N
Net ............................................................. 86 - 87
Number plate lamps ...................................... 226
L
Labels, identification ..................................... 244
Lamps, parking ............................................... 92
Lane Departure Warning System (LDWS)


......................................... 23, 169, 175
LEDs – Light-emitting diodes
....................... 2

20
Leg rest, electric

..............................
...............60
Level, AdBlue
® .............................................. 2 01
Level, brake fluid ........................................... 201
Level, Diesel additive


............................ 201-202
Level, engine coolant


.............................. 2 7, 2 0 1
Level, engine oil
.............................. 2 7, 1 9 9 - 2 0 0
Level, headlamp wash


.................................. 201
Level, screenwash fluid

................................ 2

01
Levels and checks

..............................
..19 9, 201
Light-emitting diodes – LEDs
....................... 2

20
Lighting


............................................................ 88
Lighting, ambient ............................................. 88
Lighting, directional


................................... 96 -97
Lighting, guide-me home


................................ 93
Lighting, interior
...............................

.........87- 8 8
Lighting, welcome


........................................... 94
Loading


............................................................. 6
Load reduction mode


.................................... 195
Locating your vehicle


...................................... 41
Locking
...............................

....................... 44-45
Locking from the inside
............................. 43-44
IIdentification, vehicle .................................... 244
Ignition ................ ..................................... 131, 28
Ignition on ...................................................... 131
Immobiliser, electronic


............................4 5, 127
Indicator, AdBlue
® range ................................. 28
Indicator, coolant temperature ........................ 27
Indicator, engine oil level
................................ 27
Indicators, direction


........................................ 92
Inflating tyres


................................................ 203
Inflating tyres (using the kit)
.................. 2

08 -210
Instrument panels


......................................... 8-9
Intelligent Traction Control


............................ 104
Internet browser
.............................................. 16
I

SOFIX


................................................... 120 -121
ISOFIX mountings ......................................... 11 9Key


................................................
40-42, 44-46
Key, electronic

.....................................
40-43, 45
Keyless Entry and Starting
.........
4
1- 43, 45, 129
Key not recognised
...............................
1
28, 13 0
Key with remote control
................................
12
7
Kit, hands-free
............................... 1
3 -14, 25 -2 6
Kit, temporary puncture repair
.............. 2
08 -210
K
JJack ...............................
...............211-216, 9, 23
Jump starting ................................................ 231
Headlamps, main beam


............
25, 90, 220-222
Headlamps, Xenon

.......................................
220
Headlamp wash
..............................
..............
10 0
Head restraints, front ................................
59-60
Head restraints, rear .......................................
63
Heating
........................................................ 6
, 72
Hill start assist ........................................
13 4 -13 5
Hooks

..............................................................
85
Horn ............................................................... 102 Locking the doors
.....................................
42
- 44
Low fuel level
................................................
19
0
Lumbar

............................................................
60
.
Alphabetical index
