window CITROEN C4 PICASSO 2022 Owner's Manual

125

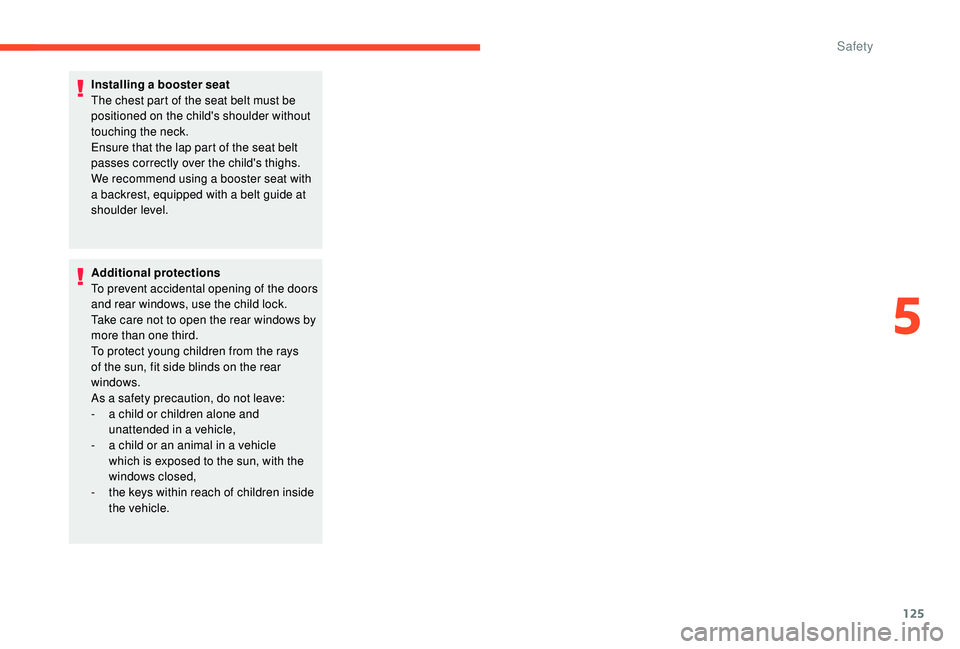

Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
We recommend using a
booster seat with
a
backrest, equipped with a belt guide at
shoulder level.
Additional protections
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays
of the sun, fit side blinds on the rear
windows.
As a
safety precaution, do not leave:
-

a c
hild or children alone and
unattended in a
vehicle,
-

a c
hild or an animal in a vehicle
which is exposed to the sun, with the
windows closed,
-

t
he keys within reach of children inside
the vehicle.
5
Safety

228
Fuse tables
Fuse N°Rating Functions
F1 40
AHeated rear screen.
F2 20
AElectric door mirrors.
F5 30
APanoramic glass sunroof blind.
F6 20
A12 V, rear multimedia sockets.
F7 20
A230
V socket.
F9 25
AHeated seats.
F10 20
ATrailer inter face unit.
F11 20
AAir conditioning blower.
F12 30
AElectric window motor.
Fusebox 1
In the event of a breakdown

233
Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of ser vice for a long
period.
Quick-release terminal clamp
F Switch off the ignition.
F S witch off all electrical consumers (audio
system, lighting, wipers, etc.).
F

S
witch off charger B before connecting the
cables to the battery, so as to avoid any
dangerous sparks.
F

E
nsure that the charger cables are in good
condition.
F

R
aise the plastic cover, if your vehicle has
one, on the (+) terminal.
F

C
onnect charger B cables as follows:
-

t
he (+) red cable to the (+) terminal of
battery A ,
-

t
he (-) black cable to earth point C on the
vehicle. Never try to charge a
frozen battery – risk
of explosion!
If the battery has frozen, have it checked
by a
CITROËN dealer or by a qualified
workshop who will check that the internal
components have not been damaged and
that the container has not cracked, which
would mean a
risk of toxic and corrosive
acid leaking.
F

A
t the end of the charging operation, switch
off charger B before disconnecting the
cables from battery A .
If this label is present, it is essential to
use only a 12 V charger to avoid causing
irreversible damage to the electrical
components related to the Stop & Start
system. Before disconnecting the battery:
F
c
lose all openings (doors, boot, windows,
roof),
F
s
witch off all electrical consumers (audio
system, wipers, lighting, etc.).
F
s
witch off the ignition and wait for four
minutes.
At the battery, detach the (+) terminal only.
Disconnecting the (+) terminal
F

Ra
ise the lever A fully to release the clamp B .
F

R
emove the clamp B by lifting it off.
8
In the event of a breakdown

21
Telephone
QUESTIONRESPONSESOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be
visible.Check that your telephone has Bluetooth
switched on.
Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. You can check the compatibility of your
telephone on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible. The sound depends on both the system and
the telephone.Increase the volume of the audio system, to
maximum if required, and increase the volume
of the telephone if necessary.
Ambient noise affects the quality of the
telephone call.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, etc.).
The contacts are not listed in alphabetical
o r d e r. Some telephones offer display options.
Depending on the settings chosen, contacts
can be transferred in a
specific order.Modify the telephone directory display settings.
.
CITROËN Connect Radio

5
12:13
18,5 21,5
23 °C
12:13
18,5 21,5
23 °C
Vehicle
or Activate, deactivate or configure
certain vehicle functions.
Voice commands
Steering mounted controls
Pressing this button activates the
voice commands function.
To ensure that voice commands are
always recognised by the system, please
observe the following recommendations:
-

s

peak in a normal tone without
breaking up words or raising your
voice.
-

a

lways wait for the "beep" (audible
signal) before speaking.
-
f

or best operation, it is recommended
that the windows and sunroof
be closed to avoid extraneous
interference (depending on version).
-

b

efore making a voice command, ask
other passengers not to speak.
First steps
Example of a "voice command" for
navigation:
" Navigate to address, 11
Regent
Street, London ".
Example of a "voice command" for
the radio and media:
" Play ar tist, Madonna ".
Example of a "voice command" for
the telephone:
" Call David Miller ".
The voice commands, with a
choice of
12


languages (English, French, Italian,
Spanish, German, Dutch, Portuguese,
Polish, Turkish, Russian, Arabic,
Brazilian), are made using the language
previously chosen and set in the system.
For some voice commands, there are
alternative synonyms.
Example: Guide to/Navigate to/Go to/…
The voice commands in Arabic for:
"Navigate to address" and "Display POI in
the city" are not available.
.
CITROËN Connect Nav

37
Telephone
QUESTIONRESPONSESOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be
visible.Check that your telephone has Bluetooth
switched on.
Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. You can check the compatibility of your
telephone on the Brand's website (services).
The sound of the telephone connected in
Bluetooth mode is inaudible. The sound depends on both the system and
the telephone.Increase the volume of the audio system, to
maximum if required, and increase the volume
of the telephone if necessary.
Ambient noise affects the quality of the
telephone call.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, etc.).
Some contacts are duplicated in the list. The options for synchronising contacts are synchronising the contacts on the SIM card,
the contacts on the telephone, or both. When
both synchronisations are selected, some
contacts may be duplicated.Select "Display SIM card contacts" or "Display
telephone contacts".
The contacts are not listed in alphabetical
o r d e r. Some telephones offer display options.
Depending on the settings chosen, contacts
can be transferred in a
specific order.Modify the telephone directory display settings.
The system does not receive SMS. The Bluetooth mode does not permit sending
SMS text messages to the system.
.
CITROËN Connect Nav

309
Tables of engines .................................. 238, 240
Tables of fuses .............................. 226-228, 230
Tailgate
................

....................................... 47- 5 0
Ta n k , f u e l


................................................ 19 0 -191
Technical data
....................................... 23

8, 240
Telephone
..............................

........13 -16 , 25 -2 9
Temperature, coolant


................................14, 27
Three flashes (direction indicators)
................ 92
T

ime (setting)

...................................... 39, 17, 31
TMC (Traffic info)

............................................ 13
T

o o l s

....................................................... 211-216
Total distance recorder


.............................3 0 - 31
Touch screen .......................... 31-33, 35 -36, 1, 1
Towing device


....................................... 1 2 7, 1 9 2
Towed loads


.................................................. 237
Towing another vehicle


.........................234-235
Traction control (ASR)


.....................21, 103 -105
Traffic information (TMC)


................................13
Tr a i l e r
...............

..................................... 1 2 7, 1 9 2
Triangle, warning ........................................... 208
Trip computer


............................................ 36-39
Trip distance recorder
............................... 3

0 - 31
Ty r e s


................................................. 6, 203, 244
Tyre under-inflation detection
...............................

.2 2, 142-143, 211T
V
W
U
Ventilation .............................................. 6 , 70 -71
Visibility ............... ............................................ 77
Vision 360
.............................................. 179 -181
Voice commands


......................................... 5 -10
Warning and indicator lamps
..................... 11

-12
Warning lamp, airbag
................................ 2

2-23
Warning lamp, braking system


.......................13
Warning lamp, Diesel engine pre-heater


.......22
Warning lamp, low fuel level
...........................23
Warning lamp, parking brake


..........................14
Warning lamp, Service ....................................17
Warning lamp, STOP
...................................... 13
We

ights
...............
.......................................... 237
Wheel, spare
.......................... 2

03, 211-216, 244
Window controls


............................................. 55
Wiper, rear ....................................................... 99
Wiper blades (changing)


...............10 0, 195 -19 6
Under-inflation (detection)


............................
142
Unlocking

..................................................
4 0 - 41
Unlocking, selective

........................................
42
Unlocking from the inside .........................
43-44
Unlocking the boot
...............................
...........
40
Unlocking the doors
.................................. 43
-44
Updating the date
................................ 3
9, 18, 31
Updating the time
...............................
.
39, 17, 31
USB

.......................................................
9, 23 -24
Storage


............................................................
80
Storage boxes


...........................................
83-84
Storing driving positions
................................. 59
S

un visor
...............................

....................
79-80
Sun visor flap
............................................ 79

-80
Synchronising the remote control

.............
46 - 47 Wipers

.................................................
25, 98 -99
Wipers, automatic rain sensitive

...............
98-99
.
Alphabetical index
