warning CITROEN C4 PICASSO 2022 Manual PDF

204
Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of
components as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness, or
in wintry conditions, ice can form on the
brake discs and pads: braking efficiency
may be reduced. Make light brake
applications to dry and defrost the brakes.
AdBlue® (BlueHDi engines)
To respect the environment and ensure
compliance with the Euro 6 standard, without
adversely affecting the per formance or fuel
consumption of Diesel engines, CITROËN
has taken the decision to equip its vehicles
with a
system that associates SCR (Selective
Catalytic Reduction) with a
Diesel particle filter
(DPF) for the treatment of exhaust gases.
SCR system
Using a fluid called AdBlue® that contains
urea, a catalytic converter turns up to 85%
of nitrogen oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment.
The AdBlue
® is contained in
a
special tank holding about
17


litres.
Its capacity allows a

driving range of around
12,500

miles (20,000

km). An alert system is
triggered automatically once the reser ve level
is reached: you can then drive for a
further
1,500

miles (2,400

km) before the tank is
e m pt y. Once the AdBlue
® tank is empty, a system
required by regulations prevents starting
of the engine.
If the SCR system is defective, the level of
emissions from your vehicle will no longer
meet the Euro 6

standard: your vehicle
becomes polluting.
In the event of a

confirmed fault with the
SCR system, you must go to a
CITROËN
dealer or a

qualified workshop as soon
as possible: after a
running distance of
685

miles (1,100

km), a system will be
triggered automatically to prevent engine
starting.
In either case, a range indicator gives you
the distance you can travel before the
vehicle is immobilised.
For more information on the Warning and
indicator lamps and associated alerts,
refer to the corresponding section.
Freezing of the AdBlue
®
AdBlue® freezes at temperatures below
around -11°C.
The SCR system includes a
heater for the
AdBlue
® tank, allowing you to continue
driving in very cold conditions.
Practical information

205
Topping up the AdBlue®
Filling the AdBlue® tank is an operation
included in every routine ser vice on your
vehicle by a

CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top up the fluid between
services, more particularly if an alert (warning
lamps and a


message) signals the requirement.
You can go to a

CITROËN dealer or a qualified
workshop.
If you envisage topping up yourself, please
read the following warnings carefully.
Supply of AdBlue®
It is recommended that the AdBlue® is
topped up as soon as the first alert is
issued indicating that the reser ve level has
been reached.
In order to ensure that the SCR system
operates correctly:
-

U

se only AdBlue
® liquid that meets the
ISO
22241
standard.
-

N

ever transfer AdBlue
® to another
container: it would lose its purity.
-

N

ever dilute AdBlue
® with water. You can obtain AdBlue
® from a CITROËN
d
ealer or a

qualified workshop.
You can also visit a
petrol station
equipped with AdBlue
® pumps specially
designed for passenger vehicles (for those
versions with access to the AdBlue
® tank
via the fuel filler flap).
Never top up from an AdBlue
® dispenser
reserved for heavy goods vehicles.
Recommendations on
storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It should be stored in
a

cool place and protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a
year.
If the additive has frozen, it can be used once it
has completely thawed out.
Never keep containers or bottles of
AdBlue
® in your vehicle.
Precautions for use
AdBlue® is a urea-based solution. This liquid
is
non-flammable, colourless and odourless
(when kept in a
cool place).
In the event of contact with the skin, wash the
affected area with soap and water. In the event
of contact with the eyes, wash (irrigate) the
eyes with large amounts of water or with an eye
wash solution for at least 15
minutes. If you feel
a

persistent burning sensation or irritation, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (at high temperature,
for example), the risk of release of ammonia
cannot be excluded: do not inhale the vapour.
Ammonia has an irritant effect on mucous
membranes (eyes, nose and throat).
Keep AdBlue
® out of the reach of children,
in its original container or bottle.
Procedure
Before starting the top-up procedure, ensure
that the vehicle is parked on a flat and level
sur face.
7
Practical information

206
In winter, check that the temperature of the
vehicle is above -11°C. If not, due to freezing,
the AdBlue
® cannot be poured into the tank.
Park your vehicle somewhere warmer for a few
hours before topping up.
In the event of an AdBlue
® breakdown,
confirmed by the message "Add AdBlue:
Starting impossible", you must top up with
at least 5

litres.
Never pour AdBlue
® into the Diesel fuel
tank.
If any AdBlue
® is splashed, or if there are
any spillages on the side of the body, rinse
immediately with cold water or wipe with
a

damp cloth.
If the fluid has crystallised, clean it off
using a

sponge and hot water.
Important: in the event of a top-up after
a breakdown because of a lack of
AdBlue, you must wait around 5
minutes
before switching on the ignition, without
opening the driver's door, locking the
vehicle, introducing the key into the
ignition switch, or introducing the key of
the

K
eyless Entr y and Star ting system
into the passenger compartment .
Switch on the ignition, then wait for
10


seconds before starting the engine.
Access to the AdBlue® tank via
the boot
Filling the AdBlue® tank is an operation
included in every routine ser vice on your
vehicle by a

CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top up the fluid between
ser vices, as soon as an alert (warning lamps
and a

message) indicates it.
You can go to a

CITROËN dealer or a qualified
workshop.
If you intend to do the topping-up yourself,
read the following procedure carefully.
The supply in a

non-drip bottle simplifies
topping up. F

P
ress the "
START/STOP " button to switch
off the engine.
F
T
o gain access to the AdBlue
® tank, raise
the floor of the boot or, for the 7-seater
version, fold down the seat of the 3
rd row on
the right.
Practical information

208
Warning triangle
This safety device is used in addition to the
hazard warning lamps.
Its presence in the vehicle may be mandatory.Before leaving your vehicle to set up and
install the triangle, switch on the hazard
warning lamps and put on your high
visibility vest.
Refer to the instructions on assembly/
unfolding indicated in the user guide
supplied with the triangle.
Placing the triangle on the
road
F Place the triangle behind the vehicle, as required by the legislation in force in your
c o u nt r y.
A space is provided for the storage of the
triangle in the interior trim of the tailgate.
Temporary puncture
repair kit
Scan the QR code on page 3 to view
e xplanatory videos.
Comprising a
compressor and a sealant
cartridge, it allows the temporary repair of
a

tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a
tyre after a puncture
repair.
Access to the kit
The kit is stowed in a bag inside the storage
b ox located at the foot of the second row
passenger seat.
In the event of a breakdown

209
F Park the vehicle without obstructing any traffic and apply the parking brake.
F

F
ollow the safety instructions (hazard
warning lamps, warning triangle, wearing
high visibility vest, etc.) according to the
legislation in force in the country where you
are driving.
F

S
witch off the ignition.
F

U
ncoil the pipe stowed under the
compressor. Avoid removing any foreign bodies which
have penetrated into the tyre.F
R
emove the valve cap from the tyre to be
repaired, and place it in a

clean area.
F
C
heck that the compressor switch is at the
" O " position.
F U ncoil fully the electric cable, stowed under
the compressor.
Only the 12
V socket located at the front of
the vehicle can be used.
F

A
ffix the speed limit sticker.
1.
12 V compressor, with built-in pressure
gauge.
2. Bottle of sealant, with built-in hose.
3. Speed limit sticker.

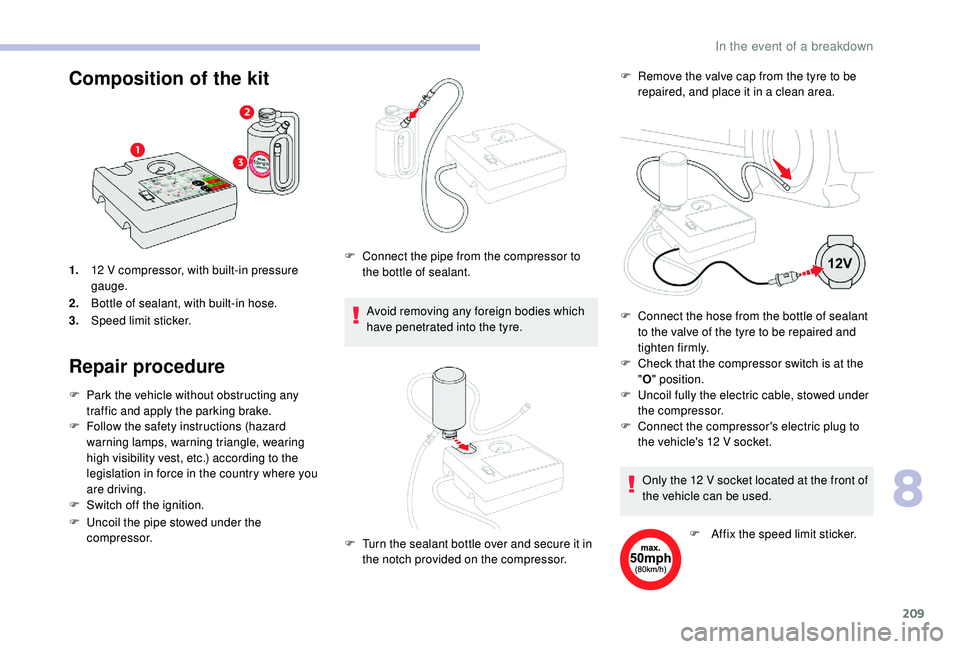

Repair procedure Composition of the kit
F Connect the pipe from the compressor to
the bottle of sealant.
F

T
urn the sealant bottle over and secure it in
the notch provided on the compressor. F

C
onnect the hose from the bottle of sealant
to the valve of the tyre to be repaired and
tighten firmly.
F

C
onnect the compressor's electric plug to
the vehicle's 12
V socket.
8
In the event of a breakdown

217
Removing a wheel
* position P for the automatic gearbox
Parking the vehicle
Stop the vehicle where it does not block
traffic: the ground must be level, stable
and non-slippery.
Apply the parking brake, unless it is
programmed in automatic mode; switch
off the ignition and put the vehicle into first
gear* so as to block the wheels.
Check that the braking warning lamp and
the P warning lamp in the parking brake
control lever come on.
For more safety, position the
chock
2 against the wheel opposite the one you
are replacing.
Make absolutely certain that all the
occupants have left the vehicle and are
waiting in a safe area.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Do not use:
-
t
he jack for any other purpose than
lifting the vehicle,
-
a j
ack other than the one supplied by
the manufacturer.
List of operationsF Place the foot of the jack 3 on the ground
and ensure that it is directly below the front
A or rear B jacking point provided on the
underbody, whichever is closest to the
wheel to be changed.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse – Risk of injury!
Ensure that the jack is positioned only at
one of the jacking points A or B under the
vehicle, making sure that the vehicle's
contact sur face is centred on the head of
the jack. Otherwise, the vehicle could be
damaged and/or the jack could collapse –
Risk of injury!
F

R

emove the bolt cover(s) using the tool 4
(according to equipment).
F

F

it security socket 5

on wheelbrace 1

to
slacken the security bolt (according to
equipment).
F

S

lacken the other bolts (no more than
a

1/4

turn) using the wheelbrace 1

o n l y. F

E
xtend the jack 3 until its head comes into
contact with jacking point A or B used,
with contact sur face A or B on the vehicle
correctly engaged with the central part of
the head of the jack.
8
In the event of a breakdown

235
Failure to follow this instruction may cause
damage to some components (braking,
driveline, etc.) and the absence of braking
assistance when the engine is restarted.F

S
witch on the hazard warning lamps on
both vehicles.
F
M
ove off gently, drive slowly and for a short
distance.
Towing another vehicle
General recommendations
Obser ve the legislation in force in your
c o u nt r y.
Ensure that the weight of the towing
vehicle is greater than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a
valid
driving licence.
When towing a
vehicle with all four wheels
on the ground, always use an approved
towbar: rope and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a
professional recovery ser vice:
-

v
ehicle broken down on a motor way or
fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towbar,
etc. available.Towing your vehicle
F On the front bumper, unclip the cover by using the tool fixed on the ring.
F

S
crew the towing eye in fully.
F

I
nstall the towbar.
F

M
ove the gear lever into neutral (position N
for an automatic gearbox).
F

U
nlock the steering by turning the ignition
key one notch and release the parking
brake. F

O
n the rear bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towbar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
8
In the event of a breakdown

15
Select "Settings ".
Select " Map".
Activate or deactivate:
-
"Allow declaration of danger
zones ".
-
"Guidance to final destination
on foot "
-
"Authorise sending
information "
These settings must be made
according to each profile.
Select " Alerts".
Activate or deactivate " Warn of
danger zones ".
Select this button.
Activate: Give an audible warning
For access to connected navigation, you
have to select the option: " Authorise
sending information ". The display of danger zones depends on
the legislation in force and subscription to
the service.
Declaration of "
Danger
zones "
To distribute information on the
declaration of danger zones, you should
check the option: " Allow declaration of
danger zones ".
or Press Navigation
to display the
primary page.
Press the " Declare a
new danger
zone " button located in the upper
bar of the touch screen
Select the option " Ty p e" to choose
the type of "danger zone".
Select the " Speed" option and enter
it using the virtual keypad.
Press " OK" to save and distribute
the information.
" Danger zones " pack
updates
Press Settings to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "System settings ".
Select the " System info " tab.
Select " View" to display the versions
of the different modules installed in
the system.
Select " Update(s) due ".
You can download the system and map
updates from the Brand's website.
The update procedure can also be found
on the website.
.
CITROËN Connect Nav

33
Navigation
QUESTIONRESPONSESOLUTION
The route calculation is not successful. The guidance criteria may be in conflict with
the current location (exclusion of toll roads on
a
toll road).Check the route settings in the "Navigation"
menu.
The POIs do not appear. The POIs have not been selected.Select the POIs in the list of POIs.
The audible warning of "Danger zones" does
not work. The audible warning is not active or the volume
is too low.Activate the audible warning in the "Navigation"
menu and check the voice volume in the audio
settings.
The system does not suggest a
detour around
an incident on the route. The guidance criteria do not take account of
TMC messages.Select the setting for the "Traffic info" function
in the list of route settings (Without, Manual or
Automatic).
I receive a "Danger zone" alert which is not on
my route. When not navigating, the system announces all
"Danger zones" positioned in a
cone located in
front of the vehicle. It may provide an alert for
"Danger zones" located on nearby or parallel
roads. Zoom in on the map to see the exact position
of the "Danger zone". Select "On the route" to
no longer receive alerts other than navigation
instructions or to reduce the time for the
announcement.
Certain traffic jams along the route are not
indicated in real time. On starting, it is several minutes before the
system begins to receive the traffic information.Wait until the traffic information is being
received correctly (display of the traffic
information icons on the map).
In certain countries, only major routes
(motor ways, etc.) are listed for the traffic
information. This is per fectly normal. The system is
dependent on the traffic information available.
.
CITROËN Connect Nav

306
H
Hands-free access ..................................... 51- 5 2
Hands-free tailgate ................................... 50-52
Hazard warning lamps


...................101-102, 208
Hazard warning lamps, automatic operation
.................................... 10

2
Headlamp adjustment


..................................... 96
Headlamps, automatic dipping


...........25, 94-96
Headlamps, automatic illumination


..........90, 93
Headlamps, dipped beam


.........25, 90, 220 -221
Headlamps, directional


...........................9 7, 2 2 0
Headlamps, halogen


..................................... 221
D
DAB (Digital Audio Broadcasting)
– Digital radio ............................................ 8, 22
Date (setting)


....................................... 39, 18, 31
Daytime running lamps


...................93, 220-222
Deactivating the passenger airbag


.11 0 , 113 -114
Deadlocking


............................................... 41- 42
Defrosting


........................................................ 77
Defrosting, front


.............................................. 77
Demisting


........................................................ 77
Demisting, front
............................................... 77
D

emisting, rear

................................................ 68
Demisting, rear screen


...................................68
Dimensions
..............................

.....................243
Dipstick
................

............................2 7, 1 9 9 - 2 0 0
Direction indicators


.........................92, 220-225
Display screen, instrument panel


.................13 9
Doors


............................................................... 47
Driver's attention warning
............................. 17

5
Driving economically ......................................... 6
Driving positions (storing)


...............................59
Dynamic stability control (DSC)


.......21, 103 -105
Eco-driving (advice)


.......................................... 6
Economy mode
............................................. 19

5
E
F
G
Fatigue detection .......................................... 175
Filling the AdBlue® tank ................................ 205
Filling the fuel tank ................................. 18 9 -191
Filter, air


........................................................ 202
Filter, oil
................

......................................... 202
Filter, particle


........................................ 201-202
Filter, passenger compartment


..................... 202
Fitting a

wheel

........................................ 217-219
Fitting roof bars


............................................. 19 6
Fittings, boot


................................................... 86
Fittings, interior
............................................... 79
F

ittings, rear


.................................................... 84
Flap, fuel filler


......................................... 19 0 -191
Floor, concertina


....................................... 65-66
Foglamp, rear


.................................. 24, 223-225
Foglamps


...................................................... 221
Foglamps, front


........... 91, 96 -97, 220, 222, 225
Foglamps, rear
................................................ 91
F

olding the rear seats

............................... 62- 66
Frequency (radio)


....................................... 21-22Gauge, fuel
.................................................... 19 0
Gearbox, automatic

...............
13 4, 13 6 -141, 203
Gearbox, manual

............13 4 -13 5, 14 0 -141, 2 0 3
Gear lever

.........................................................
6
Gear lever, manual gearbox

.........................
13 5
Gear efficiency indicator
............................... 13
9
Glove box ..................................................
79-80
G . P. S . ..............................................................
12
Cruise control by speed limit recognition

.....
14 6
Cup holder

.......................................................
79 Fuel
............................................................ 6, 189
Fuel consumption

..................................
6, 38 -39
Fuel tank ........................................................ 191
Fusebox, dashboard

.....................
226-228, 230
Fusebox, engine compartment

.....
226-228, 230
Fuses
............................................. 2
26-228, 230
Electronic brake force distribution
(EBFD)


................................................
103 -104
Electronic stability control (ESC)
..........
10
3 -104
Emergency braking assistance (EBA) ...
103 -104
Emergency call
...................................... 102-103
Emergency switching off


....................... 128, 13 0
Emissions control system, SCR

................... 204
Energy economy mode
................................. 19

5
Engine, Diesel


................ 22, 189, 199, 236, 240
Engine, petrol
...............................

. 189, 199, 238
Engine compartment
.................................... 19

9
Engines


......................................... 237-238, 240
Environment


................................................ 6, 47
Alphabetical index
