8
F A M I L I A R I S A T I O N
6-speed electronic gearbox
This offers a fully automatic mode, a
m a n u a l m o d e a n d a n a u t o - s e q u e n t i a l
mode which combines the advan-
tages of the automatic and manual
modes, using the levers on the steer-
ing wheel.
133
Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.
144, 146 Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.
125
Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.
55
Ambiance lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
92
I N T E R I O R
Page 25 of 337

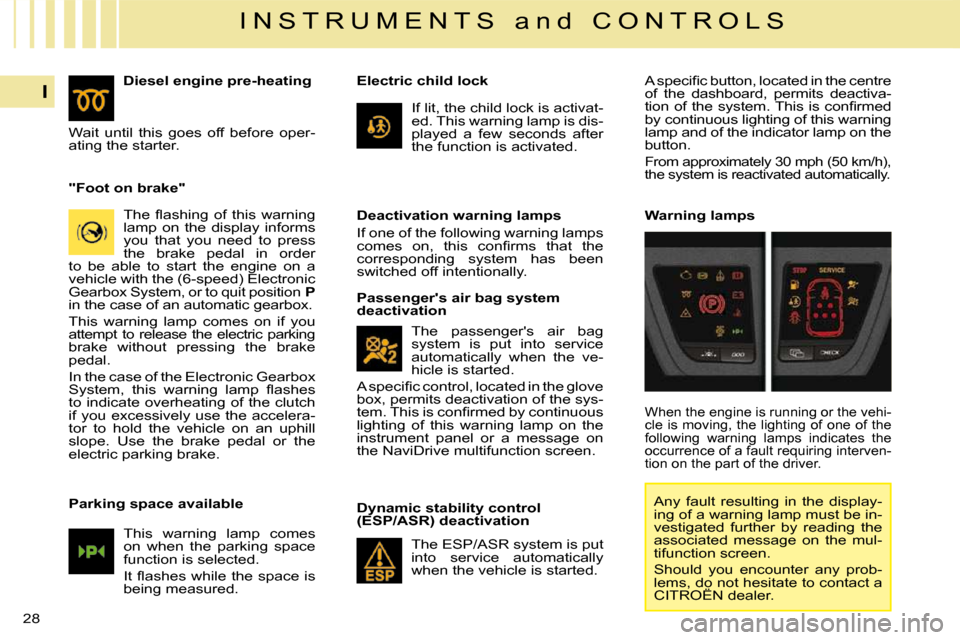

28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order
to be able to start the engine on a
vehicle with the (6-speed) Electronic
Gearbox System, or to quit position P
in the case of an automatic gearbox.
This warning lamp comes on if you
attempt to release the electric parking
brake without pressing the brake
pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning lamp is dis-
played a few seconds after
the function is activated.
Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the dashboard, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warning
lamp and of the indicator lamp on the
button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Any fault resulting in the display-
ing of a warning lamp must be in-
vestigated further by reading the
associated message on the mul-
tifunction screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 26 of 337
28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order
to be able to start the engine on a
vehicle with the (6-speed) Electronic
Gearbox System, or to quit position P
in the case of an automatic gearbox.
This warning lamp comes on if you
attempt to release the electric parking
brake without pressing the brake
pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning lamp is dis-
played a few seconds after
the function is activated.
Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the dashboard, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warning
lamp and of the indicator lamp on the
button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Any fault resulting in the display-
ing of a warning lamp must be in-
vestigated further by reading the
associated message on the mul-
tifunction screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 27 of 337
28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order
to be able to start the engine on a
vehicle with the (6-speed) Electronic
Gearbox System, or to quit position P
in the case of an automatic gearbox.
This warning lamp comes on if you
attempt to release the electric parking
brake without pressing the brake
pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning lamp is dis-
played a few seconds after
the function is activated.
Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the dashboard, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warning
lamp and of the indicator lamp on the
button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Any fault resulting in the display-
ing of a warning lamp must be in-
vestigated further by reading the
associated message on the mul-
tifunction screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 28 of 337
29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the displaying of
another warning light:
Service If this comes on, it indi-
cates the occurrence of
a problem in one of the
systems which does
n o t h a v e a s p e c i fi c w a r n i n g l i g h t .
In order to identify it, consult the
message on the multifunction dis-
play.
The warning light only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- incorrect tyre pressure,
- the end of saturation of the parti- c l e e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the
warning light remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d , c o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
light),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electronic parking
brake If this warning lamp comes
o n p e r m a n e n t l y , i t i s c o n fi r m -
ing that the parking brake is
applied.
I f i t fl a s h e s , i t i s i n d i c a t i n g a n a p -
plication or release fault. Contact a
CITROËN dealer urgently (see sec-
tion "Driving - § Electronic parking
brake"). Automatic electronic parking
brake fault
This warning lamp comes
on if there is a malfunction
in the automatic electronic
parking brake.
Deactivation of the automatic
functions of the automatic
electronic parking brake
This comes on if the "auto-
matic application" and "au-
tomatic release" functions
when you switch off the
engine are deactivated * or
faulty.
Dynamic stability control
(ESP/ASR). The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been deactivated, if
this warning lamp and the indicator lamp on
the button come on continuously, this indi-
cates the occurrence of a fault in the ESP/
ASR system or in the hill start assistance.
Engine autodiagnostics
system If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r -
rence of a fault in the emission con-
trol system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not pre-
vent operation of the vehicle's as-
sisted braking.
* According to country.
Page 158 of 337
125
IX
D R I V I N G
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows
- Automatic application/release
Application is automatic when the
engine stops, release is automatic
on use of the accelerator.
- Manual application/release
Manual application/release of the parking brake is possible by
pulling control A while pressing
the brake pedal. Manual application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A . Manual release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator,
pull then release
control A .
- the extinction of the warning lamp P on con-
trol A and on the instru-
ment panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
If you pull control A without pressing
the brake pedal, the parking brake
will not be released and the "Foot on
brake" warning lamp will light up on
the instrument panel.
The application of the parking brake
i s c o n fi r m e d b y :
- the lighting of the warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied. Before getting out of the vehicle,
check that the warning lamp P is lit
permanently on the instrument panel.
The full application of the parking
b r a k e i s c o n fi r m e d b y :
Page 159 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releas-
es automatically and progressive-
ly w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
r e v e r s e g e a r e n g a g e d ) : p r e s s
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essen-
tial:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
Page 160 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releas-
es automatically and progressive-
ly w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
r e v e r s e g e a r e n g a g e d ) : p r e s s
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essen-
tial:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
Page 161 of 337
127
IX
D R I V I N G
To immobilise the vehicle,
engine running
With the engine running and the ve-
hicle stationary, in order to immobi-
lise the vehicle you need to manually
apply the parking brake by pulling
on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit. Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To advance your vehicle (towing,
etc.) without starting the engine, but
with the ignition on, press on the
brake pedal and release the park-
ing brake
by pulling then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e e x t i n c t i o n o f
warning lamp P (red) on the instru-
ment panel and the display of a
message "parking brake released"
on the multifunction screen.
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible.
Activation/Deactivation of the
automatic functions *
The automatic application when the
engine is switched off and the au-
tomatic release when you press
the accelerator can be deactivated.
Activation/deactivation is performed
u s i n g t h e c o n fi g u r a t i o n m e n u o f t h e
multifunction screen. To do so, select
" P e r s o n a l i s a t i o n / C o n fi g u r a t i o n / D e fi n e
the Vehicle parameters/Driving assist-
ance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions
deactivated, the application and
release of the parking brake are
done manually.
* According to country
Page 163 of 337
129
IX
D R I V I N G
Emergency unlocking In the event of the electric parking
brake malfunctioning or the battery
r u n n i n g fl a t , a n e m e r g e n c y m e c h a -
nism can unlock the parking brake.
Immobilise the vehicle, with the
e n g i n e r u n n i n g , b y e n g a g i n g fi r s t
gear (manual gearbox), posi-
tion P (automatic gearbox) or M
or R (6-speed electronic gear-
box).
Switch off the engine, but leave
the ignition on.
If the vehicle cannot be immo- bilised, do not do anything and
contact a CITROËN dealer with-
out delay.
Fetch the vehicle blocks E and
the unlocking tool F (handle)
from the toolbox.
Immobilise the vehicle by placing
blocks E at the front and at the
rear of one of the rear wheels.
Slide the front left-hand seat
back as far as possible.
L i f t u p t h e fl o o r p l u g B
on the
carpet in front of the seat.
Pierce the tab C on the tube D
with the unlocking tool F .
Place the end of the handle F in
the tube D .
Turn the unlocking tool F clock-
wise.
For safety reasons , it is
essential to continue turning the
device as far as it will go or until
you hear a knocking noise. The
parking brake is released.
Remove the unlocking tool F and
store it with the blocks E in the
toolbox.
- The operation of the parking brake reinitialises when the ig-
nition is switched off then on
again. If the reinitialisation of the
parking brake proves impossi-
ble, contact a CITROËN dealer.
- The subsequent time required for application may be longer
than during normal operation.
For safety reasons, after this manoeuvre it is essential to cont act a CITROËN dealer urgently to have the plug
replaced.
Following an emergency unlocking, immobilisation of the vehi cle is no longer guaranteed once the manual emer-
gency unlocking has been deployed and the manual control doe s not allow the re-application of your parking
brake.
Take no action, either on control A , or stopping starting the engine while the unlocking to ol F is engaged.
Take care not to allow moisture or dust in the proximity of th e plug.
