Page 115 of 337
97
VI
F I T T I N G S
AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorporated
in the front seat backrests, behind
the tables. These light the surface of
the tables without disturbing the other
passengers.
They are accessible only while the
table is down.
P r e s s o n t h e " o n / o f f " b u t t o n t o
turn the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the temporary
puncture repair kit and the tool kit
may be stored in the compartment
on the right-hand side. In this case
t h e fl a p i s s e c u r e d b y m e a n s o f a
screw B . To gain access to the com-
partment, turn the screw a quarter
turn anticlockwise using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 121 of 337
97
VI
F I T T I N G S
AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorporated
in the front seat backrests, behind
the tables. These light the surface of
the tables without disturbing the other
passengers.
They are accessible only while the
table is down.
P r e s s o n t h e " o n / o f f " b u t t o n t o
turn the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the temporary
puncture repair kit and the tool kit
may be stored in the compartment
on the right-hand side. In this case
t h e fl a p i s s e c u r e d b y m e a n s o f a
screw B . To gain access to the com-
partment, turn the screw a quarter
turn anticlockwise using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 163 of 337
129
IX
D R I V I N G
Emergency unlocking In the event of the electric parking
brake malfunctioning or the battery
r u n n i n g fl a t , a n e m e r g e n c y m e c h a -
nism can unlock the parking brake.
Immobilise the vehicle, with the
e n g i n e r u n n i n g , b y e n g a g i n g fi r s t
gear (manual gearbox), posi-
tion P (automatic gearbox) or M
or R (6-speed electronic gear-
box).
Switch off the engine, but leave
the ignition on.
If the vehicle cannot be immo- bilised, do not do anything and
contact a CITROËN dealer with-
out delay.
Fetch the vehicle blocks E and
the unlocking tool F (handle)
from the toolbox.
Immobilise the vehicle by placing
blocks E at the front and at the
rear of one of the rear wheels.
Slide the front left-hand seat
back as far as possible.
L i f t u p t h e fl o o r p l u g B
on the
carpet in front of the seat.
Pierce the tab C on the tube D
with the unlocking tool F .
Place the end of the handle F in
the tube D .
Turn the unlocking tool F clock-
wise.
For safety reasons , it is
essential to continue turning the
device as far as it will go or until
you hear a knocking noise. The
parking brake is released.
Remove the unlocking tool F and
store it with the blocks E in the
toolbox.
- The operation of the parking brake reinitialises when the ig-
nition is switched off then on
again. If the reinitialisation of the
parking brake proves impossi-
ble, contact a CITROËN dealer.
- The subsequent time required for application may be longer
than during normal operation.
For safety reasons, after this manoeuvre it is essential to cont act a CITROËN dealer urgently to have the plug
replaced.
Following an emergency unlocking, immobilisation of the vehi cle is no longer guaranteed once the manual emer-
gency unlocking has been deployed and the manual control doe s not allow the re-application of your parking
brake.
Take no action, either on control A , or stopping starting the engine while the unlocking to ol F is engaged.
Take care not to allow moisture or dust in the proximity of th e plug.
Page 203 of 337
169
XI
P R A C T I C A L I N F O R M A T I O N
Grand C4 Picasso C4 Picasso Access to the spare wheel
Taking out the wheel
M o v e t h e t h i r d - r o w s e a t , r i g h t -
h a n d s i d e ( 7 s e a t e r m o d e l ) .
R e t r i e v e t h e e x t e n s i o n t h a t i s
attached to the rear of the seat
well.
E n g a g e t h e e x t e n s i o n o n t h e
p i n i o n , l o c a t e d u n d e r t h e c a r p e t
in the seat well.
U s i n g t h e w h e e l b r a c e 4 on the
e x t e n s i o n t o t u r n t h e pinion
clockwise , r e l e a s e t h e c a b l e
t o l o w e r t h e s p a r e w h e e l t o t h e
g r o u n d .
R e m o v e t h e w h e e l f r o m u n d e r
t h e v e h i c l e , d i s e n g a g i n g t h e
l i n k i n g p l a t e i n t h e c e n t r e o f t h e
wheel.
T h e p i n i o n t o r e l e a s e t h e s p a r e w h e e l
i s l o c a t e d u n d e r t h e b o o t c a r p e t , o n
t h e r i g h t h a n d s i d e i n t h e w h e e l w e l l
f o r t h e G r a n d C 4 P i c a s s o a n d o n t h e
l e f t h a n d s i d e f o r t h e C 4 P i c a s s o . Putting the wheel back in place
It is essential to direct the valve
u p w a r d s .
P a s s t h e l i n k i n g p l a t e t h r o u g h
t h e c e n t r e o f t h e w h e e l ( fi r s t r e -
m o v i n g t h e c e n t r a l t r i m o n c e r -
t a i n a l l o y w h e e l s ) .
T u r n t h e p i n i o n anti-clockwise
t o d r a w i n t h e c a b l e . F i r s t t h e p i n -
i o n w i l l t u r n i d l y , t h e n t h e c a b l e
w i l l t i g h t e n t o r a i s e t h e w h e e l .
C h e c k t h a t t h e w h e e l i s t i g h t a g a i n s t t h e v e h i c l e fl o o r a n d
n o t i n t e r f e r i n g w i t h o t h e r n e a r b y
c o m p o n e n t s ( e . g . t h e e x h a u s t ) .
Stow the tools.
W i t h t h e d a m a g e d w h e e l
n o w u n d e r t h e v e h i c l e fl o o r ,
the vehicle has reduced
g r o u n d c l e a r a n c e , s o t a k e e x t r a
c a r e w h e n r e v e r s i n g o r d r i v i n g o n
u n e v e n s u r f a c e s , i n c l u d i n g k e r b s .
R e t r i e v a l o f t h e s p a r e w h e e l a n d
s t o w a g e o f t h e a f f e c t e d r o a d w h e e l
a r e o p e r a t i o n s t h a t s h o u l d b e d o n e
w i t h t h e v e h i c l e s u p p o r t e d o n i t s
w h e e l s , n o t b y t h e j a c k .
Page 207 of 337
1 7 2
XI
P R A C T I C A L I N F O R M A T I O N

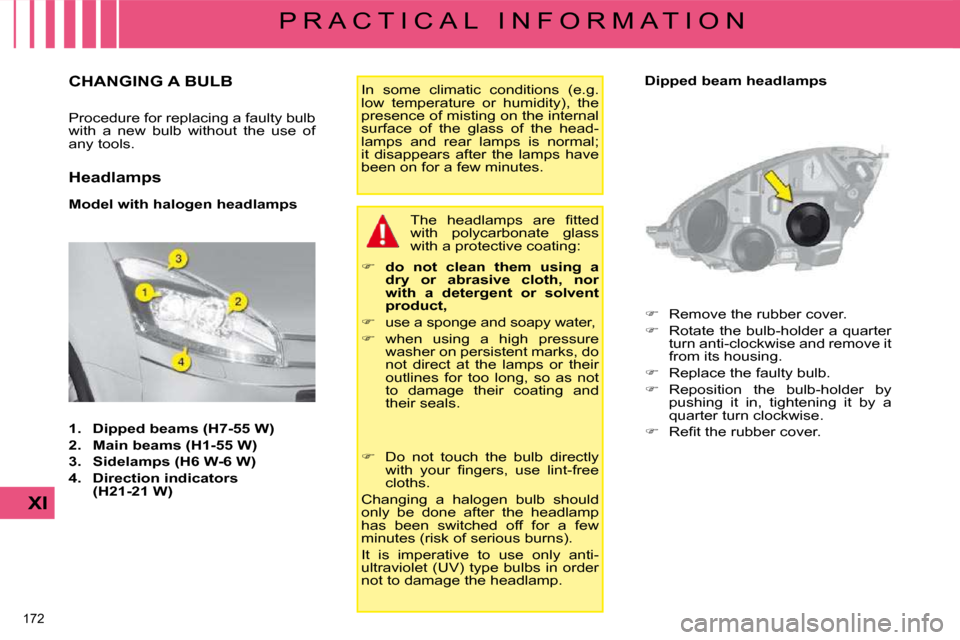

CHANGING A BULB
P r o c e d u r e f o r r e p l a c i n g a f a u l t y b u l b
with a new bulb without the use of
a n y t o o l s .
Headlamps
Model with halogen headlamps
1. Dipped beams (H7-55 W)
2. Main beams (H1-55 W)
3. Sidelamps (H6 W-6 W)
4. Direction indicators
(H21-21 W) I n s o m e c l i m a t i c c o n d i t i o n s ( e . g .
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
p r e s e n c e o f m i s t i n g o n t h e i n t e r n a l
s u r f a c e o f t h e g l a s s o f t h e h e a d -
l a m p s a n d r e a r l a m p s i s n o r m a l ;
i t d i s a p p e a r s a f t e r t h e l a m p s h a v e
b e e n o n f o r a f e w m i n u t e s .
T h e h e a d l a m p s a r e fi t t e d
w i t h p o l y c a r b o n a t e g l a s s
w i t h a p r o t e c t i v e c o a t i n g :
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
u s e a s p o n g e a n d s o a p y w a t e r ,
w h e n u s i n g a h i g h p r e s s u r e
w a s h e r o n p e r s i s t e n t m a r k s , d o
n o t d i r e c t a t t h e l a m p s o r t h e i r
o u t l i n e s f o r t o o l o n g , s o a s n o t
t o d a m a g e t h e i r c o a t i n g a n d
their seals.
D o n o t t o u c h t h e b u l b d i r e c t l y
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
C h a n g i n g a h a l o g e n b u l b s h o u l d
o n l y b e d o n e a f t e r t h e h e a d l a m p
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
I t i s i m p e r a t i v e t o u s e o n l y a n t i -
u l t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
n o t t o d a m a g e t h e h e a d l a m p . Dipped beam headlamps
R e m o v e t h e r u b b e r c o v e r .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
quarter turn clockwise.
R e fi t t h e r u b b e r c o v e r .
Page 208 of 337
173
XI
P R A C T I C A L I N F O R M A T I O N
Main beam headlamps
Sidelamps
R e m o v e t h e r u b b e r c o v e r .
D e t a c h t h e c l i p s b y l o w e r i n g
t h e m o n e a c h s i d e o f t h e b u l b .
P u l l o n t h e b u l b - h o l d e r t o r e m o v e i t .
R e p l a c e t h e f a u l t y b u l b .
P u s h t h e b u l b - h o l d e r b a c k i n t o
i t s h o u s i n g .
R e a t t a c h t h e c l i p s .
R e fi t t h e r u b b e r c o v e r .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e .
R e m o v e i t f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r .
Rotate it a quarter turn clockwise
t o r e p o s i t i o n i n i t s h o u s i n g . Direction indicators
T h e d i r e c t i o n i n d i c a t o r b u l b i s l o c a t -
e d u n d e r n e a t h t h e m a i n b e a m b u l b .
R e m o v e t h e r u b b e r c o v e r .
P u l l o n t h e b u l b - h o l d e r t o r e m o v e
it.
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r i n t h e
b r a c k e t a n d p u s h i t i n .
R e fi t t h e r u b b e r c o v e r .
Page 209 of 337
1 7 4
XI
P R A C T I C A L I N F O R M A T I O N
Integrated direction indicator
side repeaters
T o c h a n g e t h e r e p e a t e r , p r e s s d o w n -
w a r d s fi r m l y o n t h e z o n e i n d i c a t e d
b y t h e a r r o w , t h e n p u l l t h e r e p e a t e r .
R e p e a t e r s c a n b e o b t a i n e d f r o m a
CITROËN dealer.
Model with Xenon headlamps
and directional headlamps
1. Dual-function Xenon head-
lamps (dipped/main beam)
2. Additional main beams
(H7-55 W)
3. Sidelamps (H6 W-6 W)
( s e e p r e v i o u s p a g e )
4. Direction indicators
(H21-21 W)
( s e e p r e v i o u s p a g e ) Dual-function Xenon headlamps
(dipped/main beam)
Additional main beams
R e m o v e t h e r u b b e r c o v e r .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
quarter turn clockwise.
R e fi t t h e r u b b e r c o v e r . I f t h e h e a d l a m p b e a r s t h i s
s y m b o l , a n y o p e r a t i o n t o
c h a n g e t h e X e n o n d u a l -
f u n c t i o n d i r e c t i o n a l h e a d -
l a m p ( D 1 S - 3 5 W ) m u s t b e c a r r i e d
o u t b y p r o f e s s i o n a l s ( r i s k o f e l e c -
trocution).
Consult a CITROËN dealer.
I t i s r e c o m m e n d e d t o c h a n g e b o t h
b u l b s a t t h e s a m e t i m e i f o n e o f
t h e m i s f a u l t y .
W h e n u s i n g a h i g h - p r e s -
s u r e w a s h e r o n p e r s i s t e n t
m a r k s , d o n o t d i r e c t a t t h e
l a m p s o r t h e i r o u t l i n e s f o r t o o l o n g ,
s o a s n o t t o d a m a g e t h e i r c o a t i n g
and their seals.
