Page 183 of 337
148
IX
D R I V I N G
PARKING SPACE SENSOR
System which measures the parking
space available between two vehi-
cles or obstacles. It measures the
size of the space and gives you in-
f o r m a t i o n o n :
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e space, depending on the dimensions
of your vehicle and the distances
necessary for your manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a -noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor
function warning lamp can
h a v e t h r e e d i f f e r e n t s t a t e s :
- off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measuring phase is
terminated.
- fl a s h i n g : the measuring is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g l a m p
indicates that the function is selected.
Page 237 of 337
199
XII
T E C H N I C A L D A T A * Depending on suspensions and roof bars.

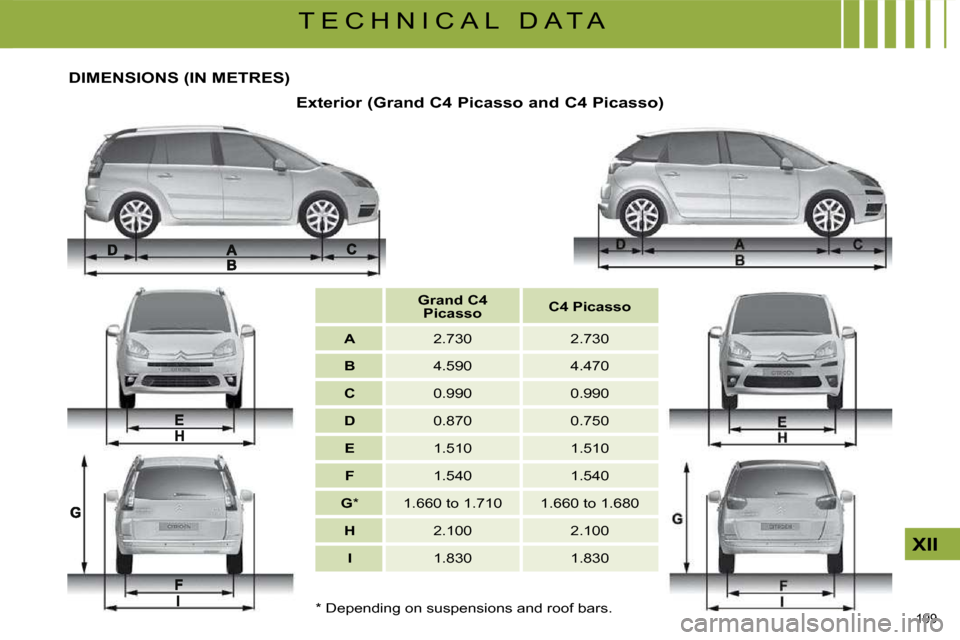

DIMENSIONS (IN METRES)
Exterior (Grand C4 Picasso and C4 Picasso)
Grand C4
Picasso
C4 Picasso
A 2.730 2.730
B 4.590 4.470
C 0.990 0.990
D 0.870 0.750
E 1.510 1.510
F 1.540 1.540
G * 1.660 to 1.710 1.660 to 1.680
H 2.100 2.100
I 1.830 1.830
