Page 113 of 338
95
VI
F I T T I N G S
REFRIGERATED STORAGE CENTRE CONSOLE
The centre console contains:
- two cup-holders,
- two storage compartments,
- either a 12 V accessories socket (Maximum power: 120 W); this is
operational when the ignition is
on.
There may be an additional 12 V accessories socket in the boot,
- or a USB port.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and a
removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.
To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.
To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
Page 118 of 338
94
VI
F I T T I N G S
UPPER STORAGE AREA
There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.
To open, press the button at the
bottom corner.
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX
This has areas for storing a bottle of
water, the vehicle's handbook pack,
etc.
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
REFRIGERATED GLOVEBOX
It may be refrigerated, depending on
your vehicle’s equipment, by a ven-
tilation duct that can be closed off
manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with fresh air whatever the require-
ments of the passenger compartment.
The refrigeration of your glovebox
only operates when the engine is
running and the air conditioning is on.
For reasons of safety, the
glovebox should remain
closed when the vehicle is
moving.
For reasons of safety, the
upper storage compart-
ments should be kept closed
when the vehicle is moving.
Page 119 of 338
95
VI
F I T T I N G S
REFRIGERATED STORAGE CENTRE CONSOLE
The centre console contains:
- two cup-holders,
- two storage compartments,
- either a 12 V accessories socket (Maximum power: 120 W); this is
operational when the ignition is
on.
There may be an additional 12 V accessories socket in the boot,
- or a USB port.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and a
removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.
To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.
To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
Page 154 of 338
122
VIII
S A F E T Y
AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear im- pact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated
in the centre of the steering wheel;
the front passenger's airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Page 156 of 338
125
VIII
S A F E T Y

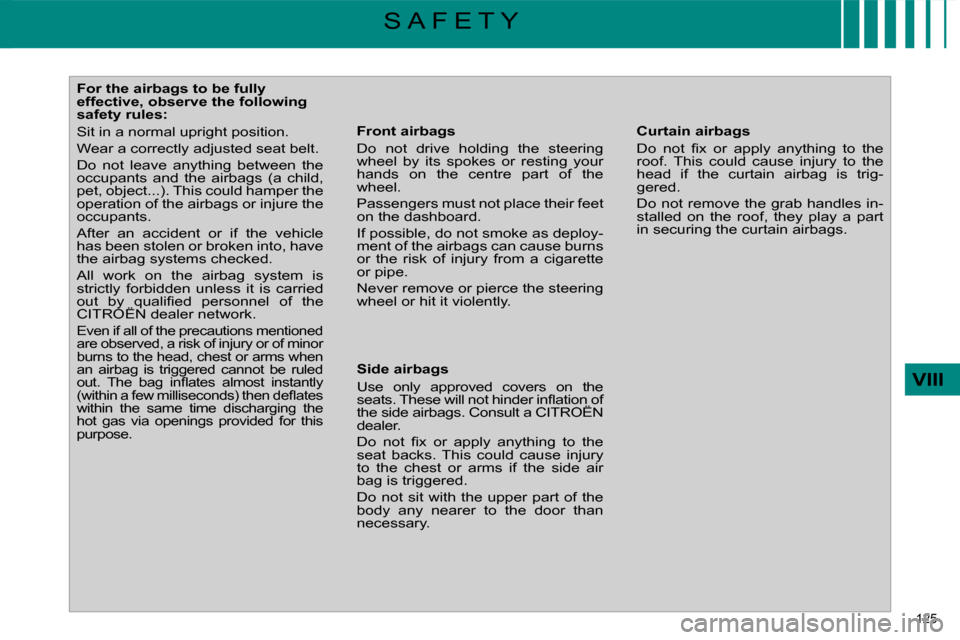

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions mentioned
a r e o b s e r v e d , a r i s k o f i n j u r y o r o f m i n o r
burns to the head, chest or arms when
an airbag is triggered cannot be ruled
o u t . T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
( w i t h i n a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s
within the same time discharging the
hot gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a CITROËN
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 158 of 338
125
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network.
Even if all of the precautions mentioned
a r e o b s e r v e d , a r i s k o f i n j u r y o r o f m i n o r
burns to the head, chest or arms when
an airbag is triggered cannot be ruled
o u t . T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
( w i t h i n a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s
within the same time discharging the
hot gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a CITROËN
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 178 of 338
144
IX
D R I V I N G
Optional function controls
1. Pick up/Hang up the telephone (see
chapter "Audio and Telematics").
2. Rheostat for dashboard lighting.
3. Start of voice recognition (see
chapter "Audio and Telematics").
4. Personalisation button:
- courtesy lamp on/off or
- diagnostics or
- personalisation of the displaying of information on the instrument
panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.
5. Air recirculation. Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. C o n fi r m a t i o n o f t h e f u n c t i o n c h o -
s e n o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio and Telematics").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current opera-
tion or return to the previous dis-
play.
* To comply with legislation in certain
countries, the "Menu" control may be de-
activated while the vehicle is in motion.
Page 216 of 338
181
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
P r o c e d u r e f o r r e p l a c i n g a f a u l t y f u s e
w i t h a n e w f u s e t o r e c t i f y a f a i l u r e o f
t h e c o r r e s p o n d i n g f u n c t i o n .
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle's electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 217 of 338
181
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
P r o c e d u r e f o r r e p l a c i n g a f a u l t y f u s e
w i t h a n e w f u s e t o r e c t i f y a f a i l u r e o f
t h e c o r r e s p o n d i n g f u n c t i o n .
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle's electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 218 of 338
1 8 2
XI
P R A C T I C A L I N F O R M A T I O N
Fuses under the dashboard
Access to the fuses
U n d o t h e s c r e w b y a q u a r t e r t u r n
a n d p i v o t t h e h o u s i n g . Table of fuses
Fuse N° Rating Functions
F1 15 A R e a r s c r e e n w i p e
F2 30 A L o c k i n g a n d u n l o c k i n g e a r t h
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s
F4 10 A M u l t i m e d i a , p h o t o c h r o m i c r e a r v i e w m i r r o r , p a r t i c l e
fi l t e r , d i a g n o s t i c s o c k e t , a i r c o n d i t i o n i n g , m a n u a l
h e a d l a m p h e i g h t a d j u s t m e n t
F5 30 A F r o n t w i n d o w s , f r o n t d o o r e l e c t r o n i c s c o n t r o l p a n e l ,
p a n o r a m i c g l a s s r o o f
F6 30 A Rear windows
F7 5 A I n t e r i o r l a m p s , r e f r i g e r a t e d g l o v e b o x , r a d i o
F8 20 A M u l t i f u n c t i o n s c r e e n , r a d i o , s t e e r i n g w h e e l c o n t r o l s ,
m u l t i m e d i a , d e fl a t i o n d e t e c t i o n , a l a r m , t r a i l e r
F9 30 A M u l t i m e d i a , f r o n t 1 2 V s o c k e t s , t o r c h , r a d i o
F10 15 A H e i g h t c o r r e c t o r ( s u s p e n s i o n )
F11 15 A B r a k e s w i t c h , i g n i t i o n s w i t c h
F12 15 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ’ s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i fi e r , t r a i l e r
F13 5 A E n g i n e r e l a y u n i t ( B S M ) , d r i v e r ’ s e l e c t r i c s e a t
F14 15 A A i r c o n d i t i o n i n g , B l u e t o o t h
®
h a n d s - f r e e k i t ,
a u t o m a t i c g e a r b o x l e v e r , a i r b a g s , i n s t r u m e n t p a n e l
F15 30 A L o c k i n g a n d u n l o c k i n g
F16 - SHUNT
F17 40 A Heated rear screen
