Citroen C4 PICASSO DAG 2009.5 1.G Owner's Manual

185
XI
P R A C T I C A L I N F O R M A T I O N
Table of fuses
Fuse N° Rating
Functions

F1 20 A Engine management

F2 15 A Horn

F3 10 A Screen wash pump

F4 20 A Headlamp wash pump

F5 15 A Engine components

F6 10 A Xenon dual-function directional headlamps, automatic headla
mp height adjustment,
clutch switch, protection switch box (BCP)

F7 10 A Automatic gearbox, engine coolant level switch, power steering

F8 25 A Starter motor

F9 10 A Stop lamp switch

F10 30 A Engine components

F11 40 A Rear blower

F12 30 A Screen wipe

F13 40 A Built-in Systems Interface (BSI)

F14 30 A Air pump, heat exchange saver

F15 10 A Right-hand main beam

F16 10 A Left-hand main beam

F17 15 A Left-hand dipped beam

F18 15 A Right-hand dipped beam

F19 15 A Engine components

F20 10 A Engine components

F21 5 A Cooling fan relay

186
XI
P R A C T I C A L I N F O R M A T I O N
Fuses on the battery
After any operation, carefully
refi t

the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.
Table of fuses
Fuse N° Rating
Functions

F1 5 A Automatic gearbox actuator

F2 5 A Stop switch

F3 5 A Battery charge estimation ECU

F4 20 A ESP supply

F5 5 A ESP supply

F6 20 A ECU for 6-speed electronic gearbox/automatic gearbox
Access to the fuses

 Detach and remove the cover.
Fuses F1 to F6 are located on the
small board, clipped vertically on the
battery fusebox. Fuses
F7 to F12 are midi-
fuses. All work on these
fuses must be carried out
by a CITROËN dealer.

187
XI
P R A C T I C A L I N F O R M A T I O N
BATTERY
Procedure for charging your battery
when it is fl at or for starting the en-
gine using another battery.
Access to the battery
The battery is located under the
bonnet.
To gain access to it:

 open the bonnet using the inte-
rior lever, then the exterior lever,

 secure the bonnet strut,

 remove the plastic cover to gain
access to the two terminals,

 unclip the fuse box to remove
the battery, if necessary.
Do not force the plate as locking will
not be possible of the clip is posi-
tioned incorrectly.

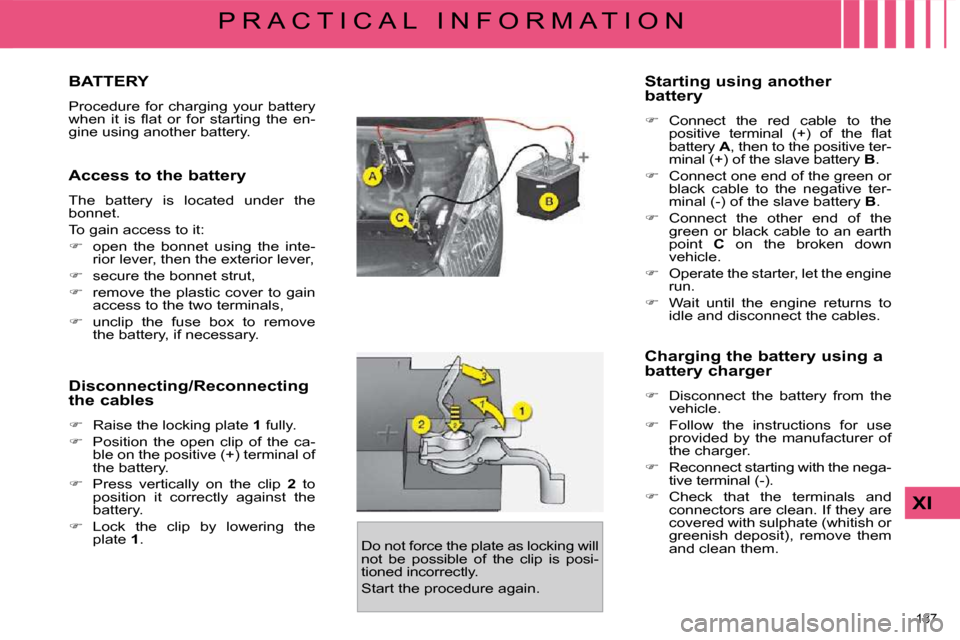

Start the procedure again. Starting using another
battery

 Connect the red cable to the
positive terminal (+) of the fl at
battery A , then to the positive ter-
minal (+) of the slave battery B .

 Connect one end of the green or
black cable to the negative ter-
minal (-) of the slave battery B .

 Connect the other end of the
green or black cable to an earth
point C on the broken down
vehicle.


Operate the starter, let the engine
run.

 Wait until the engine returns to
idle and disconnect the cables.
Charging the battery using a
battery charger

 Disconnect the battery from the
vehicle.

 Follow the instructions for use
provided by the manufacturer of
the charger.

 Reconnect starting with the nega-
tive terminal (-).

 Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.
Disconnecting/Reconnecting
the cables

 Raise the locking plate 1 fully.

 Position the open clip of the ca-
ble on the positive (+) terminal of
the battery.

 Press vertically on the clip 2 to
position it correctly against the
battery.

 Lock the clip by lowering the
plate 1 .

188
XI
P R A C T I C A L I N F O R M A T I O N

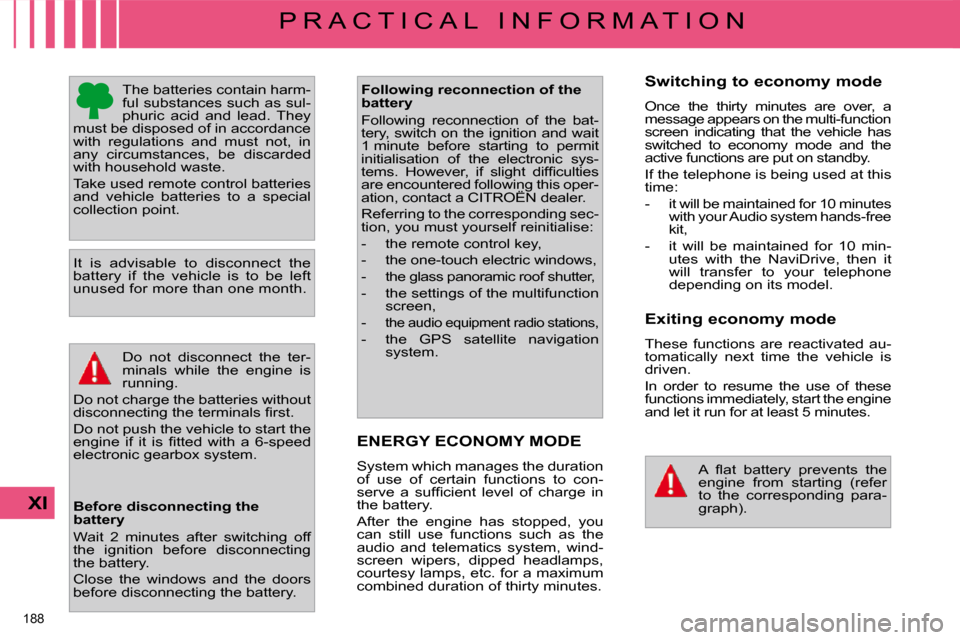

The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the ter-
minals while the engine is
running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gearbox system. Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if slight diffi culties
are encountered following this oper-
ation, contact a CITROËN dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the glass panoramic roof shutter,
- the settings of the multifunction
screen,
-
the audio equipment radio stations,
- the GPS satellite navigation system.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you
can still use functions such as the
audio and telematics system, wind-
screen wipers, dipped headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes. Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
If the telephone is being used at this
time:
- it will be maintained for 10 minutes
with your Audio system hands-free
kit,
- it will be maintained for 10 min- utes with the NaviDrive, then it
will transfer to your telephone
depending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the engine
and let it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).

188
XI
P R A C T I C A L I N F O R M A T I O N
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the ter-
minals while the engine is
running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gearbox system. Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if slight diffi culties
are encountered following this oper-
ation, contact a CITROËN dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the glass panoramic roof shutter,
- the settings of the multifunction
screen,
-
the audio equipment radio stations,
- the GPS satellite navigation system.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you
can still use functions such as the
audio and telematics system, wind-
screen wipers, dipped headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes. Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
If the telephone is being used at this
time:
- it will be maintained for 10 minutes
with your Audio system hands-free
kit,
- it will be maintained for 10 min- utes with the NaviDrive, then it
will transfer to your telephone
depending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the engine
and let it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).

189
XI
P R A C T I C A L I N F O R M A T I O N
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle
using a removable towing eye.
Access to the tools
According to equipment, the towing
eye is installed in the storage fl ap
under the second row passenger
footwell or under the boot fl oor.
To gain access to it:

 open one of the rear doors or the
boot (according to equipment),

 open the fl ap or raise the fl oor
(according to equipment),

 remove the towing eye from the
holder. Towing your vehicle

 On the front bumper, unclip the
cover by pressing at the top left
and pulling at the right.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning
lamps on the towed vehicle.

 Place the gear lever in neutral
(position N on the electronic
gearbox or automatic gearbox). Towing another vehicle

 On the rear bumper, unclip the
cover by pressing at the bottom
at pulling at the top.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning
lamps on the towed vehicle.
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
the next time the engine is started. When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.

190
XI
P R A C T I C A L I N F O R M A T I O N
TOWING A TRAILER, A CARAVAN, ETC.
Towbar suitable for the attachment
of a trailer or caravan with additional
lighting and signalling.
Your vehicle is primarily designed
for transporting people and luggage,
but it may also be used for towing a
trailer. We recommend the use of genuine
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to a
CITROËN dealer.
If the trailer is not fi tted by a
CITROËN dealer, it is imperative
that it is fi tted using the electrical
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions. Driving advice
Distribution of loads

 Distribute the load in the trailer
so that the heaviest items are as
close as possible to the axle and
the nose weight approaches the
maximum permitted without ex-
ceeding it.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.
Refer to the "Technical Data" section
for details of the weights and towing
loads which apply to your vehicle.
Side wind

 Take into account the increased
sensitivity to side wind.
 To lower the engine speed, re-
duce your speed.
The maximum towing load on a long
slope depends on the gradient and
the ambient temperature.
In all cases, pay attention to the
coolant temperature.

 If the warning lamp and
the STOP warning lamp
come on, stop the vehicle
and switch off the engine
as soon as possible.
Braking
Towing a trailer increases the brak-
ing distance.
Tyres

 Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended
pressures.
Lighting

 Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine CITROËN towbar is used.
Driving with a trailer subjects the
towing vehicle to more signifi cant
stress and its driver must be particu-
larly careful.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.

191
XI
P R A C T I C A L I N F O R M A T I O N
ROOF BARS
The design of your vehicle, for your
safety and to avoid damage to the
roof and tailgate, requires the use
of roof bars and roof boxes that are
tested and approved by CITROËN.
Regardless of the type of loading
equipment to be transported on the
roof (roof box, bicycle carrier, ski
carrier...), it is imperative that you
add transverse roof bars.
Recommendations

 Distribute your load evenly, avoid-
ing overloading on one side.

 Arrange the heaviest part of the
load as close as possible to the
roof.

 Anchor the load securely and
signal if any part of it is over-
hanging.

 Drive gently, as the vehicle will
be more liable to the effects of
side winds (vehicle stability may
be altered).

 Remove the roof bars as soon
as they are no longer needed. Bicycle carrier
Do not attach a bicycle carrier with
straps to the following vehicle versions:
- C4 Picasso 5-seater (all versions);
- C4 Picasso 7-seater version with
opening rear screen. Maximum load that can be
distributed on the roof bars
(for a loading height not ex-
ceeding 40 cm; except bicycle car-
rier): 80 kg.
If the height exceeds 40 cm, adapt
your speed to the profi le of the road
to avoid damaging the roof bars
and the fi xings on the roof.
Please refer to national legislation
in order to comply with the regula-
tions concerning the transportation
of objects which are longer than
the vehicle.
* According to country.

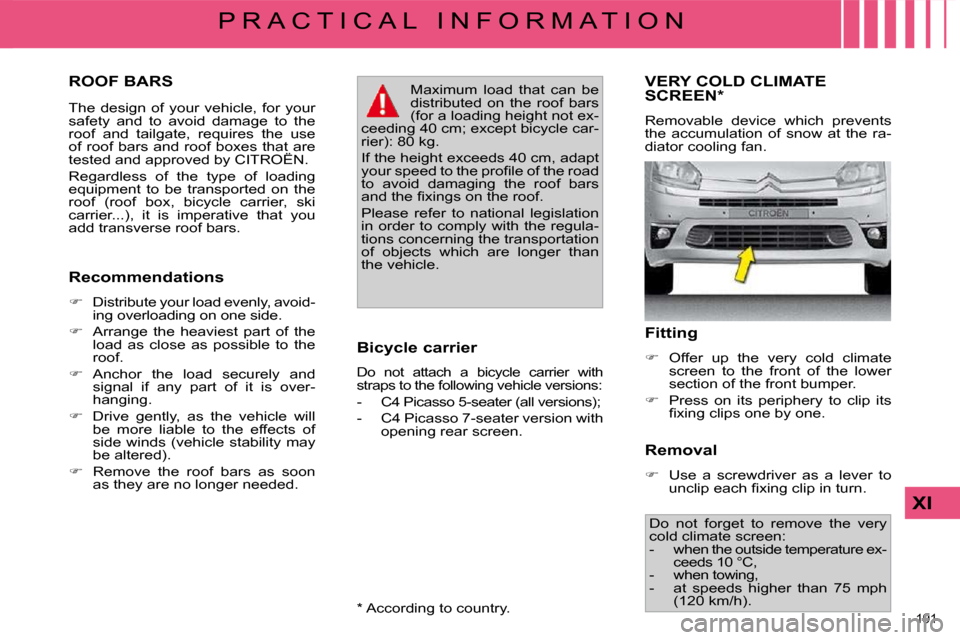

VERY COLD CLIMATE SCREEN *
Removable device which prevents
the accumulation of snow at the ra-
diator cooling fan.
Fitting

 Offer up the very cold climate
screen to the front of the lower
section of the front bumper.

 Press on its periphery to clip its
fi xing clips one by one.
Removal

 Use a screwdriver as a lever to
unclip each fi xing clip in turn.
Do not forget to remove the very
cold climate screen:
- when the outside temperature ex- ceeds 10 °C,
- when towing,
- at speeds higher than 75 mph (120 km/h).

192
XI
P R A C T I C A L I N F O R M A T I O N * To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
-
never fi t one mat on top of another.
The fi tting of electrical
equipment or accessories
which are not recommend-
ed by CITROËN may result in a
failure of your vehicle's electronic
system and excess consumption.
Please note this specifi c warn-
ing. You are advised to contact a
CITROËN representative to be
shown the range of recommended
equipment and accessories.
A wide range of accessories and
genuine parts is offered by the
CITROËN dealer network.
These accessories and parts have
been tested and approved for reli-
ability and safety.
They are all adapted to your vehicle
and benefi t from CITROËN's recom-
mendation and warranty.
This product range is structured
around 5 categories:
"Comfort and leisure": mats * , boot
tray, boot carpet, sun blinds, mini-
bar, fragrance cartridges, roof bars,
bicycle carrier, ski carrier, roof boxes,
towbars, child seats and booster
cushions...

"Protection": anti-theft alarm,
wheel anti-theft devices, stolen ve-
hicle tracking system, breathalyser,
fi rst aid kit, warning triangle, high vis-
ibility safety jacket, dog guard, snow
chains, non-skid covers, foglamps
kit, temporary puncture repair kit,
rear parking assistance...

"Navigation and communication": Bluetooth®
hands-free kit, audio
equipment, portable satellite naviga-
tion system, DVD player, auxiliary
cable for connecting a portable MP3
player, USB Box, speakers...

"Personalisation": seat covers, al-
loy wheels, wheel trims, mud fl aps,
sill protectors...

"Accessories": windscreen wash
fl uid, interior and exterior cleaning
and maintenance products, body-
work touch-up aerosol and pen... Depending on the country in which
the vehicle is sold, it may be com-
pulsory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.

193
XII
T E C H N I C A L D A T A

MODELS:
ENGINES AND GEARBOXES

Model codes:
UA... UE... UD...
5FW-C 5FX-H/P 5FT-F RFJ-F

PETROL ENGINES
1.6
litre
VTi 16V
120 hp
1.6
litre
THP 16V
150 hp
1.6
litre
THP 16V
140 hp
2
litre
16V 143 hp
Cubic capacity (cc) 1 598 1 598 1 997
Bore x stroke (mm) 77 x 85.8 77 x 85.8 85 x 88
EU standard maximum power (kW) 88 110 103 103
Maximum power engine speed (rpm) 6 000 5 800 6 000 6 000
EU standard maximum torque (Nm) 160 240 200
Maximum torque engine speed (rpm) 4 250 1 400 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes

GEARBOXES Manual
(5-speed)
Electronic gearbox system
(6-speed) Auto.
(4-speed) Auto.
(4-speed)

OIL CAPACITIES (in litres)
Engine (with fi lter replacement) 4.25 4.25 4.25 5
Gearbox - Final drive 1.9 - - -

UA...: CITROËN Grand C4 Picasso
(7-seat).
UE...: CITROËN Grand C4 Picasso
(5-seat).
UD...: CITROËN C4 Picasso
(5-seat).
