Page 233 of 338
198
XII
T E C H N I C A L D A T A

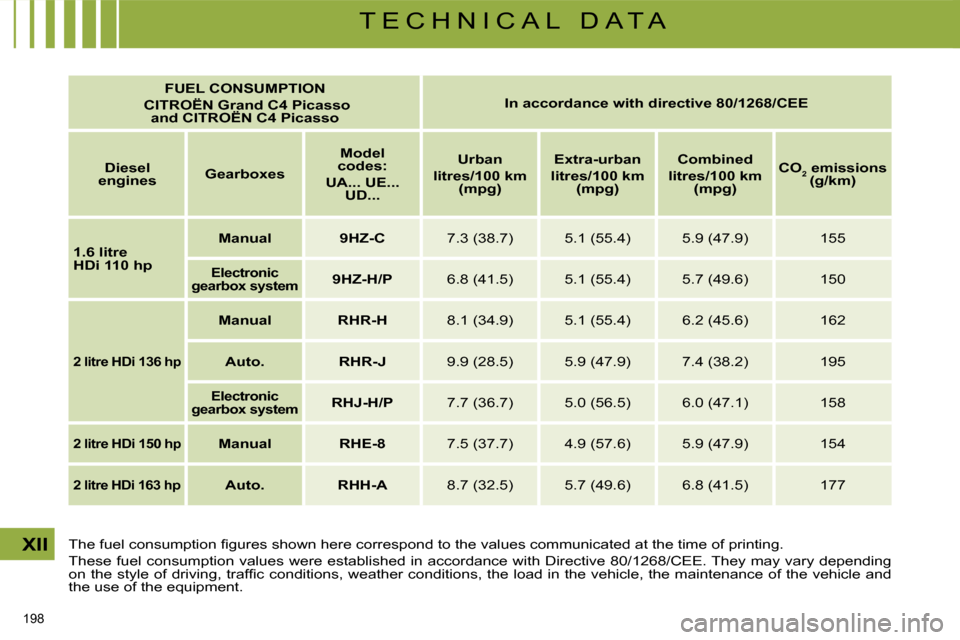

FUEL CONSUMPTION
CITROËN
Grand C4 Picasso
and
CITROËN
C4 Picasso
In accordance with directive 80/1268/CEE
Diesel
engines
Gearboxes
Model
codes:
UA... UE... UD...
Urban
litres/100 km (mpg)
Extra-urban
litres/100 km (mpg)
Combined
litres/100 km (mpg)
CO
2 emissions
(g/km)
1.6
litre
HDi 110 hp
Manual 9HZ-C 7.3 (38.7) 5.1 (55.4) 5.9 (47.9) 155
Electronic
gearbox system
9HZ-H/P 6.8 (41.5) 5.1 (55.4) 5.7 (49.6) 150
2
litre
HDi 136 hp
Manual RHR-H 8.1 (34.9) 5.1 (55.4) 6.2 (45.6) 162
Auto. RHR-J 9.9 (28.5) 5.9 (47.9) 7.4 (38.2) 195
Electronic
gearbox system
RHJ-H/P 7.7 (36.7) 5.0 (56.5) 6.0 (47.1) 158
2
litre
HDi 150 hp
Manual RHE-8 7.5 (37.7) 4.9 (57.6) 5.9 (47.9) 154
2
litre
HDi 163 hp
Auto. RHH-A 8.7 (32.5) 5.7 (49.6) 6.8 (41.5) 177
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of the equipment.
Page 234 of 338
195
XII
T E C H N I C A L D A T A
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

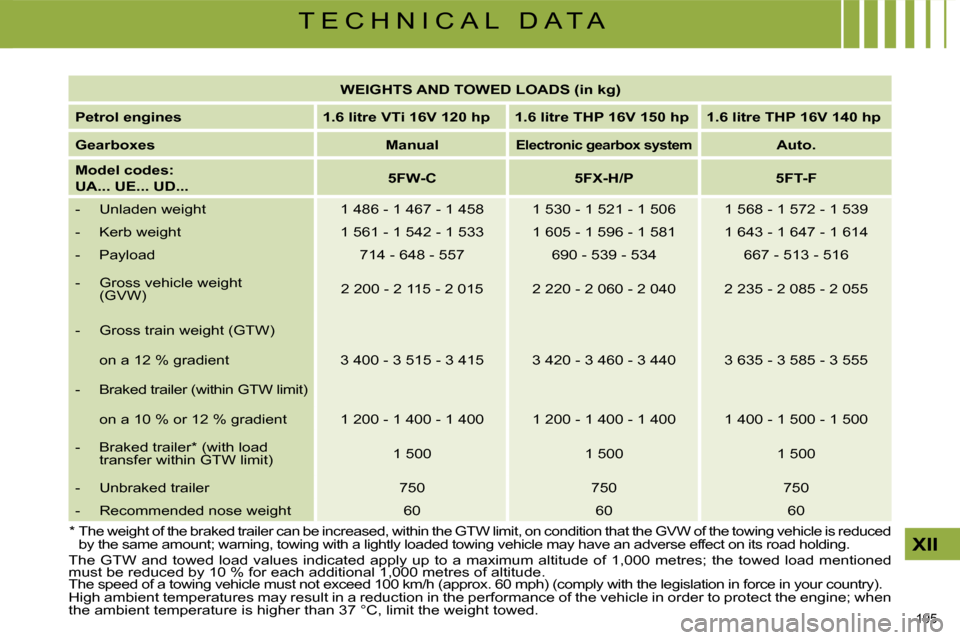

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.6
litre
VTi 16V 120 hp 1.6
litre
THP 16V 150 hp 1.6
litre
THP 16V 140 hp
Gearboxes Manual
Electronic gearbox system
Auto.
Model codes:
UA... UE... UD...
5FW-C 5FX-H/P 5FT-F
- Unladen weight 1 486 - 1 467 - 1 458 1 530 - 1 521 - 1 506 1 568 - 1 572 - 1 539
- Kerb weight 1 561 - 1 542 - 1 533 1 605 - 1 5 96 - 1 581 1 643 - 1 647 - 1 614
- Payload 714 - 648 - 557 690 - 539 - 534 667 - 513 - 516
- Gross vehicle weight (GVW) 2 200 - 2 115 - 2 015 2 220 - 2 060 - 2 040 2 2
35 - 2 085 - 2 055
- Gross train weight (GTW)
on a 12 % gradient 3 400 - 3 515 - 3 415 3 420 - 3 460 - 3 440 3 635 - 3 585 - 3 555
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 400 - 1 400 1 200 - 1 400 - 1 400 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 60 60 60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
Page 235 of 338
196
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

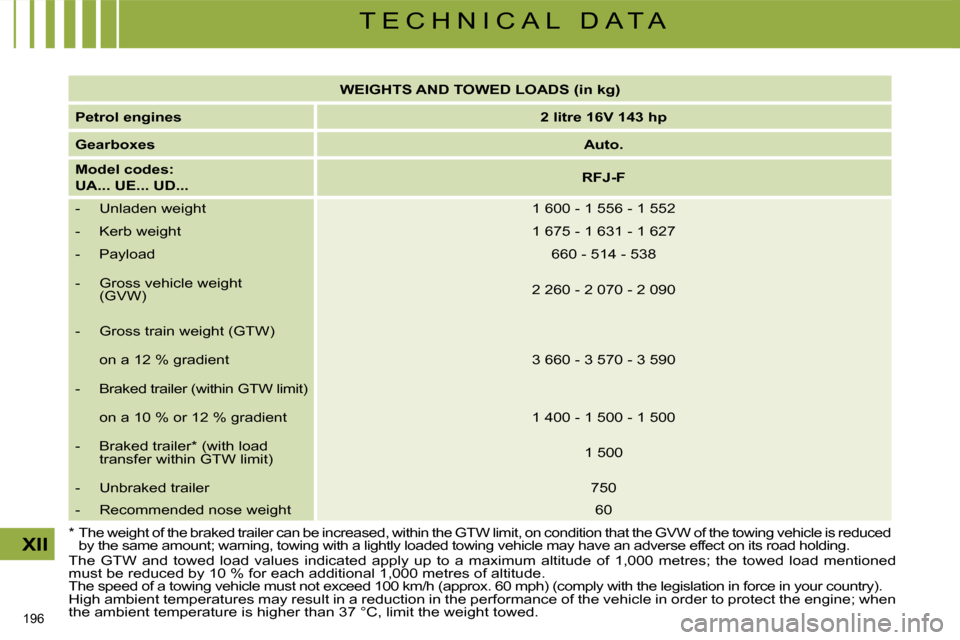

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
2
litre
16V 143 hp
Gearboxes
Auto.
Model codes:
UA... UE... UD...
RFJ-F
- Unladen weight 1 600 - 1 556 - 1 552
- Kerb weight 1 675 - 1 631 - 1 627
- Payload 660 - 514 - 538
- Gross vehicle weight (GVW) 2 260 - 2 070 - 2 090
- Gross train weight (GTW)
on a 12 % gradient 3 660 - 3 570 - 3 590
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500
- Unbraked trailer 750
- Recommended nose weight 60
* The weight of the braked trailer can be increa sed, within the GTW limit, on condition that the GV W of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 236 of 338
199
XII
T E C H N I C A L D A T A

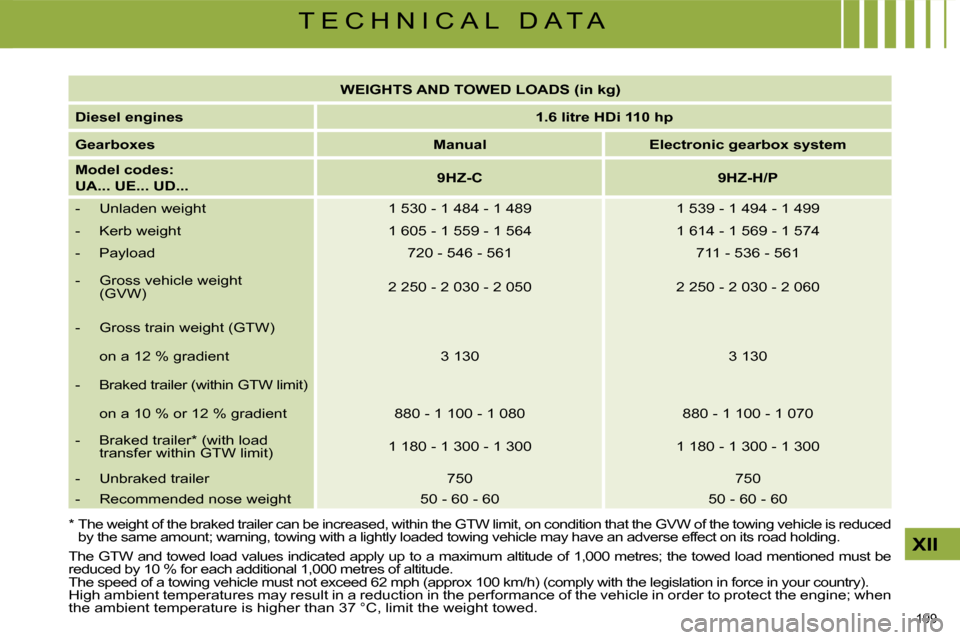

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6
litre
HDi 110 hp
Gearboxes
Manual Electronic gearbox system
Model codes:
UA... UE... UD...
9HZ-C 9HZ-H/P
- Unladen weight 1 530 - 1 484 - 1 489 1 539 - 1 494 - 1 499
- Kerb weight 1 605 - 1 559 - 1 564 1 614 - 1 5 69 - 1 574
- Payload 720 - 546 - 561 711 - 536 - 561
- Gross vehicle weight (GVW) 2 250 - 2 030 - 2 050 2 250 - 2 030 - 2 060
- Gross train weight (GTW)
on a 12 % gradient 3 130 3 130
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 880 - 1 100 - 1 080 8 80 - 1 100 - 1 070
- Braked trailer * (with load transfer within GTW limit) 1 180 - 1 300 - 1 300 1 180 - 1 300 - 1 300
- Unbraked trailer 750 750
- Recommended nose weight 50 - 60 - 60 50 - 60 - 6 0
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up t o a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 62 m ph (approx 100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37
°C, limit the weight towed.
Page 237 of 338
200
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

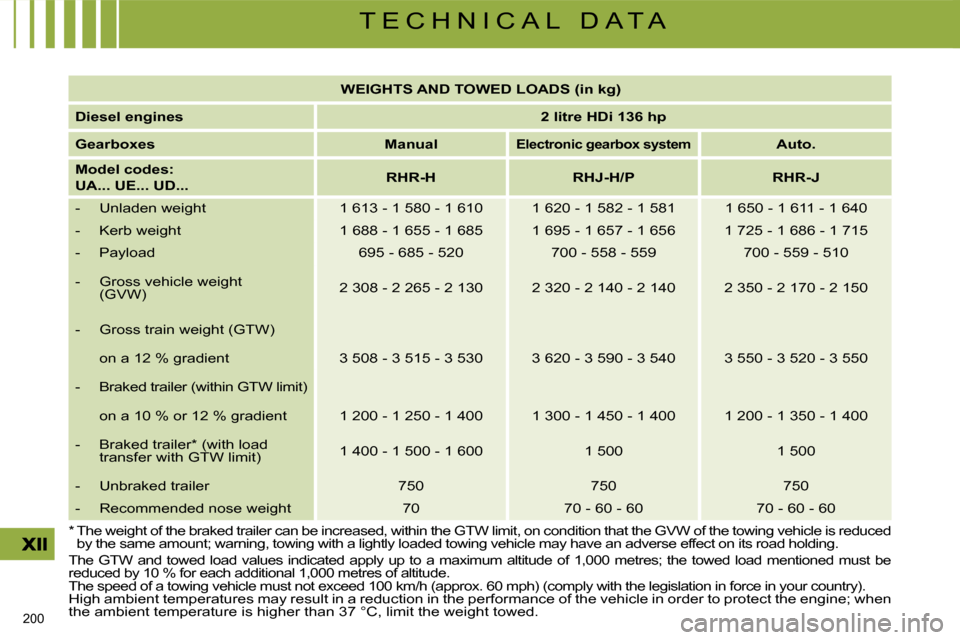

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
2
litre
HDi 136 hp
Gearboxes Manual
Electronic gearbox system
Auto.
Model codes:
UA... UE... UD...
RHR-H RHJ-H/P RHR-J
- Unladen weight 1 613 - 1 580 - 1 610 1 620 - 1 582 - 1 581 1 650 - 1 611 - 1 640
- Kerb weight 1 688 - 1 655 - 1 685 1 695 - 1 6 57 - 1 656 1 725 - 1 686 - 1 715
- Payload 695 - 685 - 520 700 - 558 - 559 700 - 559 - 510
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 2 320 - 2 140 - 2 140 2 3
50 - 2 170 - 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 508 - 3 515 - 3 530 3 620 - 3 590 - 3 540 3 550 - 3 520 - 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 250 - 1 400 1 300 - 1 450 - 1 400 1 200 - 1 350 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 500 - 1 600 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 70 70 - 60 - 60 70 - 60 - 60
* The weight of the braked trailer can be increas ed, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 238 of 338
201
XII
T E C H N I C A L D A T A
* The weight of the braked trailer can be increas ed, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up t o a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 62 m ph (approx 100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

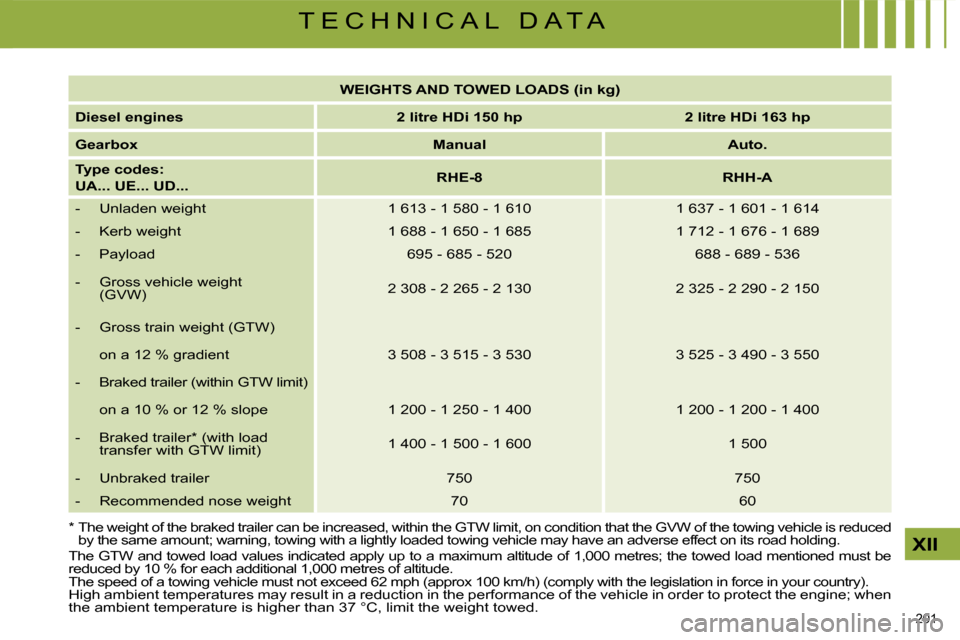

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines 2
litre
HDi 150 hp 2
litre
HDi 163 hp
Gearbox
Manual Auto.
Type codes:
UA... UE... UD...
RHE-8 RHH-A
- Unladen weight 1 613 - 1 580 - 1 610 1 637 - 1 601 - 1 614
- Kerb weight 1 688 - 1 650 - 1 685 1 712 - 1 6 76 - 1 689
- Payload 695 - 685 - 520 688 - 689 - 536
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 2 325 - 2 290 - 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 508 - 3 515 - 3 530 3 525 - 3 490 - 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % slope 1 200 - 1 250 - 1 400 1 200 - 1 200 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 500 - 1 600 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 60
