Page 1 of 338
4
F A M I L I A R I S A T I O N
Panoramic glass roof
81
Xenon directional
headlamps
Whether on dipped or main
beam, this function allows the
lighting to follow the direction
of the road ahead.
88
Opening rear screen
80
Pneumatic rear suspension
This enhances driving comfort and
maintains a constant body height,
whatever the vehicle load.
155
Exterior side spotlamps
These light up the zones fac-
ing the driver’s and passenger’s
doors.
87
Front/rear parking
assistance
Sensors, located in the
bumpers, detect obstacles.
153
Parking space sensor
This measures the size of a
space and advises whether or
not parking is possible.
149
Exterior rear view mirrors
With electric foldback.
Automatically tilts in reverse
gear.
66
E X T E R I O R
Page 12 of 338
15
F A M I L I A R I S A T I O N

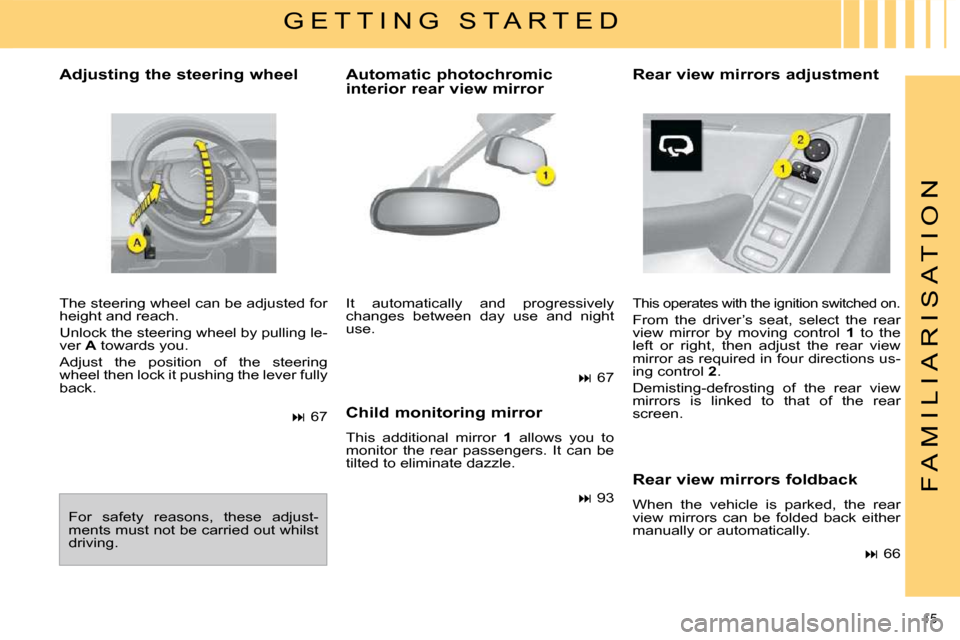

Adjusting the steering wheel
The steering wheel can be adjusted for
height and reach.
Unlock the steering wheel by pulling le-
ver A towards you.
Adjust the position of the steering
wheel then lock it pushing the lever fully
back.
67 It automatically and progressively
changes between day use and night
use.
This operates with the ignition switched on.
From the driver’s seat, select the rear
view mirror by moving control 1 to the
left or right, then adjust the rear view
m i r r o r a s r e q u i r e d i n f o u r d i r e c t i o n s u s -
ing control 2 .
Demisting-defrosting of the rear view
mirrors is linked to that of the rear
screen.
93
66
For safety reasons, these adjust-
ments must not be carried out whilst
driving. Child monitoring mirror
This additional mirror
1 allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle.
Rear view mirrors foldback
When the vehicle is parked, the rear
view mirrors can be folded back either
manually or automatically.
G E T T I N G S T A R T E D
Automatic photochromic
interior rear view mirror Rear view mirrors adjustment
67
Page 17 of 338
20
F A M I L I A R I S A T I O N

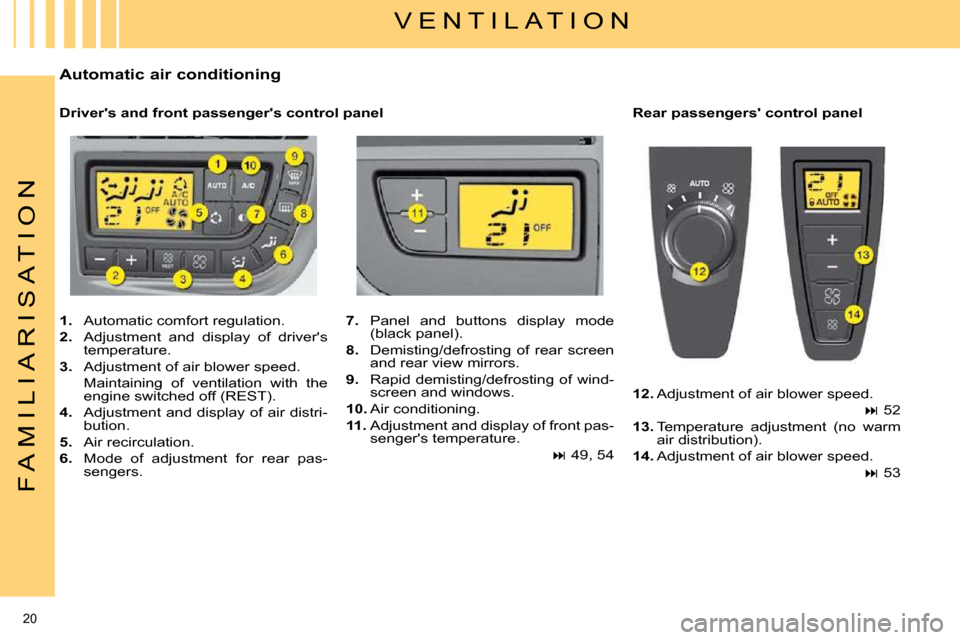

Driver's and front passenger's control panel
Automatic air conditioning
Rear passengers' control panel
V E N T I L A T I O N
1. Automatic comfort regulation.
2. Adjustment and display of driver's
temperature.
3. Adjustment of air blower speed.
Maintaining of ventilation with the engine switched off (REST).
4. Adjustment and display of air distri-
bution.
5. Air recirculation.
6. Mode of adjustment for rear pas-
sengers.
7. Panel and buttons display mode
(black panel).
8. Demisting/defrosting of rear screen
and rear view mirrors.
9. Rapid demisting/defrosting of wind-
screen and windows.
10. Air conditioning.
11. Adjustment and display of front pas-
senger's temperature.
49, 54
12. Adjustment of air blower speed.
52
13. Temperature adjustment (no warm
air distribution).
14. Adjustment of air blower speed.
53
Page 18 of 338
21
F A M I L I A R I S A T I O N

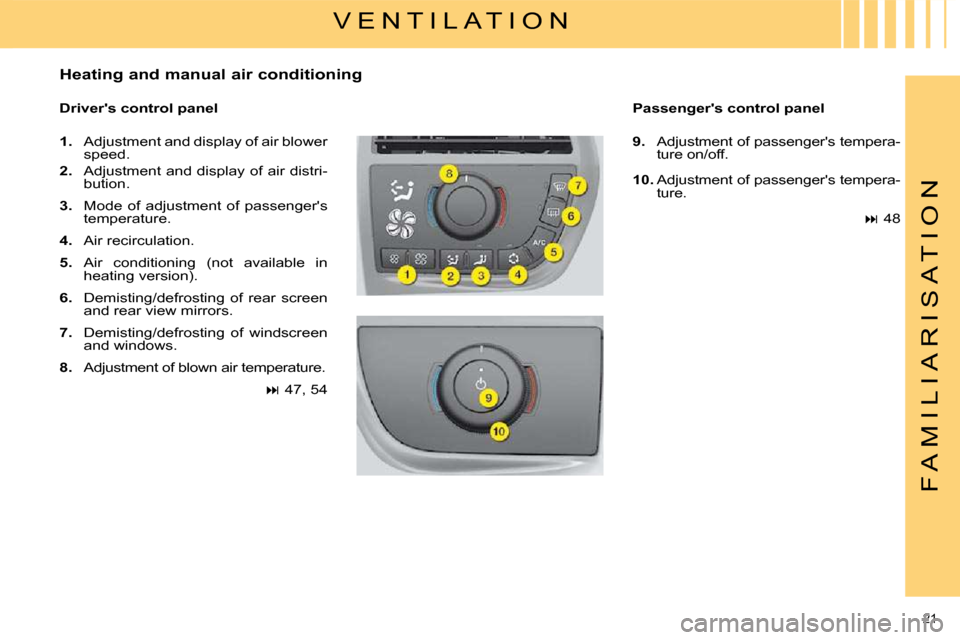

Heating and manual air conditioning Passenger's control panel
Driver's control panel
V E N T I L A T I O N
1. Adjustment and display of air blower
speed.
2. Adjustment and display of air distri-
bution.
3. Mode of adjustment of passenger's
temperature.
4. Air recirculation.
5. Air conditioning (not available in
heating version).
6. Demisting/defrosting of rear screen
and rear view mirrors.
7. Demisting/defrosting of windscreen
and windows.
8. Adjustment of blown air temperature.
47, 54
9. Adjustment of passenger's tempera-
ture on/off.
10. Adjustment of passenger's tempera-
ture.
48
Page 49 of 338
48
III
C O M F O R T
6. Demisting/defrosting of the rear screen
This operates only if the engine is
running.
Press on button 6 to activate/de-
activate the electric demisting/
defrosting of the rear screen and
the exterior rear view mirrors.
The warning lamp lights up.
7. Rapid demisting/defrosting of front and rear windows
and rear view mirrors
Press on button 7 . The warning
lamp lights up.
This function simultaneously acti-
vates:
- front demisting/defrosting,
- o p t i m u m fl o w o f a i r ,
- recirculation prohibition,
- demisting/defrosting of rear view mirrors and heated rear screen,
- air conditioning, if necessary.
To stop the function, press again on
button 7 . 8. Adjustment of the air
blower temperature
This control is for adjusting the tem-
perature of the air in the passenger
compartment. It can be used in cold
weather as well as in hot weather, pro-
vided the air conditioning is active.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
B. PASSENGER’S CONTROL PANEL
Adjustment of temperature
Press on button 9 to take over
control of the temperature. The
warning lamp lights up.
Rotate button 10 to adjust your
temperature.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
The demisting/defrosting
switches off automatically
to prevent excessive con-
sumption of power.
Page 53 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 54 of 338
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at opti- mum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/defrost-
ing of the rear view mirrors and heated
rear screen remains activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers (right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the but-
ton to decrease
or increase the air
fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s
is enabled by the driver (see button 6
of the driver’s control panel).
Page 56 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 57 of 338
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at opti- mum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/defrost-
ing of the rear view mirrors and heated
rear screen remains activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers (right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the but-
ton to decrease
or increase the air
fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s
is enabled by the driver (see button 6
of the driver’s control panel).
Page 72 of 338
66
III
C O M F O R T
MIRRORS
Exterior mirrors
Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
f o r p a r k i n g i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in one of four
directions to adjust,
return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.
Folding
From outside: lock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Unfolding
From outside: unlock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the ex-
terior mirrors is linked to that of the
rear screen.
