stop start Citroen C4 PICASSO DAG 2009.5 1.G Owner's Manual

17
F A M I L I A R I S A T I O N
Ring B Ring D: rear screen wipe Stop.
Intermittent.
Timed wash and wipe. Fixed centred controls steering
wheel
Lighting stalk
Ring A

 85 Stalk C: windscreen wipe

 89
D R I V I N G

1. Off

2. Automatic lighting

3. Sidelamps

4. Dipped beam/Main beam
Front foglamps
Rear foglamp Wiper stalk

1. Optional function controls

2. Cruise control/speed limiter and
parking space sensor

3. Audio system controls

4. Multifunction screen controls
 143

5. Horn
 113

6. Warning lamps for direction indica-
tors and vehicle lamps
 27

 84 Switching on "AUTO" mode

 Press the stalk down and release.
Switching off "AUTO" mode

 Press the stalk up and return it to
position "0" .
Automatic wipe must be reactivated
each time the vehicle is started.
Under certain climatic conditions
(low temperature, humid), the pres-
ence of condensation on the inner
surfaces of the headlamps and rear
lamps is not an indication of a fault;
this disappears afew minutes after
switching on the lamps.
 174

19
F A M I L I A R I S A T I O N

 149
Electric parking brake
Before leaving the vehicle, check
that the electric parking brake warn-
ing lamp P (red) is permanently on.
If you leave the vehicle with the en-
gine running, manually apply the
parking brake.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. Parking space sensor
You can select this function by pressing
button
A .
Once the space has been measured, the
system displays the following messages:
< 12 mph (20 km/h)

Parking possible

Parking diffi cult

Parking not advised
This device combines:
- automatic functions: Automatic ap-
plication when the engine stops and
automatic release on use of the ac-
celerator (automatic operation by
default);
- manual use: Manual application/re- lease of parking brake is possible
by operating control lever A .
When in automatic mode, it remains
possible to apply or release the parking
brake at any time:

 To apply it, pull on the lever A .


To release it, pull then release lever A .
Hill start assist
To aid starting on a gradient, your vehicle
is equipped with a system which keeps
it immobilised for about 2 seconds, the
approximate time it takes to move your
foot from the brake pedal to the accel-
erator pedal.

 133
D R I V I N G

 126

22
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you
if the driver’s or front passen-
ger’s seat belt is not fastened
(depending on model), and if
the front passenger’s (depend-
ing on model) or the second-
row passengers’ seat belts are
unfastened. The lit up positions
represent those whose seat belts are
not fastened/unfastened.
You can use electrical central locking or
unlocking by pressing on button A .
If one of the doors is open or is not
closed properly, central locking will not
work. Tyre under-inflation detection
This function warns you if a tyre is de-
fl ated or punctured.
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp
lights up, and a vehicle outline
is displayed, accompanied by
a message and an audible
signal.
Under-infl ation warning
The
STOP warning lamp lights
up, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture

 30

 114
Anti-intrusion security
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This function can be deactivated
by pressing button A for more than
two seconds.

 78
M O N I T O R I N G

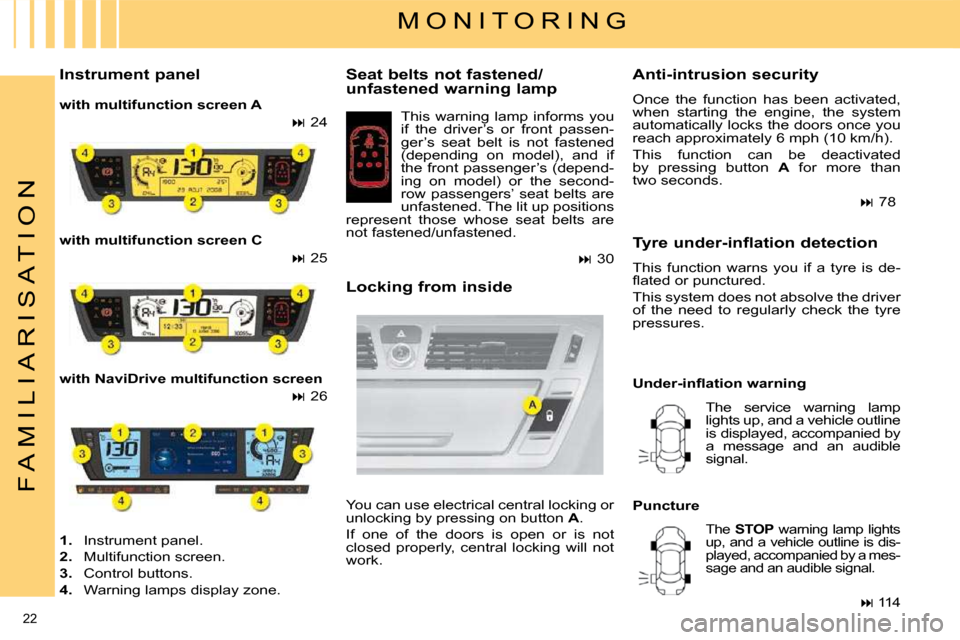

Locking from inside
Instrument panel
with multifunction screen A

 24
with multifunction screen C
 25
with NaviDrive multifunction screen
 26

1. Instrument panel.

2. Multifunction screen.

3. Control buttons.

4. Warning lamps display zone.

29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the display of an-
other warning lamp :
Service If this comes on, it in-
dicates the occurrence
of a problem in one
of the systems which
does not have a specifi c warning
lamp.
In order to identify it, consult the mes-
sage on the multifunction screen.
The warning lamp only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl at remote control battery,
- incorrect tyre pressure,
- the end of saturation of the parti- cle emission fi lter (Diesel).
In the case of major faults, the warning lamp remains on until the operating
fault is rectifi ed, contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous light-
ing of the ABS warning lamp),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electric parking brake
If this warning lamp comes
on permanently, it is confi rm-
ing that the parking brake is
applied.
If it fl ashes, it is indicating an ap-
plication or release fault. Contact
a CITROËN dealer urgently (see
section "Driving - § Electric parking
brake"). Automatic electric parking brake
fault
This warning lamp comes
on if there is a malfunction in
the automatic electric park-
ing brake.
Deactivation of the automatic
functions of the automatic
electric parking brake
This comes on if the "auto-
matic application" and "auto-
matic release" functions
when you switch off the
engine are deactivated * or
faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start assist
system.
Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the oc-
currence of a fault in the emission
control system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not
prevent operation of the vehicle's
assisted braking.
* According to country.

48
III
C O M F O R T
6. Demisting/defrosting of the rear screen
This operates only if the engine is
running.

 Press on button 6 to activate/de-
activate the electric demisting/
defrosting of the rear screen and
the exterior rear view mirrors.
The warning lamp lights up.
7. Rapid demisting/defrosting of front and rear windows
and rear view mirrors

 Press on button 7 . The warning
lamp lights up.
This function simultaneously acti-
vates:
- front demisting/defrosting,
- optimum fl ow of air,
- recirculation prohibition,
- demisting/defrosting of rear view mirrors and heated rear screen,
- air conditioning, if necessary.
To stop the function, press again on
button 7 . 8. Adjustment of the air
blower temperature
This control is for adjusting the tem-
perature of the air in the passenger
compartment. It can be used in cold
weather as well as in hot weather, pro-
vided the air conditioning is active.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
B. PASSENGER’S CONTROL PANEL
Adjustment of temperature

 Press on button 9 to take over
control of the temperature. The
warning lamp lights up.

 Rotate button 10 to adjust your
temperature.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
The demisting/defrosting
switches off automatically
to prevent excessive con-
sumption of power.

50
III
C O M F O R T
3. Adjustment of the air blower speed
The air blower operates only when
the engine is running (except when
the REST function is activated).
To adjust the fl ow of air, press on the
button:
to increase the air fl ow,
to decrease the air fl ow (this
button also has the REST
function).
The level of air fl ow is indicated on
the display by the progressive fi lling
of the ventilator blades.
If you place the air blower on posi-
tion 0 , the system is deactivated.
The air blower display will be empty,
with the indication OFF.

Function for retaining
ventilation with the engine
switched off

The REST function is avail-
able when you switch on the ignition
and when you stop the engine.
This function allows you to retain ventilation
in the passenger compartment for a few
minutes, even with the engine stopped.
When you leave the vehicle, any
passengers present can still have
the benefi t of air circulation, even
though the engine is not running.
Engine stopped, ignition switched
on:
- The displays will light up, with the air blower shown empty as
long as the function is available.
- A press on the REST button acti- vates the function for a timing of
just a few minutes. Two blades of
the blower will fi ll to signify that
the function is active.
- It can be deactivated and reacti- vated during the timed period.
- At the end of the timed period, the display will go off. This button does not activate the air
conditioning, only the air blowers. In
the REST function, the air fl ow and
distribution are controlled automati-
cally and you cannot modify them.

On stopping the engine:
- The displays remain lit up, the blower is shown empty and the
function can be activated for
30 seconds.
- A press on the REST button dur- ing the next 30 seconds activates
the function for a timing of several
minutes. The duration and avail-
ability of the function are variable
according to the state of charge
of the battery (a protection to
guarantee engine starting). Two
blower blades fi ll up to signify that
the function is active. It remains
active, even after the doors have
been locked, until the end of the
timing.
- A further press before the end of the timed period stops the function
defi nitively. 4. Adjustment of the air
distribution

 Press on button 4 so that
the air fl ows scroll suc-
cessively on the display.
The air distribution you have chosen
is confi rmed by the lighting of the
corresponding warning lamps in the
display.
There are 7 possible adjustments.

71
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
If the fi rst attempt fails, switch off the
ignition. Wait ten seconds then operate
the starter again. Steering lock

1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .

2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).

3. "D": Starter position.
Key left in position "M" buzzer
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .

Do not run the engine in an en-
closed space or where there is
insuffi cient ventilation
.

It is essential always to keep the
engine running in order to retain
braking and steering
power
as-
sistance .

Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.

73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your personal identifi cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
Do not make any modifi cations to the
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.

73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your personal identifi cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
Do not make any modifi cations to the
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.

71
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
If the fi rst attempt fails, switch off the
ignition. Wait ten seconds then operate
the starter again. Steering lock

1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .

2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).

3. "D": Starter position.
Key left in position "M" buzzer
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .

Do not run the engine in an en-
closed space or where there is
insuffi cient ventilation
.

It is essential always to keep the
engine running in order to retain
braking and steering
power
as-
sistance .

Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
