38M O N I T O R I N G
Deactivation
of the automatic
functions of the electric
parking brake fi x e d . The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country)
v i a t h e v e h i c l e c o n fi g u r a t i o n m e n u o r
contact a CITROËN dealer.
Warning lamp is on Cause Action/Observations
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves
the directional stability of the vehicle.
fi x e d . Unless it has been deactivated
with the indicator lamp on
the button on, the ESP/ASR
system is faulty. Have it checked by a CITROËN dealer.
Engine
autodiagnosis system fi x e d .
The emission control system
has a fault.
This lamp should switch off when the engine is sta
rted.
If it does not switch off, contact a CITROËN deale r
urgently.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic convertor.
Have it checked by a CITROËN dealer.
Airbags temporarily.
This lamp comes on for a few
seconds when you turn on the
ignition, then switches off.
This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN deale
r.
fi x e d . One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer.
Page 35 of 355
I
39
M O N I T O R I N G
Warning lamp is on Cause Action/Observations

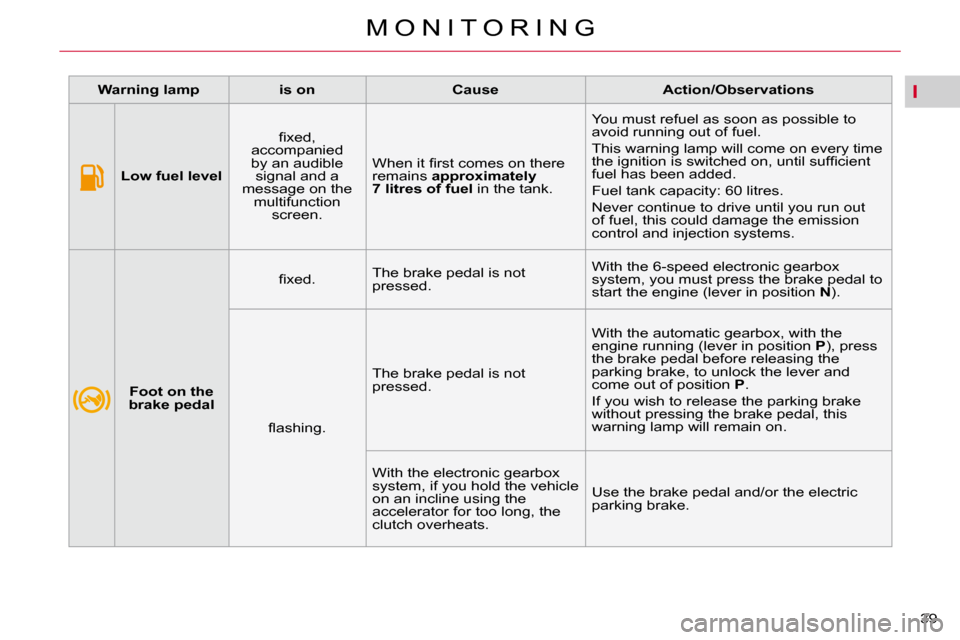

Low fuel level fi x e d ,
accompanied
by an audible signal and a
message on the multifunction screen. W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
7 litres of
fuel in the tank. You must refuel as soon as possible to
avoid running out of fuel.
This warning lamp will come on every time
t h e i g n i t i o n i s s w i t c h e d o n , u n t i l s u f fi c i e n t
fuel has been added.
Fuel tank capacity: 60 litres.
Never continue to drive until you run out
of fuel, this could damage the emission
c o n t r o l a n d i n j e c t i o n s y s t e m s .
Foot on the
brake pedal fi x e d .
The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, you must press the brake pedal to
start the engine (lever in position
N ).
fl a s h i n g . The brake pedal is not
pressed.
With the automatic gearbox, with the
engine running (lever in position
P ), press
the brake pedal before releasing the
parking brake, to unlock the lever and
come out of position P .
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
With the electronic gearbox
system, if you hold the vehicle
on an incline using the
accelerator for too long, the
clutch overheats. Use the brake pedal and/or the electric
parking brake.
Page 36 of 355
I
40M O N I T O R I N G
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not switch off, contact a
CITROËN dealer.
Door(s) open fi x e d i f t h e s p e e d
is below 6 mph (10 km/h).
A door, the boot or the rear
screen is still open. Close the door or boot.
fi x e d a n d
accompanied by
an audible signal if the speed is above 6 mph (10 km/h).
+
Seat belts
not fastened/ unfastened fi x e d . The driver and/or the front/
rear passenger has not
fastened or has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckl
e. The illuminated dots represent the passengers
that have not fastened/unfastened their seat belt.
They come on:
- fi x e d f o r 3 0 a b o u t s e c o n d s o n s t a r t i n g
the vehicle,
- fi x e d f r o m 0 t o 1 2 m p h ( 0 t o 2 0 k m / h ) when driving,
- fl a s h i n g a b o v e 1 2 m p h ( 2 0 k m / h ) , accompanied by an audible signal for
about 120 seconds.
Page 38 of 355
I
42M O N I T O R I N G
Service indicator zero reset
Engine oil level indicator
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the dis-
tance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into ac-
count.
Page 39 of 355
I
42M O N I T O R I N G
Service indicator zero reset
Engine oil level indicator
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the dis-
tance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into ac-
count.
Page 54 of 355
III
56
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended that you
have it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To preserve the sealing of the air
conditioning compressor, operate
the air conditioning at least once a
month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sun-
light the interior temperature is
excessive, air the passenger com-
partment by opening the windows
for a few moments, then close them
again.
The air conditioning operates by
using power from the engine. This
results in a slight increase in fuel
consumption.
Dust filter/Odour filter (active
carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n
accordance with the vehicle's ser-
vicing schedule (see "Maintenance
and Warranty Guide").
Air circulation
A i r v e n t s o n t h e fl o o r u n d e r n e a t h t h e
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.
Air vents
The air vents to the face have grilles
and thumbwheels to adjust the air
fl o w a n d d i r e c t i o n ( u p - d o w n , r i g h t -
left).
The automatic regulation of the air
conditioning in the passenger com-
partment uses a number of sensors
(sunshine sensor, ambient tempera-
ture sensor...) that relieve you of the
need to make frequent adjustments
to the displayed temperature.
Take care not to obstruct the sun-
shine sensor, located on the dash-
board behind the instrument panel.
Sensors
Page 55 of 355
III
57
C O M F O R T
MANUAL AIR CONDITIONING
The air conditioning system oper-
ates with the engine running.
A. DRIVER'S CONTROL PANEL
1. Adjustment of the air fan speed
The air fan adjustment only operates
when the engine is running.
T o a d j u s t t h e a i r fl o w , p r e s s b u t t o n 1 :
t o i n c r e a s e t h e fl o w o f a i r ,
t o d e c r e a s e t h e fl o w o f a i r . T h e l e v e l o f a i r fl o w i s s h o w n b y t h e
progressive lighting of the warning
lamps depicting the fan blades
1 .
B y r e d u c i n g t h e fl o w t o m i n i m u m ,
you deactivate the air conditioning
system (OFF).
To maintain an acceptable level of
comfort in the passenger compart-
ment, you should not leave this
control too long in the OFF position.
2. Adjustment of air distribution
Press button 2 to make the dis-
play run through the different
types of air distribution.
The air distribution chosen
is shown by the lighting of
the corresponding warning
lamps on the display 2 .
3. Mode of adjustment of temperature for the
passenger
Press button 3 to have indepen-
dent passenger control of cabin
air temperature. The warning lamp
goes off.
While the passenger is adjusting tem-
perature, the warning lamp comes on. 4. Air recirculation
This control is for isolating disagree-
able odours or fumes coming from
outside.
Press button 4 to cut off the in-
take of outside air and to acti-
vate recirculation of the air in the
passenger compartment. The
warning lamp comes on.
Avoid the extended use of air re- circulation (risk of deterioration
of air quality and misting).
Press button 4 again to allow the
intake of exterior air. The warning
lamp goes off.
5. Air conditioning
T h e a i r f a n c o n t r o l ( a d j u s t i n g t h e fl o w
of air) has to be activated in order for
air conditioning to be obtained.
Press button 5 . The warning
lamp comes on.
To be effective, the air condi-
tioning should be operated only
with the windows closed.
If your vehicle is not equipped with
air conditioning, you will have the
same control panel but without the
A/C button.
Page 56 of 355
III
58
C O M F O R T
6. Demisting/defrosting the rear screen
This function operates only if the
engine is running.
Press button 6 to activate/de-
activate the electric demisting/
defrosting of the rear screen and
door mirrors. The warning lamp
comes on.
7. Rapid demisting/defrosting of front and rear windows
and door mirrors
Press button 7 . The warning
lamp comes on.
This function simultaneously acti-
vates:
- front demisting/defrosting,
- o p t i m u m fl o w o f a i r ,
- recirculation prohibition,
- demisting/defrosting of door mir- rors and heated rear screen,
- air conditioning, if necessary.
To stop the function, press button 7
again. 8. Adjustment of the fan air
temperature
This control is for adjusting the tem-
perature of the air in the passenger
compartment. It can be used in cold
weather as well as in hot weather, pro-
vided the air conditioning is active.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
Adjustment of temperature
Press button 9 to take control of
the temperature. The warning
lamp comes on.
Rotate button 10 to adjust your
temperature.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
The demisting/defrosting switch-
es off automatically to prevent
excessive consumption of power.
B. PASSENGER'S CONTROL PANEL
Page 57 of 355
III
59
C O M F O R T
DIGITAL AIR CONDITIONING
The air conditioning system oper-
ates with the engine running.
1. Automatic comfort regulation
A press on this button,
c o n fi r m e d b y t h e d i s p l a y o f
the A/C warning lamp and
of AUTO on the screen, pro-
vides automatic control, at the tem-
perature selected, of all the following
5 functions:
- a i r fl o w ,
- passenger compartment tempe- rature, left and right,
- air distribution,
- air conditioning,
- automatic air recirculation. For this facility to operate, it is rec-
ommended that all air vents are kept
open.
Using the
AUTO mode will prevent
the formation of mist inside the
vehicle in cold or humid weather.
When starting from cold, in order to
avoid a rush of cold air, the air fan at-
tains its optimum level progressively. 2. Adjustment of temperature
To display the desired temperature,
press button:
-
- to decrease the temperature,
- + to increase the temperature.
A setting around 21 will provide
an agreeable temperature level.
However, depending on your prefer-
ence, anything between 18 and 24
is quite normal.
For optimum comfort, it is recom-
mended to avoid a difference of set-
tings of more than than 3 between
right and left.
Actual temperatures experienced in
the passenger compartment are de-
pendent on external factors and for
this reason might not be identical to
those displayed.
On entering the vehicle, the inside
temperature may be much colder (or
hotter) than would be comfortable. It
serves no purpose to alter the tem-
perature displayed in an attempt to
attain your preference more rapidly.
The system operates automatically
to correct the difference in tempera-
ture as soon as possible.
Manual resumption of one or more
functions
It is possible to adjust each of the
functions 3 , 4 , 6 and 10 manually.
The display of the "AUTO" function
will then go off.
Resumption by the driver of the
adjustment of passenger com-
partment temperatures (for the
front and rear passengers)
A long press on the "AUTO" but-
ton cancels all personal settings,
including the passenger's tem-
perature, and returns the system
to automatic operation.
A. DRIVER'S CONTROL PANEL
Page 58 of 355
III
60
C O M F O R T
3. Adjustment of air fan speed/Activation of the
"REST" function
t o i n c r e a s e t h e a i r fl o w ,
t o d e c r e a s e t h e a i r fl o w ( t h i s
button also has the "REST"
function).
T h e l e v e l o f a i r fl o w i s i n d i c a t e d o n
t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l i n g
of the fan blades.
If you place the air fan on position 0 ,
the system is deactivated. The air fan
display will be empty, with the indica-
tion OFF.
To allow a degree of comfort
in the passenger compart-
ment while the engine is off,
you can operate the ven-
tilation for a few minutes using the
"REST" function.
When you leave the vehicle, any
passengers present can still have
t h e b e n e fi t o f a i r c i r c u l a t i o n , e v e n
though the engine is not running.
This function is available when
you switch on the ignition as well
as when you stop the engine.
The air conditioning control screens
come on and the symbol represent-
ing the air fan is displayed while the
function is available. This button does not activate the
air conditioning, only the air fans.
While the REST function is active,
t h e a i r fl o w a n d d i s t r i b u t i o n c a n n o t
b e m o d i fi e d .
On switching on the ignition:
- A press on the REST button ac- tivates the function for a period
of a few minutes. Two blades of
t h e f a n w i l l fi l l t o i n d i c a t e t h a t t h e
function is active.
- The function can be deactivated and reactivated during the timed
period.
- At the end of the timed period, the screen will go off. 4. Adjustment of air
distribution
Press button 4 to scroll
through the air distri-
bution settings on the
screen.
The air distribution you have chosen
i s c o n fi r m e d b y t h e c o r r e s p o n d i n g
indicators in the screen.
There are 7 possible adjustments.
A d j u s t m e n t o f a i r fl o w
T o a d j u s t t h e fl o w o f a i r , p r e s s t h e
button:
"REST" function: activation of
ventilation, engine off
On switching off the engine:
- The function can be activated
during a period of 30 seconds.
- A press on the REST button ac- tivates the function for period of
several minutes. The duration
and availability of the function
depends on the state of charge
of the battery. Locking the vehi-
cle has no effect on the function.
- A further press before the end of the period of operation stops the
f u n c t i o n d e fi n i t i v e l y .
