For reasons of safety, the driver should only carry out
operations which require prolonged attention while the
vehicle is stationary.
The pla
yer is compatible with the following formats:
DVD-R, DVD+R, DVD+RW, CD-R, CD-RW, VCD and
SVCD.
Usin
g the AUX1 and AUX2 inputs, this pack permits
the connection of auxiliary systems (camcorder,
games console, etc.).
The audio equipment onl
y plays audio fi les with the
extension ".mp3" with a sampling rate of 32 KHz to
48 KHz.

All of the functions of the video pack are described in
the separate manual supplied with your vehicle.
VIDEO PACK

DVD/AUDIO CD/MP3 PLAYER

01 First steps

02 Configuration

03 Basic functions

04 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.


CONTENTS
330
332
333
335
336

330
01
12
89
6
3
3
4
1
7
52
FIRST STEPS






MONITORS AND DVD/CD PLAYER
INFRA-RED
HEADPHONES
The monitors are located inthe tops of the front seats.
The DVD/CD pla
yer is
located on the centre console.
1. Monitor positioning handles.
2. Folding and pivoting TFT/LCD screen.
3. Infra-red cell.
4. DVD/CD player opening provided for thedisc.
5. On/Off.
DVD/CD eject.

6. LED:
On green: player in operation.
Flashing: receiving information or ejectingthe disc.


7. AV1 AUDIO input.


8. AV2 AUDIO input.


9. VIDEO input.




1. 2 channel stereo.


2. On/Off.


3. Volume adjustment.



The headphones are supplied with the video pack.

The presence of an object between the infra-red cell on the monitor and the headphones may result in a reduction in the sound quality.
Supply:2 batteries R03/AAA 1.5 V.

331
99
7788
11111010122
133
144
15555
44166
22
11188
17733
66
01FIRST STEPS






REMOTE CONTROL
1. Power On/Off, Eject.
2.
Selection of the source from DVD, audio CD and AUX.
3.
Change screen.
4. DVD screen adjustments
(brightness, contrast, …).
5. Selection confi rmation.
6. Fast forward/backward.
In th
e menus: move the cursor
left/right, up/down.
7. Volume increase
/decrease.
8. Pla
y/Pause.
9. Next chapter.
10.
SHIFT: activation of the yellow buttons.
11.
Selection of the audio
language.
With
SHIFT: selection of thesubtitle language. 12. Chan
ge chapter.
With SHIFT: chan
ge title.
13. Previous chapter.
14.
Stop play.
15. RETURN:
Short press: return to
the previous menu.
Lon
g press: return to the main menu.
16. Displa
y the main DVD menu.
17. Z
OOM: Selection of different
image formats.
18. Displa
y/mask the screen.
Power:
2 batteries R03/AAA 1.5 V.
Numeric keypad

332
02
1
2
3
5
4
1
2
3
CONFIGURATION






SETUP MENU


The "Settings" menu appears on the screen:
"Video settings", "Languages", "Users", "Defaultsettings".

Select the options using the  and
buttons.
Press the
SETUP button.

Press the
OK button to confi rm your choice.
The "Video settings" menu appears on the screen:"Brightness", "Contrast", "Colour", "Back-lighting".
Select the "Video settings" menu using the and buttons. Press the
SETUP button. The "Settings" menu
appears on the screen.
Press the
OK button to confi rm your choice.
The settin
g is saved. Select the input required usin
g theand
buttons.


VIDEO SETTINGS

333
31
2
BASIC FUNCTIONS

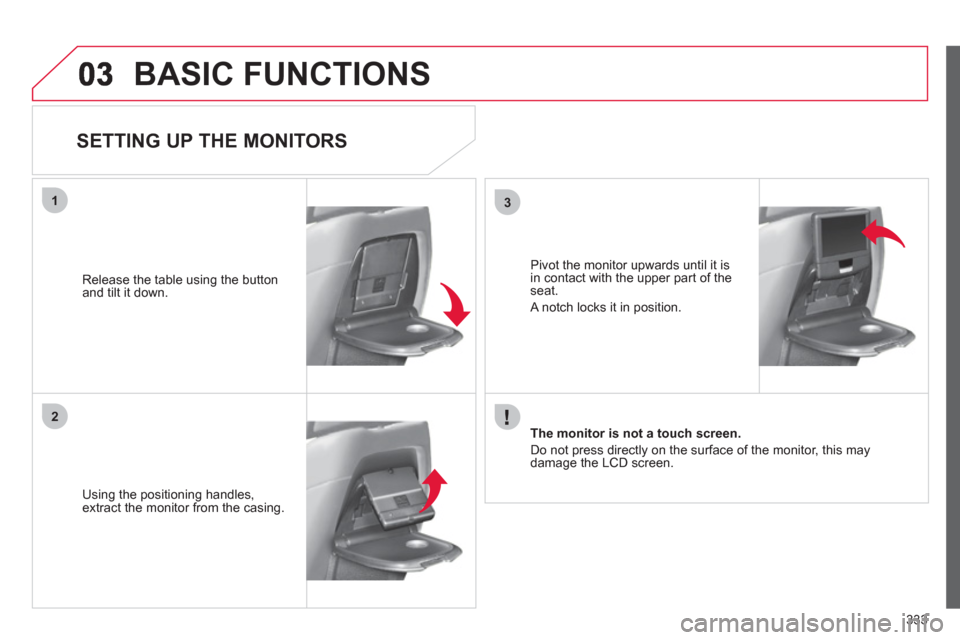

SETTING UP THE MONITORS


Using the positioning handles,extract the monitor from the casing.
Release the table usin
g the button and tilt it down.
The monitor is not a touch screen.
Do not press directly on the surface of the monitor, this may
damage the LCD screen. Pivot the monitor upwards until it is
in contact with the upper part o
f theseat.
A notch locks it in
position.

334
03
1
2
3
4
1
2
BASIC FUNCTIONS

VIDEO PACK ON/OFF


Press the POWER/EJECT button on the DVD/CDplayer or on the remote control.
To switch on the s
ystem, switch on the vehicle's
ignition.

When the ignition is o
ff, the video pack will switch off automatically
after approximately ten minutes to avoid discharging the battery.
Play begins automatically. To load a disc, insert it care
fully, printed face
uppermost, until it is fully inserted.
Remove the disc care
fully.
Press the P
OWER/EJECT button on the DVD/CD
player or remote control.

LOADING/EJECTING A DVD/CD

335
04SCREEN MENU MAP






SETTINGS 1

LANGUAGES

SUBTITLES

AUDIO
1
2


SETTINGS



DEFAULT SETTINGS

YES
ARE YOU SURE?
1
2
3
NO
3
2
2


USERS


USER 2
USER 1
1
2


USER 3

2
2


VIDEO SETTINGS
CONTRAST BRIGHTNESS
1
2
COLOUR
BACK-LIGHTING
2
2
2

336
FREQUENTLY ASKED QUESTIONS



The table below groups together the answers to the most frequently asked questions concerning the video pack.
QUESTIONSOLUTION

The player does not start.

- Check the vehicle's fuses.

The player does not react to pressing of theremote control buttons.

- The remote control batteries are fl at. Replace them.


- The remote control sensor is hampered by objects or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth.


- The video pack has overheated. Let it cool for a few minutes.

Image or sound interference while playinga DVD. The image remains frozen during play.

The player cannot read the disc. The disc may be damaged or dirty.
The player does not play the disc inserted.

- The format of the disc does not correspond to the specifi cations of the player.


- If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allowthe humidity to evaporate.

When a DVD/VCD/SVCD is played,the image is of poor quality.

- Remove the disc.


- Using the SETUP button, adjust the brightness and insert the disc again.

No image is displayed on the monitor.

- Press the SOURCE button until the image appears.


- Press the SCREEN ON/OFF button.

There is no sound in the audio headphones.

- Increase the volume using the VOLUME +/- buttons on the remote control or using the dial onthe headphones.


- Check that the correct channel is selected on the headphones.


- Press the SOURCE button until the sound arrives.


- Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc.

- Insert another disc.


- Switch the system off and then on again.
