ignition Citroen C4 PICASSO RHD 2013 1.G Owner's Guide

87
3
Comfort
System which registers the electrical settings of the driver's seat and door mirrors. It enables you to store and recall two positions using the buttons on the side of the driver's seat.
Storing driving positions
Storing a position
Usin
g buttons M / 1 / 2
) Switch on the ignition. )
Adjust your seat and the door mirrors. )
Press button M
, then press button 1or 2
within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previousposition.

Recalling a stored position

I
gnition on or engine running
)
Press button 1or 2to recall the corresponding position.
An audible signal confirms that adjustment
is complete.
You can interrupt the current movement b
ypressing button M, 1
or 2
or by using one of theseat controls.
A stored position cannot be recalled while driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

101
3
Comfort





Mirrors
Adjustment
)
Move control A
to the right or to the left to select the corresponding mirror. )
Move control B
in all four directions to
adjust.
) Return control Ato the central position. Each fitted with an ad
justable mirror glass providing the lateral rear ward vision necessaryfor overtaking or parking. They can also be folded for parking in confined spaces.


Demisting - Defrosting


Door mirrors
Demisting-defrosting of the door
mirrors operates with the enginerunning, by switching on the heated rear screen (refer to the "Rear screen
demist-defrost" section).
The objects observed are, in reality,
closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.




Folding
)
From outside: lock the vehicle using the electronic key or the Keyless Entry and Starting system. )
From inside: with the ignition on, pull thecontrol Ain the central position rearwards.
If the mirrors are folded using control A,they will not unfold when the vehicle isunlocked. Pull again on control A.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or aqualified workshop.
)
From outside: unlock the vehicle using the electronic key or the Keyless Entry and Starting system. )
From inside: with the ignition on, pull thecontrol Ain the central position rearwards.
Unfolding
If necessary, it is possible to fold the mirrors manually.

109
3
Comfort

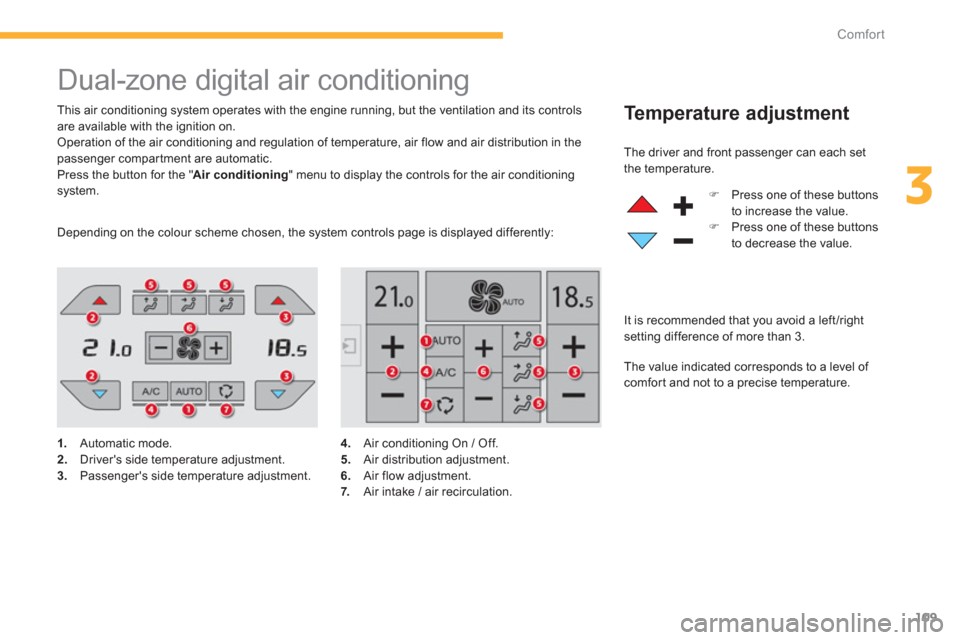

Dual-zone digital air conditioning

This air conditioning system operates with the engine running, but the ventilation and its controls
are available with the ignition on.
Operation of the air conditioning and regulation of temperature, air flow and air distribution in the passenger compartment are automatic.
Press the button for the " Air conditioning" menu to display the controls for the air conditioningsystem.


Temperature adjustment
1.
Automatic mode. 2.Driver's side temperature adjustment.3.Passenger's side temperature adjustment. The driver and
front passenger can each set
t
he temperature.
)Press one of these buttons
to increase the value.
)Press one of these buttons
to decrease the value.

The value indicated corresponds to a level of
comfor t and not to a precise temperature.
It is recommended that
you avoid a left /right setting difference of more than 3.
Dependin
g on the colour scheme chosen, the system controls page is displayed differently:
4.
Air conditioning On / Off.
5. Air distribution adjustment.6.
Air flow adjustment. 7.
Air intake / air recirculation.

114
Comfort
Front Demist - Defrost

)
Press this button to demist or defrost the windscreen and side
windows as quickly as possible.
The indicator lamp in the button
comes on.
With Stop & Star t, when demisting hasbeen activated, the STOP mode is notavailable. The s
ystem automatically manages the air
conditioning, air flow and air intake, and provides optimum distribution towards the
windscreen and side windows. )To switch it off press this button, the
indicator lamp goes off.


Ventilation with ignition on
function
With the ignition on, you can use the
ventilation system and have access to the " Airconditioning " menu to adjust the air flow and air distribution in the passenger compartment.
This function is available for a few minutes,
dependin
g on the state of charge of the battery
of your vehicle.
Thi
s function does not activate the air conditioning.
You can make use of the residual heat in theengine to warm the passenger compar tment
using the temperature setting buttons.

140
Driving














Ignition on without
starting


With the ignition on, the system goes into energy economy mode whennecessary to maintain the state of charge of the battery. With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
)
Press the "START/STOP" button,the instrument panel comes onbut the engine does not star t.
)Press the button again to switch off the ignition and so allow the vehicle to belocked.












Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informedby a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.

142
Driving
Label on door panel
Before leaving the vehicle, check thatparking brake is applied: the indicator lamps in the instrument panel andthe control lever must be on fixed, not flashing.
If the parking brake is not applied, there is an audible signal and a message isdisplayed on opening the driver's door.


Never leave a child alone inside thevehicle with the ignition on, as theycould release the parking brake.
When towing, parking on a steepslope, or if your vehicle is heavilyladen, turn the wheels towards the kerb and engage a gear (with a manual or electronic gearbox) or place the gear selector in position P
with an automaticgearbox).For towing, you vehicle is approved for parking on slopes of up to 12%.


Manual operation


Application of of the parking brake
is confirmed by illumination of the
brake indicator lamp and the Pindicator lamp in the control lever,
accompanied by the display of the
message "Parking brake applied".

Manual release

With the ignition on or the engine running, to
release the parking brake: )press the brake pedal, )while maintaining pressure on the brakepedal, briefly push the control lever.
The complete release o
f the parking brake is confirmed by the brake indicator lamp and thePindicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".


If you push the control lever withoutpressing the brake pedal, the parkingbrake will not be released and a message is displayed.


Manual application

With the vehicle stationary: briefly pull the control lever.

Confirmation of the instruction is signaled by
flashing of the indicator lamp in the control
lever.

144
Driving
Special cases
Application of of the parking brake
is confirmed by illumination of the brake indicator lamp and the Pindicator lamp in the control lever,
accompanied by the display of the
message "Parking brake applied". The complete release of the parkin
gbrake is confirmed by the brake
indicator lamp and the Pindicator lamp in the control lever going off,
accompanied by the display of the
message "Parking brake released".
In some situations, you may need to operate
the parking brake manually.
Immobilisation of the vehicle
with the engine running
To immobilise the vehicle with the enginerunning, briefly pull the control lever.
Parking the vehicle with the brake released
In very cold conditions, it is recommended that the parking brakenot be applied (risk of freezing).
To i m m o b i l i s e your vehicle, engage a gear or fit a chock to one of the wheels.
Immobilisation of the vehicle with the
parking brake released
) Switch off the engine.
Illumination of the warning lamps in the
instrument panel and control lever confirm
application of the parkin
g brake, ) Switch on the ignition again, withoutstarting the engine.)
Release the parking brake manually by
pushing the control lever while keepingyour foot on the brake.
)Switch off the ignition.

154
Driving








Automatic gearbox
This gearbox offers two driving modes.
- automatedmode for automatic management of the gears by the gearbox,
without any action on the par t of the driver,-manualmode for sequential gear changingby the driver using the steering mountedpaddles.
P
.Park.


- Immobilisation of the vehicle, parking brake
applied or released.

- Starting the engine.R.
Reverse.


- Reversing, vehicle stationary and engine at
i
dle.
N.Neutral.


- Immobilisation of the vehicle, parking brake
applied.

- Startin
g the engine.D.Automatic operation. M.Manual operation with sequential changingof the six gears.


Gear selector lever


To select position P
, move the gear Pselector to the highest position (towards R), then push it for wards and Rthen to the left. Only engage it when the vehicle is at acomplete stop. In this position, the frontwheels are locked. Ensure that the gear selector is correctly positioned.

To move the gear selector, switch onthe ignition or star t the engine.
If the battery is not sufficiently charged, it is not possible to move the gear selector.


To come out of position P
, move the Pgear selector to the right to the desired position, while keeping your foot on thebrake pedal.


It is possible to change from one modeto the other at any time.
With the automated mode, you cantemporarily take control of the gear changes at any time.

158
Driving
Before switching off the engine, you canchange to position P or Nto be in neutral.
In either case, appl
y the parking brake to
immobilise the vehicle, unless it is programmed
in automatic mode.
If the lever is not in position P, on opening the Pdriver's door or approximately 45 seconds after switching off the ignition there is an audible signal and a message appears: )move the gear selector to position P; the audible signal stops and the message
disappears.

Operating fault
Whenever parking, you must apply the parking
brake to immobilise the vehicle, if automatic
operation has been deactivated.
Parking the vehicle

In all circumstances, ensure that thegear selector is in position Pbefore leaving your vehicle.In th
e event of a fault with the
gearbox, the ser vice warning lamp
comes on in the instrument panel, accompanied by a message and anaudible signal.

In this case the gearbox goes into back-up
mode and stays in 3rdgear. You may then feel
a noticeable jolt when going from P to Rand from N
to R
. This jolt does not present any risk
to the gearbox.
Do not exceed 60 mph (10 0 km/h) while also
observing legal speed limits.
Have it checked by a CITROËN dealer or aqualified workshop.

160
Driving














Stop & Start
Operation
Going into engine STOP mode
The "ECO"
warning lamp comes onin the instrument panel and the enginegoes into standby automatically:
-with a manual gearbox
, at speeds below
12 mph (20 km/h), when you place the gear lever in neutral, and you release the clutch pedal, - with an electronic gearbox,at speeds
below 5 mph (8 km/h), when you press the
brake pedal or place the gear selector lever in position N ,
- with an automatic gearbox,
with the
vehicle stationary, when you press the brake pedal or place the gear selector lever in position N.If your vehicle is fitted with the system, a timecounter calculates the sum of the periods in STOP mode during a journey. It resets itself to
zero every time the ignition is switched on with
the STA R T/STOP button.
Never refuel with the engine in STOPmode; you must switch off the ignition with the STA R T/STOP button.
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...


Special cases: STOP mode not
available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded
6 mph(10 km/h) since the last engine start usingthe START/STOP button,

- the electric parking brake is applied or being applied,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demistin
g is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.

In this case, the "ECO"
warning lampflashes for a few seconds then goesoff.This operation is per fectly normal.
The Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
