bonnet Citroen C4 PICASSO RHD 2013 1.G Owner's Manual

Contents
2
Hazard warning lamps 222
Horn 222
Emergency or assistance call 223
Warning triangle 223
Tyre under-infl ation detection 224
ESC system 227
Seat belts 230
Airbags 235
Child seats 241
ISOFIX mountings 252
Child lock 259
Safety
Te m p o r a ry puncture repair kit 260
Changing a wheel 268
Snow chains 278
Changing a bulb 279
Changing a fuse 288
12 V battery 295
Energy economy mode 298
Changing a wiper blade 299
To w i ng the vehicle 300
To w i ng a trailer 302
Roof bars 304
Very cold climate screen 306
Accessories 307
Practical information
Bonnet 310
Petrol engines 311
Diesel engines 312
Fuel 313
Misfuel prevention (Diesel) 315
Running out of fuel (Diesel) 317
Checking levels 318
Checks 321
Checks
Petrol engines 323
Petrol weights 324
Diesel en
gines 325
Diesel weights 328
Dimensions 331
Identifi cation markings 333
Technical data
Emergency or assistance 335
Touch screen tablet 337
Audio and telematics
Visual search
Lighting controls 202
Automatic illumination of headlamps 207
Automatic headlamp dipping 208
Daytime running lamps 210
Headlamp adjustment 211
Directional lighting 213
Wiper controls 214
Screenwash 216
Automatic rain sensitive wipers 217
Courtesy lamps 219
Panoramic sunroof 220
Interior mood lighting 221
Visibility
Alphabetical index

10
Familiarisation
Interior
1.
Bonnet release lever.2.
Fusebox.3.
Steering wheel adjustment controls. 4.
Door mirror controls.Electric window controls.5.
Side adjustable air vents.Side window demisting vents.
6.Quar ter light demisting windows.
7
. Driver's airbag.
Horn. 8.Courtesy lamp and map reading lamps. 9. Panoramic glass roof panel blind control. 10.CITROËN Localised Emergency Call - CITROËN Localised Assistance Call(depending on country of sale).11.
Windscreen demisting/defrosting vent.12.Scented air freshener.13.Central adjustable air vents.14.Passenger's airbag. 15.
Glove box.16.
Central storage.
Audio sockets, 12V accessory socket (120 W max), 230V socket (120 W max).17.Storage below steering wheel (handbookpack). 18.Gear lever (manual gearbox). 19. Console (fixed/removable).
20.
Storage or rear multi-media.
Rear 12 V accessory socket (120 W max.).

1
45
Monitoring
StateCauseAction / Observations
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message, such as:


- opening of a door, the boot or bonnet,

- low engine oil level,

- low screenwash/headlamp wash fluid level,

-
discharged remote control battery,

- low tyre pressures,

- saturation of the par ticle emission filter (PEF) on
Diesel vehicles.
For more information on the PEF, refer to the
"Checks - par ticle emissions filter" section.
For any other faults, contact a CITROËN dealer or a qualified workshop.

fix
ed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a CITROËN dealer or a qualified workshop.

79
2
Access
For all work on the alarm system,contact a CITROËN dealer or a qualified workshop.





Alarm System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:


- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...




- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.
Self-protection function
The system checks for the
disconnection of any of its components. The alarm is triggered if the battery,the button or the wires of the siren aredisconnected or damaged.


Locking the vehicle with full
alarm system

Activation


If an opening (door, boot, bonnet...) is not closed fully, the vehicle is not locked but theexterior perimeter monitoring will be activated
after a delay of 45 seconds, at the same time
as the interior volumetric monitoring.
)Lock the vehicle using the remote control.
)Switch off the ignition and get out of the vehicle.
or )
Lock the vehicle using the "Keyless Entry
and Starting" system.


The monitorin
g system is active: the indicator
lamp in the button flashes once per second and
th
e the direction indicators come on for about
2 seconds.
After an instruction to lock the vehicle lockedusing the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring
after 45 seconds.

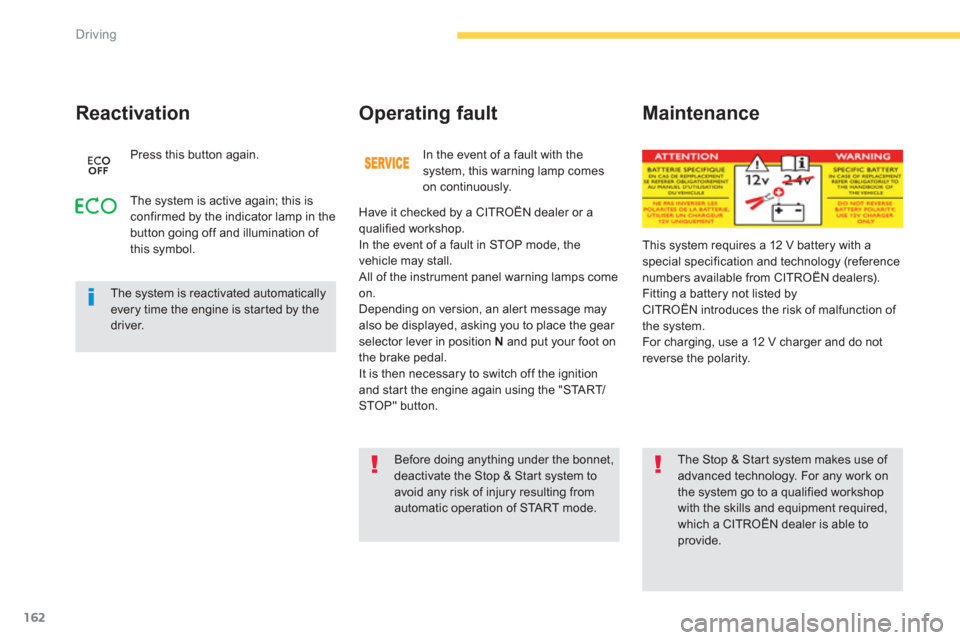

162
Driving

The system is reactivated automaticallyevery time the engine is star ted by the driver.

Reactivation

Press this button again.


Operating fault

Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall.
All of the instrument panel warning lamps come on.
Depending on version, an alert message may
also be displa
yed, asking you to place the gear
selector lever in position Nand put your foot on
the brake pedal.
It is then necessar
y to switch off the ignition
and star t the engine again using the "START/STOP" button.In th
e event of a fault with the system, this warning lamp comes
on continuously.
The system is active again; this is confirmed by the indicator lamp in thebutton going off and illumination of
this symbol.
The Stop & Start system makes use of advanced technology. For any work onthe system go to a qualified workshop with the skills and equipment required, which a CITROËN dealer is able toprovide.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting fromautomatic operation of STA R T m o d e .


Maintenance

This system requires a 12 V battery with a special specification and technology (reference numbers available from CITROËN dealers).
Fitting a battery not listed by CITROËN introduces the risk of malfunction of
the system.
For charging, use a 12 V charger and do not
reverse the polarity.

289
7
Practical information
CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes.


Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.
Configurations
The type of electrical system of the vehicle depends on its level of equipment.
To i d e n t i fy the type of electrical system on your vehicle, open the bonnet: the presence of anadditional fusebox in front of the battery indicates that it is type 2.
The type 1 electrical system does not have any fuses in front of the battery.

295
7
Practical information




12 V battery
The battery is located under the bonnet.
For access to the (+) terminal: )release the bonnet using the interior lever,
then the exterior safety catch, )raise the bonnet and secure it with its stay, )lift the plastic cover for access to the (+)
terminal.
Access to the battery

Procedure for star ting the engine using another battery or charging a discharged battery.
The presence of this label, in particular with the Stop & Start system, indicatesthe use of a 12 V lead-acid battery withspecial technology and specification;the involvement of a CITROËN dealer or a qualified workshop is essential when replacing or disconnecting the battery.

After refitting the battery, the Stop & Start system will only be active after acontinuous period of immobilisation of thevehicle, a period which depends on theclimatic conditions and the state of chargeof the battery (up to about 8 hours).
When your vehicle's battery is discharged, the engine can be star ted using a slave battery (external or on another vehicle) and jump leadcables.
Starting using another
batter
y
) Connect the red cable to the positive
terminal (+) of the flat battery A, then to the
positive terminal (+) of the slave battery B.) Connect one end of the green or blackcable to the negative terminal (-) of the slave battery B
(or ear th point on the other
vehicle).) Connect the other end of the green or black cable to the ear th point Con the broken
down vehicle (or on the engine mounting). ) Start the engine of the vehicle with the good battery and leave it running for a few minutes.


First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery. Do not try to star t the engine byconnecting a battery charger.
Do not disconnect the (+) terminal when the engine is running.
Before doing any work
Immobilise the vehicle: apply the parking brake, put the gearbox in neutral, then switch off the ignition.Check that all electrical equipment isswitched off.

310
Checks











Bonnet
Open the left hand front door.


Do not open the bonnet under verywindy conditions.When the engine is hot, handle the exterior safety catch and the stay with care (risk of burns), using the protected area.
)
Lift the safety catch and raise the bonnet.

)Unclip the stay from its housing and place it
in the support slot to hold the bonnet open.

Opening
)Pull the release lever, located at the bottom
of the door aper ture, towards you.
Before doing anything under the bonnet,switch off the Stop & Start system toavoid any risk of injury resulting from anautomatic change to START mode.
The cooling fan may star t after switching off the engine: take care with ar ticles and clothing that might become caught by the fan blades.


Closing
)Take the stay out of its suppor t slot. )Clip the stay back into its housing. )Lower the bonnet and release it at the end of its travel. )Pull on the bonnet to check that it haslatched correctly.
When the bonnet is open, take care not to damage the safety catch.

317
8
Checks











Running out of fuel (Diesel)

On vehicle fitted with HDi engines, the fuel system must be primed if you run out of fuel;
refer to the corresponding engine compar tment
view.
1.6 litre HDi engine
)
Fill the fuel tank with at least five litres of diesel.
)
Open the bonnet.)
If necessary, unclip the styling cover for
access to the priming pump.) Squeeze and release the priming pumprepeatedly until resistance is felt (there may be resistance at the first press). )
Operate the star ter until the engine starts(if the engine does not star t at the first
attempt, wait around 15 seconds before
tr
ying again). ) If the engine does not star t after a few
attempts, operate the priming pump again
then star t the engine.) Clip the styling cover back in place. )
Close the bonnet.


If the tank on your vehicle is fitted witha misfuel prevention device, refer to the"Misfuel prevention (Diesel)" section.


If the engine does not star t first time, don't keep trying but star t the procedureagain from the beginning.

318
Checks






Checking levels


Ta k e c a r e w h e n w o r k i ng under the bonnet, as certain areas of the engine may be extremelyhot (risk of burns) and the cooling fan could star t at any time (even with the ignition off).
Oil level

The check is carried out either when
the ignition is switched on using theoil level indicator in the instrument
panel, or using the dipstick.
Engine oil change

Refer to the maintenance and warranty guidefor details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer'srecommendations.
Check all of these levels re
gularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Dipstick

There are two marks on the dipstick:
A= maximum
If you fill past this mark, contact a CITROËN dealer or a qualified workshop. B= minimum
Top up the level through the
oil filler orifice, using thecorrect grade of oil for your engine. The level must never be below this mark.
It will onl
y be correct if the vehicle is on level ground and the engine has been off for more
than 30 minutes.It is normal to top up the oil level between
two ser vices (or oil changes). CITROËNrecommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
After topping up the oil, the check whenswitching on the ignition with the oil level
indicator in the instrument panel is not valid
durin
g the 30 minutes after topping up.
