Page 94 of 316
4
ACCESS
92

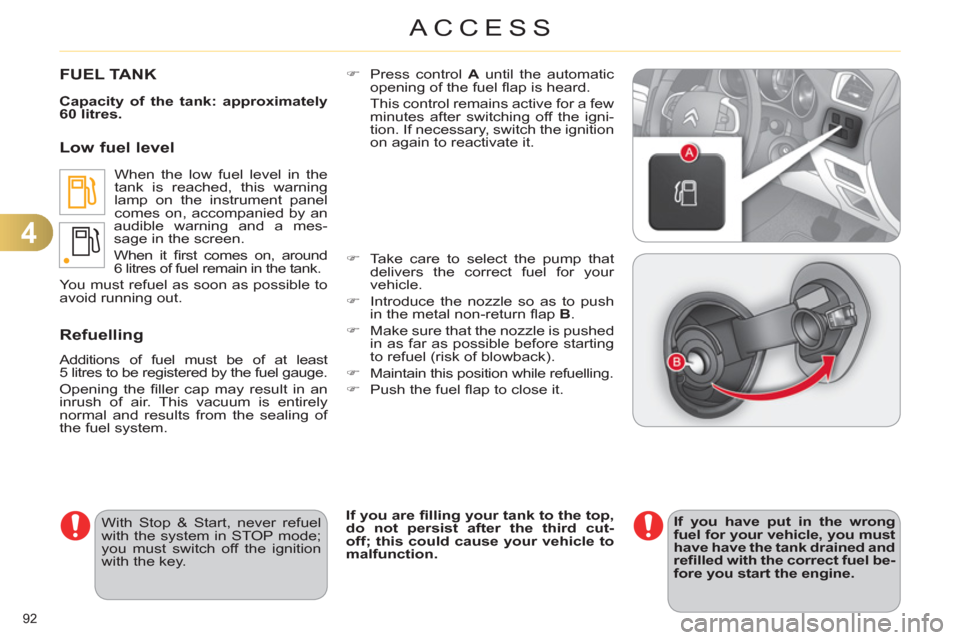

FUEL TANK
Capacity of the tank: approximately
60 litres.
When the low fuel level in the
tank is reached, this warning
lamp on the instrument panel
comes on, accompanied by an
audible warning and a mes-
sage in the screen.
When it fi rst comes on, around
6 litres of fuel remain in the tank.
You must refuel as soon as possible to
avoid running out.
Low fuel level
Refuellin
g
Additions of fuel must be of at least
5 litres to be registered by the fuel gauge.
Opening the fi ller cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.
If you have put in the wrong
fuel for your vehicle, you must
have have the tank drained and
refi lled with the correct fuel be-
fore you start the engine.
)
Press control A
until the automatic
opening of the fuel fl ap is heard.
This control remains active for a few
minutes after switching off the igni-
tion. If necessary, switch the ignition
on again to reactivate it.
If you are fi lling your tank to the top,
do not persist after the third cut-
off; this could cause your vehicle to
malfunction.
)
Take care to select the pump that
delivers the correct fuel for your
vehicle.
)
Introduce the nozzle so as to push
in the metal non-return fl ap B.
)
Make sure that the nozzle is pushed
in as far as possible before starting
to refuel (risk of blowback).
)
Maintain this position while refuelling.
)
Push the fuel fl ap to close it.
With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.
Page 95 of 316
4
ACCESS
93

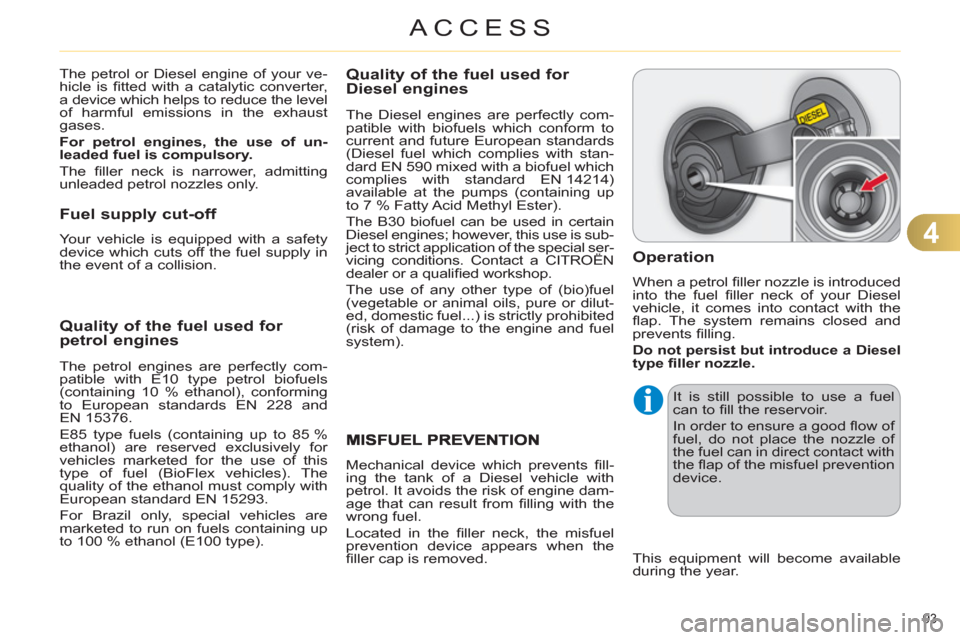

Quality of the fuel used for petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use is sub-
ject to strict application of the special ser-
vicing conditions. Contact a CITROËN
dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
It is still possible to use a fuel
can to fi ll the reservoir.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device.
This equipment will become available
during the year. The petrol or Diesel engine of your ve-
hicle is fi tted with a catalytic converter,
a device which helps to reduce the level
of harmful emissions in the exhaust
gases.
For petrol engines, the use of un-
leaded fuel is compulsory.
The fi ller neck is narrower, admitting
unleaded petrol nozzles only.
Fuel supply cut-off
Your vehicle is equipped with a safety
device which cuts off the fuel supply in
the event of a collision.
Page 173 of 316
10
171

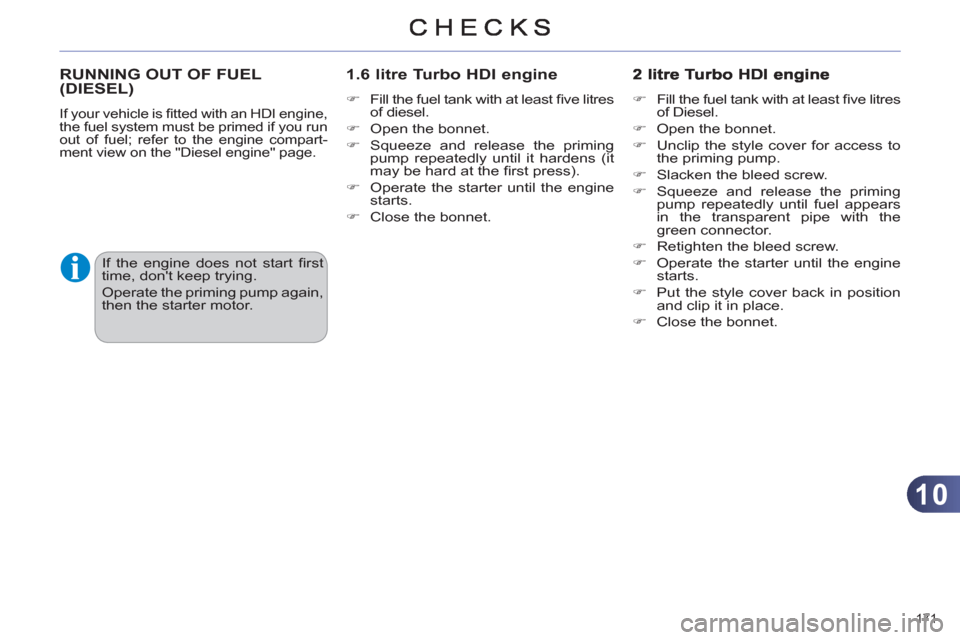

RUNNING OUT OF FUEL(DIESEL)
If your vehicle is fi tted with an HDI engine,
the fuel system must be primed if you run
out of fuel; refer to the engine compart-
ment view on the "Diesel engine" page.
1.6 litre Turbo HDI engine
)
Fill the fuel tank with at least fi ve litres
of diesel.
)
Open the bonnet.
)
Squeeze and release the priming
pump repeatedly until it hardens (it
may be hard at the fi rst press).
)
Operate the starter until the engine
starts.
)
Close the bonnet.
)
Fill the fuel tank with at least fi ve litres
of Diesel.
)
Open the bonnet.
)
Unclip the style cover for access to
the priming pump.
)
Slacken the bleed screw.
)
Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe with the
green connector.
)
Retighten the bleed screw.
)
Operate the starter until the engine
starts.
)
Put the style cover back in position
and clip it in place.
)
Close the bonnet.
If the engine does not start fi rst
time, don't keep trying.
Operate the priming pump again,
then the starter motor.
Page 175 of 316
10
173
*
According to engine.
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.
1.
Power steering reservoir.
2.
Screenwash and headlamp wash
reservoir.
3.
Coolant reservoir.
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil dipstick.
9.
Engine oil fi ller cap.
10.
Priming pump * .
11 .
Bleed screw * .
