17
FAMILIARISATION
MONITORING

Instrument panels
Warning lamps Central switch panel



A.
With the ignition on, the bars indi-
cate the level of fuel remaining.

B.

With the engine running, its associated
low level warning lamp should go
off.

C.
With the ignition on, the oil level
indicator should show for a few sec-
onds that the level is OK or correct,
depending on version.



27


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.



32


A.
Make an emergency call.

130, 215

B.
Access to CITROËN services.

130, 215


C.
Hazard warning.



126

D.
Central locking.



83

E.
Black panel (black screen).



48
If the levels are not correct, top up the
levels which are low. If warning lamps remain on, refer to the
relevant page.

1
MONITORING
27

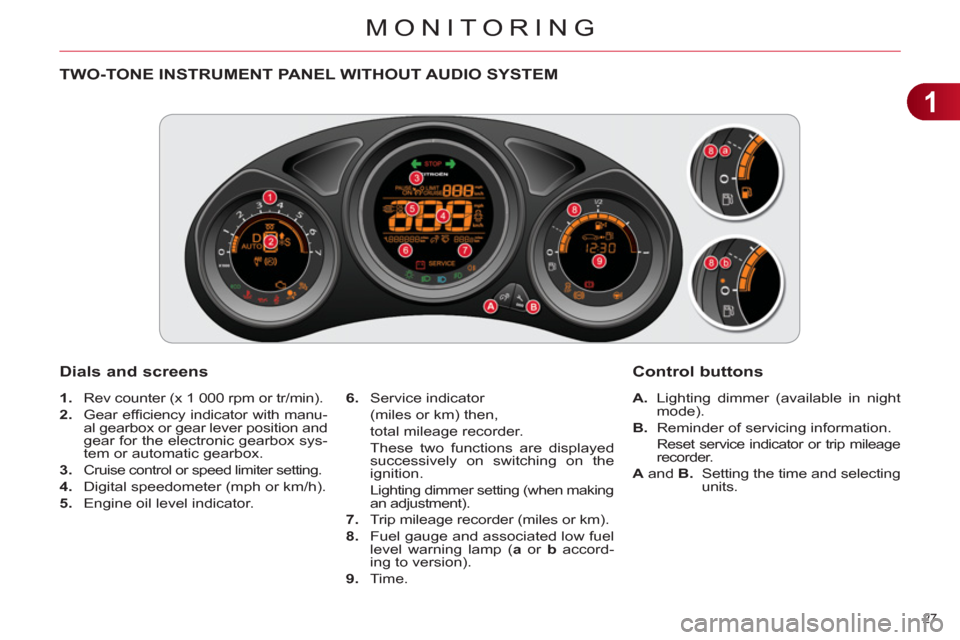

TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with manu-
al gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.

Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information.
Reset service indicator or trip mileage
recorder.

A
and B.
Setting the time and selecting
units.

1
28

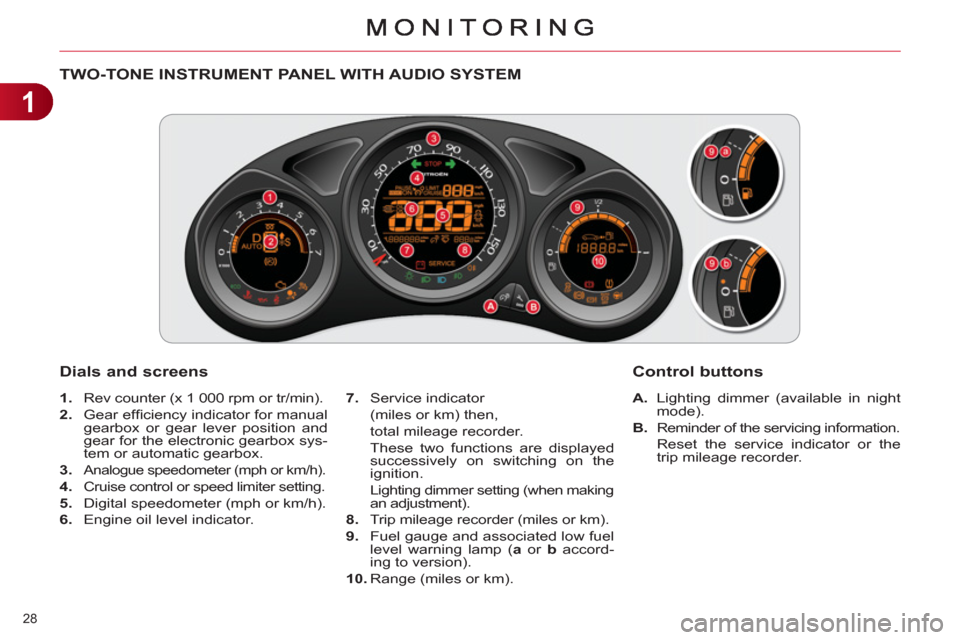

TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).

Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator for manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.

1
29












CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with man-
ual gearbox or gear lever position
and gear for the electronic gearbox
system or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation
of the background colour of the
screens.

C.
Lighting dimmer (available in night
mode).

D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.



Dials and screens


6.
Engine oil level indicator.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp.

10.
Range (miles or km).

Control buttons

1
30
CUSTOMISABLE COLOUR INSTRUMENT PANEL ASSOCIATED WITH THE SATELLITE NAVIGATION SYSTEM


1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Speedometer (mph or km/h).


Dials and screens


4.
Central colour screen associated
with the satellite navigation system.

5.
Fuel gauge and associated low fuel
level warning lamp.

6.
Trip mileage recorder (miles or km).

7.
Service spanner (if a service is due
or missed),
total mileage recorder.
(miles or km)


A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation
of the background colour of the
screens.

C.
Lighting dimmer (in night mode).

D.
Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset service indicator or trip mileage
recorder.

Control buttons

1
43
Engine oil level indicator
The vehicle must be on level
ground and the engine must
have been off for more than
30 minutes for this level check to
be accurate.
Oil level correct
This is indicated by the fl ashing of
"OIL"
or the display of a specifi c mes-
sage in the instrument panel, coupled
with the service warning lamp and ac-
companied by an audible signal.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to avoid damage to the
engine.
Oil level indicator error

Dipstick
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
Oil level incorrect This is indicated by the fl ashing of
"OIL--"
or the display of a specifi c mes-
sage in the instrument panel. Contact a
CITROËN or a qualifi ed workshop.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of dam-
age to the engine),

- B
= min; top up the level
via the oil fi ller cap, us-
ing the correct grade of
oil for your engine.

This information is displayed for a few
seconds when the ignition is switched
on, at the same time as the service in-
formation.

1
MONITORING
44
Service indicator
This information is displayed for a few
seconds after switching on the igni-
tion. It informs the driver when the next
service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last service indica-
tor zero reset. It is determined by two
parameters:


- the distance travelled,

- the time elapsed since the last service.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears in the in-
strument panel central screen.

Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line or a spe-
cifi c message in the instrument panel
central screen indicates the distance re-
maining before the next service is due.

For example:
1 700 miles (2 800 km)
remain before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is
switched on, the spanner goes off
; the
distance recorder resumes its normal
operation. The screen then indicates
the total and trip distances. A few seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on
to indicate that a
service must be carried out soon.

1
MONITORING
45

Service overdue
For a few seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be car-
ried out as soon as possible.

Example:
the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the screen indicates:
A few seconds after the ignition is
switched on, the distance recorder re-
sumes its normal operation. The span-
ner remains on
.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.







Service indicator zero reset
This operation cannot be car-
ried out while a reminder of the
servicing information is being
displayed.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be registered.

Recalling the service information
You can recall the service information
at any time.


)
Briefl y press the ".../000"
trip dis-
tance recorder zero reset button.
The service information is displayed
for a few seconds, in the total distance
recorder line or in the instrument pan-
el central colour screen, according to
version.

After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is
as follows:


)
switch off the ignition,

)
press and hold the ".../000"
trip dis-
tance recorder zero reset button,

)
switch on the ignition; the distance re-
corder display begins a countdown,

)
when the screen indicates "=/0"
and
the spanner disappears, release the
button.

1
MONITORING
46
Manual test in the central colour screen associated with
the satellite navigation system
This function allows you to check the
status of the vehicle systems (reminder
of the "activated"/"deactivated" status
of the confi gurable functions) and to
display the alerts log.


)
With the engine running, to start a
manual test, briefl y press the ".../000"

button on the instrument panel. The following information appears suc-
cessively in the instrument panel cen-
tral colour screen:


- engine oil level indicator (see corre-
sponding section),

- service indicator (see corresponding
section),

- under-infl ation detection (if your ve-
hicle is fi tted with this system; see
the "Safety" section),

- current warnings and alert messages,
if any (see corresponding section
for the warning lamp or system con-
cerned),

- status of confi gurable functions (see
"Multifunction screens").
This information also appears every
time the ignition is switched on (au-
tomatic test).

4
ACCESS
85
ALARM*
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring.


Self-protection function
The system checks for the putting out
of service of its components.
The alarm is triggered if the battery, the
central control or the siren wiring are
put out of service or damaged.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...



- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.



- Tilt
The system checks for any change in
the attitude of the vehicle.
The alarm is triggered if the vehicle is
lifted, moved or knocked.


For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.


Locking the vehicle with fullalarm system


Activation


)
Switch off the ignition and get out of
the vehicle.

)
Press the locking button on the re-
mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds.
Deactivation


)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.
If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated af-
ter a delay of 45 seconds at the
same time as the interior volu-
metric and anti-tilt monitoring.

*
According to country.
