15
FAMILIARISATION
SEEING CLEARLY

Lighting


Ring A

Ring B


Direction indicators


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chan-
ging lane on high-speed roads.
Wipers

Stalk A: windscreen wipers

Switching "AUTO" on/off


)
Press the stalk downwards and re-
lease.

Ring B: rear wiper



94

Raise or lower the lighting stalk passing
the point of resistance; the correspon-
ding direction indicators will fl ash for as
long as the stalk remains in this position.



126




103

Lighting off.
Rear foglamp.
Park. Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
or
Front and rear foglamps. Intermittent wipe.
Wash-wipe.


101




102

5
VISIBILITY
97
Automatic illumination of
headlamps
The sidelamps and dipped beam headlamps
are switched on automatically, without any ac-
tion on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.


Deactivation


)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the screen.

Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:


- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the du-
ration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed on the instrument
panel and/or a message appears in the
screen, accompanied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.

Operating fault
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

Parking lamps

Side markers for the vehicle by illumi-
nation of the sidelamps on the traffi c
side only.


)
Within one minute of switching off
the ignition, operate the lighting con-
trol stalk up or down depending on
the traffi c side (for example: when
parking on the left; lighting control
stalk upwards; the right hand side-
lamps are on).
This is confi rmed by an audible signal
and illumination of the corresponding
direction indicator warning lamp in the
instrument panel.
To switch off the parking lamps, return
the lighting control stalk to the central
position.

5
VISIBILITY
101
WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning the
screens.
The vehicle's front and rear wipers are
designed to improve the driver's visibil-
ity according to the climatic conditions.
The wipers are controlled by means of
stalk A
for the front and the ring B
for
the rear.

Programming

Various automatic wiper control modes
are also available depending on whether
the following options are fi tted:



- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse gear.


Model without AUTO wiping



Model with AUTO wiping

Windscreen wiper



A.
Wiping speed control stalk: raise or
lower the stalk to the desired position.
Fast wiping (heavy rain).
Normal wiping (moderate rain).
Intermittent wiping (proportional
to the speed of the vehicle).
Park,

Single wipe (press downwards
or pull towards you, then re-
lease).

Automatic wiping (press
down, then release).
Single wipe (pull the stalk
briefl y towards you).




or

5
102
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
downwards.

The instruction is confi rmed by
a wiping cycle, accompanied by
illumination of this warning lamp
in the instrument panel and an activation
message.


Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.
Windscreen and headlamp
wash
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicated
by gauge in the reservoir fi ller neck un-
der the bonnet.
Checking and topping up this fl uid can
only be done when stationary with the
engine off.
The driver should check the level of this
fl uid regularly, particularly during winter.
Refer to "Checks - § Screenwash/head-
lamp wash level" for the procedure on
checking the level.


Low screenwash/headlamp wash
level

)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.

5
VISIBILITY
103

B.
Rear wiper selection ring: turn the
ring to place the desired symbol
against the marking. Rear wiper

If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle carrier,
deactivate the automatic rear
wiper via the vehicle confi gura-
tion menu. Park,
Intermittent wipe,
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wip-
er operates for a set duration.

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
The function is activated or
deactivated via the vehicle con-
fi guration menu.

This function is activated by de-
fault.

Programming
Special position of the
windscreen wipers
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain
cardboard on the wind-
screen,

- replace them at the fi rst signs
of wear.
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and oper-
ate the stalk.

11
PRACTICAL INFORMATION
196

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-
hand side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspon-
ding paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow/fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.

11
PRACTICAL INFORMATION
199

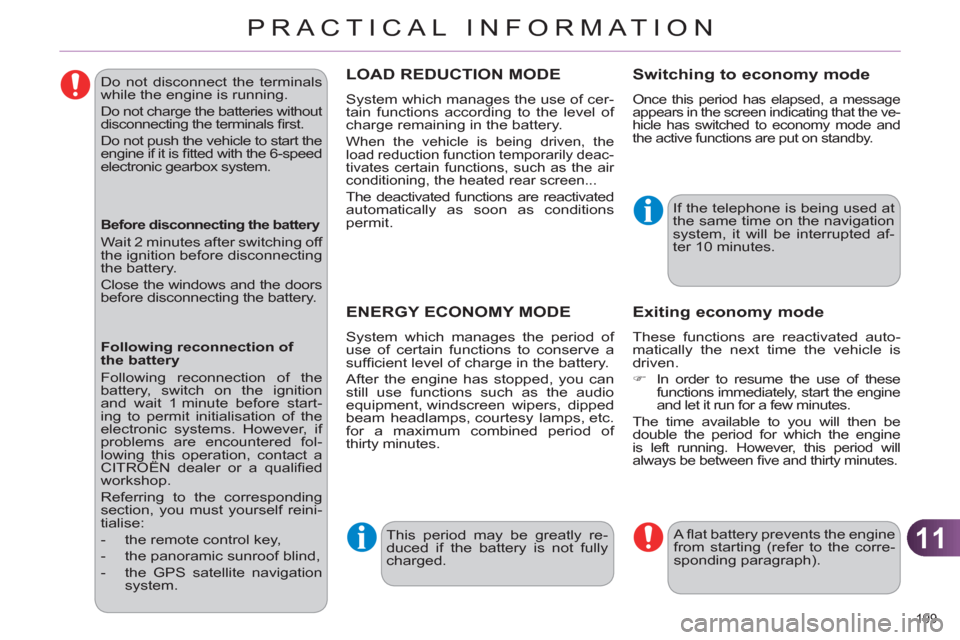

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.


Before disconnecting the battery

Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of
the battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation
system.


LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.

When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode

These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.

This period may be greatly re-
duced if the battery is not fully
charged.

307
ALPHABETICAL INDEX
A ABS and EBFD systems ............128
Accessories ................................205
Accessories
socket, 12 V ..... 109, 110, 112, 116
Adjusting headlamps ....................98
Adjusting head restraints ..............72
Adjusting seat belt height ............131
Adjusting the steering wheel ........77
Air conditioning (digital) ..........63, 66
Air conditioning (manual) .......63, 64
Air fi lter .......................................176
Air vents .......................................62
Alarm ............................................85
Anti-lock braking system
(ABS) ........................................128
Anti-pinch .....................................89
Anti-theft steering lock ..................80
Ashtray, portable ........................108
Assistance call ...................130, 216
Audible warning ..........................126
Audio streaming
(Bluetooth) ........................256, 282
Audio system ..................50, 52, 269
Automatic gearbox .............150, 177
Automatic illumination
of headlamps ........................94, 97
Automatic operation of hazard
warning lamps ..........................126
Automatic rain sensitive
windscreen wipers ............101, 102
Auxiliary sockets ........109, 278, 281
B Battery ................................176, 197
Battery, remote control ...........81, 82
Battery recharge .........................198
Bench seat, rear ...........................74
Black panel ...................................48B Blind spot sensors ......................157
Bluetooth (hands-free) .......240, 283
Bluetooth (telephone) .........240, 283
Bonnet ........................................170
Bonnet stay ................................170
Boot ..............................................88
Boot lamp ........................... 106, 117
Brake discs .................................177
Brake lamps ...............................191
Brake pads .................................177
Brakes ........................................177
Braking assistance system .........128
C Capacity, fuel tank ........................92
CD ..............................................276
CD MP3 ..............................253, 277
Central locking .......................79, 83
Centre console ........................... 110
Changing a bulb ..................187-192
Changing a fuse ..................193-196
Changing a wheel ...............183-186
Changing a wiper blade .....103, 200
Changing the date ..............259, 294
Changing the remote
control battery ............................81
Changing the time ........47, 259, 294
CHECK ...................................30, 46
Checking levels ..................174, 175
Checking the engine oil level .......43
Checking tyre pressures
(using the kit) ............................182
Checks ................................170-177
Child lock ....................................125
Children ........................ 90, 118-125,
133, 135, 139
Child seats ......................... 118-124
Cigarette lighter ..........................109
Clock ............................47, 259, 294C Closing the boot .....................79, 88
Closing the doors ...................79, 87
Cold climate screen ....................200
Colour and map
screen ..................55, 56, 221, 260
Connectors,
audio ................109, 257, 279, 281
Control stalk, wipers ............101-103
Coolant level ..............................174
Courtesy lamps ..........................104
Courtesy mirror ..........................108
Cruise control .....................160, 163
Cup holder .................................. 110
Curtain airbags ...................136, 137
Customisation ..............................49
D Dashboard fusebox ....................194
Date (display) .....................259, 294
Daytime running
lamps ..........................96, 187, 189
Deactivating
the passenger airbag ...............135
Deadlocking .................................79
Defrosting .....................................69
Diesel additive level ...................175
Diesel engine ....... 93, 171, 173, 211
Dimensions ................................213
Dipped beam ................94, 187, 189
Dipstick .................................43, 174
Directional lighting ................99, 100
Direction
indicators ....97, 126, 187, 188, 191
Door mirrors ...................75, 76, 157
Doors ............................................87
Doors emergency control .............84
Door pockets ..............................107
Dynamic emergency
braking .............................138, 141

310
ALPHABETICAL INDEX
S Steering mounted
controls .............................220, 271
Stopping the vehicle .....80, 147, 150
Stop Start .................. 61, 67, 69, 92,
154, 170, 176, 197, 295
Storage ........ 107, 108, 110-112, 115
Storage compartments ....... 107, 110
Storage drawer ........................... 113
Storage net ................................. 115
Stowing rings .............................. 115
Sun visor ....................................108
Synchronising
the remote control ......................81
Synthesiser, voice ......................234
Systems, ASR and ESP .............129
T Table of weights .................209, 212
Tables of engines ............... 207, 211
Tables of fuses ...........................193
Tank, fuel ......................................93
Technical data .....................207-214
Telephone ...........................240, 283
Temperature control
for heated seats .........................72
Temporary tyre repair kit ............178
Ticket holder ...............................107
Time .............................47, 259, 294
TMC (Traffi c info) .......................237
Tools ...........................................183
Torch .......................................... 117
Total distance recorder .................47
Towbar ........................................203
Towed loads .......................209, 212
Towing another vehicle ...............201
Traction control (ASR) ................129
Traffi c information
(TA) ..........................238, 251, 274T Traffi c information
(TMC) ...............................237, 238
Trip computer ..........................58-61
Trip distance recorder ..................47
Tyre pressures ...........................214
Tyre under-infl ation
detection .............................46, 127
U Under-infl ation
(detection) ................................127
Under fl oor storage .................... 117
Unlocking from the inside .............83
Unlocking the boot .................78, 88
Unlocking the doors .....................78
USB Box .............................109, 279
USB port .............................109, 279
V Ventilation ................................62-64
W Warning lamps ........................32-42
Weights ..............................209, 212
Welcome lighting ..................98, 106
Window controls ...........................89
Wipers ................................101, 102
X Xenon headlamps ......................187
