The function displays the following types
of message:
Parking possible
Parking diffi cult
Parking not advised
The function deselects itself automati-
cally:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- within fi ve minutes of selection of
the function,
- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h)
for one minute.
If the lateral distance between your ve-
hicle and the parking space is too large,
the system may not be able to measure
the space.
If there is a fault, have the sys-
tem checked by a CITROËN
dealer or a qualifi ed workshop.
The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dirt, ice or snow.
The parking space sensor system de-
activates the front parking sensors
when measuring forwards.
Page 173 of 324
9
DRIVING
171
PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.
This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.
Rear parking sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequen-
cy of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.
Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is also dis-
played in the screen.
Page 174 of 324
9
DRIVING
172
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).
Front parking sensors
Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.
Operating fault
The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi t-
ted (vehicle fi tted with a towbar
or bicycle carrier recommended
by CITROËN).
In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged,
an audible signal (long beep) in-
dicates that the sensors may be
dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h),
certain sound sources (motor-
cycle, lorry, pneumatic drill, etc.)
may trigger the audible signals
of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
screen, accompanied by an audible
signal (short beep).
Contact a CITROËN dealer or a qualifi ed
workshop.
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
Page 190 of 324
11
PRACTICAL INFORMATION
188

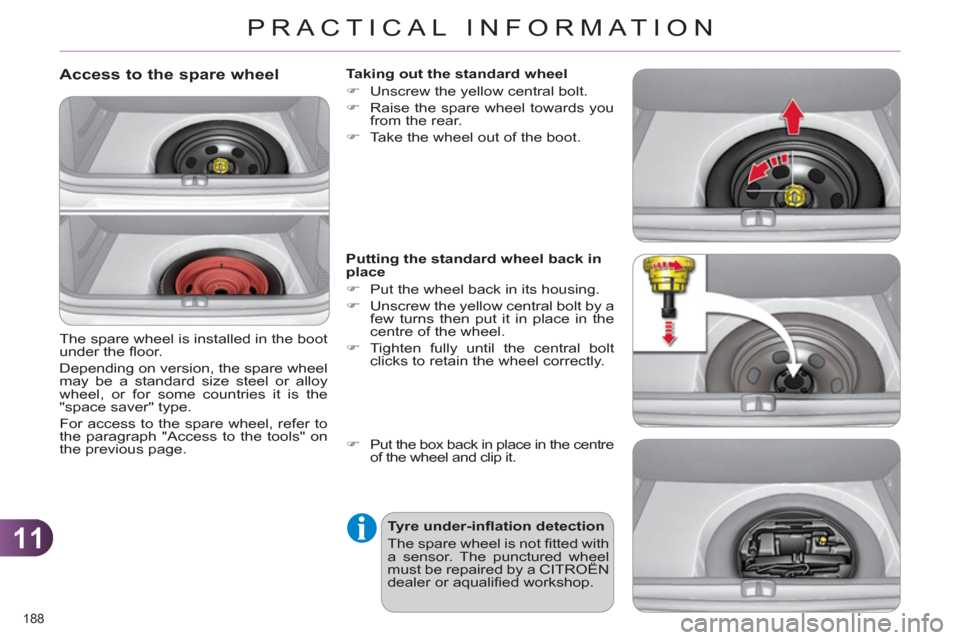

Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
Depending on version, the spare wheel
may be a standard size steel or alloy
wheel, or for some countries it is the
"space saver" type.
For access to the spare wheel, refer to
the paragraph "Access to the tools" on
the previous page.
Putting the standard wheel back in
place
)
Put the wheel back in its housing.
)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a CITROËN
dealer or aqualifi ed workshop.
Taking out the standard wheel
)
Unscrew the yellow central bolt.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
)
Put the box back in place in the centre
of the wheel and clip it.
Page 196 of 324
11
PRACTICAL INFORMATION
194
)
Introduce a fl at screwdriver in the
hole in the fi nisher.
)
Pull and lever to unclip the bumper
fi nisher (the parking sensor stays
with the fi nisher).
)
Remove the two module fi xing screws
and remove it from its housing.
)
Disconnect the bulb holder connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
To replace these bulbs you may also
contact a CITROËN dealer or a qualifi ed
workshop.

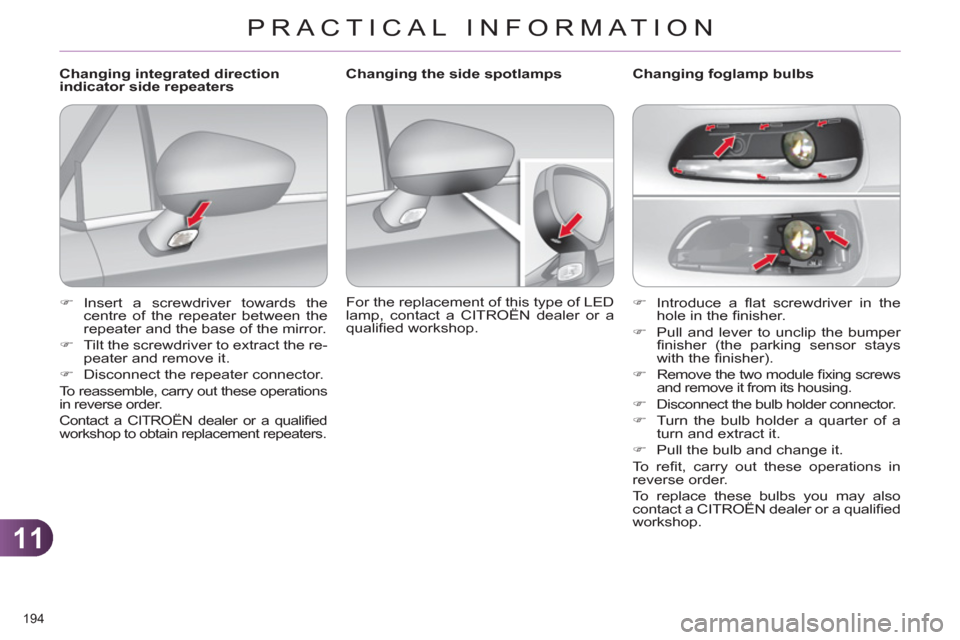

Changing foglamp bulbs
Changing the side spotlamps
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Changing integrated direction
indicator side repeaters
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To reassemble, carry out these operations
in reverse order.
Contact a CITROËN dealer or a qualifi ed
workshop to obtain replacement repeaters.
Page 209 of 324
11
PRACTICAL INFORMATION
207
TOWING A TRAILER,
A CARAVAN, ETC.
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
the fi tting of the towbar is en-
trusted to a CITROËN dealer or
a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions. The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Driving advice
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed. The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
Page 211 of 324
11
PRACTICAL INFORMATION
209

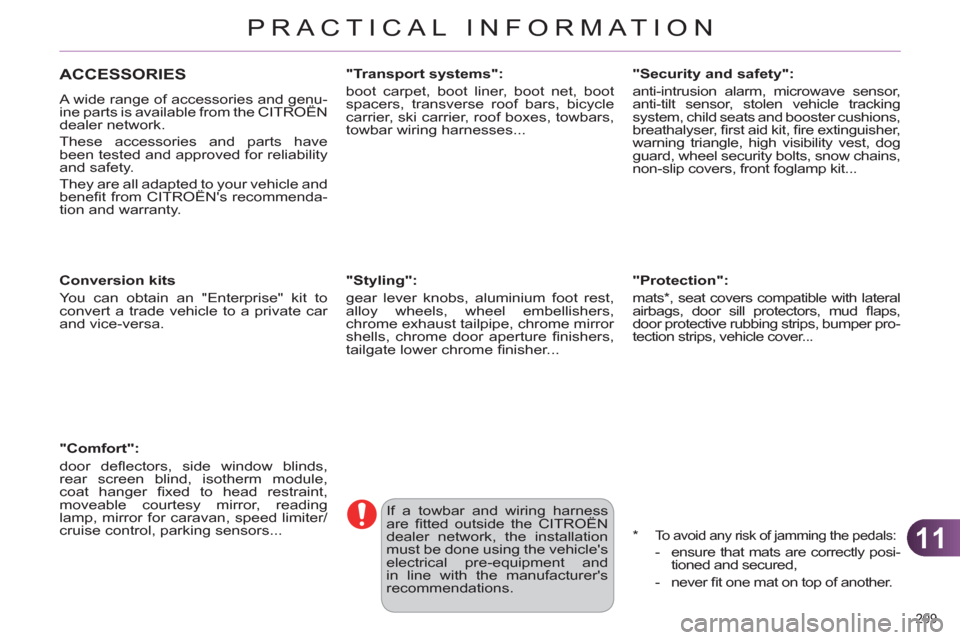

ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Comfort":
door defl ectors, side window blinds,
rear screen blind, isotherm module,
coat hanger fi xed to head restraint,
moveable courtesy mirror, reading
lamp, mirror for caravan, speed limiter/
cruise control, parking sensors...
"Transport systems":
boot carpet, boot liner, boot net, boot
spacers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
towbar wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest,
alloy wheels, wheel embellishers,
chrome exhaust tailpipe, chrome mirror
shells, chrome door aperture fi nishers,
tailgate lower chrome fi nisher...
*
To avoid any risk of jamming the pedals:
- ensure that mats are correctly posi-
tioned and secured,
- never fi t one mat on top of another.
"Security and safety":
anti-intrusion alarm, microwave sensor,
anti-tilt sensor, stolen vehicle tracking
system, child seats and booster cushions,
breathalyser, fi rst aid kit, fi re extinguisher,
warning triangle, high visibility vest, dog
guard, wheel security bolts, snow chains,
non-slip covers, front foglamp kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, door sill protectors, mud fl aps,
door protective rubbing strips, bumper pro-
tection strips, vehicle cover...
If a towbar and wiring harness
are fi tted outside the CITROËN
dealer network, the installation
must be done using the vehicle's
electrical pre-equipment and
in line with the manufacturer's
recommendations.
Page 313 of 324
311
VISUAL SEARCH
EXTERIOR
Remote control ........................... 79-83
- opening/closing
- anti-theft protection
- starting
- battery
Wiper controls......................... 105-107
Changing a wiper blade ................. 203
Door mirrors ................................ 76-77
Blind spot sensors .................. 161-163
Boot ........................................... 79, 89
Temporary puncture repair kit ...182-186
Changing a wheel ................... 187-190
- tools
- removing/refi tting
Changing bulbs....................... 195-196
- rear lamps
- 3 rd lbrake lamp
- number plate lamp
Parking sensors ...................... 171-172
Parking space sensors ........... 169-170
Towbar ........................................... 207
Towing .................................... 205-206
Accessories ............................ 209-210
Roof bars ....................................... 204
Panoramic sunroof .......................... 92
Braking assistance ........................ 132
Trajectory control .................... 133-134
Tyre under-infl ation detection ........ 131
Tyre pressures ....................... 186, 221
Lighting controls ....................... 96-100
Headlamp adjustment.................... 102
Welcome lighting ........................... 101
Directional lighting systems .... 103-104
Changing bulbs....................... 191-194
- front lamps
- front foglamps
- side repeaters
Doors ......................................... 84, 88
- opening/closing
- emergency control
Child lock ....................................... 129
Electric windows ......................... 90-91
Alarm .......................................... 86-87
Fuel tank ..................................... 93-94
Misfuel prevention ........................... 95
Page 317 of 324
315
ALPHABETICAL INDEX
A ABS and EBFD systems ............132
Accessories ................................209
Accessory socket,
12 V ................... 112, 113, 115, 119
Adjusting headlamps ..................102
Adjusting head restraints ..............73
Adjusting seat belt height ...135, 136
Adjusting the steering wheel ........78
Airbags, curtain ..................140, 141
Airbags, front ......................138, 141
Airbags, lateral ...................140, 141
Air conditioning .............................26
Air conditioning, digital ...........64, 67
Air conditioning, manual .........64, 65
Air fi lter .......................................180
Air fl ow .........................................26
Air vents .......................................63
Alarm ............................................86
Anti-lock braking system
(ABS) ........................................132
Anti-pinch .....................................90
Anti-theft .......................................81
Armrest, front ..................... 114, 115
Armrest, rear .............................. 117
Ashtray, portable ........................ 111
Assistance call ...................134, 224
Audible warning ..........................130
Audio streaming
(Bluetooth) ........................264, 290
Audio system ..................51, 53, 277
Automatic illumination
of headlamps ......................97, 100
Automatic operation of hazard
warning lamps ..........................130
Automatic rain sensitive
windscreen wipers ............105, 106
Auxiliary socket .......... 112, 265, 289B Battery ................................180, 201
Battery, charging ........................201
Battery, remote control ...........82, 83
Black panel ...................................49
Blind spot sensors ......................161
Bluetooth (hands-free) .......248, 291
Bluetooth (telephone) .................248
Bonnet ........................................174
Bonnet stay ................................174
Boot ..............................................89
Boot lamp ...........................109, 120
Brake discs .................................181
Brake lamps ...............................195
Brake pads .................................181
Brakes ........................................181
Braking assistance system .........132
C Capacity, fuel tank ........................93
CD ..............................................284
CD MP3 ..............................285, 286
Central locking .......................80, 84
Centre console ........................... 113
Changing a bulb .................191, 195
Changing a fuse .........................197
Changing a wheel ......................187
Changing a wiper blade .....107, 203
Changing the date ..............267, 302
Changing the remote
control battery ............................82
Changing the time ........48, 267, 302
CHECK ...................................31, 47
Checking levels ..................178, 179
Checking the engine oil level .......44
Checking tyre pressures
(using the kit) ............................182
Checks ...............176, 177, 180, 181
Child lock ....................................129C Children ......................124, 127, 128
Child seats ................ 121, 123-125
Cigar lighter ................................ 112
Clock ............................................48
Closing the boot .....................80, 89
Closing the doors ...................80, 88
Cold climate screen ....................204
Commandes au volant .......228, 279
Connectors, audio ...... 112, 287, 289
Coolant level ..............................178
Courtesy lamps ..................101, 108
Courtesy mirror .......................... 111
Cruise control .....................164, 167
Cup holder .................................. 113
D Date (setting) ..............................267
Daytime
running lamps .............97, 191, 193
Deactivating the passenger
airbag .......................................138
Deadlocking .................................80
Defrosting .....................................70
Diesel additive level ...................179
Dimensions ................................220
Dipped beam ................96, 191, 193
Dipstick .................................44, 178
Directional lighting ..............103, 104
Direction
indicators ....99, 130, 191, 192, 195
Doors ............................................88
Doors, rear .................................129
Doors emergency control .............85
Door trays ................................... 110
Dynamic
emergency braking ...........142, 145
Page 319 of 324
317
ALPHABETICAL INDEX
L Level, brake fl uid ........................178
Level, power steering fl uid .........178
Levels and checks ...............176-179
Lighting, guide-me home ......99, 100
Lighting, interior ..................108, 109
Lighting bulbs (replacement) ....191, 195
Lighting control stalk ..............96, 99
Lighting dimmer .................28-31, 49
Loading ................................26, 204
Load reduction mode .................203
Locating your vehicle ...................81
Locking from the inside ................84
Locking the boot ...........................89
Long objects, transporting .......... 117
LPG ............................................215
Luggage retaining strap ............. 118
M Main beam ...................96, 191, 193
Maintenance .................................26
Map reading lamps .....................108
Markings, identifi cation ...............221
Massage function ........................74
Mat ............................................. 116
Menu, main ................................280
Mini fuel level ...............................93
Mirror, rear view ...........................78
Mirrors, door ...................76, 77, 161
Misfuel prevention ........................95
Motorway function
(direction indicators) .................130
Mountings for ISOFIX seats .......126
MP3 CD ..............................285, 286
Music media players ..................260
N Navigation ..........................231, 232
Number plate lamps ...................196O Oil fi lter .......................................180
Oil level ................................44, 178
Opening the bonnet ....................174
Opening the boot ..........................89
Opening the doors ........................88
Opening the panoramic
sunroof blind ...............................92
Operation
indicator lamps .........35, 40, 41, 43
P Paint colour code .......................221
Panoramic glass sunroof ..............92
Parcel shelf, rear ........................ 119
Parking brake .....................149, 181
Parking brake, electric ........142, 145
Parking lamps ..............................99
Parking sensors, front ................172
Parking sensors, rear .................171
Parking space sensor ................169
Particle emission fi lter ........179, 180
Passenger compartment fi lter ....180
Personalisation .............................50
Player, CD MP3 ..................285, 286
Port, USB ........................... 112, 287
Priming the fuel system ..............175
Protecting
children ..... 121, 124, 126-128, 138
Puncture .....................................182
R Radio ..........................257, 258, 281
Radio pre-equipment ..................208
Rear screen (demisting) ...............70
Recharging the battery ...............201
Reduction of electrical load ........203
Reinitialising
the electric windows ...................90R Reinitialising the remote control ...82
Remote control .................79, 80, 83
Removable screen
(snow shield) ............................204
Removing a wheel ......................189
Removing the mat ...................... 116
Repair kit, puncture ....................182
Replacing bulbs ..................191, 195
Replacing fuses ..........................197
Replacing the air fi lter ................180
Replacing the oil fi lter .................180
Replacing the particle
emission fi lter ...........................180
Replacing the passenger
compartment fi lter ....................180
Replacing wiper blades ......107, 203
Resetting the service indicator .....46
Resetting the trip recorder ............48
Rev counter .............................28-32
Reversing lamps ........................195
Risk areas (update) ....................236
Roof bars ....................................204
Roof blind .....................................92
Routine checks ...................180, 181
Running out of fuel (Diesel) ........175
S Safety for children ................90, 129
Satellite navigation system ...........56
Screen, colour
and mapping ........56, 57, 229, 268
Screen,
monochrome ........51, 53, 280, 304
Screen, multifunction (with audio
equipment) .............51, 53, 56, 280
Screen menu map ...... 268, 304-306
Screenwash, front ......................106
Seat, rear bench ...........................75
