20
DRIVING SAFELY


Electric parking brake


Manual application/release
Automatic application/release

Before leaving the ve-
hicle, check that the
brake warning lamp in
the instrument panel
and the P
warning lamp in the control
lever A
are on fi xed (not fl ashing)
.
Manual application
of the parking
brake is possible by pulling
the control
lever A
.
With the ignition on, manual release
of
the parking brake is possible by press-
ing the brake pedal
and pulling then
releasing
the control lever A
. Press the accelerator pedal and let the
clutch pedal up (manual gearbox), the
parking brake is released automatically
and progressively as you move off.
With the vehicle at rest, on switching off
the engine the parking brake is applied
automatically.



142

With the engine running, on
opening the driver’s door there
is an audible warning; apply the
parking brake manually.
Do not leave a child alone inside
the vehicle with the ignition on;
they might release the parking
brake. If you are towing a trailer or car-
avan or if the slope might vary
(transport on a ferry, lorry, tow-
ing...) make a maximum manual
application with a long pull on
the control lever A
to immobilise
the vehicle. If this warning lamp is on in the
instrument panel, the automat-
ic application/release
is de-
activated
; apply and release
the parking brake manually.

3
COMFORT
64

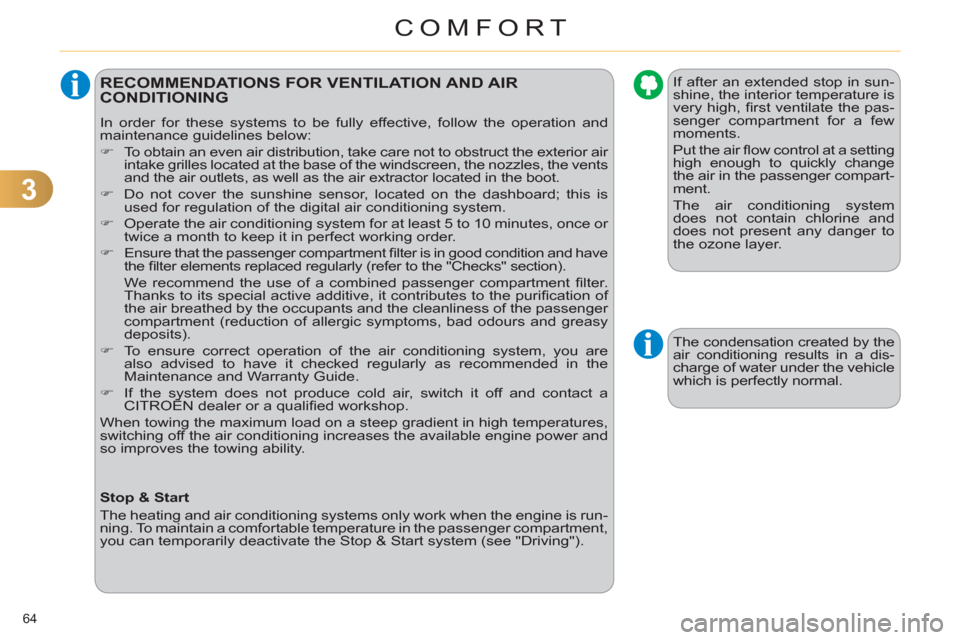

RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:


)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

)
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the digital air conditioning system.

)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.

)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).

)
To ensure correct operation of the air conditioning system, you are
also advised to have it checked regularly as recommended in the
Maintenance and Warranty Guide.

)
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a setting
high enough to quickly change
the air in the passenger compart-
ment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.

The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.



Stop & Start
The heating and air conditioning systems only work when the engine is run-
ning. To maintain a comfortable temperature in the passenger compartment,
you can temporarily deactivate the Stop & Start system (see "Driving").

8
SAFETY
130











DIRECTION INDICATORS



)
Left: lower the lighting stalk passing
the point of resistance.

)
Right: raise the lighting stalk pass-
ing the point of resistance.







HAZARD WARNING LAMPS



)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.













Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.







HORN

A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.






"Motorway" function



)
Press briefl y upwards or down-
wards, without going beyond the
point of resistance; the direction in-
dicators will fl ash 3 times.
If you forget to cancel the di-
rection indicators for more than
twenty seconds, the volume of
the audible signal will increase
if the speed is above 40 mph
(60 km/h). Audible warning system to alert other
road users to an imminent danger.


)
Press the central part of the mutli-
function steering wheel.
Use the horn moderately and only
in the following circumstances:


- immediate danger,

- approaching a location lacking
visibility.

9
DRIVING
142

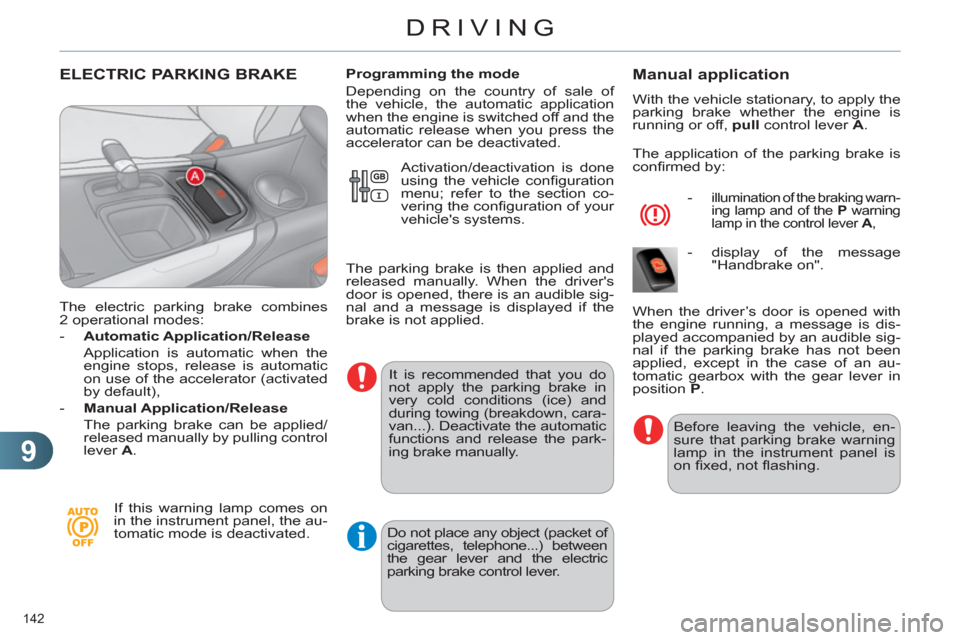

ELECTRIC PARKING BRAKE


The electric parking brake combines
2 operational modes:


- Automatic Application/Release

Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),

- Manual Application/Release

The parking brake can be applied/
released manually by pulling control
lever A
.
If this warning lamp comes on
in the instrument panel, the au-
tomatic mode is deactivated.
Programming the mode
Depending on the country of sale of
the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.

It is recommended that you do
not apply the parking brake in
very cold conditions (ice) and
during towing (breakdown, cara-
van...). Deactivate the automatic
functions and release the park-
ing brake manually.



Manual application

With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull
control lever A
.
The application of the parking brake is
confi rmed by:


-
illumination of the braking warn-
ing lamp and of the P
warning
lamp in the control lever A
,


- display of the message
"Handbrake on".

Before leaving the vehicle, en-
sure that parking brake warning
lamp in the instrument panel is
on fi xed, not fl ashing.
When the driver’s door is opened with
the engine running, a message is dis-
played accompanied by an audible sig-
nal if the parking brake has not been
applied, except in the case of an au-
tomatic gearbox with the gear lever in
position P
. Activation/deactivation is done
using the vehicle confi guration
menu; refer to the section co-
vering the confi guration of your
vehicle's systems.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible sig-
nal and a message is displayed if the
brake is not applied.

Do not place any object (packet of
cigarettes, telephone...) between
the gear lever and the electric
parking brake control lever.

9
DRIVING
143

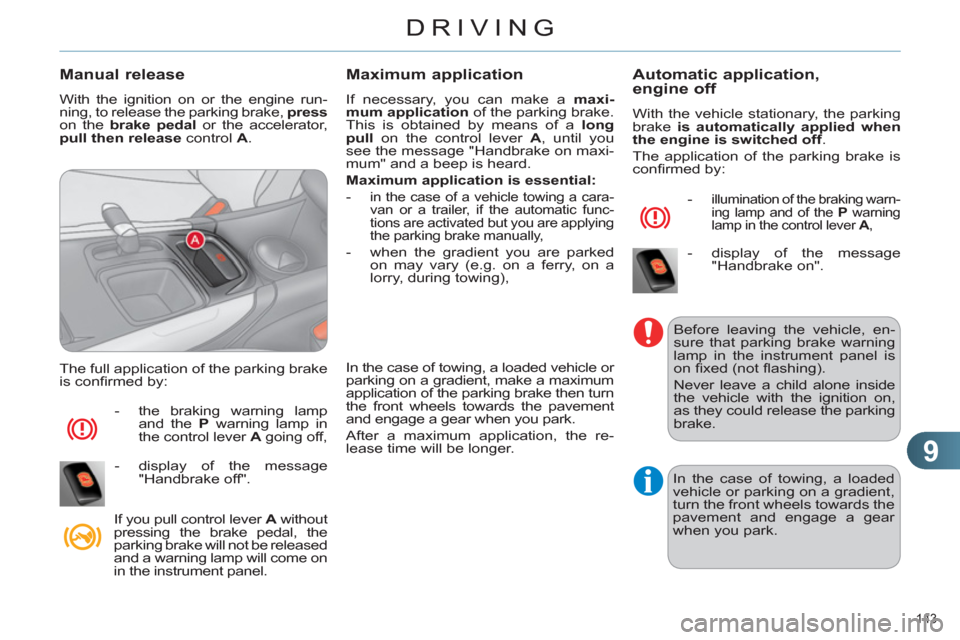

Manual release

With the ignition on or the engine run-
ning, to release the parking brake, press

on the brake
pedal
or the accelerator,
pull then release
control A
.
The full application of the parking brake
is confi rmed by:


- the braking warning lamp
and the P
warning lamp in
the control lever A
going off,

- display of the message
"Handbrake off".
If you pull control lever A
without
pressing the brake pedal, the
parking brake will not be released
and a warning lamp will come on
in the instrument panel.


Maximum application

If necessary, you can make a maxi-
mum application
of the parking brake.
This is obtained by means of a long
pull
on the control lever A
, until you
see the message "Handbrake on maxi-
mum" and a beep is heard.

Maximum application is essential:



-
in the case of a vehicle towing a cara-
van or a trailer, if the automatic func-
tions are activated but you are applying
the parking brake manually,


- when the gradient you are parked
on may vary (e.g. on a ferry, on a
lorry, during towing),

In the case of towing, a loaded vehicle or
parking on a gradient, make a maximum
application of the parking brake then turn
the front wheels towards the pavement
and engage a gear when you park.
After a maximum application, the re-
lease time will be longer.



Automatic application,
engine off
With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off
.
The application of the parking brake is
confi rmed by:


-
illumination of the braking warn-
ing lamp and of the P
warning
lamp in the control lever A
,


- display of the message
"Handbrake on".

Before leaving the vehicle, en-
sure that parking brake warning
lamp in the instrument panel is
on fi xed (not fl ashing).
Never leave a child alone inside
the vehicle with the ignition on,
as they could release the parking
brake.

In the case of towing, a loaded
vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park.

9
DRIVING
163

The system may suffer tem-
porary interference in certain
weather conditions (rain, hail...).
In particular, driving on a wet sur-
face or moving from a dry area to
a wet area can cause false alerts
(for example, the presence of a
fog of water droplets in the blind
spot angle is interpreted as a ve-
hicle).
In bad or wintry weather, ensure
that the sensors are not covered
by mud, ice or snow.
Take care not to cover the warn-
ing zone in the door mirrors or
the detection zones on the front
and rear bumpers with adhesive
labels or other objects; they may
hamper the correct operation of
the system.



)
To deactivate the system, press
this button again; the warning lamp
goes off.
The state of the system remains in
memory on switching off the ignition.

Operating fault

In the event of a fault, the warning lamp
in the button fl ashes then goes off.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
The system is automatically de-
activated when towing with a
towbar approved by CITROËN.

9
DRIVING
168
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the
programmed speed.
On steep climbs or when towing,
the programmed speed may not
be reached or maintained.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- never fi t one mat on top of
another.



Programming



)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(Pause).

)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)); the cruise
control system is activated (ON).
You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehi-
cle, the programmed speed will stop at the closest stored
speed; refer to the corresponding section.


)
Stop the cruise control system by pressing button 4
:
this is confi rmed in the screen (Pause).


Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the speed.


Exiting cruise control mode



)
Turn dial 1
to the "0"
position: the cruise control mode
is deselected. It disappears from the screen.

)
Switch on the cruise control again with another press
on button 4
.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

11
PRACTICAL INFORMATION
204








VERY COLD CLIMATE SCREEN *


*
According to country.


Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.



Removal



)
Use a screwdriver as a lever to
release each fi xing clip in turn.
Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

- at speeds above 75 mph
(120 km/h).
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.











FITTING ROOF BARS


For safety reasons and to avoid dam-
aging the roof, it is essential to use the
transverse bars approved for your ve-
hicle.

When fi tting roof bars, use only the four
fi xing points located in the roof frame.
The points are masked by the vehicle
doors when closed.
The roof bar fi xings include a stud to be
fi tted to the hole at each fi xing point.
Observe the fi tting instructions and the
conditions of use in the guide supplied
with the bars.
Maximum authorised weight on
the roof rack, for a loading height
not exceeding 40 cm (with the ex-
ception of bicycle carriers): 55 kg.
As this value is subject to change,
check the maximum load fi gure
given in the guide provide d with
the roof bars.
If the height exceeds 40 cm,
adapt the speed of the vehicle
to the profi le of the road to avoid
damaging the roof bars and the
fi xings on the vehicle.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting ob-
jects which are longer than the
vehicle.

11
PRACTICAL INFORMATION
205

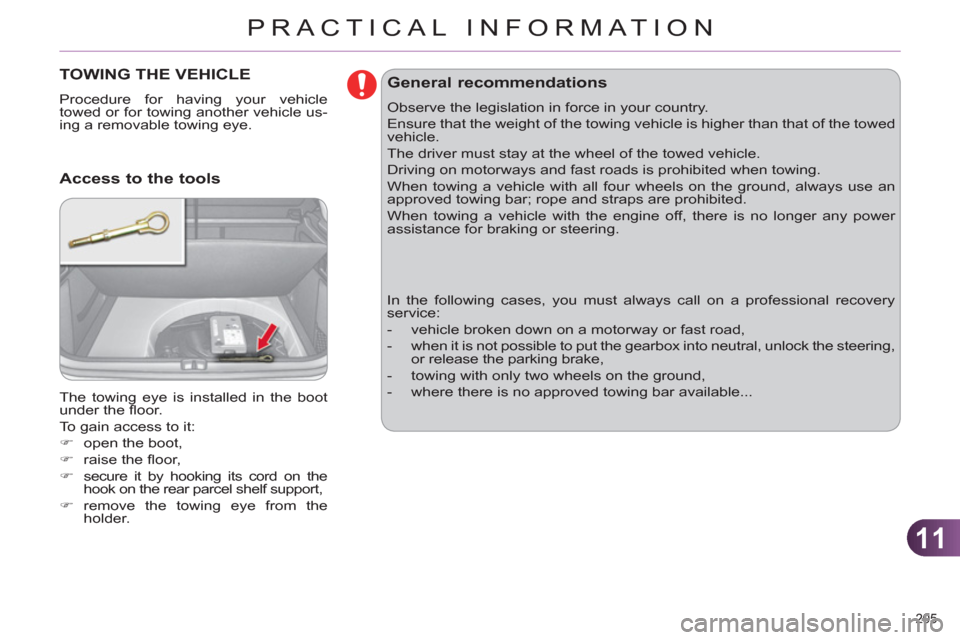

TOWING THE VEHICLE

Procedure for having your vehicle
towed or for towing another vehicle us-
ing a removable towing eye.
The towing eye is installed in the boot
under the fl oor.
To gain access to it:


)
open the boot,

)
raise the fl oor,

)
secure it by hooking its cord on the
hook on the rear parcel shelf support,

)
remove the towing eye from the
holder.



Access to the tools
General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the towed vehicle.
Driving on motorways and fast roads is prohibited when towing.
When towing a vehicle with all four wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery
service:


- vehicle broken down on a motorway or fast road,

- when it is not possible to put the gearbox into neutral, unlock the steering,
or release the parking brake,

- towing with only two wheels on the ground,

- where there is no approved towing bar available...
