Page 42 of 314
II
43
M U L T I F U N C T I O N S C R E E N S
16/9 HIGH DEFINITION COLOUR SCREEN (WITH NAVIDRIVE 3D)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- audio functions,
- t e l e p h o n e a n d a d d r e s s b o o k i n - formation,
- satellite navigation system infor- mation. Controls
From the NaviDrive 3D control panel,
to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP"
button for access to the corre-
sponding menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e -
lection,
or
press the "ESC" button to aban-
don the current operation and
return to the previous display. For more information on these
applications, refer to the "Audio
E q u i p m e n t " s e c t i o n o r t o t h e s p e -
c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents.
Page 43 of 314
II
44
M U L T I F U N C T I O N S C R E E N S * According to country.
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from
the following functions:
- "Languages and Speech",
- "Date & Time",
- "Display",
- "Units",
- "System".
Language & Speech
This menu allows you to:
- select the language used by the display (Deutsch, English,
Espanol, Français, Italiano,
N e d e r l a n d s , P o l s k i , P o r t u g u e s ,
T ü r k ç e * ) ,
- select the voice recognition pa- rameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice syn- thesiser. Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
" A u d i o E q u i p m e n t " s e c t i o n o r t o t h e
s p e c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents).
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and
d i s t a n c e ( k m o r m i l e s ) .
System
This menu allows you to restore the
f a c t o r y c o n fi g u r a t i o n , d i s p l a y t h e
software version and activate scroll-
ing text.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 46 of 314
III
47
C O M F O R T
DIGITAL AIR CONDITIONING (MONO-ZONE)
This is the normal sys-
tem operating mode.
In accordance with the
level of comfort cho-
sen, pressing this con-
t r o l , c o n fi r m e d b y t h e
switching on of indicator lamp A , per-
mits automatic and simultaneous con-
trol of all of the following functions:
- A i r fl o w .
- Temperature in the passenger compartment.
- Air distribution.
- Air intake.
- Air conditioning.
1. Automatic operation
It is advisable to leave all of the
vents open.
Simply pressing one of the controls,
with the exception of control
2 , switches
the system to manual mode.
Indicator lamp A switches off. 2. Temperature adjustment
Turn control 2 to
change the tempera-
ture:
-
Clockwise to increase
the temperature.
- Anticlockwise to reduce the tem- perature.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
t h e s c r e e n c o n fi g u r a t i o n .
A setting around the value 21 usu-
ally makes it possible to obtain opti-
mum comfort. However, depending
on your requirements, a setting be-
tween 18 and 24 is usual.
On entering the vehicle, the interior
temperature may be much colder (or
warmer) than is comfortable. There is
no need to change the temperature
displayed in order to obtain rapidly
the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.
Mono-zone: this is the overall regu-
lation of the temperature, distribu-
t i o n a n d fl o w o f a i r i n t h e p a s s e n g e r
compartment.
The symbols and messages associ-
ated with the digital air conditioning
controls appear on the multifunction
screen.
1. Automatic operation
2. Temperature adjustment
3. Air distribution adjustment
4. Activation/deactivation of the air
conditioning
5. A i r fl o w a d j u s t m e n t
6. Front demisting - defrosting
7. Rear demisting - defrosting
8. Air recirculation - intake of exte-
rior air
9. Screen
Page 47 of 314
III
48
C O M F O R T

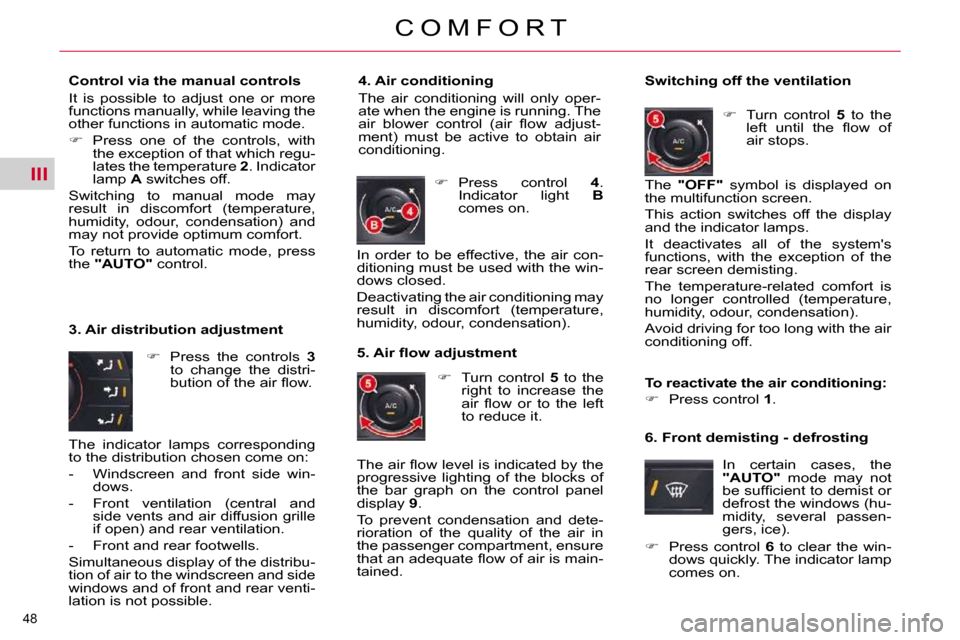

Control via the manual controls
It is possible to adjust one or more
functions manually, while leaving the
other functions in automatic mode.
Press one of the controls, with
the exception of that which regu-
lates the temperature 2 . Indicator
lamp A switches off.
Switching to manual mode may
result in discomfort (temperature,
humidity, odour, condensation) and
may not provide optimum comfort.
To return to automatic mode, press
the "AUTO" control.
3. Air distribution adjustment
Press the controls 3
to change the distri-
b u t i o n o f t h e a i r fl o w . 4. Air conditioning
The air conditioning will only oper-
ate when the engine is running. The
a i r b l o w e r c o n t r o l ( a i r fl o w a d j u s t -
ment) must be active to obtain air
conditioning.
Switching off the ventilation
Turn control 5 to the
l e f t u n t i l t h e fl o w o f
air stops.
Press control 4 .
Indicator light B
comes on.
5 . A i r fl o w a d j u s t m e n t
Turn control 5 to the
right to increase the
a i r fl o w o r t o t h e l e f t
to reduce it.
6. Front demisting - defrosting
In certain cases, the
"AUTO" mode may not
b e s u f fi c i e n t t o d e m i s t o r
defrost the windows (hu-
midity, several passen-
gers, ice).
Press control 6 to clear the win-
dows quickly. The indicator lamp
comes on.
The
"OFF" symbol is displayed on
the multifunction screen.
This action switches off the display
and the indicator lamps.
It deactivates all of the system's
functions, with the exception of the
rear screen demisting.
The temperature-related comfort is
no longer controlled (temperature,
humidity, odour, condensation).
Avoid driving for too long with the air
conditioning off.
In order to be effective, the air con-
ditioning must be used with the win-
dows closed.
Deactivating the air conditioning may
result in discomfort (temperature,
humidity, odour, condensation).
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible. T h e a i r fl o w l e v e l i s i n d i c a t e d b y t h e
progressive lighting of the blocks of
the bar graph on the control panel
display
9 .
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
t h a t a n a d e q u a t e fl o w o f a i r i s m a i n -
tained.
To reactivate the air conditioning:
Press control 1 .
Page 48 of 314
III
49
C O M F O R T
I t c o n t r o l s t h e t e m p e r a t u r e , a i r fl o w
and intake and distributes the ven-
tilation to the windscreen and front
side windows.
Resuming manual control exits from
"Demisting" mode. It must be can-
celled to permit renewal of the air
in the passenger compartment and
demisting.
Once the screen is clear, press-
ing control 1 returns the system to
"AUTO" mode.
Press control 7 , with
the engine running,
to demist the rear
screen and the door
mirrors. The indica-
tor lamp comes on.
Demisting is switched off automati-
cally to prevent an excessive con-
sumption of current and in relation
to the ambient temperature.
It may be stopped by pressing con-
trol 7 again or when the engine is
switched off.
7. Rear demisting - defrosting
The heated rear screen operates in-
dependently of the air conditioning
system.
8. Intake of exterior air/
Recirculation of interior air
This function enables you to isolate
the passenger compartment from
exterior fumes and odours. - When starting with the engine
c o l d , t h e fl o w w i l l r e a c h i t s o p -
timum level gradually to pre-
vent an excessive distribution
of cold air.
- When entering the vehicle af- ter it has been parked for a
fairly long period, if the inte-
rior temperature is very differ-
ent from your comfort setting
there is no need to change
the temperature displayed
in order to quickly reach the
level of comfort required. The
system automatically uses its
maximum performance to cor-
rect the difference in tempera-
ture as quickly as possible.
- The water resulting from the air conditioning condensation
is discharged via an open-
ing provided for this purpose;
therefore, a puddle of water
may form underneath the ve-
hicle when stationary.
- In all seasons, if the weather is cool, the air conditioning
is useful as it removes the
humidity from the air and the
condensation. Avoid driving
for prolonged periods with the
air conditioning switched off.
However, demisting resumes when
the engine is switched on again.
Switch off the rear screen and door
mirrors demisting when you consider
this necessary as low current con-
sumption reduces fuel consumption.
Press control 8 sev-
eral times to set the
air intake mode, the
indicator lamp comes
on.
It must be cancelled as soon as
possible to permit renewal of the
air in the passenger compartment
and demisting.
Page 50 of 314
III
51
C O M F O R T
2a-2b. Temperature adjustment Control via the manual controls
Press one of the controls, with
the exception of temperature
regulation 2a and 2b . The indi-
cator lamps A on the "AUTO"
controls switch off.
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
Switching to manual mode may re-
sult in discomfort (temperature, hu-
midity, odour, condensation) and
may not provide optimum comfort.
To return to "AUTO" mode, press
controls 1a and 1b . The indicator
lamps A come on. 3a-3b. Air distribution adjustment
Press control
3a to change
the distribu-
tion of the air
fl o w o n t h e
driver's side.
Press control 3b to change the
d i s t r i b u t i o n o f t h e a i r fl o w o n t h e
passenger's side.
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible.
Turn control 2a to change the
temperature on the driver's side
and control 2b to change the
temperature on the passenger's
side: to the right to increase the
temperature or to the left to re-
duce it.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
t h e s c r e e n c o n fi g u r a t i o n .
A setting around the value 21 usually
makes it possible to obtain optimum
comfort. However, depending on
your requirements, a setting between
18 and 24 is usual.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than is comfortable.
There is no need to change the tem-
perature displayed in order to quickly obtain the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.
Page 52 of 314
III
53
C O M F O R T
When starting with the engine
c o l d , a i r fl o w w i l l r e a c h i t s o p t i -
mum level gradually to prevent an
excessive distribution of cold air.
When entering the vehicle after it
has been parked for a fairly long
period, if the interior temperature
is very different from your comfort
setting there is no need to change
the temperature displayed in or-
der to quickly reach the level of
comfort required. The system
automatically uses its maximum
performance to correct the differ-
ence in temperature as quickly as
possible.
The water resulting from the air
conditioning condensation is dis-
charged via an opening provided
for this purpose; therefore, a pud-
dle of water may form underneath
the vehicle when stationary.
In all seasons, if the weather is
cool, the air conditioning is use-
ful as it removes the humidity
from the air and the condensa-
tion. Avoid driving for prolonged
periods with the air conditioning
switched off.
9. Front demisting - defrosting
In certain cases, the
"AUTO" mode may not
b e s u f fi c i e n t t o d e m i s t o r
defrost the windows (hu-
midity, several passen-
gers, ice).
Press control 9 to clear the win-
dows quickly. The indicator lamp
comes on.
This system controls the temperature,
a i r fl o w a n d i n t a k e a n d d i s t r i b u t e s t h e
ventilation to the windscreen and front
side windows.
Resuming manual control exits from
the "Demisting" mode. It must be
cancelled as soon as possible to
permit renewal of the air in the pas-
senger compartment and demisting.
Pressing one of the controls 1a and
1b returns the system to the "AUTO"
mode.
8. Rear demisting - defrosting
Switch off the rear screen and exterior
mirrors demisting when you consider
this necessary as low current con-
sumption reduces fuel consumption.
The heated rear screen
operates independently
of the air conditioning
system.
Press control 8 , with the en-
gine running, to demist the rear
screen and the mirrors. The indi-
cator lamp comes on.
Demisting is switched off automati-
cally to avoid excessive consump-
tion of current and depending on the
exterior temperature.
It may be stopped by pressing con-
trol 8 again or when the engine is
switched off.
In this latter case, the demisting re-
sumes if the engine is switched on
again within one minute.
Page 53 of 314
III
54
C O M F O R T
PROGRAMMABLE HEATING
The programmable heating operates
independently of the engine.
When the engine is off, it pre-heats
t h e c o o l a n t c i r c u i t i n o r d e r t o b e n e fi t
from an optimum engine operating
temperature from the time the en-
gine is switched on.
The programmable heating system
is switched on using the long range
remote control. Activation can be im-
mediate or deferred by means of a
programming function. Programming remote control
The heating system programming
remote control consists of the fol-
lowing buttons and displays:
1. Scrolling functions menu buttons.
2. Function indicator lights: clock,
temperature, operating time, pro-
grammed time, heater operation,
heating management symbols.
3. Digital displays: time, tempera-
ture, duration of operation, pro-
grammed time or level of heating.
4. Off button.
5. On button.
Displays on the remote
control screen Press the buttons
1 in succession to
display the functions.
T h e fi r s t p r e s s o f t h e l e f t - h a n d o r
right-hand button displays the time.
Next, the left-hand button permits ac-
cess to the programming time then to
the level of heating (C1 to C5).
The right-hand button permits ac-
cess to the passenger compartment
temperature then to the duration of
operation of the heater if it is to be
switched on immediately.
If a malfunction of the program-
mable heating system occurs,
contact a CITROËN dealer. Displaying the functions
The passenger compartment tem-
perature information is only avail-
able when the engine is off.
Page 54 of 314
III
55
C O M F O R T
Setting the time
Once the time has been displayed,
by means of the buttons 1 , press
buttons 4 and 5 simultaneously within 10 seconds. Immediate activation
Press button
5 (ON) until the mes-
sage "OK" appears.
When the signal has been received,
the message "OK" is displayed
along with the duration of operation. Press the buttons
1 to display the
duration of operation.
T h i s s y m b o l fl a s h e s .
Set the time using the buttons 1 .
Press buttons 4 and 5 simultane-
ously to save it.
T h i s s y m b o l i s d i s p l a y e d ( fi x e d ) .
The heater starts and this
symbol is displayed.
To deactivate the function, press
button 4 (OFF) until the message
"OK" appears.
This symbol is switched off.
When carrying out these opera-
tions, if the message "FAIL" ap-
pears, the signal has not been
received. Repeat the procedure
after changing your location. Setting the duration of
operation
This symbol is displayed.
Once the duration of operation has
been displayed, press buttons 4 and
5 simultaneously within 10 seconds.
T h i s s y m b o l fl a s h e s .
Set the duration by pressing the but-
tons 1 (adjustment in steps of 10 mins
and max value 30 mins).
Press buttons 4 and 5 simultaneously
to save the duration of operation.
T h i s s y m b o l i s d i s p l a y e d ( fi x e d ) .
The factory setting value is 30 minutes.
Page 55 of 314
III
56
C O M F O R T
Programming the heating
You must programme your depar-
ture time in order for the system to
calculate the optimum heater start
time automatically.
Programming the departure time
Press the buttons 1 to display the
programming time. Activation - deactivation
Once the programming time has
been displayed by means of the but-
tons
1 , press button 5 (ON) until the
message "OK" appears.
This symbol is displayed.
Once the programming time has
been displayed, press buttons 4 and
5 simultaneously within 10 seconds.
T h i s s y m b o l fl a s h e s .
Set the time by pressing the buttons 1
and press buttons 4 and 5 simultane-
ously to save it.
T h i s s y m b o l i s d i s p l a y e d ( fi x e d ) .
This symbol is displayed when
the heater starts.
HTM: Heat Thermo Management.
When the signal has been re-
ceived, the message "OK" is
displayed along with the symbol
"HTM" .
To deactivate the programming, press
button 4 (OFF) until the message
"OK" appears.
The symbol "HTM" is switched off.
When carrying out these operations,
if the message "FAIL" appears,
the signal has not been received.
Repeat the procedure after chang-
ing your location.
Switching off the heating
Press button 5 (ON).
The symbol "HTM" remains on.
Changing the level of heating
The system offers 5 levels of heat-
ing (from the lowest level C1 to the
highest level C5 ).
Once the level of heating has been
displayed by means of the buttons 1 ,
press buttons 4 and 5 simultaneously.
The letter "C" fl a s h e s .
Set the level of heating by pressing
the buttons 1 .
Press buttons 4 and 5 simultane-
ously to save the level selected. The
letter "C" i s d i s p l a y e d ( fi x e d ) .
The factory pre-sets are replaced
by the new settings entered. The
programmed times are stored until
the next time they are changed.
When the departure time is acti-
vated, the level of heating cannot
be changed. The departure time
m u s t b e d e a c t i v a t e d fi r s t .
