4
F A M I L I A R I S A T I O N
E X T E R I O R
Xenon dual-function directional headlamps
This function automatically provides you with
extra visibility on bends. This lighting is linked
with the cornering lighting which maximises
the area lit at intersections and when parking.
Lane departure warning system
This driving aid warns you when
you unwittingly cross a lane
marking.
Parking
sensors
(visual + audible)
This function warns you if an
obstacle is detected in front of or
behind the vehicle.
Tyre
u n d e r - i n fl a t i o n
detection
This function checks the pressure
of the tyres automatically while
driving.
Panoramic sunroof
(Tourer)
This provides you with perfect brightness in the
passenger compartment.
Sunroof
(Saloon)
This also provides you with improved ventilation in the
passenger compartment.
87
80-81
144 147 112
Page 2 of 314
5
F A M I L I A R I S A T I O N
A. Key release/storage.
B. Normal locking of the vehicle (a single
press) or deadlocking of the vehicle
(two presses in succession).
C. Guide-me-home lighting.
D. Unlocking of the vehicle. T o o p e n t h e f u e l fl a p , p r e s s o n t h e t o p
l e f t c o r n e r , t h e n p u l l f r o m t h e e d g e .
Press upwards on the lever E .
Opening the boot
77-78
82
O P E N I N G
Remote control key Fuel tank
65 Locking filler cap
Turn the key a quarter turn to lock or
u n l o c k t h e fi l l e r c a p .
W h e n r e f u e l l i n g , p l a c e t h e c a p o n h o o k F .
Tank capacity: approximately 71 litres.
The boot automatically locks when the
vehicle is moving at a speed of over
6 m p h ( 1 0 k m / h ) , e v e n i f a u t o m a t i c
central locking is deactivated. It is
unlocked when a door is opened or when
the central locking button is pressed
(speed lower than 6 mph (10 km/h)).
Page 3 of 314
6
F A M I L I A R I S A T I O N

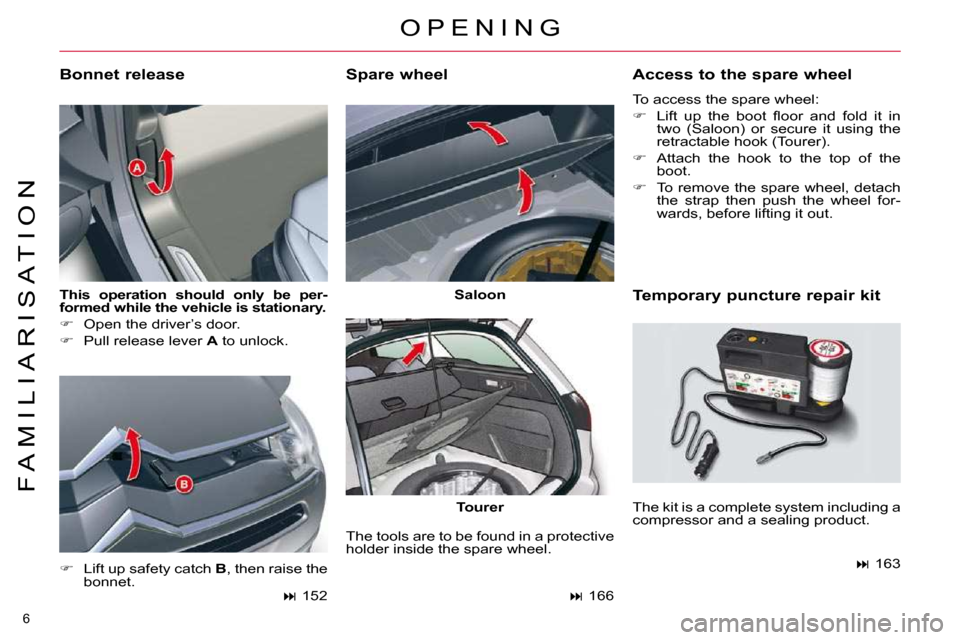

This operation should only be per-
formed while the vehicle is stationary.
Open the driver’s door.
Pull release lever A to unlock.
Bonnet release
O P E N I N G
Lift up safety catch B , t h e n r a i s e t h e
bonnet.
Saloon
Tourer
Spare wheel
The tools are to be found in a protective
holder inside the spare wheel.
166 Access to the spare wheel
To access the spare wheel:
L i f t u p t h e b o o t fl o o r a n d f o l d i t i n
two (Saloon) or secure it using the
retractable hook (Tourer).
Attach the hook to the top of the
boot.
T o r e m o v e t h e s p a r e w h e e l , d e t a c h
the strap then push the wheel for-
w a r d s , b e f o r e l i f t i n g i t o u t .
Temporary puncture repair kit
The kit is a complete system including a
compressor and a sealing product.
163
152
Page 4 of 314
7
F A M I L I A R I S A T I O N
124
I N T E R I O R
Electric parking brake
The electric parking brake combines automatic application when the
e n g i n e i s s w i t c h e d o f f , a n d a u t o m a t i c r e l e a s e w h e n t h e v e h i c l e i s s e t i n
motion (automatic function activated by default).
Manual locking/unlocking is possible.
Parking space sensor
The "Parking space sensor" func-
t i o n a s s i s t s y o u i n fi n d i n g a p a r k i n g
space.
Dual-zone
digital
air conditioning
This air conditioning system enables you to
adjust the comfort levels of the driver and the
front passenger independently.
Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
t e c h n o l o g y : M P 3 c o m p a t i b l e r a d i o , B l u e t o o t h ®
s y s t e m , N a v i D r i v e 3 D , M y W a y .
50
205
145
Page 5 of 314
8
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Electric windows/door mirrors/child safety controls.
2. Storing driver’s seat and door mirror settings.
3. Audio/telematic steering mounted controls.
4. H o r n .
5. Steering mounted controls:
- Speed limiter
- Cruise control
6. D r i v e r ’ s a i r b a g .
7. Navigation controls for the audio/telematics and
trip computer systems.
8. D r i v e r ’ s a i r v e n t .
9. Instrument panel.
10. D r i v e r ’ s a i r v e n t .
11. L i g h t i n g / D i r e c t i o n i n d i c a t o r s / F o g l a m p / V o i c e
recognition control stalk.
12. Manual headlamp height adjustment.
13. Steering wheel adjustment.
14. Knee airbag.
15. Locking/unlocking of doors and boot.
16. Checks/Anti-intrusion alarm/Parking space sensor
controls.
17. Ignition switch.
18. Windscreen wiper/screen wash control stalk.
19. Oddments tray or programmable heater controls.
20. U S B p o r t .
Page 6 of 314
9
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Sunlight sensor.
2. Soft diffusion air conditioning adjustment knob.
3. Passenger’s airbag.
4. Side window demist vent.
5. Passenger’s air vents.
6. B o n n e t r e l e a s e .
7. H a z a r d w a r n i n g l a m p s b u t t o n .
8. Switch in the glovebox:
- Passenger’s airbag activation/deactivation
9. Glovebox:
- V e h i c l e d o c u m e n t s t o r a g e
- Audio-video sockets
- F u s e b o x a c c e s s fl a p
10. E S P / P a r k i n g S e n s o r s / L a n e D e p a r t u r e W a r n i n g
System controls.
11. Suspension controls:
- Ground clearance adjustment
- Sport mode
12. Armrest with cup-holder.
13. Electric parking brake.
14. Automatic gearbox SPORT/SNOW mode controls.
15. Ashtray with cigar lighter.
16. Gear lever.
17. Storage.
18. Audio and telematics system.
19. Air conditioning controls.
20. Storage.
21. Multifunction screen.
Page 7 of 314
10
F A M I L I A R I S A T I O N
D A S H B O A R D
Audio.
Instrument panel menu.
Multifunction screen menu.
Telephone.
Cruise control and
speed limiter.
The " SET +, PAUSE, VOL+, MUTE "
b u t t o n s h a v e t o u c h i d e n t i fi c a t i o n t o
make them easier to use.
Activation of voice
recognition or reminder
of navigation guidance. M O D E : s e l e c t i o n o f t h e t y p e
of information displayed on multifunction screen.
138
Page 8 of 314
11
F A M I L I A R I S A T I O N
G E T T I N G S T A R T E D
1. S e a t c u s h i o n h e i g h t , a n g l e a n d s l i d e
adjustments.
2. Adjustment of the backrest angle.
3. Adjustment of top of backrest.
4. Adjustment of lumbar support height
and level.
5. Massage function.
6. H e a t e d s e a t c o n t r o l .
A. Adjustment of the backrest angle.
B. Adjustment of the seat height.
C. H e a t e d s e a t c o n t r o l .
D. Longitudinal adjustment of seat.
E. Adjustment of the backrest lumbar
support. Storing settings
This function allows you to programme
and store the driver’s seat and the air
conditioning settings.
The
correct position of the upper seat
belt anchorage places the belt across
the middle of the shoulder.
T o a d j u s t t h e s e a t b e l t f o r h e i g h t ,
compress the control and slide it in
the desired direction.
Seat belt height adjustment
Front seats
Electrical adjustments
Manual adjustments
58
59
117
61
Page 9 of 314
12
F A M I L I A R I S A T I O N
Electrochrome rear view mirror
Unlock the steering wheel by pushing
control A forwards.
Adjust the height and the reach of
t h e s t e e r i n g w h e e l , t h e n l o c k t h e p o -
sition by pulling the lever upwards.
Steering wheel adjustment
Electric door mirrors
1. Selection of
door
mirror:
A. Left hand side.
B. Right hand side.
C. Fold/Unfold.
2. Directional control for mirror
selected .
63 Automatic day/night model
A. Automatic detection of the day/night
mode.
B. Mirror orientation.
64
64
A s a s a f e t y p r e c a u t i o n , t h e s e o p e r a -
tions must not be carried out while
moving.
Page 10 of 314
13
F A M I L I A R I S A T I O N
V I S I B I L I T Y
Front wipers
Control stalk positions
2 Rapid wipe.
1 Normal wipe.
I Intermittent wipe.
0 Off.
Lighting
Sidelamps. D i p p e d / m a i n b e a m .
Lamps off.
Pull the control stalk towards you
to change between dipped and main
beam.
Front foglamps and rear
foglamps on.
Front foglamps on.
Automatic illumination of
headlamps. Rear wiper (Tourer)
Rotate control C to the desired posi-
tion.
Off
Intermittent wipe
Screen wash
Ring A
Ring B
85 Screen wash
Pull the screen wipe control stalk to-
wards you.
90-91
90
One press downwards:
-
AUTO: Automatic rain sensitive wipers
activated.
- Single wipe.
If the ignition has been switched off
f o r a r o u n d 1 m i n u t e , i t i s n e c e s s a r y t o
reactivate automatic wiping.
