Page 1 of 314
4
F A M I L I A R I S A T I O N
E X T E R I O R
Xenon dual-function directional headlamps
This function automatically provides you with
extra visibility on bends. This lighting is linked
with the cornering lighting which maximises
the area lit at intersections and when parking.
Lane departure warning system
This driving aid warns you when
you unwittingly cross a lane
marking.
Parking
sensors
(visual + audible)
This function warns you if an
obstacle is detected in front of or
behind the vehicle.
Tyre
u n d e r - i n fl a t i o n
detection
This function checks the pressure
of the tyres automatically while
driving.
Panoramic sunroof
(Tourer)
This provides you with perfect brightness in the
passenger compartment.
Sunroof
(Saloon)
This also provides you with improved ventilation in the
passenger compartment.
87
80-81
144 147 112
Page 5 of 314
8
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Electric windows/door mirrors/child safety controls.
2. Storing driver’s seat and door mirror settings.
3. Audio/telematic steering mounted controls.
4. H o r n .
5. Steering mounted controls:
- Speed limiter
- Cruise control
6. D r i v e r ’ s a i r b a g .
7. Navigation controls for the audio/telematics and
trip computer systems.
8. D r i v e r ’ s a i r v e n t .
9. Instrument panel.
10. D r i v e r ’ s a i r v e n t .
11. L i g h t i n g / D i r e c t i o n i n d i c a t o r s / F o g l a m p / V o i c e
recognition control stalk.
12. Manual headlamp height adjustment.
13. Steering wheel adjustment.
14. Knee airbag.
15. Locking/unlocking of doors and boot.
16. Checks/Anti-intrusion alarm/Parking space sensor
controls.
17. Ignition switch.
18. Windscreen wiper/screen wash control stalk.
19. Oddments tray or programmable heater controls.
20. U S B p o r t .
Page 10 of 314
13
F A M I L I A R I S A T I O N
V I S I B I L I T Y
Front wipers
Control stalk positions
2 Rapid wipe.
1 Normal wipe.
I Intermittent wipe.
0 Off.
Lighting
Sidelamps. D i p p e d / m a i n b e a m .
Lamps off.
Pull the control stalk towards you
to change between dipped and main
beam.
Front foglamps and rear
foglamps on.
Front foglamps on.
Automatic illumination of
headlamps. Rear wiper (Tourer)
Rotate control C to the desired posi-
tion.
Off
Intermittent wipe
Screen wash
Ring A
Ring B
85 Screen wash
Pull the screen wipe control stalk to-
wards you.
90-91
90
One press downwards:
-
AUTO: Automatic rain sensitive wipers
activated.
- Single wipe.
If the ignition has been switched off
f o r a r o u n d 1 m i n u t e , i t i s n e c e s s a r y t o
reactivate automatic wiping.
Page 26 of 314
I!
28M O N I T O R I N G
Indicator and warning lamps
V i s u a l i n d i c a t o r s i n f o r m i n g t h e d r i v e r t h a t a s y s t e m i s i n o p e r a t
i o n ( o p e r a t i o n o r
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
C e r t a i n w a r n i n g l a m p s c o m e o n f o r a f e w s e c o n d s w h e n t h e v e h i c l e ' s i g n i t i o n
is switched on.
W h e n t h e e n g i n e i s s t a r t e d , t h e s e s a m e w a r n i n g l a m p s s h o u l d s w i t c h o f f .
I f t h e y r e m a i n o n , b e f o r e m o v i n g o f f , r e f e r t o t h e i n f o r m a t i o n o n t h e w a r n i n g l a m p c o n c e r n e d .
Associated warnings
T h e s w i t c h i n g o n o f c e r t a i n w a r n i n g l a m p s m a y b e a c c o m p a n i e d b y a n a u d i b l e
signal and a message on the multifunction screen.
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
s p o n d i n g s y s t e m h a s c o m e i n t o o p e r a t i o n .
T h e w a r n i n g l a m p s m a y c o m e
o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
C e r t a i n w a r n i n g l a m p s m a y c o m e
o n i n t w o d i f f e r e n t m o d e s . O n l y
b y r e l a t i n g t h e t y p e o f l i g h t i n g t o
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a
fault has occurred.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
b u z z e r . The lighting stalk is pushed down.
Right-hand
direction
indicator fl a s h i n g w i t h
b u z z e r . The lighting stalk is pushed up.
Sidelamps fi x e d . The lighting stalk is in the
" S i d e l a m p s " p o s i t i o n . Turn the control to the desired
position.
Dipped beam
headlamps fi x e d . T h e l i g h t i n g s t a l k i s i n t h e " D i p p e d
beam headlamps" position. Turn the control to the desired
position.
Main beam
headlamps fi x e d . The lighting stalk is pulled towards
y o u . Pull the stalk to return to dipped
beam headlamps.
Page 87 of 314
V
84
V I S I B I L I T Y
EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving con-
ditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for im- proved visibility when cornering,
- daytime running lamps to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lamps off,
automatic illumination of
headlamps,
sidelamps only,
dipped headlamps or
main beam headlamps.
B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
( " h e a d l a m p fl a s h " ) b y m a i n t a i n i n g a
pull on the stalk.
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
c o n fi r m s t h e s e l e c t i v e s w i t c h i n g o n
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring A and the stalk B .
A. Main lighting mode selection ring,
with:
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the inter-
nal surface of the glass of the
headlamps and rear lamps is nor-
mal; it disappears after the lamps
have been on for a few minutes.
Page 88 of 314
V
85
V I S I B I L I T Y

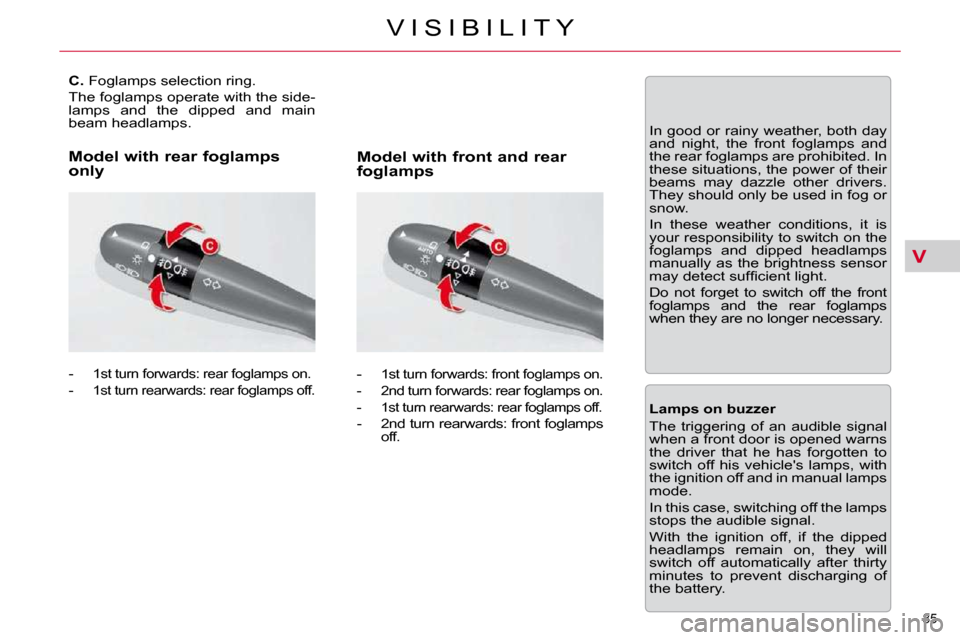

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
-
1 st turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 1 st turn forwards: front foglamps on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps off.
Model with rear foglamps
only
Model with front and rear
foglamps In good or rainy weather, both day
and night, the front foglamps and
the rear foglamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer necessary.
Lamps on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lamps, with
the ignition off and in manual lamps
mode.
In this case, switching off the lamps
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 89 of 314
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-

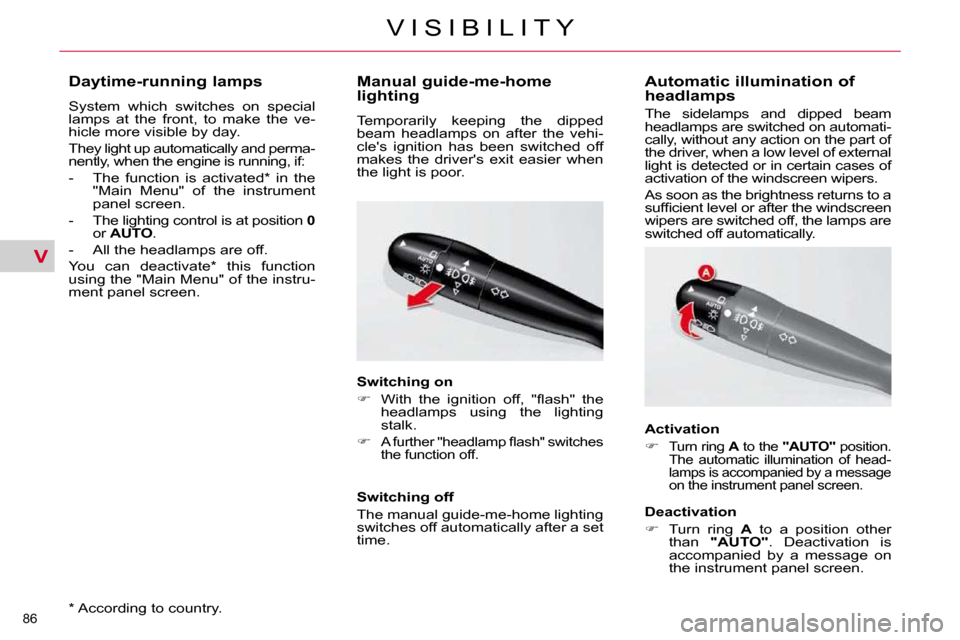

ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
Page 90 of 314
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 91 of 314
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
Page 92 of 314
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
