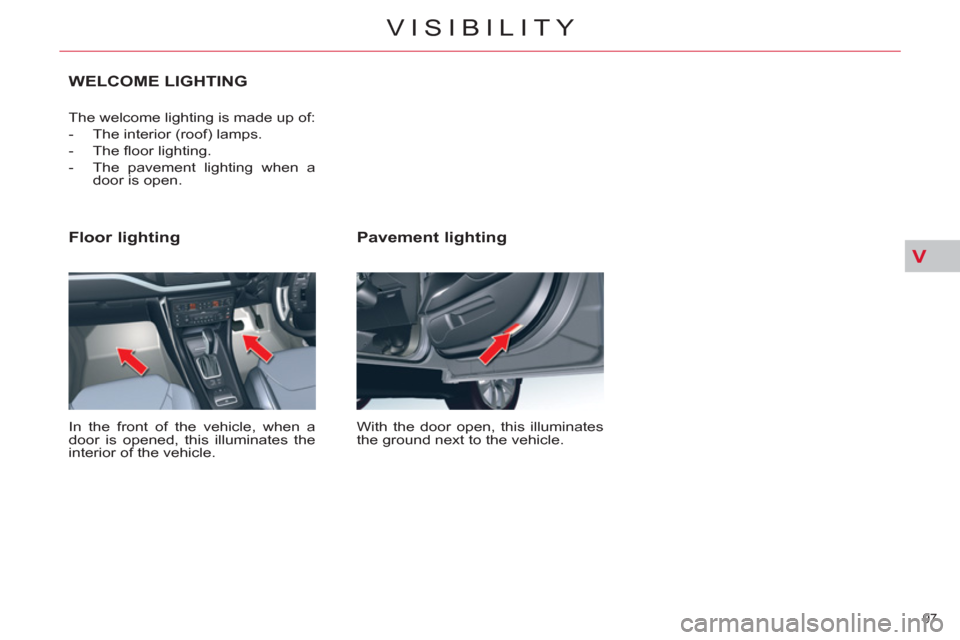

V
97
VISIBILITY
Pavement lighting
With the door open, this illuminates
the ground next to the vehicle.
Floor lighting
In the front of the vehicle, when a
door is opened, this illuminates the
interior of the vehicle.
The welcome lighting is made up of:
- The interior (roof) lamps.
- The fl oor lighting.
- The pavement lighting when a
door is open.
WELCOME LIGHTING
Page 104 of 316
VI
102
FITTINGS
BOOT FITTINGS (TOURER)
1.
Hook
For shopping bags.
2.
Torch
To recharge, return it to its stor-
age position.
3.
Storage net
or Battery com-
partment (for vehicles with
3 litre V6 HDi engine).
This provides access to the bat-
tery.
1.
Luggage-cover blind
(see details on following page)
2.
Luggage securing rings
Use the 4 stowing rings provided
on the boot fl oor to secure your
loads.
For safety reasons in the event
of sharp braking, you are ad-
vised to place heavy objects as
far forwards as possible.
3.
Hooks
These allow a cargo net to be
fi tted (see details on following
page).
1.
Boot lamp
2.
12 V accessories socket (100 W
maximum)
Cigarette lighter type 12 volt
socket. It is located on the rear
right-hand trim.
3.
Loading height control
You can change the height of the
vehicle to make loading or un-
loading easier.
4.
Hook
For shopping bags.
5.
Storage net
or closed housing
Location for the 6 CD changer.
Page 116 of 316
VIII
114
SAFETY
DIRECTION INDICATORS
)
Left: lower the lighting stalk be-
yond the point of resistance.
)
Right: raise the lighting stalk be-
yond the point of resistance.
"Motorway" function
)
Press briefl y upwards or down-
wards, without going beyond the
point of resistance; the direction
indicators will fl ash 3 times.
HAZARD WARNING LAMPS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, tow-
ing or accident.
Automatic operation of
hazard warning lamps
When braking in an emergency,
depending on the deceleration, the
hazard warning lamps come on au-
tomatically.
They switch off automatically the
fi rst time you accelerate.
)
You can also switch them off by
pressing the button.
Audible warning to alert other road
users to an imminent danger. Selection of the left or right direction
indicators to signal a change of di-
rection of the vehicle.
)
Press this button, the direction
indicators fl ash.
They can operate with the ignition off.
)
Press the left or right-hand part
of the fi xed centred controls
steering wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area
where there is no visibility.
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedi-
cated CITROËN service.
For more information on the use of
this function, refer to the "Audio and
telematics" section.
EMERGENCY OR
ASSISTANCE CALL
Page 119 of 316
VIII
11 7
SAFETY
BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems
which help you to obtain optimum
braking in complete safety in emer-
gency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution
(EBFD),
- emergency braking assistance
(EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular
on poor or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may
make itself felt by slight vibration of
the brake pedal.
Operating fault
When braking in an emergency,
press very fi rmly without releasing
the pressure. If this warning lamp comes
on, accompanied by an
audible signal and a mes-
sage in the instrument panel
screen, it indicates a fault with the
anti-lock braking system which could
result in loss of control of the vehicle
when braking.
If this warning lamp comes
on, together with the STOP
and ABS
warning lamps, ac-
companied by an audible sig-
nal and a message in the instrument
panel screen, it indicates a fault with
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.
You MUST stop as soon as it is
safe to do so.
In both cases, contact a CITROËN
dealer or a qualifi ed workshop.
When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.
Emergency braking assistance
System which, in an emergency,
enables you to obtain the optimum
braking pressure more quickly, thus
reducing the stopping distance.
Activation
It is triggered by the speed at which
the brake pedal is pressed.
The effect of this is a reduction in
the resistance of the pedal and an
increase in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing the
pressure.
Page 123 of 316
VIII
121
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their
role fully.
The seat belts are fi tted with an in-
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stowed
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
The inertia reels are fi tted with an
automatic locking device which
comes into operation in the event
of a collision, emergency braking or
if the vehicle rolls over. You can re-
lease the device by pulling fi rmly on
the strap and releasing it so that it
reels in slightly. In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a
smooth movement, checking
that it does not twist,
-
be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modifi ed to
avoid affecting its performance.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, for all repairs on your ve-
hicle, go to a qualifi ed workshop with
the skills and equipment needed,
which a CITROËN dealer is able to
provide.
Have your seat belts checked regu-
larly by a CITROËN dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
In the event of an impact
Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the
airbags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
or a qualifi ed workshop.
Page 124 of 316
VIII
122
SAFETY
AIRBAGS
System designed to maximise the
safety of the occupants (with the
exception of the rear centre pas-
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact,
the airbags are deployed instantly
and protect the occupants of the
vehicle (with the exception of the
rear centre passenger); immedi-
ately after the impact, the airbags
defl ate rapidly so that they do not
hinder visibility or the exit of the
occupants,
- in the case of a minor or rear im-
pact or in certain roll-over con-
ditions, the airbags will not be
deployed; the seat belt alone
is suffi cient to provide optimum
protection in these situations.
The airbags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone. Deployment of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
Page 132 of 316
IX
!
!
130
DRIVING
Dynamic emergency braking
In the event of a failure of the ve-
hicle’s main braking system or in
an exceptional situation (e.g. driver
taken ill, under instruction, etc) pull
and hold control lever A
to stop the
vehicle.
The electronic stability programme
(ESP) provides stability during dy-
namic emergency braking.
If there is a fault with the dynamic
emergency braking, one of the fol-
lowing messages will be displayed
in the instrument panel screen:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP sys-
tem is signalled by the light-
ing of this warning lamp,
then braking stability is not
guaranteed. In this event, stability
must be assured by the driver by
repeating alternate "pull release" ac-
tions on control lever A
.
The dynamic emergency brak-
ing should only be used in ex-
ceptional circumstances.
Emergency parking brake
release
In the event of the electric parking
brake failing to release, an emergen-
cy device can be used to release the
parking brake manually, provided that
it is possible to immobilise the vehicle
while the procedure is carried out.
)
If you can start the vehicle: with
the engine running, immobilise
the vehicle by applying the foot
brake while the operation is be-
ing carried out.
)
If you are unable to start the ve-
hicle (fl at battery for example):
do not use this device and con-
tact a CITROËN dealer or a
qualifi ed workshop. However, if
you are obliged to proceed, fi rst
immobilise your vehicle securely
and then follow the instructions
below. If the vehicle cannot be im-
mobilised, do not operate
the emergency release. Your ve-
hicle may run away if on a slope.
Contact a CITROËN dealer or a
qualifi ed workshop.
Page 143 of 316
IX!
141
DRIVING
STOP & START
The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c
(red lights, traffi c jams, or other...).
The engine restarts automatically -
START mode - as soon as you want
to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop &
Start system reduces fuel consump-
tion and exhaust emissions as well
as the noise level when stationary.
Operation
- with the electronic gearbox
system
, at speeds below 4 mph
(6 km/h), press the brake pedal or
put the gear lever in position N
.
Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:
If your vehicle is fi tted
with the system, a time
counter calculates the
sum of the periods in
STOP mode during a journey. It rests
itself to zero every time the ignition
is switched on with the key.
For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the func-
tionality of the vehicle, such as for ex-
ample, braking, power steering...
Never refuel with the engine
in STOP mode; you must
switch off the ignition with the
key.
Special cases: STOP mode not
available
In this case, the "ECO"
warning lamp fl ashes for a
few seconds then goes off.
This operation is perfectly normal.
STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fas-
tened,
- the vehicle has not exceeded
6 mph (10 km/h) since the last
engine start using the key,
- the electric parking brake is ap-
plied or being applied,
- the engine is needed to maintain
a comfortable temperature in the
passenger compartment,
- demisting is active,
- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of a
system.
Page 154 of 316
IX
152
DRIVING
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (40 km/h) and you
must be in at least:
- 4th gear for manual gearboxes,
- 2nd gear for automatic gearboxes.
Displays in the instrument
panel
The programmed information is
grouped together in zone A
of the
instrument panel.
Programming
)
Press button 4
to select cruise
control mode " CRUISE
".
Steering mounted controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The selection is confi rmed by the
display of the function in zone A
of
the instrument panel.
When the function is selected, no
cruising speed has yet been
memorised.
Once the desired speed has been
reached using the accelerator, press
button 1
or button 2
. The cruising
speed is then memorised and cruise
control is activated. The cruising
speed is displayed in zone A
of the
instrument panel, and "ON"
is dis-
played.
Adjustment of the memorised
speed while cruise control is
in operation
You can adjust the memorised
speed, displayed in zone A
, by
pressing:
- Button 1
to increase the speed.
- Button 2
to reduce the speed.
Successive presses will modify the
cruise speed in steps of 1 mph and a
continuous press in steps of 5 mph. You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The vehicle speed may vary slightly
from that memorised.
If during cruise control the system
cannot keep to the cruise speed
(e.g. on a steep descent), then the
speed fl ashes. If necessary, brake to
curb your speed.
Page 166 of 316
!
X
RUNNING OUT OF FUEL(DIESEL)
HDi 115 engine
)
Unclip the protective cover to gain
access to the priming pump.
HDi 140 and HDi 160 engines
)
Unclip the protective cover to gain
access to the priming pump.
Priming the fuel system
In the event of running out of fuel:
)
after fi lling (minimum 5 litres) and
removing the protective cover,
operate the manual priming pump,
until some resistance is felt,
)
operate the starter motor while
depressing the accelerator pedal
slightly until the engine starts. HDi engines make use of ad-
vanced technology.
For any work on your vehicle, con-
tact a qualifi ed workshop that has
the skills and equipment required,
which a CITROËN dealer is able to
provide.
V6 HDi 240 engine with electric
pump
In the event of running out of fuel:
)
after adding fuel, turn the ignition
key to position M
, wait for a few
seconds,
)
operate the starter motor until
the engine starts.
If the engine fails to start after sev-
eral attempts, contact a CITROËN
dealer or a qualifi ed workshop. If the engine fails to start at the fi rst
attempt, wait fi fteen seconds before
trying again.
If the engine fails to start after a few
attempts, operate the priming pump
again and then try to start the en-
gine.
When the engine is idling, accelerate
slightly to complete the bleeding of
the circuit.
CHECKS
164
CHECKS
