CONTENTS
Monochrome screen C 43
Colour screen (eMyWay) 45
II - MULTIFUNCTION SCREENS 43 Î 46
Ventilation 47
Mono-zone digital
air conditioning 49
Dual-zone digital
air conditioning 52
Programmable heating 56
Front seats 60
Rear seats 64
Mirrors 65
Steering wheel adjustment 66
47Î 66
Remote control key 67
Alarm 73
Electric windows 75
Doors 77
Boot 79
Sunroof (Saloon) 82
Panoramic sunroof (Tourer) 83
Fuel tank 84
Misfuel prevention (Diesel) 85
67 Î 85
Lighting controls 86
Automatic illumination
of headlamps 88
Headlamp adjustment 89
Directional lighting 90
Wiper controls 92
Automatic rain sensitive
windscreen wipers 93
Courtesy lamps 94
Interior mood lighting 96
86 Î97
Interior fi ttings 98
Mats 99
Front armrest 99
Boot fi ttings 101
VI -FITTINGS 98Î104
Instrument panels 26
Trip computer 29
Warning and indicator lamps 32
Adjustment buttons 42
FAMILIARISATION 4 Î 23
I - MONITORING 26 Î42
Child seats 105
ISOFIX child seats 109
Child lock 113
VII - CHILD SAFETY 105Î113
ECO-DRIVING 24 Î 25

4
FAMILIARISATION
EXTERIOR

Stop & Start

This system puts the engine tempo-
rarily into standby during stops in the
traffi c (red lights, traffi c jams, etc...).
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.

Lane departure warning system

This driving aid warns you when you
unwittingly cross a lane marking.


Parking sensors (visual and
audible)

This system warns you if an obsta-
cle is detected in front of or behind
the vehicle.
Tyre under-infl ation detection

This system checks the pressure of
the tyres automatically while driving.
Xenon dual-function directional
headlamps

This system automatically provides
you with extra visibility on bends.
This lighting is linked with the cor-
nering lighting which maximises the
illuminated area at intersections and
when parking.



141


89



154


157


115
Panoramic sunroof (Tourer)

This roof provides you with perfect
brightness in the passenger com-
partment.

Sunroof (Saloon)

This also provides you with im-
proved ventilation in the passenger
compartment.



82-83

8
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Electric windows/door mirrors/child safety
controls.

2.
Storing driver’s seat and door mirror settings.

3.
Audio/telematic steering mounted controls.

4.
Horn.

5.
Steering mounted controls:


- Speed limiter

- Cruise control

6.
Driver's airbag.

7.
Navigation controls for the audio/telematic and
trip computer systems.

8.
Driver's air vent.

9.
Instrument panel.

10.
Driver's air vent.

11 .
Stop & Start switch.

12.
Lighting/Direction indicators/Foglamp/Voice
recognition control stalk.

13.
Manual headlamp height adjustment.

14.
Steering wheel adjustment.

15.
Knee airbag.

16.
Locking/unlocking of doors and boot.

17.
Checks/Anti-intrusion alarm/Parking space
sensor controls.

18.
Ignition switch.

19.
Windscreen wiper/screenwash control stalk.

20.
Oddments tray or programmable heater
controls.

21.
USB port.

24
ECO-DRIVING

Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite soon.
If your vehicle has the system, the
gear effi ciency indicator invites you to
change up; it is displayed in the instru-
ment panel, follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background
traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.
Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2 emissions.

I
28
MONITORING


"Lighting" menu
Once you have selected this menu,
you can:


)
Activate/deactivate the lighting
of the daytime running lamps * .

)
Activate/deactivate the guide-
me-home lighting and adjust its
duration.

)

Activate/deactivate the dual-function
Xenon directional headlamps.



"Comfort" menu
Once you have selected this menu,
you can:


)
Activate/deactivate the driver's
welcome lighting function.

)
Select unlocking of all the doors
or just the driver's door.

)
Activate/deactivate automatic
operation of the electric parking
brake.




* Depending on country.

I
36
MONITORING




Front
foglamps


fi xed. The front foglamps are switched on. Turn the ring on the stalk rearwards
twice to switch off the front
foglamps.




Rear
foglamps


fi xed. The rear foglamps are switched on. Turn the ring on the stalk rearwards
to switch off the rear foglamps.









Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the screen.



Warning lamp



is on



Cause



Action / Observations






Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed down.




Right-hand
direction
indicator


fl ashing with
buzzer. The lighting stalk is pushed up.




Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the "Dipped
beam headlamps" position.





Main beam
headlamps


fi xed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped
beam headlamps.



Hazard
warning
lamps


fl ashing with
audible signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction
indicators and their associated
indicator lamps fl ash simultaneously.

II
46
MULTIFUNCTION SCREENS

Defi ne vehicle parameters *
This menu allows you to activate or
deactivate certain driving and com-
fort systems, listed by category:


- Parking help


- Screen wiper functions



●
Engage rear wiper when in re-
verse (Rear wiper coupled to
reverse; see "Visibility"),

-

Confi gure lighting (see "Visibility"):



●
Duration of guide-me-home
lighting,

●
Directional headlamps function,

●

Daytime running lamps function ** .




Alert log
It lists the active alerts by displaying
the various associated messages in
turn.

Select language
This menu allows you to select the
language used by the screen display:
(Français, English, Italien, Portugais,
Espagnol, Allemand, Néerlandais,
Turc, Polonais, Russe).
Display confi guration
This menu allows you to choose a
colour scheme for the screen, adjust
the brightness, set the date and time
and choose the units for distance
(km or miles), fuel consumption
(l/100 km, mpg or km/l) and tempe-
rature (°Celsius or °Fahrenheit).
Speech synthesis setting

This menu allows you to set the volume
for navigation instructions and to chooses
the type of voice (male or female).


When setting the time, you can
choose to "Synchronise minutes
with GPS"
, so that the minutes
are set automatically by satellite
reception.

* Depending on country.

** Depending on country of sale.

V
86

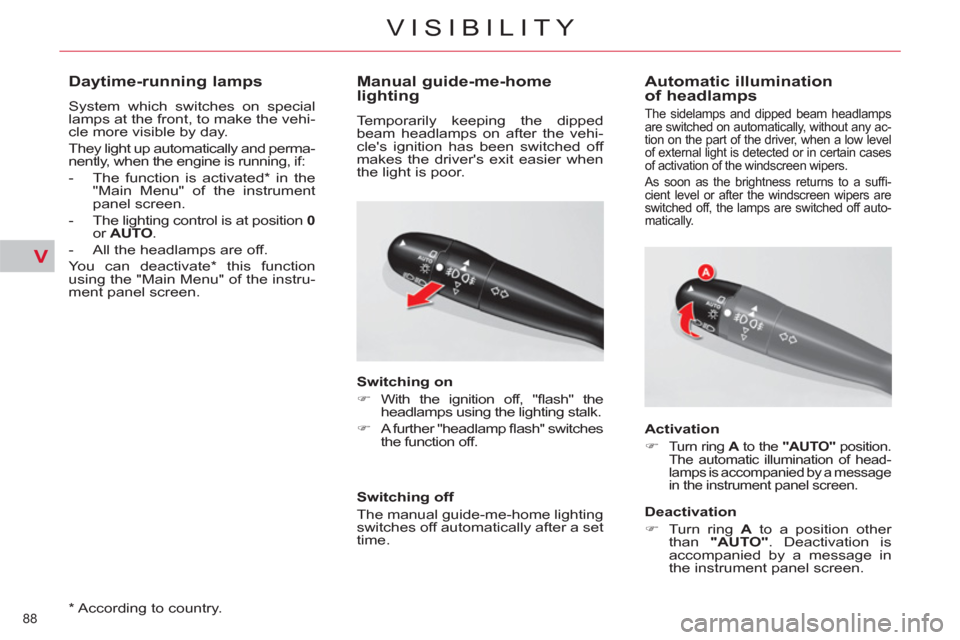

VISIBILITY
EXTERIOR LIGHTING
CONTROLS
Control stalk for the selection and
control of the various front and rear
lamps providing the vehicle's lighting.

Main lighting

The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see
clearly when the road is clear.



Additional lighting

Other lamps are fi tted to fulfi l the re-
quirements of particular driving con-
ditions:


- a rear foglamp to be seen from a
distance,

- front foglamps for even better
forward vision,

- directional headlamps for im-
proved visibility when cornering,

- daytime running lamps to be
seen during the day.



Settings

Various automatic lighting control
modes are also available depending
on options:


- daytime running lamps,

-
automatic illumination of headlamps,


- directional lighting,

- guide-me-home lighting.



Manual controls

Lamps off.





Automatic illumination of
headlamps.
Sidelamps.
Dipped headlamps or
main beam headlamps.

B.

Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
("headlamp fl ash") by maintaining a
pull on the stalk.

Displays

Illumination of the corresponding indicator
lamp in the instrument panel confi rms that
the lighting selected is on.

The lighting is controlled directly by
the driver by means of the ring A

and the stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
In some weather conditions (e.g. low
temperature or humidity), the pre-
sence of misting on the internal sur-
face of the glass of the headlamps
and rear lamps is normal; it disap-
pears after the lamps have been on
for a few minutes.

V
87
VISIBILITY









C.
Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.


-
1 st turn forwards: rear foglamps on.


- 1

st turn rearwards: rear foglamps off.




- 1 st
turn forwards: front foglamps on.

- 2 nd
turn forwards: rear foglamps on.

- 1 st
turn rearwards: rear foglamps off.

- 2 nd
turn rearwards: front foglamps off.



Model with rear
foglamps only
Model with front and rear
foglamps





In good or rainy weather, both day
and night, use of the front foglamps
and the rear foglamps is prohibited.
In these situations, the power of
their beams may dazzle other dri-
vers. They should only be used in
fog or falling snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the sunshine sensor
may detect suffi cient light.
Do not forget to switch off the front
and rear foglamps when they are
no longer needed.

Lighting left on
When a front door is opened with
the ignition off and in manual light-
ing mode, an audible signal warns
the driver if the vehicle's lighting is
still on.
In this case, switching off the light-
ing stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.

V
88
VISIBILITY

*
According to country.







Daytime-running lamps

System which switches on special
lamps at the front, to make the vehi-
cle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:


- The function is activated * in the
"Main Menu" of the instrument
panel screen.

- The lighting control is at position 0

or AUTO
.

- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen.






Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)

A further "headlamp fl ash" switches
the function off.



Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.














Automatic illumination
of headlamps
The sidelamps and dipped beam headlamps
are switched on automatically, without any ac-
tion on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a suffi -
cient level or after the windscreen wipers are
switched off, the lamps are switched off auto-
matically.

Activation


)

Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a message
in the instrument panel screen.



Deactivation


)
Turn ring A
to a position other
than "AUTO"
. Deactivation is
accompanied by a message in
the instrument panel screen.
