CITROEN C5 2013 Owners Manual

329
C5_en_Chap10c_RD45_ed01-2016
The table below gives answers to the most frequently asked questions on your audio system.QUESTION ANSWER SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: the audio equipment switches to economy
mode and switches off to prevent discharging of the vehicle's
battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction in volume or CD play
stopping. Switch the audio system off for a few minutes to
allow the system to cool.
Frequently asked questions
QUESTION
ANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the audio functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
Radio
.
Audio and Telematics

330
C5_en_Chap10c_RD45_ed01-2016

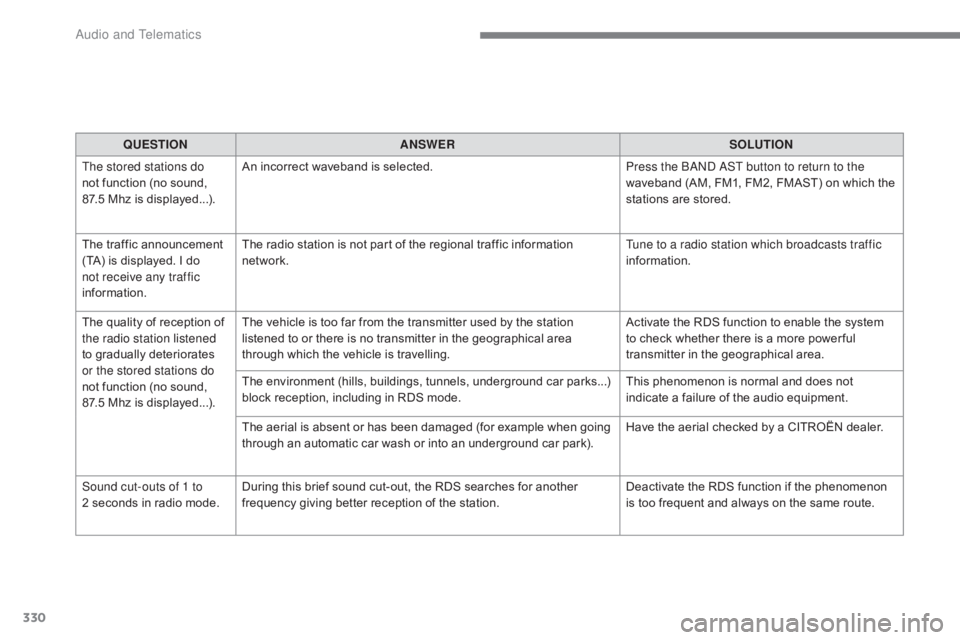

QUESTIONANSWER SOLUTION
The stored stations do
not function (no sound,
87.5

Mhz is displayed...). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5

Mhz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
Audio and Telematics

331
C5_en_Chap10c_RD45_ed01-2016

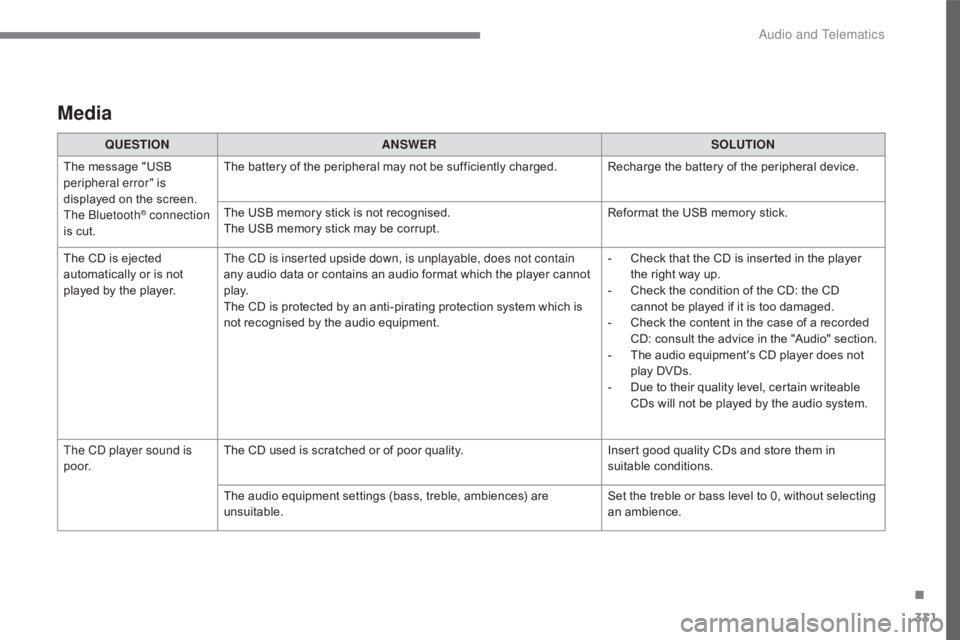

Media
QUESTIONANSWER SOLUTION
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth
® connection
is cut. The battery of the peripheral may not be sufficiently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain
any audio data or contains an audio format which the player cannot
p l ay.
The CD is protected by an anti-pirating protection system which is
not recognised by the audio equipment. -

C
heck that the CD is inserted in the player
the right way up.
-

C
heck the condition of the CD: the CD
cannot be played if it is too damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-

T
he audio equipment's CD player does not
play DVDs.
-

D
ue to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
p o o r. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
.
Audio and Telematics

332
C5_en_Chap10c_RD45_ed01-2016

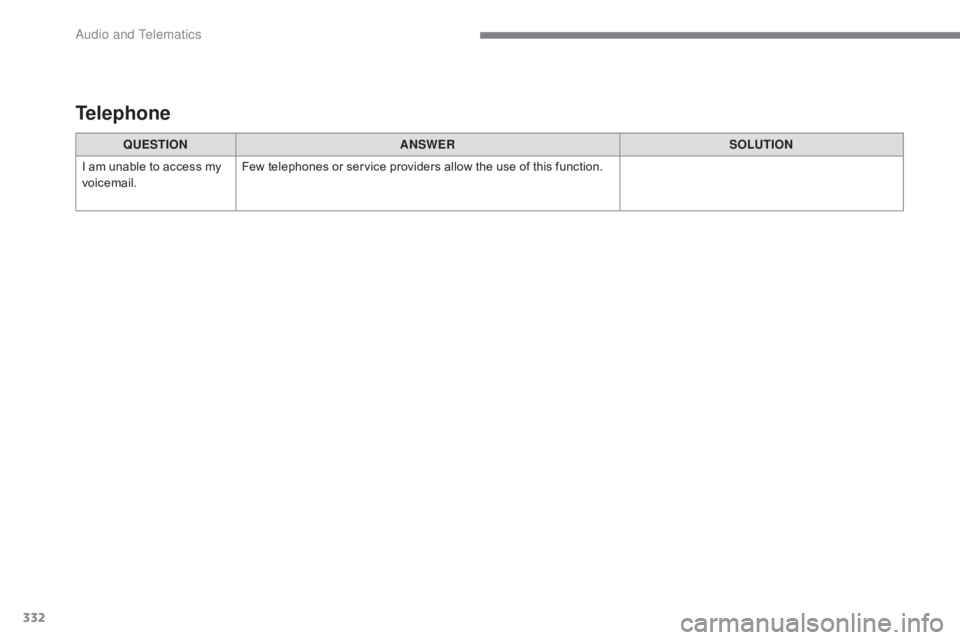

QUESTIONANSWER SOLUTION
I am unable to access my
voicemail. Few telephones or service providers allow the use of this function.
Telephone
Audio and Telematics

333
C5_en_Chap11_index-alpha_ed01-2016
Accessories ..................................................14 4
AdBlue® additive ......................3 2, 195, 196, 200
Adjusting headlamps .................................... 13
7
Adjusting head restraints

..........................6

0, 68
Adjusting seat
........................................... 6

0, 61
Adjusting the air distribution

...........................72
A

djusting the air flow
....................................... 72
A

djusting the date
........................................... 43
A

djusting the height and reach
of the steering wheel

.................................... 65
A

djusting the seat belt height
.......................1

51
Adjusting the temperature

.............................. 72
A

djusting the time
........................................... 43
A

dvice on driving
..............................
...... 91, 180
Airbag, knee

.................................................. 15

7
Airbags
...............

............................................. 35
Airbags, curtain
..................................... 15

6, 15 8
Airbags, front................................................. 15 8
Airbags, lateral
...................................... 15

6, 15 8
Air conditioning
...............................

................12
Air conditioning, automatic

............................. 71
A

ir conditioning, digital
................................... 72
A

ir conditioning, manual
................................. 71
A

ir vents
..............................
............................70
Alarm
............................................................... 49
A

nti-lock braking system (ABS)
....................14

7
Anti-pinch
.................................................. 5

2, 79
Anti-slip regulation (ASR)..............
....... 1

48, 150
Anti-theft
..............................

...........................92
Armrest, front

.................................................. 83
A

rmrest, rear
................................................... 84
A

ssistance call
...............................
....... 146, 250
A
B
C
Battery ............................... .... 179, 192, 235 -238
Battery, charging ............................... ............237
Battery, remote control

............................. 4
7, 48
Blanking screen (snow shield)

......................18

4
Blind, panoramic sunroof

................................79
B

linds, side
...................................................... 85
Bl

ueHDi
...............................
..................195, 19 6
Bluetooth
® (hands-free) ................3 02, 303, 324
Bluetooth® (telephone) ..........................3 02, 303
Bolts, wheel security ..................................... 2
14
Bonnet
...............

............................................ 185
Boot
........

................................................... 57, 58
Boot (fittings)

...............................
.............. 86, 87
Brake discs

.................................................... 19

4
Brake lamps

...............................
...........222, 224
Brakes
........................................................... 19

4
Braking assistance system

........................... 14

7
Bulbs (changing)
...................2

18, 222, 224, 227
Audio streaming (Bluetooth
®) .......282, 283, 323
Audio system
............................... ...........116, 315
Auxiliary
........................................................ 28

2Cable, audio ..................................................
28 2
Cable, jack .............................. ......................282
Capacity, fuel tank

..............................
..........175
Cap, fuel filler

................................................17

5
CarPlay
® connection ..................................... 2 97
CD, MP3 ........................................ 2 82, 321, 322
Central locking

.......................................... 4
5, 54
Changing a bulb
....................2

18, 222, 224, 227
Changing a fuse
............................................ 2

29
Changing a wheel

...............................
..........2 11
Changing a wiper blade

................................ 14

3
Changing the remote control battery
........................................................... 47
C

HECK
................
............................................ 20
Checking the engine oil level

..........................24
C

hecking the levels
....................... 1
88, 190, 191
Checking tyre pressures (using the kit)

........20

4
Checks
...............

................... 186, 187, 192, 194
Child lock

...............................
.................. 52, 173
Children
...............................

.......... 166, 171, 172
Child seats

.................... 1
53, 159 -161, 165, 168
Child seats, conventional
...................... 16

5, 166
Child seats, ISOFIX

.......................1
69, 171, 172
C
ITROËN
C
onnect Box
............................... 25

0
C
ITROËN
L
ocalised Emergency Call........... 250
Closing the boot

...............................
...............45
Closing the doors

...............................
....... 45, 54
Compressor, tyre inflation

............................ 20

4
Configuration, vehicle
..................1

5, 37, 41, 326
Connection, Bluetooth
® .........................3 02, 303
Connection, MirrorLink® ........................2 92, 294
Control, electric windows ................................ 52
C
ontrol, emergency boot release
................... 57
.

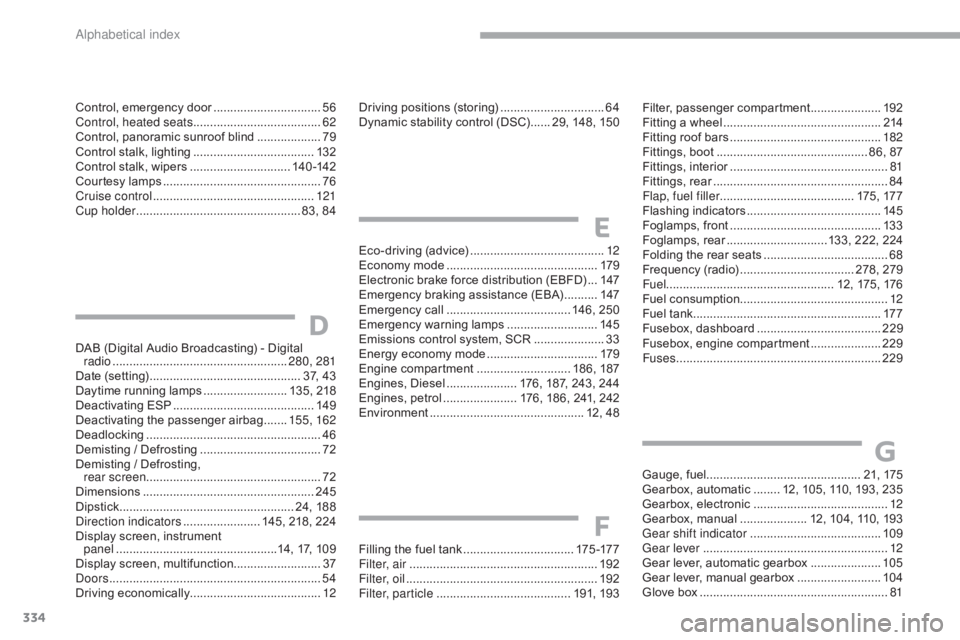

Alphabetical index

334
C5_en_Chap11_index-alpha_ed01-2016
G
F
D
Gauge, fuel.............................................. 21, 175
Gearbox, automatic ........ 1 2, 105, 110, 193, 235
Gearbox, electronic
........................................ 12
G

earbox, manual
.................... 1
2, 104, 110, 193
Gear shift indicator
....................................... 10

9
Gear lever
..............................

.........................12
Gear lever, automatic gearbox

.....................10

5
Gear lever, manual gearbox

.........................10

4
Glove box

........................................................ 81
F

illing the fuel tank

................................. 17

5 -17 7
Filter, air
...............

......................................... 192
Filter, oil
......................................................... 19

2
Filter, particle
........................................ 19

1, 193
DAB (Digital Audio Broadcasting) - Digital
radio
...............

.....................................
280, 281
Date (setting)

...............................

.............. 37, 43
Daytime running lamps

......................... 1

35, 218
Deactivating ESP

..........................................
14

9
Deactivating the passenger airbag
....... 15

5, 162
Deadlocking
...............................

.....................
46
Demisting / Defrosting

....................................
7

2
Demisting / Defrosting, rear screen .................................................... 72
Dimensions
..............................

..................... 245
Dipstick
................

.................................... 24, 188
Direction indicators
....................... 1

45, 218, 224
Display screen, instrument panel
................................................1

4, 17, 109
Display screen, multifunction.......................... 37
Doors
..............................................................

. 54
Driving economically ....................................... 12 Filter, passenger compartment
.....................
19
2
Fitting a wheel
...............................
................
214
Fitting roof bars
.............................................
18
2
Fittings, boot
............................................. 8
6, 87
Fittings, interior
............................................... 81
F
ittings, rear
...............................
.....................
84
Flap, fuel filler
...............................
.........
175 , 17 7
Flashing indicators
........................................ 14
5
Foglamps, front
...............................
..............
13 3
Foglamps, rear
..............................1
33, 222, 224
Folding the rear seats
.....................................
68
F
requency (radio)
.................................. 2
78, 279
Fuel .................................................. 12, 175, 176
Fuel consumption
............................................ 12
F
uel tank........................................................
17 7
Fusebox, dashboard
..................................... 2
29
Fusebox, engine compartment
..................... 2
29
Fuses
................
.............................................
229
Eco-driving (advice)
........................................
12
E

conomy mode

...............................

..............
179
Electronic brake force distribution (EBFD)

...
14

7
Emergency braking assistance (EBA)

..........
14

7
Emergency call
..................................... 1

46, 250
Emergency warning lamps
........................... 14

5
Emissions control system, SCR

.....................
33
E

nergy economy mode

.................................
17

9
Engine compartment
............................ 1

86, 187
Engines, Diesel

..................... 1

76, 187, 243, 244
Engines, petrol

...................... 1

76, 186, 241, 242
Environment
...............................

............... 12, 48
E
Control, emergency door ................................
56
C ontrol, heated seats ...................................... 62
C
ontrol, panoramic sunroof blind
...................79
C

ontrol stalk, lighting
.................................... 13

2
Control stalk, wipers

..............................14

0 -142
Courtesy lamps

............................................... 76
C

ruise control
................................................ 12

1
Cup holder

...............................
.................. 83, 84Driving positions (storing)
...............................64
D
ynamic stability control (DSC) ...... 2 9, 148, 150
Alphabetical index

335
C5_en_Chap11_index-alpha_ed01-2016
Key with remote control ................44, 45, 48, 92
Kit, hands-free ..............................3 02, 303, 324
Kit, temporary puncture repair

......................20

4
Jack
........

...............................................
2 11, 2 8 2
Jump starting
..............................
..................
236
Identification, vehicle
.................................... 24

9
Ignition
................

............................................. 94
Immobiliser, electronic
.............................. 4

8, 92
Indicator, AdBlue
® range ............................... 19 6
Indicator, coolant temperature ........................ 21
I
ndicator, engine oil level
................................ 24
I

ndicator, engine oil temperature
....................21
I

ndicator lamps, operation
.................. 2
9, 34, 36
Indicators, direction
...................................... 14

5
Inflating tyres

..............................
............ 12, 204
Instrument panels
...............................

............14
Isofix mountings
...............................

.............169
I
H
K
J
L
Labels, identification ..................................... 24 9
Lane Departure Warning System (LDWS)
....................................................... 12

4
Level, brake fluid

........................................... 19

0
Level, Diesel additive
.................................... 19

1
Level, engine coolant

.............................. 2
1, 190
Level, engine oil

...............................
....... 24, 188
Level, headlamp wash

..................................19

1
Level, power steering fluid

............................19

0
Levels and checks

.................1
86 -188, 190, 191
Level, screenwash fluid

................................19

1Lighting
................

............................................
77
Lighting, dashboard
........................................ 25
L
ighting dimmer
..............................
................
25
Lighting, directional
............................... 13
8, 13 9
Lighting, guide-me home
......................
13
5, 13 6
Lighting, interior
.............................................. 76
L
ighting, mood
..............................
..................
77
Lighting, welcome
...........................................
77
Lo
ading
..............................
.............................
12
Localised Assistance Call
............................. 25
0
Locating your vehicle
......................................
47
L
ocking from the inside
...................................
54
L
og, alerts
.......................................................
20
L
uggage cover
..............................
.................
88
M
Maintenance, routine ...................................... 12
M ap reading lamps ......................................... 76
M
arkings, identification
................................. 24

9
Massage function

...............................
............63
Mat
.......

........................................................... 82
Menu
............................2

58, 260, 264, 272, 274,
276, 284, 286, 288, 298, 300
Menu, main

..............................
............... 15, 318
Menus (audio)

..............................
. 272, 274, 276
Menus (Touch screen tablet)

................ 2
53, 257
Mirror, rear view

.............................................. 67
H

azard warning lamps
..................................
14

5
Headlamp adjustment
................................... 13

7
Headlamps, automatic illumination

......
13

3, 13 6
Headlamps, dipped beam

..................... 1

32, 218
Headlamps, directional
.......................... 13

7, 13 9
Headlamps, main beam

........................ 1

32, 218
Headlamps, Xenon

.......................................
2

18
Headlamp wash
............................................ 1

41
Head restraints, front

................................
6

0, 62
Head restraints, rear

.......................................
68
H

eating
................

............................................
12
Hill start assist

...............................................
10

3
Horn ....................................................... 116, 146
.
Alphabetical index

336
C5_en_Chap11_index-alpha_ed01-2016
Mirrors, door.................................................... 66
Misfuel prevention ............................... ..........17 7
Mountings, Isofix
...............................

............169
MP3 CD

................
......................................... 322Pads, brake ...................................................
19 4
Paint colour code ..........................................24
9
Panoramic glass sunroof

................................79
P

arking brake
....................................9
5, 96, 194
Parking brake, electric

.............................. 2
8, 96
Parking sensors, front

...................................12

7
Parking sensors, rear.................................... 127
Parking space sensor

..................................12

5
Plates, identification ...................................... 249
Player, Apple
® .............................. ......... 283, 323
Player, MP3 CD ............................... ...... 321, 322
Player, USB

........................................... 2
82, 320
Port, USB

........................................8
3, 282, 320
Pressures, tyres
.................................... 2

05, 249
Pre-tensioning seat belts

.............................. 15

3
Priming the fuel system

................................ 20

3
Protecting
children
................ 1

59 -161, 166, 169, 171, 172
Puncture
................

........................................ 204
P
R
Radio ..................................... 278, 279, 282, 318
Radio, digital (Digital Audio Broadcasting - DAB)

...........................28

0, 281
Range, AdBlue
® ............................... .....19 6, 197
RDS ................
............................................... 279
Reading lamps, rear

........................................ 76
R

echarging the battery
................................. 2

37
Navigation
...............................

......258, 260, 264
Net, high load retaining

...................................
89
N

umber plate lamps

......................................
2

26
Safety, children
.............. 1
59 -162, 166, 169, 172
Screen, cold climate

.....................................18

4
Oil change

...............................

......................
188
Oil consumption

............................................
18

8
Oil, engine

...............................

......................
188
Opening the bonnet

......................................
18

5
Opening the boot

..............................

..............
44
Opening the doors

...............................

..... 44, 54
Opening the fuel filler flap

.............................
17

5
Opening the panoramic sunroof blind
............
79
N
S
O
Recirculation, air ............................... ..............72
Regeneration of the particle filter .................19
3
Reinitialising the electric windows

..................52
R

einitialising the remote control
.....................47
R

eminder, key in ignition
.................................94
R

eminder, lighting on
.................................... 13

4
Remote control

....................................4
4, 45, 48
Removing a wheel

..............................
..........214
Removing the mat

...............................
............82
Replacing bulbs
....................2

18, 222, 224, 227
Replacing fuses
..............................

..............229
Replacing the air filter

...................................19

2
Replacing the oil filter

................................... 19

2
Replacing the passenger compartment filter
...19

2
Reservoir, headlamp wash

...........................19

1
Reservoir, screenwash
................................. 19

1
Resetting the service indicator

.......................23
R

esetting the trip recorder
..............................25
R

ev counter
..................................................... 14
R

eversing camera
...............................
..........129
Reversing lamp
..................................... 2

22, 224
Risk areas (update)

....................................... 26

9
Roof bars
....................................................... 18

2
Running out of fuel (Diesel)

..........................20

3
Alphabetical index

337
C5_en_Chap11_index-alpha_ed01-2016
T
Table of weights .................................... 242, 244
Tables of engines ............................... ... 241, 243
Tables of fuses

.............................................. 2

29
Tank, fuel

...............................
................175 , 17 7
Technical data
........................................ 24

1-245
Telephone
..................... 2

98, 300, 302-304, 324
Temperature, coolant
...................................... 21
T

hree flashes (direction indicators)
..............14

5
Time (setting)

..............................
.............. 37, 43
TMC (Traffic info)

.......................................... 2

70
To o l s
................

...................................... 204, 211
Total distance recorder
................................... 25
S

creen, instrument panel

............. 1

5, 17, 20, 116
Screen menu map

............... 2

58, 260, 264, 272,

274, 276, 284, 286, 288, 298, 300, 326
Screen, monochrome C

.................. 3

7, 318, 326
Screenwash, front
......................................... 1

41
Screenwash, rear
...............................

...........
141
SCR (Selective Catalytic Reduction)
.................................................. 19

5
Seat belts
....................................... 15

1-153, 165
Seats, front
...............................

........... 60, 61, 64
Seats, heated
...............................

.............
60, 62
Seats, rear
....................................................... 68
S

ecuring rings
...............................

..................
86
Serial number, vehicle

..................................
24

9
Service indicator
....................................... 2

2, 23
Servicing
...............................

.................... 12, 23
Settings, equipment
.....................1

5, 37, 41, 326
Settings (Menus)
...........................2

84, 286, 288
Settings, system

...............................

.............
291
Sidelamps
............................. 1

32, 218, 222, 224
Side repeater
..............................

..................
218
Ski flap
..............................
..............................
85
Snow chains .................................................. 17
8
SNOW MOTION ............................................ 148
Socket, 12 volt accessory

............................... 84
S

ocket, auxiliary

...............................

..... 282, 321
Socket, JACK

...............................

... 83, 282, 321
Soft distribution
............................................... 70
Spe

ed limiter
...............................

.................. 118
Speedometer
..............................

.................... 14
Starting the engine

......................................... 92
S

tarting using another battery

...................... 23

6
Station, radio
......................................... 2

78, 279
Stay, bonnet
...............................

................... 185Steering mounted controls, audio

........ 2
56, 317
Steering wheel, adjustment
............................
65
S
teering wheel, fixed centred controls
.........
11
6
Stopping the vehicle
.......................................
92
St
op & Start
...........................1
9, 35, 71, 75, 110,

175, 185, 192, 235, 238
Storage compartments
................................... 81
S
toring driving positions
.................................
64
S
un visor
.........................................................
81
S
uspension, electronic control
.....................
13
0
Suspension, Hydractive III+
.......................... 13
0
Switching off the engine
.................................
92
S
ynchronising the remote control
...................
47T
ouch screen tablet
...............1
8, 39, 41, 42, 116
Touch screen tablet ( M e nu s)
....................... 1
8, 39, 41, 42, 253, 257
To w b a r
................
...........................................
180
Towed loads
.......................................... 2
42, 244
Towing another vehicle
.................................
23
9
Towing eye
....................................................
23
9
Traction control (ASR)
............................ 2
9, 148
Traffic information (TA)
......................... 2
71, 319
Traffic information (TMC)
..............................
2
70
Tr a i l e r
...............
.............................................
180
Trajectory control systems
............................
14
8
Trip computer
.............................................
17
-19
Trip distance recorder
..................................... 25
Tr
i p r e s e t
....................................................1
7, 18
Ty r e s
..............................................................
..
12
Tyre under-inflation detection
................1
14, 217
U
Unlocking ..............................
..........................44
Unlocking from the inside ...............................54
U
pdating risk areas
....................................... 26

9
Updating the date

............................................ 43
U

pdating the time
............................................ 43
US

B
........
............................................... 282, 322
.
Alphabetical index

338
C5_en_Chap11_index-alpha_ed01-2016

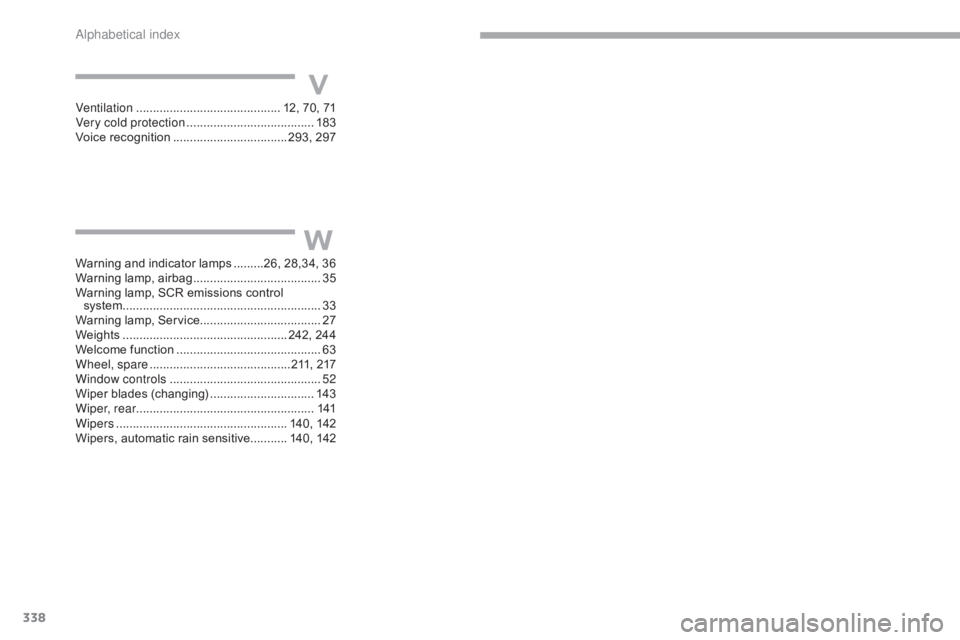

V
W
Warning and indicator lamps .........26, 28,34, 36
Warning lamp, airbag ...................................... 35
W
arning lamp, SCR emissions control
system

................
........................................... 33
Warning lamp, Service.................................... 27
Weights
...............

.................................. 242, 244
Welcome function
........................................... 63
W

heel, spare
.......................................... 21

1, 217
Window controls
............................................. 52
W

iper blades (changing)
............................... 14

3
Wiper, rear ..................................................... 141
Wipers
................................................... 14

0, 142
Wipers, automatic rain sensitive

...........14

0, 142
Ventilation
..............................

............. 12, 70, 71
Very cold protection
...................................... 18
3
Voice recognition
...............................
... 293, 297
Alphabetical index
